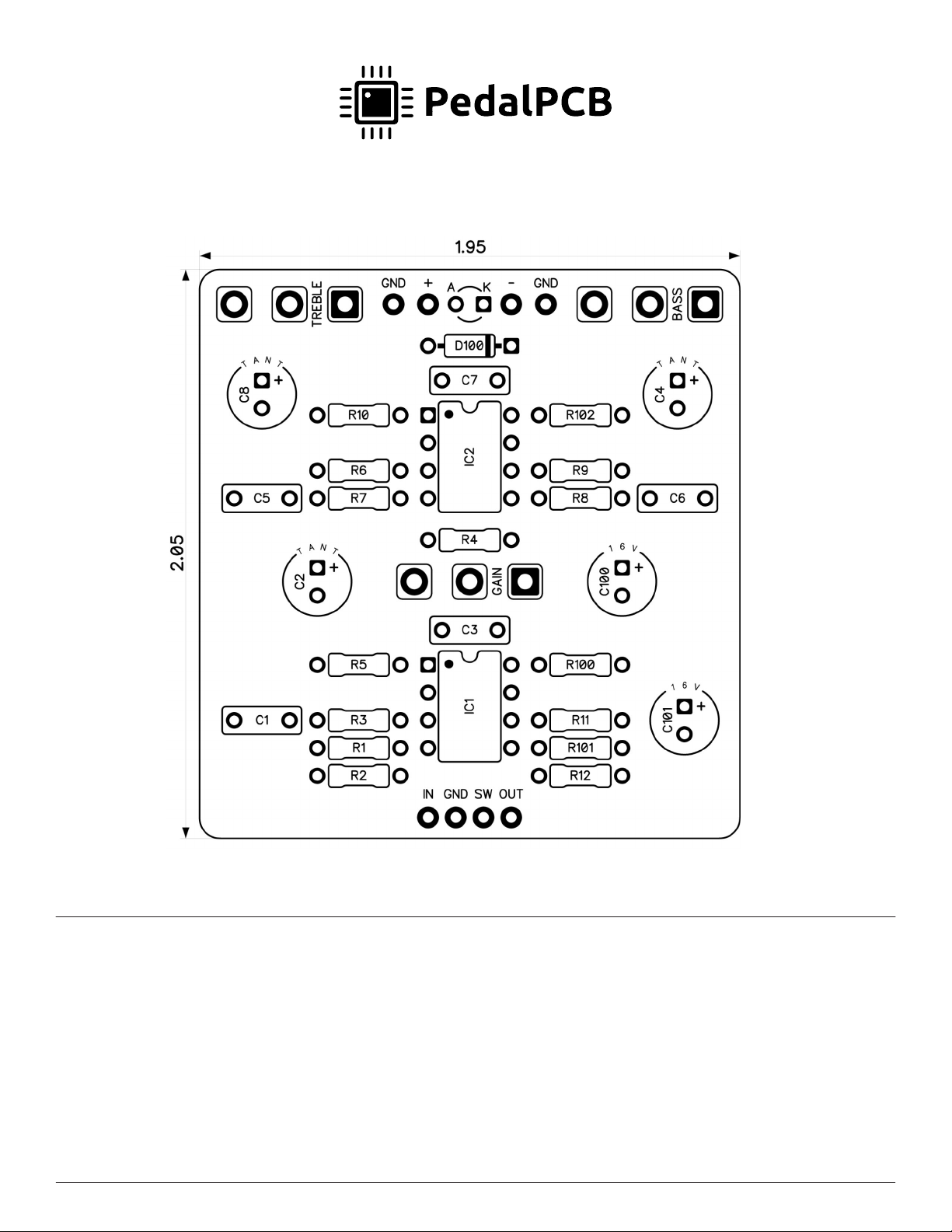

PedalPCB Micro-Addition Boost Bedienungsanleitung

Copyright © 2023 - PedalPCB.com Page 1 of 5Micro-Addition Boost

Micro-Addition Boost

Revised 8/16/23

All trademarks and registered trademarks are the property of their respective owners. The company, product, and service names used in this web site

are for identication purposes only. Use of these names, logos, and brands does not imply endorsement.

• Bass

• Treble

• Gain

CONTROLS AND FEATURES

Copyright © 2023 - PedalPCB.com Page 2 of 5

Micro-Addition Boost

Micro-Addition Boost

Parts List (Page 1 of 1)

LOCATION VALUE TYPE NOTES

R1 2M2 Resistor, 1/4W

R2 1M Resistor, 1/4W

R3 10K Resistor, 1/4W

R4 2K7 Resistor, 1/4W

R5 56K Resistor, 1/4W

R6 2K2 Resistor, 1/4W

R7 750R Resistor, 1/4W

R8 82K Resistor, 1/4W

R9 560R Resistor, 1/4W

R10 2K2 Resistor, 1/4W

R11 470R Resistor, 1/4W

R12 10K Resistor, 1/4W

R100 100K Resistor, 1/4W

R101 100K Resistor, 1/4W

R102 4K7 Resistor, 1/4W * LED current limiting resistor

C1 100n Film capacitor, 7.2 x 2.5mm

C2 4u7 Electrolytic capacitor, 5mm

C3 47p Ceramic capacitor

C4 22u Electrolytic capacitor, 5mm

C5 100n Film capacitor, 7.2 x 2.5mm

C6 22n Film capacitor, 7.2 x 2.5mm

C7 2n2 Film capacitor, 7.2 x 2.5mm

C8 22u Electrolytic capacitor, 5mm

C100 100u Electrolytic capacitor, 5mm

C101 10u Electrolytic capacitor, 5mm

D100 1N5817 Schottky diode, DO-41

IC1 TL072 Dual op-amp, DIP8

IC2 LM833 Dual op-amp, DIP8

TREBLE W20K 16mm right-angle PCB mount pot

BASS W20K 16mm right-angle PCB mount pot

GAIN C500K 16mm right-angle PCB mount pot

Copyright © 2022 - PedalPCB.com Page 3 of 5

Micro-Addition Boost

Micro-Addition Boost

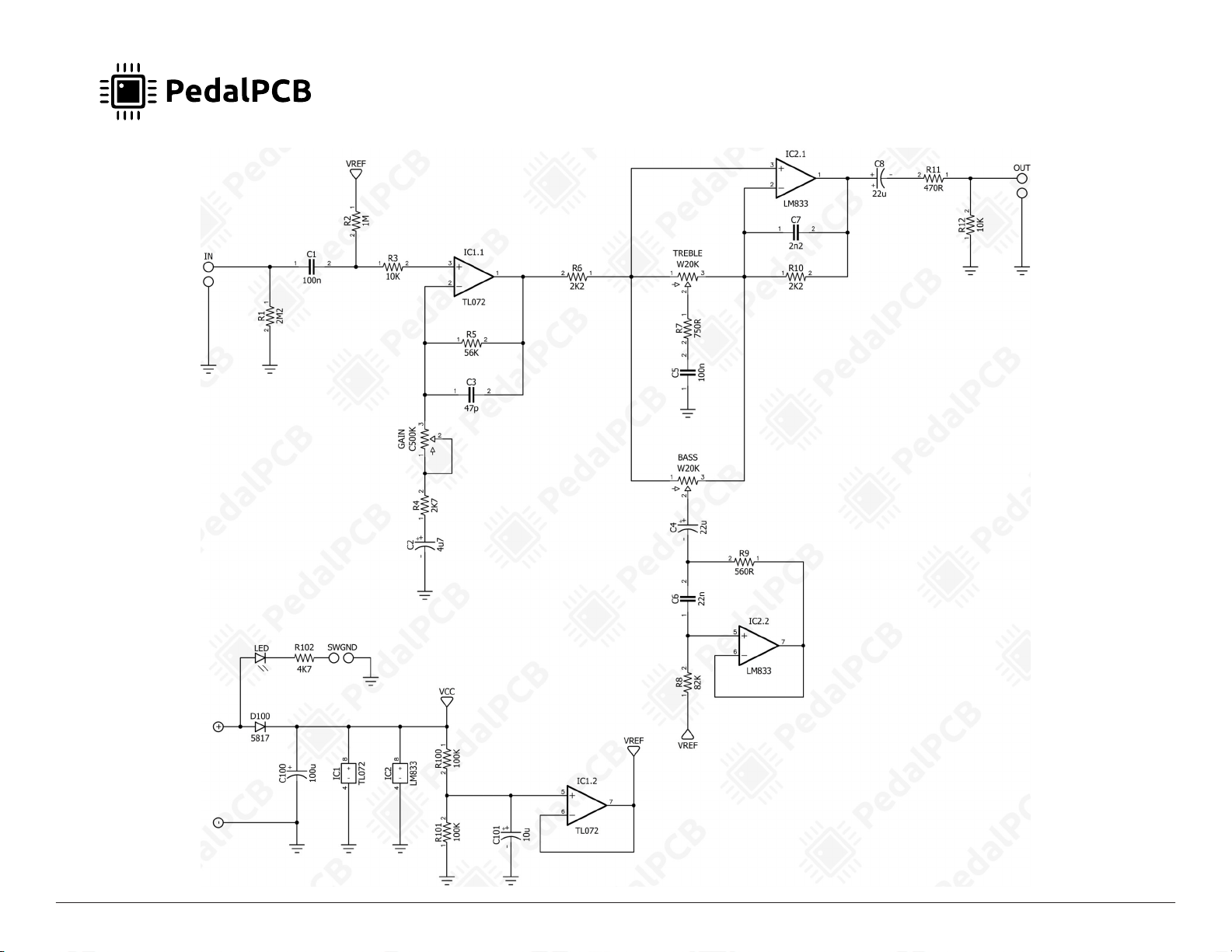

Schematic Diagram

Copyright © 2023 - PedalPCB.com Page 4 of 5

Micro-Addition Boost

Micro-Addition Boost

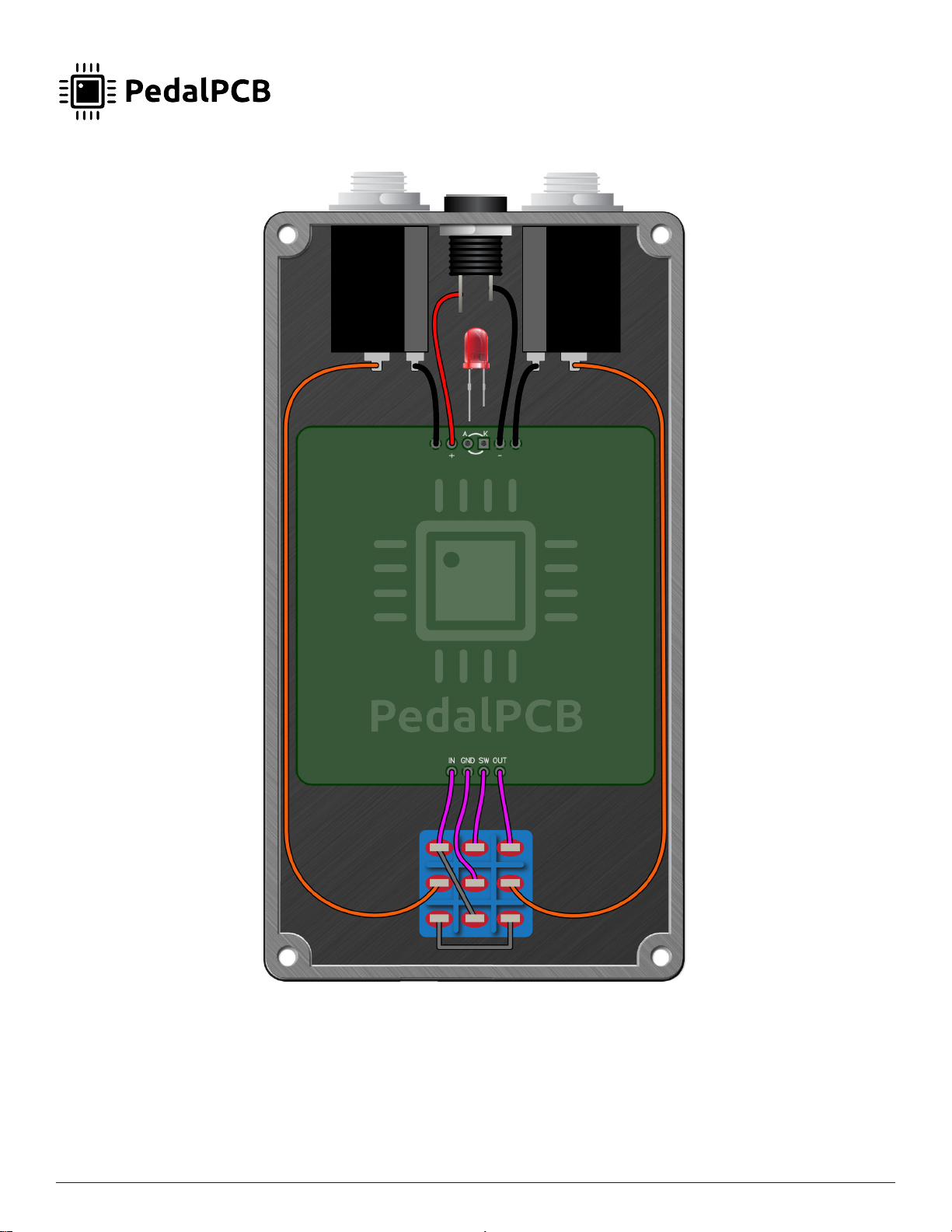

Wiring Diagram

F

O

O

T

S

W

I

T

C

H

P

O

T

E

N

T

I

O

M

E

T

E

R

P

O

T

E

N

T

I

O

M

E

T

E

R

P

O

T

E

N

T

I

O

M

E

T

E

R

L

E

D

D

C

J

A

C

K

I

N

P

U

T

J

A

C

K

O

U

T

P

U

T

J

A

C

K

Copyright © 2023 - PedalPCB.com Page 5 of 5

Micro-Addition Boost

Micro-Addition Boost

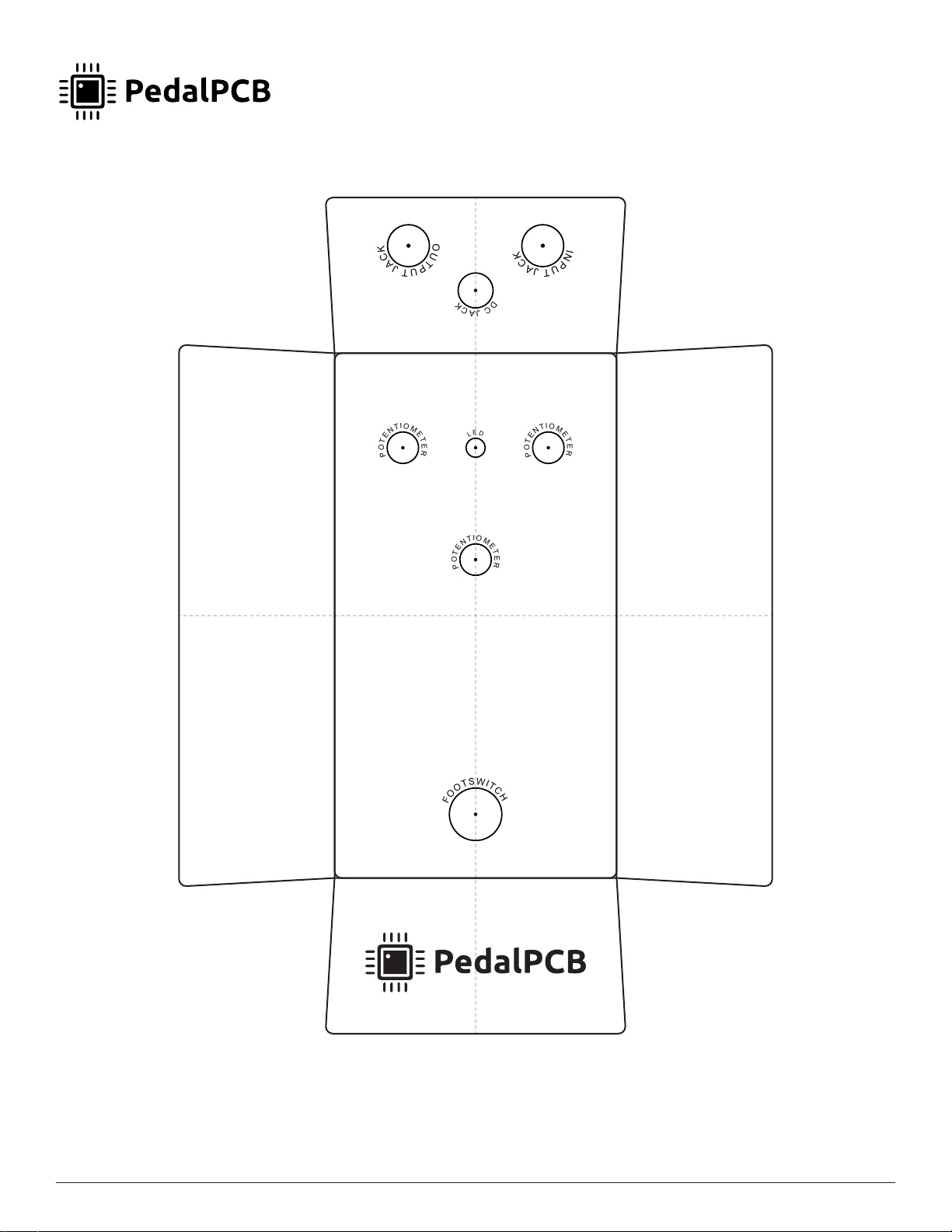

Drill Template

125B Enclosure

Bass Treble

Gain
