CONTENTS
Safety information 2
Safety instructions 3
Product description 5
Control panel 5
Programmes 6
Settings 7
Before first use 9
Daily use 10
Hints and tips 12
Care and cleaning 13
Troubleshooting 15
Technical information 16
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and
damages. Always keep the instructions with the appliance for
future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
•Do not let children play with the appliance.
•Keep all detergents away from children.
•Keep children and pets away from the appliance door when
it is open.
•Cleaning and user maintenance shall not be made by
children without supervision.
General Safety
•This appliance is intended to be used in household and
similar applications such as:
–farm houses; staff kitchen areas in shops, offices and
other working environments;
–by clients in hotels, motels, bed & breakfast and other
residential type environments.
2
•Do not change the specification of this appliance.
•The operating water pressure (minimum and maximum)
must be between 0.5 (0.05) / 8 (0.8) bar (Mpa)
•Obey the maximum number of 13 place settings.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
•Put knives and cutlery with sharp points in the cutlery basket
with the points down or in a horizontal position.
•Do not keep the appliance door open without supervision to
prevent to fall on it.
•Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
•Do not use water spray and steam to clean the appliance.
•The ventilation openings in the base (if applicable) must not
be obstructed by a carpet.
•The appliance is to be connected to the water mains using
the new supplied hose-sets. Old hose sets must not be
reused.
SAFETY INSTRUCTIONS
Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance where
the temperature is less than 0 °C.
• Obey the installation instruction supplied
with the appliance.
• Make sure that the appliance is installed
below and adjacent to safe structures.
Electrical connection
WARNING! Risk of fire and
electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the E.E.C.
Directives.
• Only for UK and Ireland. The appliance
has a 13 amp mains plug. If it is
necessary to change the fuse in the
3
mains plug, use fuse: 13 amp ASTA (BS
1362).
Water connection
• Make sure not to cause damage to the
water hoses.
• Before you connect the appliance to
new pipes or pipes not used for a long
time, let the water flow until it is clean.
• The first time you use the appliance,
make sure that there is no leakage.

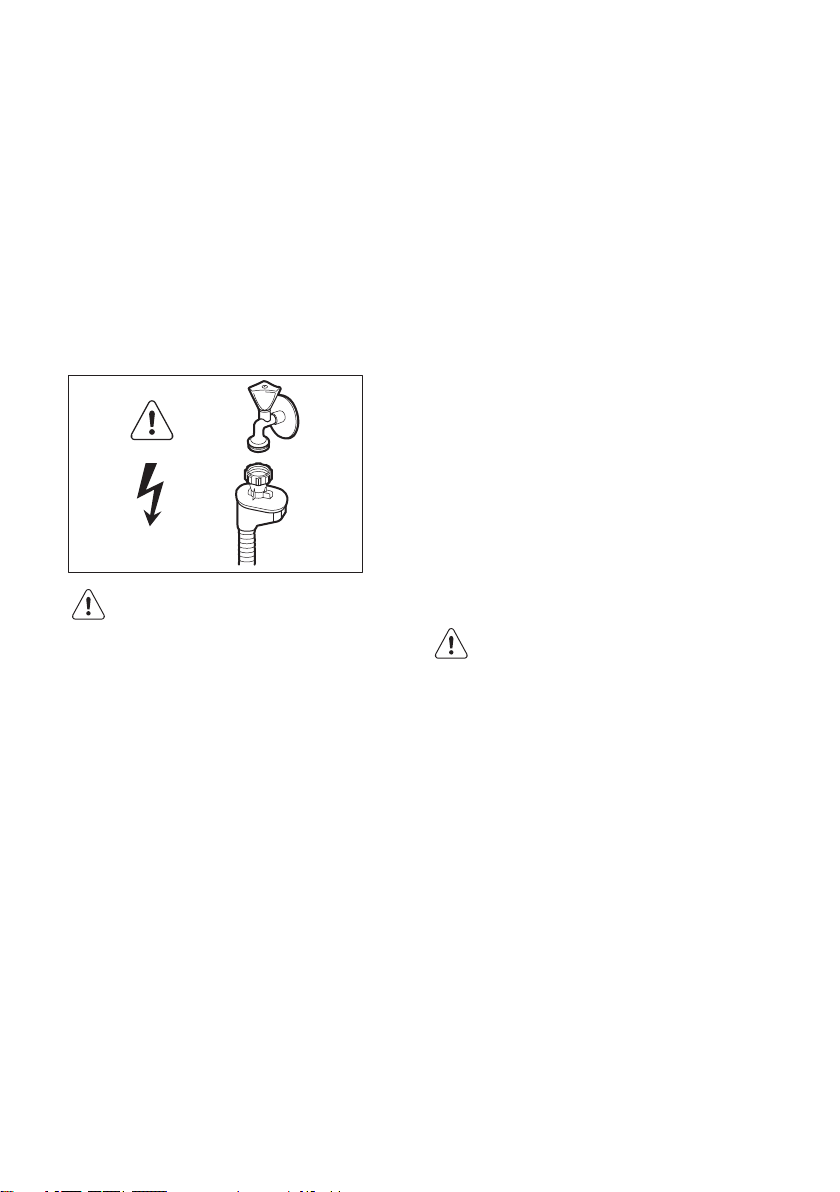

• The water inlet hose has a safety valve
and a sheath with an inner mains cable.
WARNING! Dangerous
voltage.
• If the water inlet hose is damaged,
immediately disconnect the mains plug
from the mains socket. Contact the
Authorised Service Centre to replace the
water inlet hose.
Use
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous.
Obey the safety instructions on the
detergent packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
completed. There can be detergent on
the dishes.
• The appliance can release hot steam if
you open the door while a programme
operates.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Service
• Contact the Authorised Service Centre
to repair the appliance. We recommend
only the use of original spare parts.
• When you contact the Authorised
Service Centre, ensure that you have the
following information that is available on
the rating plate.
Model :
PNC :
Serial Number :
Disposal
WARNING! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
4

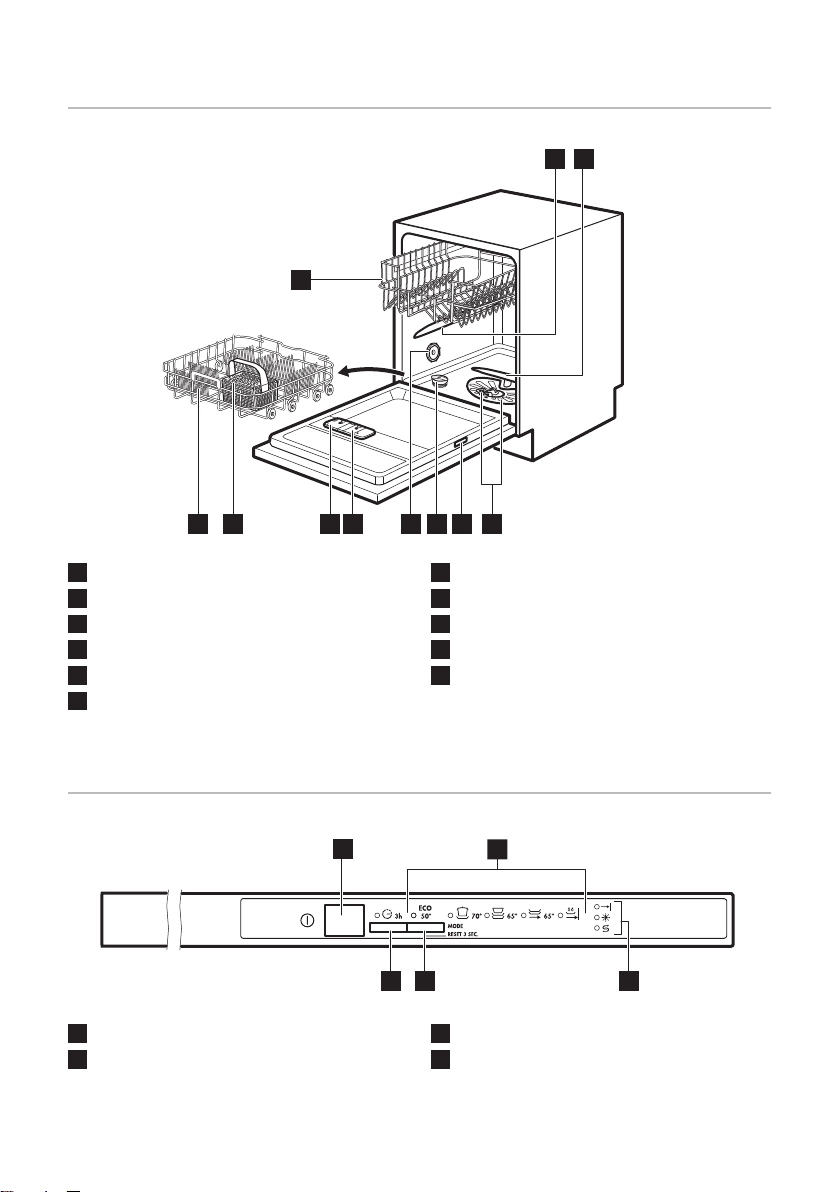

PRODUCT DESCRIPTION
43
7
9 8
10 56
11
12
1Upper spray arm
2Lower spray arm
3Filters
4Rating plate
5Salt container
6Air vent
7Rinse aid dispenser
8Detergent dispenser
9Cutlery basket
10 Lower basket
11 Upper basket
CONTROL PANEL
21
3
45
1On/off button
2Programme indicators
3Indicators
4Programme button
5
5Delay button
Indicators
Indicator Description
End indicator.
Salt indicator. It is always off while the programme operates.
Rinse aid indicator. It is always off while the programme operates.
PROGRAMMES
Programme Degree of
soil
Type of load
Programme
phases
Consumption values
1)
Dura-
tion
(min)
Energy
(kWh)
Water
(l)
2) Normal soil
Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
195 1.039 11
3) Heavy soil
Crockery, cut-
lery, pots and
pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
140 -
160
1.3 - 1.5 13 - 15
Normal soil
Crockery and
cutlery
• Prewash
• Wash 65 °C
• Rinses
• Dry
100 -
120
1.2 - 1.5 15 - 17
4) Fresh soil
Crockery and
cutlery
• Wash 60 °C
or 65 °C
• Rinses
30 0.9 9
6
Programme Degree of
soil
Type of load
Programme
phases
Consumption values
1)
Dura-
tion
(min)
Energy
(kWh)
Water
(l)
5) All • Prewash 14 0.1 4
1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of
dishes can change the values.
2) With this programme you have the most efficient use of water and energy consumption for crockery and cutlery
with normal soil. (This is the standard programme for test institutes).
3) This programme has a high temperature rising phase for better hygiene results. During the rinsing phase, the tem-
perature stays at 70 °C for at least 10 minutes.
4) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
5) Use this programme to quickly rinse the dishes. this prevents the remaining food to bond on the dishes and bad
odours to come out from the appliance. Do not use detergent with this programme.
Information for test institutes
For all the necessary information for test
performance, send an email to:
Write down the product number (PNC) that
is on the rating plate.
SETTINGS
Programme selection mode and
user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
In user mode, the following settings
can be changed:
• The level of the water softener according
to the water hardness.
• The activation or the deactivation of the
acoustic signal for end of programme.
These settings will be saved until you
change them again.
How to set the programme
selection mode
The appliance is in programme selection
mode when all the programme indicators
are on.
When you activate the appliance, usually it
is in programme selection mode. However,
if this does not happen, you can set the
programme selection mode in the following
way:
Press and hold the programme button until
the appliance is in programme selection
mode.
The water softener
The water softener removes minerals from
the water supply, which would have a
detrimental effect on the washing results
and on the appliance.
The higher the content of these minerals,
the harder your water is. Water hardness is
measured in equivalent scales.
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water in
7
your area. It is important to set the right
level of the water softener to assure good
washing results.
Water hardness
German de-
grees (°dH)
French de-
grees (°fH)
mmol/l Clarke de-
grees
Water softener
level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5 1 2)
1) Factory setting.
2) Do not use salt at this level.
How to set the water softener
level
The appliance must be in programme
selection mode.
1. To enter the user mode, press and hold
the programme button until the
indicator starts to flash and the
indicator comes on with fixed light.
2. Wait until the indicator goes off and
the indicator starts to flash. The
indicator continues to flash. The
intermittent flashing of the indicator
refers to the current set level.
• E.g. 5 flashes + pause + 5 flashes =
level5.
3. Press programme button repeatedly to
change the setting. Each time you press
programme button the level number
increases. After level 10 you will start
again from level 1.
4. Press the on/off button to confirm the
setting.
Acoustic signals
Acoustic signals sound when a malfunction
of the appliance occurs. It is not possible to
deactivate these acoustic signals.
There is also an acoustic signal that sounds
when the programme is completed. By
default this acoustic signal is deactivated
but it is possible to activate it.
How to activate the acoustic
signal for the end of programme
The appliance must be in programme
selection mode.
1. To enter the user mode, press and hold
the programme button until the
8
indicator starts to flash and the
indicator comes on with fixed light.
2. Press immediately the programme
button.
• The indicator comes on with
fixed light.
• The indicator starts to flash.
3. Wait until the indicator goes off.
The indicator continues to flash.
• The end indicator indicates the
current setting: End indicator off =
Acoustic signal off.
4. Press the programme button to change
the setting.
• End indicator on = Acoustic signal
on.
5. Press the on/off button confirm the
setting.
BEFORE FIRST USE
1. Make sure that the current level of
the water softener agrees with the
hardness of the water supply. If not,
adjust the level of the water
softener.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any
processing residuals that can still be
inside the appliance. Do not use
detergent and do not load the baskets.
When you start a programme, the
appliance can take up to 5 minutes to
recharge the resin in the water softener. It
seems that the appliance is not working.
The washing phase starts only after this
procedure is completed. The procedure will
be repeated periodically.

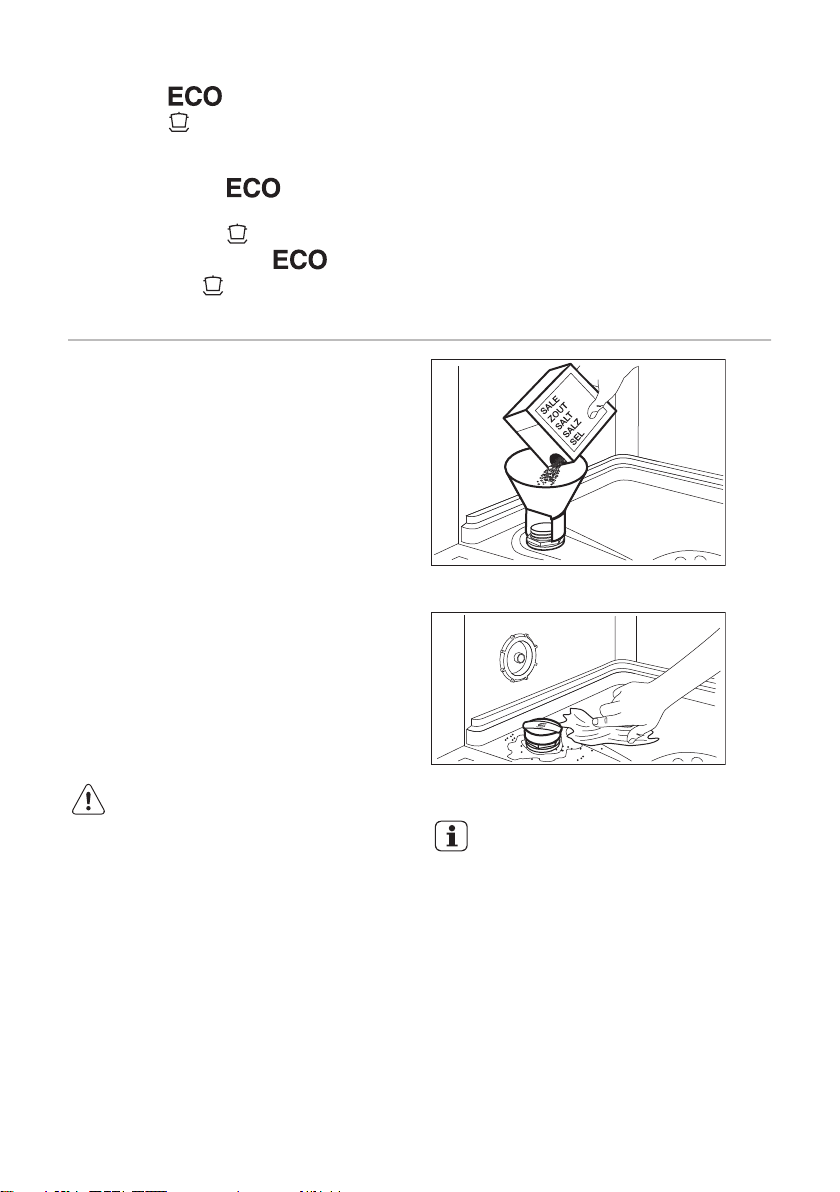

The salt container
CAUTION! Only use salt
specifically designed for
dishwashers.
The salt is used to recharge the resin in the
water softener and to assure good washing
results in the daily use.
How to fill the salt container
1. Turn the cap of the salt container
counterclockwise and remove it.
2. Put 1 litre of water in the salt container
(Only for the first time).
3. Fill the salt container with dishwasher
salt.
4. Remove the salt around the opening of
the salt container.
5. Turn the cap of the salt container
clockwise to close the salt container.
Water and salt can come out
from the salt container when
you fill it. Risk of corrosion. To
prevent it, after you fill the salt
container, start a programme.
9

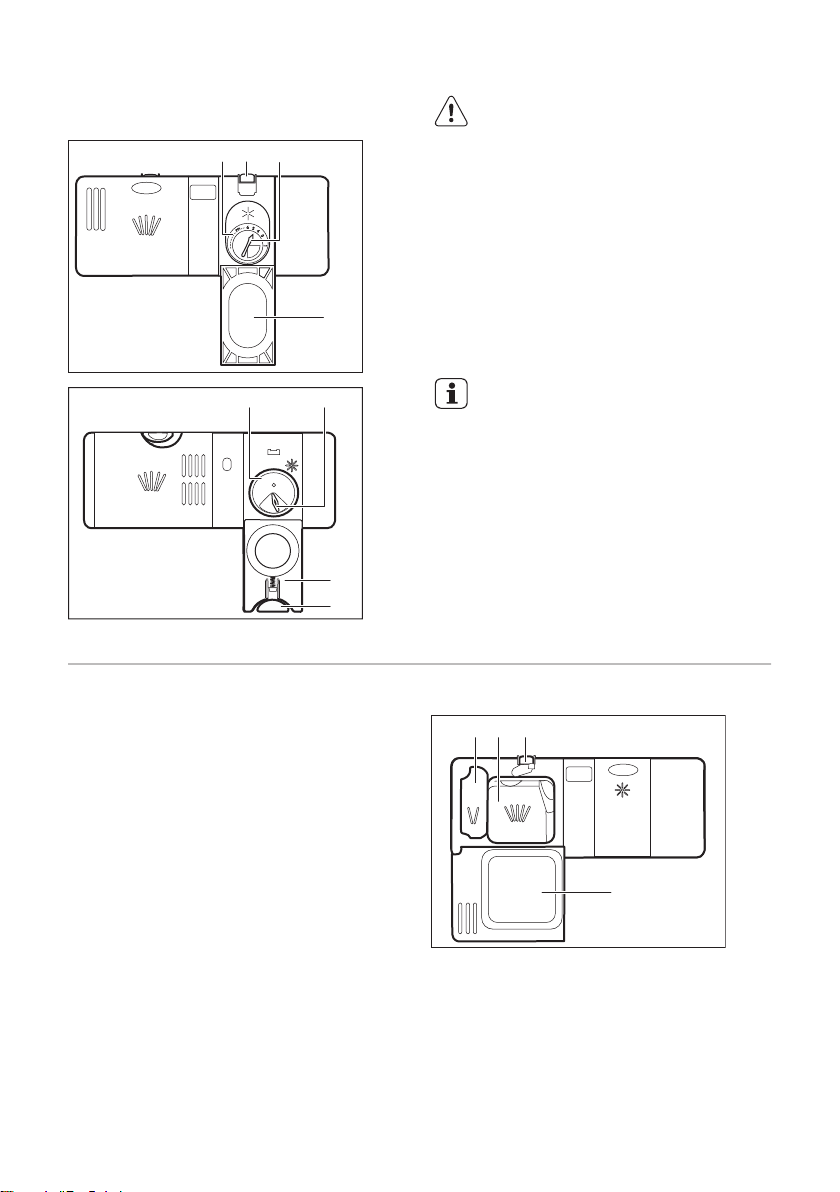

How to fill the rinse aid
dispenser
AB
D
C
M
A
X
1
2
3
4
+
-
AB
D
C
CAUTION! Only use rinse aid
specifically designed for
dishwashers.
1. Press the release button (D) to open the
lid (C).
2. Pour the rinse aid in the dispenser (A)
until the liquid reaches the fill level
'max'.
3. Remove the spilled rinse aid with an
absorbent cloth to prevent too much
foam.
4. Close the lid. Make sure that the release
button locks into position.
You can turn the selector of the
released quantity (B) between
position 1 (lowest quantity) and
position 4 or 6 (highest quantity).
DAILY USE
1. Open the water tap.
2. Press the on/off button to activate the
appliance.
Make sure that the appliance is in
programme selection mode.
• If the salt indicator is on, fill the salt
container.
• If the rinse aid indicator is on, fill the
rinse aid dispenser.
3. Load the baskets.
4. Add the detergent.
5. Set and start the correct programme for
the type of load and the degree of soil.
Using the detergent
30
20
A BD
C
10
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Sprachen:
Andere Pelgrim Spülmaschine Handbücher
Pelgrim
Pelgrim GVW250XL/P02 Bedienungsanleitung
Pelgrim
Pelgrim GVW552RVS Bedienungsanleitung
Pelgrim
Pelgrim GVWC270L/P06 Bedienungsanleitung
Pelgrim
Pelgrim GVW557RVS Bedienungsanleitung
Pelgrim
Pelgrim PVW6020WIT/P01 Bedienungsanleitung
Pelgrim
Pelgrim GVW230LS Bedienungsanleitung
Pelgrim
Pelgrim PCD25178N Bedienungsanleitung
Pelgrim
Pelgrim GVW448ONY Bedienungsanleitung
Pelgrim
Pelgrim GVW476RVS/P01 Bedienungsanleitung
Pelgrim
Pelgrim GVW475ONY Bedienungsanleitung
Pelgrim
Pelgrim GVW431RVS Bedienungsanleitung
Pelgrim
Pelgrim GVW481ONY Bedienungsanleitung
Pelgrim
Pelgrim GVW820XL Bedienungsanleitung
Pelgrim
Pelgrim GVW537RVS Bedienungsanleitung
Pelgrim
Pelgrim GVW487ONY Bedienungsanleitung
Pelgrim
Pelgrim GVW486 Bedienungsanleitung
Pelgrim
Pelgrim PVW6010WIT Bedienungsanleitung
Pelgrim
Pelgrim GVW791 Bedienungsanleitung
Pelgrim
Pelgrim GVW445ONY/P02 Bedienungsanleitung
Pelgrim
Pelgrim GVW810XL Bedienungsanleitung
