Pelgrim MAC824RVS Bedienungsanleitung

Instructions for use

Combined microwave oven

MAC824RVS

MAC824MAT

We thank you for your

trust in purchasing our appliance.

This detailed instruction manual is

supplied to allow you to learn about

your new appliance as quickly as

possible.

Make sure you have received an

undamaged appliance.

Should you notice any transport

damage, please notify your dealer

or regional warehouse where your

appliance was supplied from.

The telephone number can be found

on the invoice or on the delivery

note.

Instructions for installation and

connection are supplied separately.

Important information

Tip, note

IMPORTANT SAFETY

INSTRUCTIONS

Instructions for safety are supplied separately.

CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM

FOR FUTURE REFERENCE.

CONTENTS

712325

4 BEFORE CONNECTING THE APPLIANCE

4 Safe use of the microwave oven

5 COMBINED MICROWAVE OVEN

8 Control unit

10 Information on the appliance - data plate

11 BEFORE THE FIRST USE

12 FIRST USE

13 SELECTING THE MAIN MENUS FOR BAKING AND COOKING

14 A) Baking by selecting the type of food (Auto)

16 B) Baking by selecting an oven system (Pro mode)

22 C) Cooking with microwaves

23 D) Storing your own program (My mode)

24 START OF BAKING

24 END OF BAKING AND OVEN SHUT-OFF

25 SELECTING ADDITIONAL FEATURES

27 SELECTING GENERAL SETTINGS

29 MAINTENANCE & CLEANING

30 Conventional oven cleaning

31 Aqua clean cleaning program

32 Removing and cleaning the wire guides

33 Replacing the bulb

34 TROUBLESHOOTING TABLE

35 DISPOSAL

WARNINGS

INITIAL

PREPARATION

OF THE

APPLIANCE

SETTINGS AND

BAKING

CLEANING AND

MAINTENANCE

PROBLEM

SOLVING

INTRODUCTION

Safe use of the microwave oven

Metals such as stainless steel, aluminium and copper reflect microwaves. For that reason, do

not use metal cookware. Cookware which is designated as microwave-safe can be used safely.

For more information about suitable cookware, consult the following guidelines and always use

the glass baking tray on level 1 if you use the microwave function.

Cookware

Microwave

safe

Remarks

Aluminium foil  Can be used in small quantities to prevent certain parts

of the dish from overcooking. Arcing can occur if the foil is too close to

the oven wall or if too much foil is used.

Porcelain and

earthenware

Porcelain, earthenware, glazed earthenware and ivory porcelain are

usually suitable, unless they have a metal edge.

Disposable crockery

made from polyester

or cardboard

Frozen meals are sometimes packaged in disposable tableware.

Fast food packaging

• Polystyrene cups

• Paper bags or

newspaper

• Recycled paper

or metal edges





Can be used to warm up dishes.

Polystyrene can melt if it overheats.

Can catch ﬁre.

Can cause arcing.

Glassware

• Oven dishes

• Fine glassware

• Glass jars





Can be used, unless it has a metal edge. Can be used to warm up

dishes or liquids.

Thin glass can break or shatter with sudden heating.

The lid must be removed. Only suitable for warming.

Metal Can cause arcing or ﬁre.

Paper

• Plates, cups,

kitchen paper

• Recycled paper





For short cooking times and warming. For absorbing excess

moisture.

Can cause arcing.

Plastic Especially heat-resistant thermoplastic material. Other types of

plastic can warp or discolour at high temperatures. Do not use

melamine plastic. Only if boil-proof or ovenproof.

Must not be airtight. If necessary, prick it with a fork.

: Recommended

 : Be careful

: Not safe

712325

BEFORE CONNECTING THE APPLIANCE

Carefully read the instructions for use before connecting the

appliance. Repair or any warranty claim resulting from incorrect

connection or use of the appliance shall not be covered by the

warranty.

COMBINED MICROWAVE OVEN

(DESCRIPTION OF THE OVEN AND ACCESSORIES – DEPENDING ON

THE MODEL)

The figure represents one of the built-in appliance models. Since the appliances for which

these instructions were drawn up may have different equipment, some functions or

equipment may be described in the manual that may not be present in your appliances.

Control unit

Oven door

Oven handle

Guides

- Cooking levels

712325

WIRE GUIDES

The wire guides allow preparation of the food on 4 levels (please note that the levels/

guides are counted from the bottom up).

Guides 3 and 4 are intended for grilling, and guide 1 is used with microwave systems when

food is prepared in a glass baking tray.

OVEN DOOR SWITCH

The switches deactivate oven heating, the fan, and the microwaves when the oven door

is opened during the cooking process. When the door is closed, the switches turn the

heaters and the microwaves back on.

COOLING FAN

The appliance is fitted with a cooling fan that cools the housing and the appliance control

panel.

EXTENDED OPERATION OF THE COOLING FAN

After the oven is switched off, the cooling fan continues to operate for a short while in

order to cool the oven. (Extended cooling fan operation depends on the temperature in

the center of the oven).

712325

OVEN EQUIPMENT AND ACCESSORIES (depending on the model)

GLASS BAKING TRAY is used for cooking

with all oven systems and for cooking with

microwaves. It can also be used as a serving

tray.

The GRID is used for grilling or as support

for a pan, baking tray or baking dish with

the food.

There is a safety latch on the grid.

Therefore, lift the grid slightly at the front

when pulling it out from the oven.

The SHALLOW BAKING TRAY is used for

baking pastry and cakes.

The DEEP BAKING TRAY is used for roasting

meat and baking moist pastry. It can also be

used as a drip tray.

Never place the deep baking tray in the

first guide during the cooking process, except

when grilling and you are only using the deep

tray as a drip tray.

Never use the grid, the shallow baking sheet or the deep baking

tray or any other metal part or accessory when operating a

system with microwaves!

712325

The appliance and some of the accessible parts tend to heat up

during cooking. Use oven mitts.

The grid or the tray should always be

inserted into the groove between the two

wire profiles.

BAKING TRAY HOLDER makes it easier

to remove hot baking trays from the oven

after baking.

CONTROL UNIT

(depending on the model)

1ON/OFF KEY 2OVEN

LIGHTING ON/

OFF KEY 3BACK KEY

Touch briefly to

return to previous

menu.

Touch and hold to

return to main menu.

4KNOB for

SELECTION and

CONFIRMATION

Select the setting by

rotating the knob.

Confirm your

selection by pressing

the knob.

712325

5KITCHEN TIMER 6CHILD LOCK

KEY 7START/STOP

KEY

Touch: START

Touch during

operation: PAUSE/

STOP

8DISPLAY

NOTE:

The keys will respond better if you touch them with a larger area of your fingertip. Each

time you touch a key, this will be acknowledged by a short acoustic signal.

712325

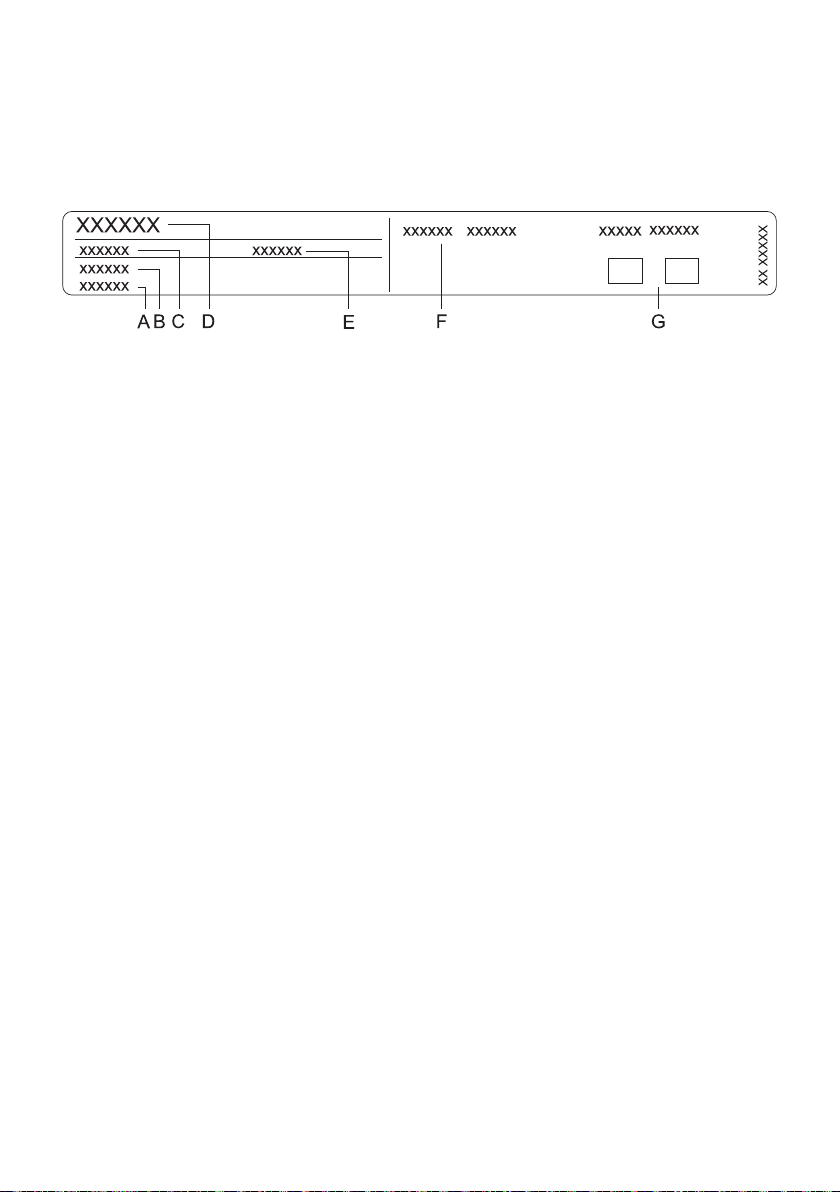

INFORMATION ON THE APPLIANCE - DATA

PLATE (DEPENDING ON THE MODEL)

The rating plate indicating the basic

information about the appliance is located

at the edge of the oven and it is visible

when the oven door is opened.

ASerial number

BCode

CType

DBrand

EModel

FTechnical data

GCompliance symbols
