Owner’s Guide and Installation Manual

PELLA®EXPRESS INSTALL®STORM DOOR MODELS

Updated 4/10 35123

NOTE TO THE INSTALLER: This Owner’s Guide and Installation Manual is the property of the

homeowner. Please leave it with the homeowner upon completion of the installation.

Recommended Tools

Power Drill with

3/32” drill bit

Tape Measure Phillips

Screwdriver #2

For safety reasons, the assistance of a second person is recommended when handling the door.

Read the legend below in order to easily follow along and install your storm door.

For reference, the storm door assembly is illustrated on page 2.

Legend

tresnI

Follow the steps in order, from 1 to 35.

RED objects are the action items for that step.

Steps in BLUE apply to LEFT HINGE congurations ONLY.

(Hinge side will be determined in a later step.)

Steps in GREEN apply to RIGHT HINGE congurations ONLY.

(Hinge side will be determined in a later step.)

MUST READ! Instructions in this box style are IMPORTANT!

To order replacement parts, call

1-800-374-4758

or visit us at

www.pella.com

Please have your registration number

ready when you contact us either by

telephone or on the internet.

TROUBLE SHOOTING GUIDE

is located on page 12 of this manual.

Lay door ﬂat.

Before discarding the carton, make sure ALL parts are

accounted for -- check in carton roll-ups.

The carton material is recyclable

Screen

Glass

Glass/Screen

Retainer Strips

Screw Cover Strips

Latch Mounting Frame

Door

Hinge

Mounting

Frame

Top

Mounting

Frame

Header

Frame Hardware Kit

Door Closers

Includes mounting

screws and some

handle components

Handle Kit

Includes handle

hardware with

seperate instruction

sheet

Installation

Instructions

Bottom

Expander

Registration

Number

This is your door’s

identification number.

Leave this sticker on

your door.

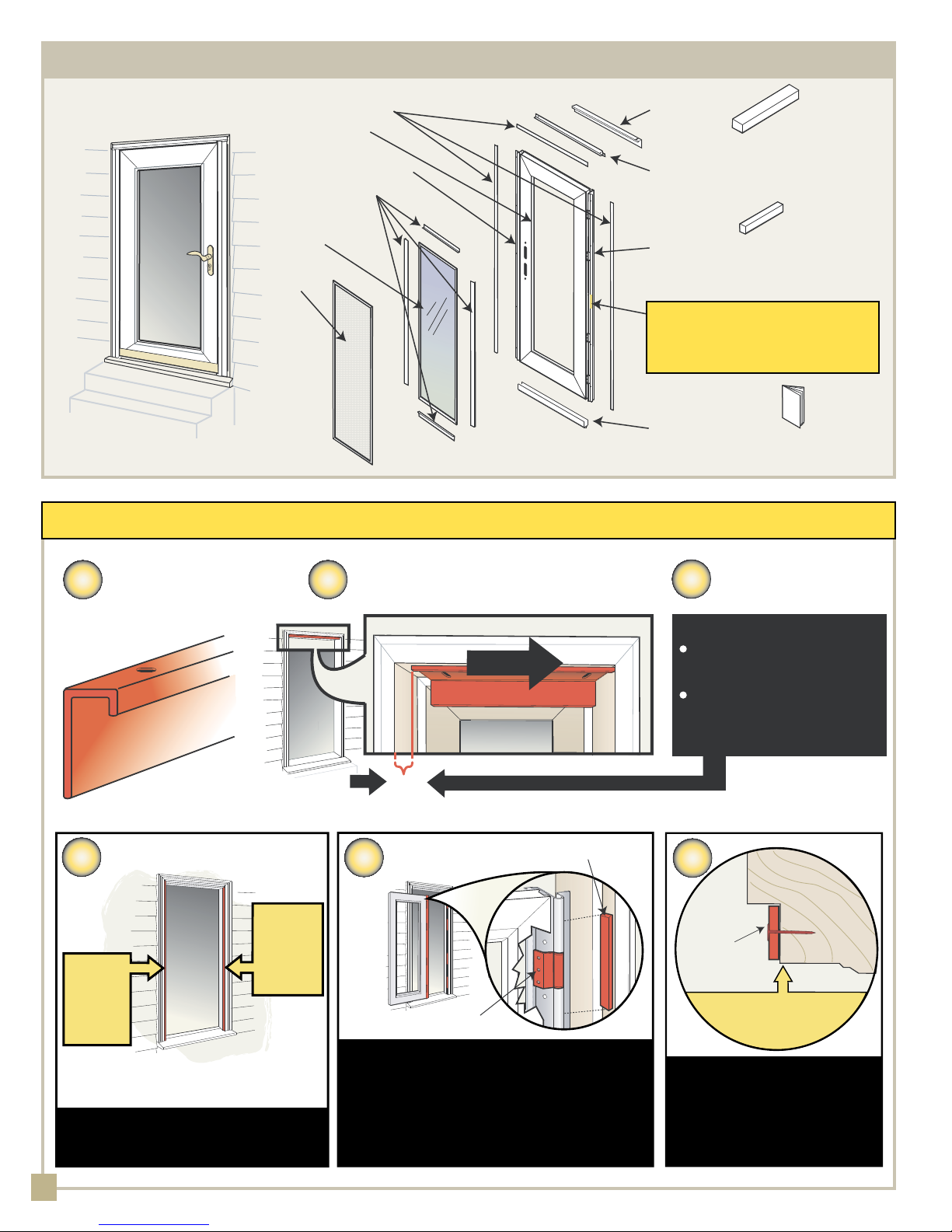

Storm Door Components NOTE: Actual door styles may vary from illustrations, however, the installation steps will be the same.

Before you begin Follow steps a, b and c to verify your entryway opening requirements.

Measure gap.

Gap

Slide Tight

If this gap is ...

LESS than 1/4”,

Go to START on page 3

1/4” or GREATER,

Go to Step d, to shim

Note: if this gap is over 9/16”,

a custom storm door is required.

Locate header

frame.

Slide to one side of the entryway.

LEFT

HINGE

doors,

shim this

side

Hinge

Shim

Shim must not

extend beyond

entryway face

RIGHT

HINGE

doors,

shim this

side

Shim on YOUR hinge side - see Step

6 on Page 3, to determine your hinge

side.

Shim may be one long piece or small 8” to

12” sections.

NOTE: small sections must fully support

the hinges on the mounting frame.

Use an appropriate shim thickness to reduce

the gap in step C, to 1/4” or less.

Household shim materials may include

paint stir sticks or wooden yardsticks.

Nail shims in place.

Note: If you removed an old

storm door, you may wish to

paint and coverany existing

holes before proceeding.

Go to START on page 3.

evomeR

ssalg

dna

neercs

Remember

this is the

INTERIOR SIDE

of the door

tfiL

panS

START

Your Installation

inepO ni retneC gn

Align

outer

edges

Qty.2

Drill 3/32”

Pilot Holes

“Jamb Screw Bag”

unpainted

#8 x 3/4” Pan Head

Left Hinge

Orientation

viewed from outside

Right Hinge

Orientation

viewed from outside

LEFT HINGE

Watch for this color

throughout the manual

RIGHT HINGE

Watch for this color

throughout the manual

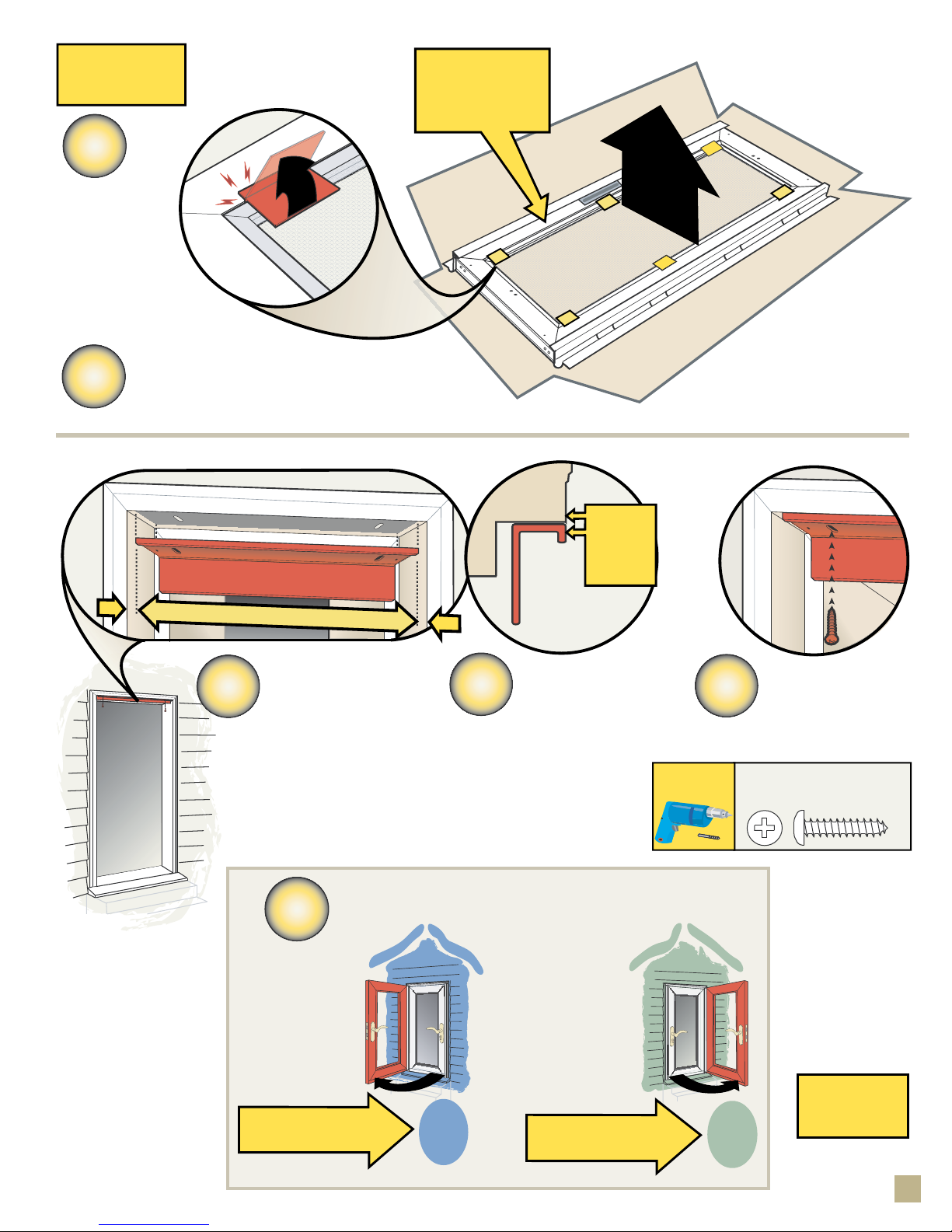

Turn door

over.

Remove

shipping clips.

Remove glass

and screen.

FIRST, center header

frame in entryway

opening ...

... THEN,

align with face of

brickmold.

Predrill the

two holes.

Secure with

jamb screws.

Continued

on page 4

Determine the side you want your door to hinge.

Factory

Drilled

Holes

This is

the TOP

of Your

Door

RIGHT HINGE DOORS

position metal plate

on this side

Left Hinge

Illustration

Inside

Facing

This is

the TOP

of Your

Door

edilS

Inside

Facing

Right

Hinge

Illustration

LEFT HINGE DOORS

position metal plate

on this side

#6 x 1/2” Pan Head

(Extra screw provided)

Qty.

Use a HAND

screwdriver

Left Hinge

Right Hinge

Continued

from page 3

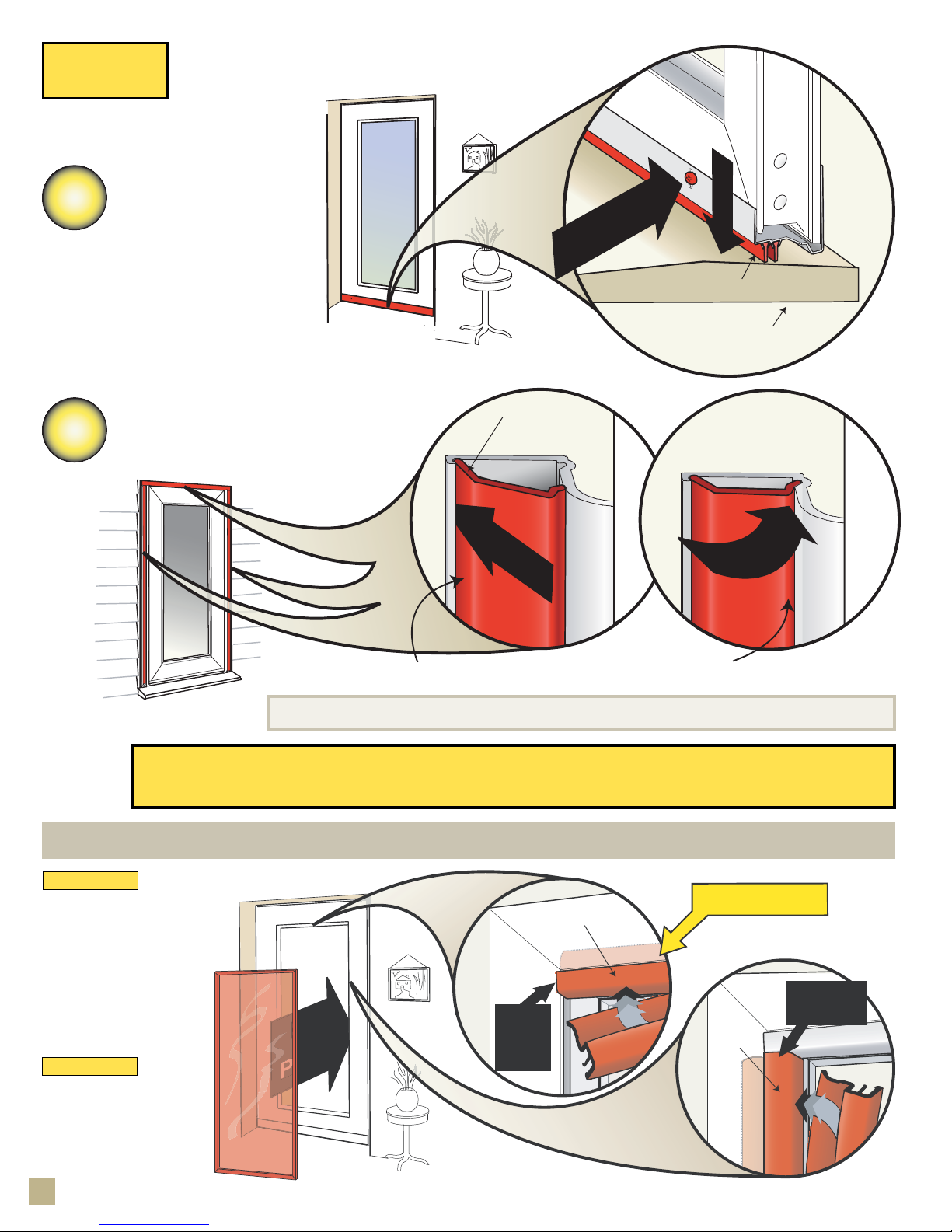

Position door for

LEFT hinge or

RIGHT hinge.

Remove any protective lm.

Slide bottom expander tight onto bottom of door.

NOTE: Bottom expander is packaged with the handle

for Select® 6000 models.

Secure with screws

(Bag taped inside expander).

Continued

on page 5

Place

installation

support block

on door’s

HINGE side.

Right

Hinge

Illustration

Installation

Support Block

LEFT HINGE

Doors Only

SLIDE To This Side

RIGHT HINGE

Doors Only

SLIDE To This Side

Left Hinge

Illustration

Raise Up, Slide Over,

then Lower

Remove

and

Discard

Left Hinge

Illustration

Right

Hinge

Illustration

Qty. 8

Drill 3/32”

Pilot Holes “Jamb Screw Bag”

unpainted

#8 x 3/4” Pan Head

Continued

on page 6

Continued

from page 4

Set door in opening

(resting on bottom spacer from step 10).

Hold tight to hinge side.

Predrill the ve hinge

side hole locations.

Secure with screws.

Qty.

Drill 3/32”

Pilot Holes

“Mounting Frame Screw Bag”

unpainted

#6 x 1” Pan Head

Open the door.

Predrill the eight holes.

Secure with screws.

Remove and discard

installation support block.

Continued

from page 5

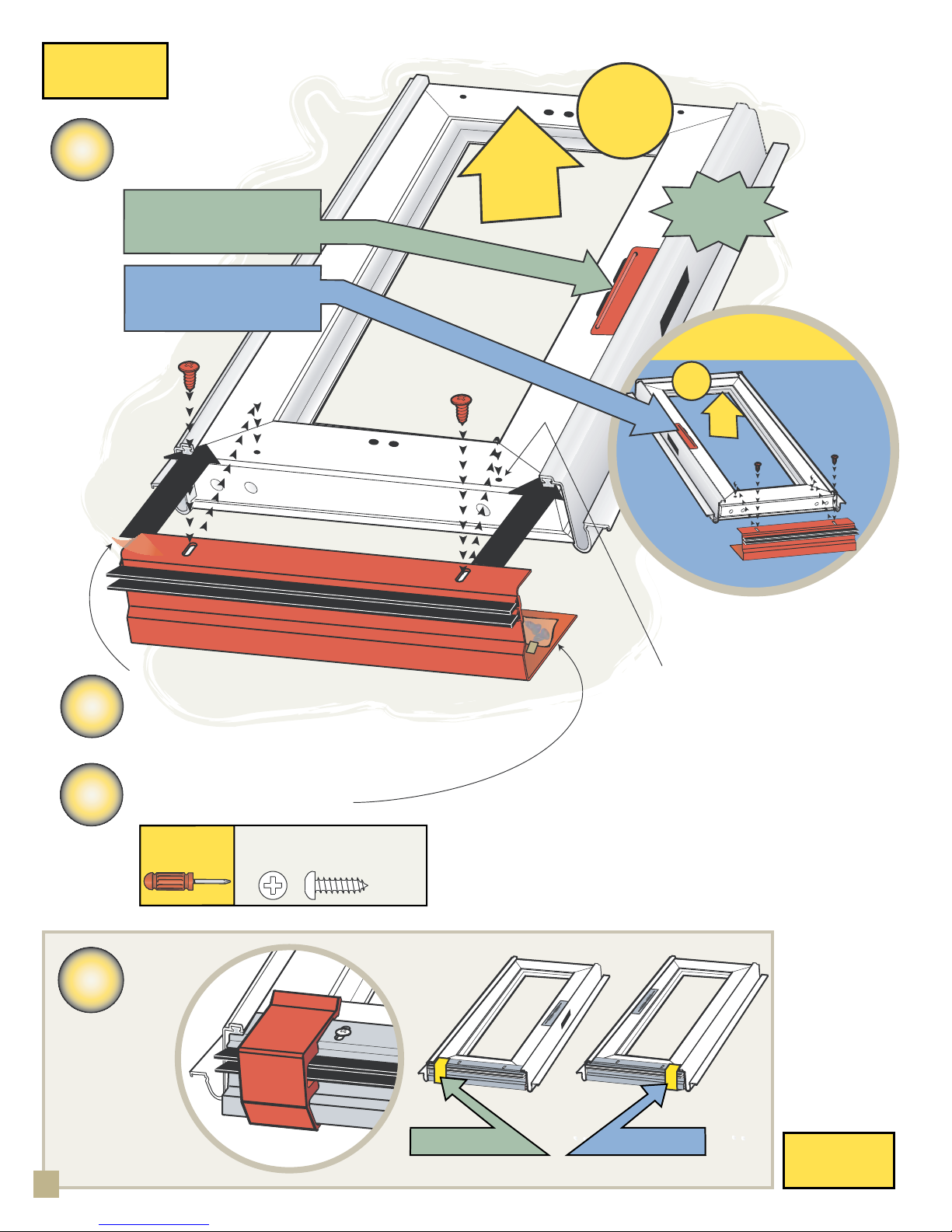

teSni ecalP

Horizontal

Retainer

Strip

Install

Both

Top

and

Bottom

Install horizontal strips

first (top then bottom)

Install Both

Left and

Right

Vertical

Retainer

Strip

Right

Hinge

Illustration

Left Hinge

Illustration

Qty.

Drill 3/32”

Pilot Holes

“Mounting Frame Screw Bag”

unpainted

#6 x 1” Pan Head

Install glass panel.

IMPORTANT:

Hold glass in place

while installing

retainer strips.

Secure with

retaining strips.

Predrill the ve hole locations.

Secure with screws.

Remove shipping strap and

“Do not cut” label.

Continued

on page 7

latsnieR l

evomeR dna dracsiD

Leave this

plate in

place

Right

Hinge

Illustration

Left Hinge

Illustration

Factory

Installed

Spacer

tseR no rooD

Factory

Installed

Spacer

dracsiDdnaevomeR

Break-off Tab

(Remove if necessary)

“Mounting Frame Screw Bag”

unpainted

#6 x 1” Pan Head

Qty.2

Drill 3/32”

Pilot Holes

Continued

from page 6

Remove the two

yellow clips.

Re-install the screws.

erawdraH noitcurtsnI teehS

Kit

eldnaH

Position top

mounting frame.

Note: if you have

interference with siding,

remove the break-off tab

with a pliers, then caulk

along the back surface, for

protection from rain.

Close door.

Rest mounting frame

on door.

Predrill the two

hole locations.

Secure with screws.

Remove the two spacers.

Install

your

handle

set.

Go to the seperate

hardware instruction

sheet in the handle kit

Continued

from

Hardware

Instruction

Top

Closer

Location

(Right Hinge)

Approx

1-1/2”

Right

Hinge

Illustration

Left Hinge

Illustration

Top

Closer

Location

Align Arrow

with Notch on

Mounting Frame

Rest Against

Back of

Mounting

Frame

GNITNUOM EMA

Right Hinge

Illustrated

Align

Arrow

with

Notch on

Mounting

Frame

Interior

Side

of the

Door

RIGHT HINGE Install Closers

on This Side.

LEFT HINGE Install Closers

on This Side.

Hole Plugs

Break off of closer base

Qty.2

Rest Against Back of

Mounting Frame

Bottom

Closer

Location

(Right Hinge)

Bottom

Closer

Location

Approx

1-1/2”

“Closer Screw Bag”

Unpainted

#10 x 1 1/2” Pan Head

Qty. 4 each

Drill 3/32”

Pilot Holes

Remove the two hole plugs

from the closer bases.

Insert into the factory

drilled holes near the top

corners of the door.

Determine which

side to install

the closers.

[Right versus Left].

Align closer base arrow with

small notch on mounting frame

(install both top and bottom).

Predrill holes(3/32” bit).

Secure with screws.

Break off alignment tabs.

Continued

on page 9

Top

Closer

Location

(Right Hinge)

Approx

1-1/2”

Right

Hinge

Illustration

Left Hinge

Illustration

Top

Closer

Location

Align Arrow

with Notch on

Mounting Frame

Rest Against

Back of

Mounting

Frame

GNITNUOM EMA

Right Hinge

Illustrated

Align

Arrow

with

Notch on

Mounting

Frame

Interior

Side

of the

Door

RIGHT HINGE Install Closers

on This Side.

LEFT HINGE Install Closers

on This Side.

Hole Plugs

Break off of closer base

Qty.2

Rest Against Back of

Mounting Frame

Bottom

Closer

Location

(Right Hinge)

Bottom

Closer

Location

Approx

1-1/2”

“Closer Screw Bag”

Unpainted

#10 x 1 1/2” Pan Head

Qty. 4 each

Drill 3/32”

Pilot Holes

Adjustment

Screw

Right Hinge

Illustration

Factory

Drilled

Holes

Bottom Closer: Rotate so

One-Touch® Button

Points Up

Bottom

Closer

with One-Touch®

Button

Top

Closer

Left Hinge

Illustration

Top

Closer

Bottom

Closer

Right

Hinge

Illustration

Leave Clip

in Place

Remove

Discard

Insert

Remove

and

Discard

One-Touch®

Closer

TOP

Closer

BOTTOM

Closer

To Use:

Open the door,

then tap then button.

To Close:

Nudge the door

open slightly.

One-Touch®

Button

Continued

from

page 8

“Closer Screw Bag”

color matched to door

#10 x 5/8” Pan Head

Qty. 2 each

Locate

the top

and

bottom

closers.

Continued

on page 10

Slide top and bottom closers

onto their bases.

Rotate bottom closer as shown.

Pin door bracket onto closer

assembly.

Close door.

Secure door bracket

with screws.

Discard clips

(top and bottom).

Adjust closer speed

with adjustment screw.

Angled Edge

Points Away

From Door

gnAtresnI del

egdE

Sweep

Sill

ooL ,tsujdAotnes

nethgiteRneht

teSnI ecalP

Horizontal

Retainer

Strip

Horizontal Strips

Go In First

Install Both

Left and

Right

Vertical

Retainer

Strip

Install

Both

Top

and

Bottom

Glass or Screen Operation

Continued

from page 9

Close door.

Adjust bottom expander

to lightly contact the sill.

Install screw cover strips

(1 Horizontal, 2 Vertical).

Hint: With the angled edge in place, run your ﬁnger down the length of the inner edge to snap in place.

Finished with the installation. See page 11 for care and maintenance.

Remove the vertical strips

rst, then the horizontals,

by pulling the corners away

from the door frame.

IMPORTANT:

Hold the glass in place

before removing the top

retaining strip.

Hold the glass or screen

in place and insert the

top then bottom

horizontal strips rst,

then the verticals.

To Remove:

To Install:

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pella Tür Handbücher

Pella

Pella 81DU0100 Bedienungsanleitung

Pella

Pella 801V0101 Bedienungsanleitung

Pella

Pella 80JJ0103 Bedienungsanleitung

Pella

Pella 808SQ102 Bedienungsanleitung

Pella

Pella 81CM0100 Bedienungsanleitung

Pella

Pella 818L0100 Bedienungsanleitung

Pella

Pella 801W0103 Bedienungsanleitung

Pella

Pella architect series Bedienungsanleitung

Pella

Pella V983492 Bedienungsanleitung

Pella

Pella 803V0102 Bedienungsanleitung

Pella

Pella 818K0100 Bedienungsanleitung

Pella

Pella 818T0101 Bedienungsanleitung

Pella

Pella 80KM0103 Bedienungsanleitung

Pella

Pella 81AK0101 Bedienungsanleitung

Pella

Pella V981553 Bedienungsanleitung

Pella

Pella 6000 Gebrauchsanweisung

Beliebte Tür Handbücher anderer Marken

ENFORCER

ENFORCER Enforcer SK-990A Bedienungsanleitung

Electri-Chef

Electri-Chef TR18 Betriebsanleitung

BEA

BEA PBR45x Bedienungsanleitung

GE 19298 Bedienungsanleitung

Sterling Plumbing

Sterling Plumbing Frameless Bypass Shower Door SP5465-45 Bedienungsanleitung

GE 19214 Bedienungsanleitung

Ives

Ives 55 Bedienungsanleitung

Algoma Hardwoods

Algoma Hardwoods STC 39 Bedienungsanleitung

Ives

Ives Surface Bolt 43 Bedienungsanleitung

Therma-Tru

Therma-Tru Double-door Bedienungsanleitung

Erreka

Erreka PREMIS 200 Bedienungsanleitung

Ives

Ives Surface Bolt 144 Bedienungsanleitung

Lennox Hearth Products

Lennox Hearth Products MPB-35 Bedienungsanleitung

Ives

Ives Offset Top Pivot 7245F Bedienungsanleitung

KitchenAid

KitchenAid KBAU181V Handbuch

Ives

Ives 670 Bedienungsanleitung

Ives

Ives Mortise Bolt S48 Bedienungsanleitung

American Standard

American Standard Acrylux 6000Y1.BE5 Bedienungsanleitung
