pellenc 150P Bedienungsanleitung
PELLENC POWER TOOLS BATTERY
150P
Operating instructions 56_163476-B
05/2022
ENG
Translation of the original op-
erating instructions manual
READ THE USER GUIDE CAREFULLY BEFORE USE
.
PELLENC POWER TOOLS BATTERY 150P
56_163476-B
TABLE OF CONTENTS
1. INTRODUCTION ..................................................................................................................... 5
2. SAFETY ................................................................................................................................... 6
2.1. SAFETY MEASURES ASSOCIATED WITH THE USE OF THE TOOL ......................................... 6
2.2. SAFETY MEASURES ASSOCIATED WITH BATTERY USE ......................................................... 6
2.3. SAFETY MEASURES WHEN USING THE "PELLENC" CHARGER ............................................. 7
2.4. SAFETY SIGNAGE .......................................................................................................................... 8
3. DESCRIPTION AND TECHNICAL FEATURES ..................................................................... 9
3.1. DESCRIPTION .................................................................................................................................. 9
3.2. BATTERY TECHNICAL FEATURES .............................................................................................. 9
3.3. TECHNICAL CHARACTERISTICS - CHARGER ............................................................................ 9
4. COMMISSIONING ................................................................................................................. 10
4.1. SWITCHING THE BATTERY ON AND OFF ................................................................................. 10
4.2. HMI DISPLAY ................................................................................................................................. 10
4.3. CHARGING ..................................................................................................................................... 10
4.4. FITTING THE HOLSTER TO THE BELT ...................................................................................... 12
4.5. TOOL CONNECTION ..................................................................................................................... 13
4.6. PUTTING THE LEAD AND WRIST STRAP IN PLACE ................................................................ 13
5. USING THE TOOL ................................................................................................................ 14
5.1. AUTHORISATION MODES ............................................................................................................ 14
5.1.1. CHANGE OF AUTHORISATION MODE ............................................................................................ 14
5.1.2. PRESENTATION OF AUTHORISATION MODES .............................................................................. 14
6. MAINTENANCE .................................................................................................................... 15
6.1. MAINTENANCE TABLE ................................................................................................................ 15
6.2. CLEANING THE BATTERY ........................................................................................................... 15
6.3. CLEANING THE CHARGER ......................................................................................................... 15
7. INCIDENTS AND TROUBLESHOOTING ............................................................................. 16
7.1. SUMMARY OF CHARGE INDICATOR AND BEEP MESSAGES ................................................ 16
7.2. TROUBLESHOOTING .................................................................................................................... 17
7.3. BATTERY REPLACEMENT .......................................................................................................... 18
8. STORAGE AND TRANSPORT ............................................................................................ 18
8.1. BATTERY STORAGE CONDITIONS ............................................................................................ 18
9. ACCESSORIES AND CONSUMABLES .............................................................................. 18
9.1. OPTIONAL ACCESSORIES .......................................................................................................... 18
3
PELLENC POWER TOOLS BATTERY 150P
56_163476-B
9.2. CONSUMABLES ............................................................................................................................ 18
10. WARRANTIES .................................................................................................................... 19
10.1. GENERAL WARRANTIES ........................................................................................................... 19
10.1.1. STATUTORY WARRANTY ............................................................................................................. 19
10.1.2. COMMERCIAL WARRANTYPELLENC ............................................................................................ 19
10.1.3. PAID AFTER-SALES SERVICE ...................................................................................................... 20
11. COMPLIANCE STATEMENTS ........................................................................................... 22
11.1. "EU" DECLARATION OF CONFORMITY: 150P BATTERY ...................................................... 22
11.2. "EU" DECLARATION OF CONFORMITY: CHARGER CB5010HV ........................................... 23
11.3. "EU" DECLARATION OF CONFORMITY: CHARGER CB5004HV2 ......................................... 24
11.4. UK DECLARATION OF CONFORMITY : 150P BATTERY ................................................... 25
11.5. UK DECLARATION OF CONFORMITY : CB5010HV CHARGER ........................................ 26
11.6. UK DECLARATION OF CONFORMITY : CB5004HV2 CHARGER ...................................... 27
4
PELLENC POWER TOOLS BATTERY 150P
56_163476-B
1. INTRODUCTION
Dear Customer,
Thank you for purchasing your Pellenc power tools battery 150P. Properly used and maintained, this equipment
will give you years of satisfaction.
Warning
Your machine contains numerous recoverable or recyclable materials. Return it to
your dealer or, failing this, to an approved servicing centre to be treated.
Comply with the regulations in force in your country as concerns environmental protection associated with your
activity.
Warning
It is imperative that you read through the ENTIRE user’s manual guide before using or servicing
the tool. Always comply with the instructions and illustrations provided in the user’s manual.
Throughout the user’s manual guide you will find advisory notes and information entitled: NOTE, IMPORTANT,
ATTENTION and WARNING.
Points marked “NOTE” indicate additional information.
Points marked "IMPORTANT" warn the user of a potential risk for the equipment.
Points marked “ATTENTION” warn the user of a potentially hazardous situations which if not avoided may result
in minor injuries.
Points marked “WARNING” warn the user of a potentially hazardous situation which if not avoided may result in
serious injury or death.
The warning indicates that damage resulting from failure to comply with the procedures and instructions is not
covered by the warranty and the owner will be liable for any repair costs.
Safety indications are also given on the tool; they remind you of the safety precautions to be taken. Identify and
read these indications before using the tool. Immediately replace any indications that may become partially illegible
or deteriorated.
Refer to Section 2.4, “Safety signage” for the location diagram of the safety stickers affixed to the tool.
No part of this manual may be reproduced without the written permission of the company PELLENC. The illustrations
provided in this manual are for information purposes only and are in no way contractual. The PELLENC company
reserves the right to make any modification or improvement to its products as deemed necessary without inform-
ing customers already in possession of a similar model. This manual forms an integral part of the tool and must
accompany the tool if it changes hands.
5
PELLENC POWER TOOLS BATTERY 150P
56_163476-B
2. SAFETY
Warning
Never carry out maintenance work on damaged battery packs. Service of battery packs should
only be performed by the manufacturer or authorized service providers.
2.1. SAFETY MEASURES ASSOCIATED WITH THE USE OF THE TOOL
Note
Please refer to the instructions of the tool concerned.
Warning
Read all safety warnings and all instructions. Retain all the safety measures and instructions for
later reference.
This device is not intended for use by individuals (including children) with reduced physical, sensory or mental
capabilities, nor by anyone lacking in experience or knowledge, except if they are supervised or have received prior
instructions from a person responsible for their safety.
2.2. SAFETY MEASURES ASSOCIATED WITH BATTERY USE
1. If not using the battery unit, store it away from other metal objects such as paper clips, coins, keys, nails, screws
or other such small metal items that might form a connection between the two terminals. Creating a short-circuit
between the battery terminals can lead to burns or cause a fire.
2. Keep the battery out of the reach of children and place it on a non-combustible support.
3. Do not interfere with its cooling cycle.
4. Do not use or leave the battery near a heat source (> 60°C).
5. Do not leave the battery in direct, strong sunlight.
6. Do not expose the battery to microwaves or high pressure.
7. Do not immerse the battery in water.
8. The batteries must be charged in a dry, ventilated room at a temperature between 10°C and 25°C maximum,
away from any moisture.
9. If the battery is not used for 10 days, the battery will automatically discharge until it reaches its storage charge
rate, then goes to standby. It will heat up during this phase.
10. Over time, the capacity of your battery decreases. When it reaches half of its original battery-life operating
autonomy, it should be replaced.
11. The battery may lose 1 to 4 % of its capacity when exposed to a temperature higher than or equal to 55 °C
for one week.
12. The charging location must be equipped with a class D fire extinguisher (for metal fires) in good working order.
13. The standards in effect must be complied with when shipping a complete tool or a battery.
• Complete tool with battery: product classified UN3481 class 9.
• Battery alone: product that is classified as class 9, UN3480.
14. Use of a battery other than that provided by Pellenc SA is dangerous (risk of serious injury). If a different battery
is used, Pellenc SA cannot be held responsible for any consequences.
15. The battery must be protected from any impact and must be positioned and secured appropriately during trans-
portation.
16. In the case of suspicious smoke, place the battery outside the charging area or transportation vehicle as far
away as possible from any inflammable material.
17. Never store a battery when its capacity is below 50 %. Recharge the battery before storage if the value is
below 50%.
6
PELLENC POWER TOOLS BATTERY 150P
56_163476-B
18. In inappropriate conditions, a liquid can flow batteries; avoid contact with it. In the event of accidental contact,
rinse with water. In the event of contact with eyes, seek professional medical help. The liquid leaking from the
batteries can cause irritations or burns.
19. Pellenc power tools must only be used with the battery units designed for the purpose. Use of other battery
units can present a risk of injury and fire.
20. Recharge only with the charger specified by the manufacturer. A charger adapted to one type of battery unit
may present a fire risk if used with a different battery unit.
21. Do not use the battery for any purpose other than that initially envisaged (exclusively for use with Pellenc tools).
22. At the end of its life, the battery must be returned to the authorized distributor from whom it was purchased to
be recycled in accordance with waste regulations.
23. Fragile case, contains an electronic board and lithium.
2.3. SAFETY MEASURES WHEN USING THE "PELLENC" CHARGER
1. When in operation, the charger’s temperature can reach 60°C. No flammable material must be within 1.5 metres
of the charger and battery.
2. Place the charger out of the reach of children and on a non-combustible support.
3. Do not interfere with its cooling cycle.
4. The charger is intended only for recharging the battery. Do not charge non-rechargeable batteries.
5. The charging location must be equipped with a class D fire extinguisher (for metal fires) in good working order.
6. If the output cord is cut or damaged, bring the entire charger back to the authorised distributor where the tool
was purchased.
7. Only recharge using the "PELLENC" charger indicated by the manufacturer. A charger adapted to one type of
battery unit may present a fire risk if used with a different battery unit.
8. This charger is designed to charge Pellenc tool lithium batteries.
9. Do not use it for any other purposes.
10. Children must be supervised to ensure they do not play with the charger.
11. Check that the cable cannot be bent and that it does not touch hot surfaces or sharp edges.
12. Ensure good ventilation during the charging.
13. Never cover the charger. This charger must not be used outdoors.
14. Make sure the power connector is not exposed to water.
15. Never attempt to charge a damaged battery.
16. The grid connection must comply with national electrical regulations.
17. Check the wiring of the charger before use. Never use the charger if the wiring is damaged.
18. When the battery is charging, place the charger on a non-flammable support, more than 1.5 m away from any
flammable object.
7
PELLENC POWER TOOLS BATTERY 150P
56_163476-B

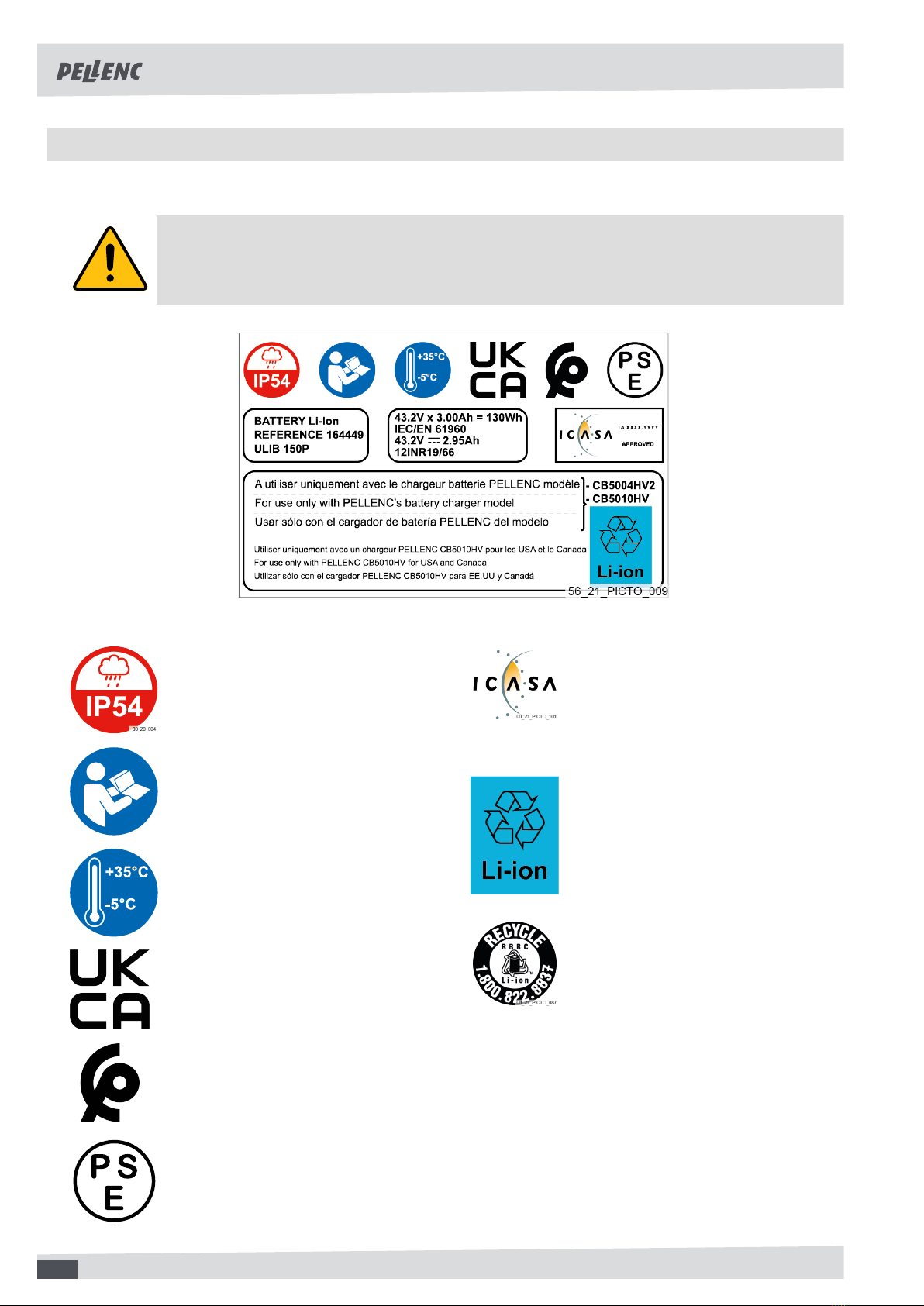

2.4. SAFETY SIGNAGE
California State Proposition 65:
Caution
This product contains or emits a chemical recognized by the State of California to cause cancer,
birth defects or other reproductive harm.
IP54 product protection rating
(Protection against dust and water
spray from all directions).
Please read the operating instruc-
tions.
This equipment must be used at
a temperature of between -5° and
+35°C.
Tool compliant with British stan-
dards
Tool compliant with Moroccan
standards.
Non specified electrical products.
Independent Communications Au-
thority of South Africa
The product complies with the
strict radio interference standards
set by ICASA at the approved fre-
quency.
Marking symbol for identifying the
chemical characteristic of the bat-
tery during recycling.
The RBRC™ sticker (found on
the packaging) indicates that PEL-
LENC voluntarily participates in an
industry program for the collection
and recycling of used batteries in
the United States and Canada.
8
PELLENC POWER TOOLS BATTERY 150P
56_163476-B
3. DESCRIPTION AND TECHNICAL FEATURES
3.1. DESCRIPTION
1. Charging connector
2. Battery clip to be clipped onto the adjustable belt
3. Tool power cord
4. Tool power cord connector
5. Decrease button
6. Mode switch button
7. Increase button
8. On/Off button
9. HMI display screen
10. Power on and charging LED
3.2. BATTERY TECHNICAL FEATURES
Name Ultra Lithium Battery 150P
Rated battery voltage 43.2 V
Type of battery 12 cells in 1 pack
Battery capacity 3 Ah
Battery power 1728 W
Battery energy 130 Wh
Operating frequency bands 13.56 MHz, receiver
Battery life Depending on the tool
Weight of the battery unit 845 grams (without cord)
3.3. TECHNICAL CHARACTERISTICS - CHARGER
Charger CB5004HV2 Charger CB5010HV
Charger reference 152271 132649
Voltage 100-240V ~50/60Hz Class II
Charging voltage 50.2 V DC
Charging current 0.4 A dc max. 1 A dc max.
9
PELLENC POWER TOOLS BATTERY 150P
56_163476-B
Type of charger Charge percent-
age 150P battery 150P battery charging time
70% 5 hrs 10 mins
Charger CB5004HV2 (0.4 A) 100% 8h10
70% 2hrs. 10min.
Charger CB5010HV (1 A) 100% 3hrs. 50min.
Important
For the USA and Canada, use only the CB5010HV charger.
4. COMMISSIONING
4.1. SWITCHING THE BATTERY ON AND OFF
Powering on
1. If the HMI display is off, press the Start/Stop button
(1) to exit the battery from standby.
Note
The HMI display (2) shows the remaining bat-
tery capacity and the power LED (3) remains
off when the unit is switched off.
2. Press the On/Off button (1).
Powering off
• Press the On/Off button (1).
Note
The power-on LED (2) lights up when the power is turned on and goes out when the power is turned off.
4.2. HMI DISPLAY
The battery is equipped with an HMI display that shows the remaining capacity of the battery. The capacity is
expressed as a percentage.
• The display shows 99%, the battery is fully charged.
• If the display shows > 55% after one day's work, it is not necessary to recharge the battery before a second
similar day of work.
• The display shows 00% or a value very close to it, you must recharge immediately.
4.3. CHARGING
Before using the battery for the first time, it must be fully charged (99% steady).
10
Inhaltsverzeichnis
Andere pellenc Kamerazubehör Handbücher
