ASSEMBLY & OPERATION INSTRUCTION
Please read carefully and Save this instruction for future reference
Introduction
The infrared heater contains a gold halogen lamp formed reflector heating system that provides even heat
distribution.
The infrared heater saves 30%-40% of electricity in comparison to traditional heaters. The infrared heater is
commonly used for indoor or outdoor spot heating. Perfect for garages, outdoor patios, indoor pools or
workshops.
Warning
READ CAREFULLY-The infrared heater is designed for safe operation. Nevertheless, installation,
maintenance and operation of the heater can be dangerous. Observing the following procedures will
reduce the risk of fire, electric shock, injury to person and keep installation time to a minimum. Save
these instructions for future reference.
1. Read instruction carefully & thoroughly before using this heater.
2. Remove the unit form its packaging and check to make sure it is in good condition before using.
3. Do not let children play with parts of the package. (such as plastic bags)
4. Check the household voltage to ensure it matches the heater’s rated specification.
5. Check the power cord and plug carefully before use, to make sure that they are not damaged.
6. Before unplugging the power cord, be sure to turn off the power switch, when turning unit
on, be sure your hands are dry to prevent electric shock.
7. Do not use flammable objects near or point the heater directly at furniture, pillows. bedding,
paper, cloth and curtains. Keep these items at least 3 feet (1 meter) form the front of the heater and
keep flammable items away from the heater.
8. Do not use near or in the immediate vicinity of a hot-tub or swimming pool or any source of liquid.
9. To protect against electric shock, do not immerse power cord or plug in water or any other liquid.
10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may
cause an electric shock, fire or damage to the heater.
11. Always unplug the heater when not in use.
12. Do not allow cord to overhang where it can be easily pulled by children.
13. Do not put fingers or foreign objects into the heater element while in operation.
14. Do not leave the appliance unattended when not in use.
15. This heater is not intended for use in bathrooms, laundry room and similar indoor locations. Never use the
heater where it may fall into a bathtub or other water container.
16. No liability can be accepted for any damage caused by none compliance with these instructions or any
other improper use or mishandling.
17. This heater is not intended for use by persons (including children) with reduced physical or
mental capabilities or lack of experience and knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a person responsible for their safety. Children
and vulnerable people should be supervised to ensure they do not play with the heater.
18. If the power cord is damaged in any way, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid hazard.
19. To prevent overheating of this heater, keep the air inlets and outlets clean and free of anything
that may cause blockage. Check all inlets and outlets from time to time to ensure it is clear of any
dirt or dust accumulation.
20. Parts of the heater may exceed 200℃, or 392°F. Contact with the heating tube, reflector, or
metal parts near the heating tube, may cause severe BURNS. To avoid burns, do not let bare skin
touch hot surface.
21. ALWAYS allow heating element to cool at least 10 minutes before touching the heating tube or
adjacent parts.
22. This product contains recyclable materials. Do not dispose this product as unsorted municipal waste.
Please contact your local municipality for the nearest collection point.
WARNING:
NEVER place hands under the heating elements.
Introduction
The PH-90204-BK halogen heater produces instant and comfortable heat like the sun. These robust
and weatherproof heaters are designed for domestic and commercial heating applications within
outdoor areas. It is intended for outdoor use only.
Model PH-90204-BK
Voltage(V)
110-120V AC
Wattage(W) 1500W
Hertz (Hz) 60
Dimensions W×H×D(mm) 67.5*10.5*7.2cm
Weight (KG) 2.03KG
ASSEMBLY INSTRUCTIONS
Installation Hardware:
A
Bracket L Shape 4PCS
B
Plastic Anchor - 4PCS
C
Mounting Screw PA5mm*25mm 4PCS
D
Bolts M5mm*10mm 4PCS
E
Nuts M6mm 2PCS
F
Hex Bolts M6mm*12mm 2PCS
INSTALLATION INSTRUCTIONS
Tools Needed:
Pencil
Hammer
Level
Screw-Driver
Power Drill
Drill Bits
A wall mounting bracket & hardware is provide with the heater which has been specifically designed to allow
this product to be Mounted to a wall or ceiling. Before drilling holes on the wall/ceiling, make sure the wall is a
solid structure and that there are no hidden water pipes or electric wires. The heater must be installed no less
than 16 Inches form side walls and no less than 6 feet off the floor.
Important: Ensure that the supply cables do not come into contact with the reflector of the heater or it is does
not near the heated area. The power cable can be tied to the metal mounting bracket behind the heater with
plastic zip ties.
1. Attach 2pcs (A) L brackets to heater unit with 4pcs (D) M5mm*10mm Bolts (see Figure A).
2. Drill 5/16” diameter holes on wall or celling. (see Figure B) For best results, attach directly on wall
studs if possible.
3. Holes for anchors should be drilled 1 inch apart for each bracket, use bracket as template. The
distance between left & right brackets should be 3-3/8 to 3-1/2 inches center to center of inner
holes of brackets.
A
B
5/16” diameter
Anchor holes
1”
3-3/8” – 3-1/2”
1”
4. Insert 4pcs (B) wall anchors into drilled holes on wall (see Figure C).
5. Mount the 2pcs (A) brackets using 4pcs (C) PA5mm*25mm mounting screws making sure they
are snug and level (see Figure D).
C
D
1”
3-3/8”
6. Attach heater unit to wall brackets (Note: two people are needed for this step) while one person
holds & aligns the heater unit to mounting brackets, the 2nd person should use the two (E) nuts
M6mm and two (F) M6mm* 12mm Hex Bolts to attach to wall brackets. Please install the bolts from
the inside and tighten the bolt nuts from the outside to secure the brackets and adjust brackets if
necessary. (see Figure E).
The heater must be installed at least 6 feet above the floor and mounted horizontally.
E
(16 inches)
(6 feet)
(16 inches)
(16 inches)
Mount brackets attached
to heater on the outside
edge of wall mount
brackets
INSTALLATION WITH TRIPOD STAND
Accessories:
4pcs M5mm*10mm bolts
2pcs L shaped brackets
1 hand bolt & 1 hand nut

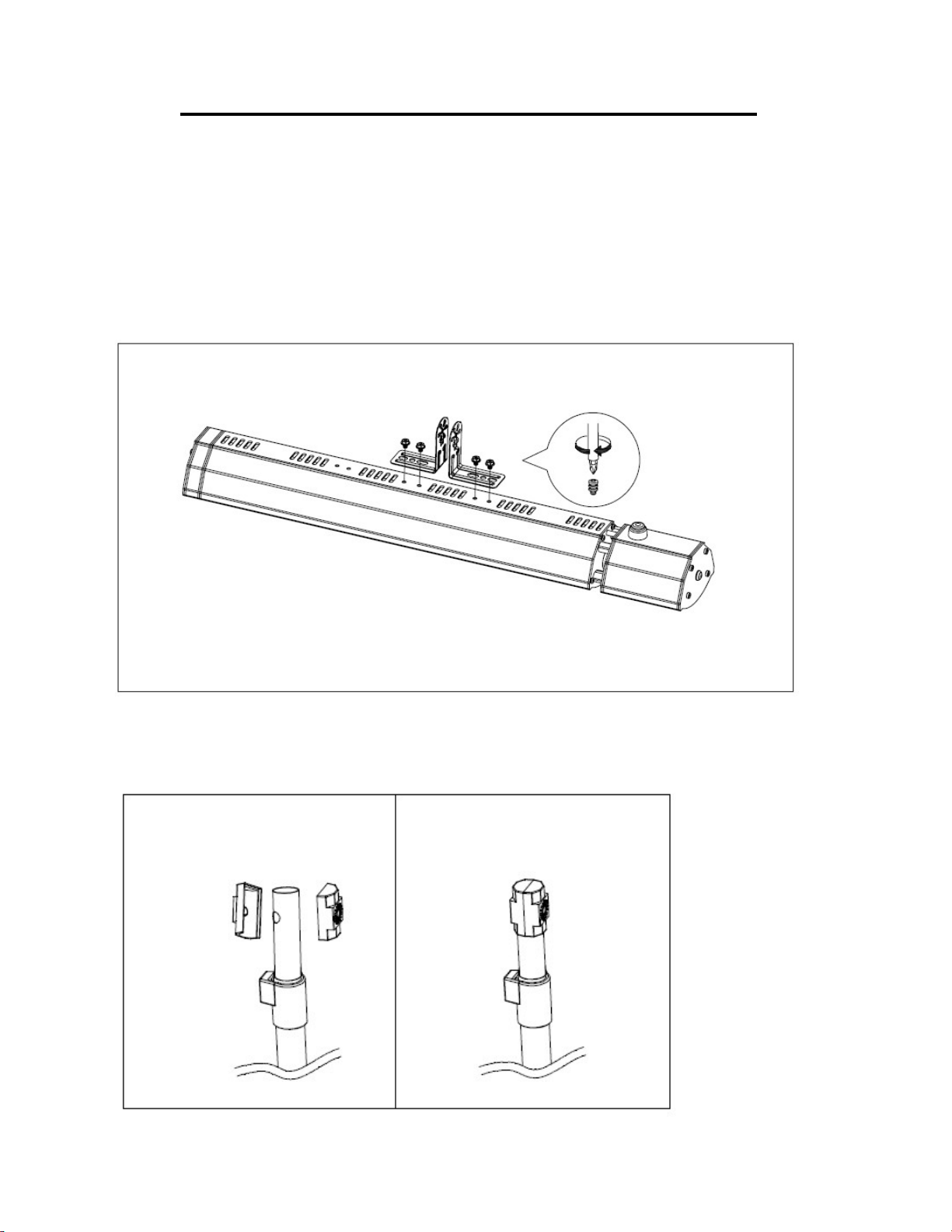

1. Attach 2pcs (A) L brackets to heater unit with 4pcs (D) M5mm*10mm Bolts (see Fig. A)
2. Make sure plastic spacers are attached to tripod post (see Fig. B)
A
B
