Permobil Total Control Head Array Bedienungsanleitung

Total Control Head Array

User manual |American English

Welcome to the Permobil family

We congratulate you on your choice of alternative drive for

your power wheelchair. Our goal is for you to continue to feel

satisfied with your choice of both vendor and product.

Before you begin using your Total Control Head Array, it is

important that you read and understand the content of these

operating instructions, and in particular the safety instructions

and warning texts.

How to contact Permobil

ermobil Inc.

300 Duke Drive

Lebanon, TN 37090

USA

+1 800 736 0925

+1 800 231 3256

[email protected]

www.permobil.com

roduction units. See page 19.

Head office of the Permobil group

ermobil AB

er Uddéns väg 20

861 36 Timrå

Sweden

+46 60 59 59 00

[email protected]

www.permobil.com

Produced and published by Permobil

Edition: 2

Date: 2022-04-13

Order no: 338998 eng-US

1 Introduction 4

2 Safety 5

2.1 Types of warning signs 5

2.2 Warnings 5

3 Overview 8

3.1 Activation zones 9

3.2 The on/off switch and cable ports 10

3.3 The LED indicators 11

4 Usage 12

4.1 Operation modes 12

4.2 Driving modes 14

4.3 Removing the head array 17

5 Maintenance and cleaning 18

1 Introduction

The Total Control Head Array is intended to be installed on

ermobil power wheelchairs equipped with R-net electronics.

ermobil power wheelchairs are intended for people limited to

a seated position. For additional information regarding your

wheelchair, refer to any other documentation received with

your wheelchair or contact your ermobil dealer.

All information, pictures, illustrations and specifications are

based upon the product information available at the time these

operating instructions were printed. ictures and illustrations

used in these operating instructions are representative examples

and not intended to be exact depictions of the various parts of

the Total Control Head Array. ermobil reserves the right to

make changes to the product without prior notice.

4- Introduction

2 Safety

Important safety instructions. Save these instructions.

ermobil is not responsible for personal injuries or property

damage resulting from any person’s failure to follow the

warnings and instructions in this manual, or from failure to

exercise good judgment.

2.1 Types of warning signs

The following types of warning signs are used in this manual:

WARNING!

Indicates a hazardous situation which, if not avoided, could

result in serious injury or death as well as damage to the

product or other property.

CAUTION!

Indicates a hazardous situation which, if not avoided, could

result in damage to the product or other property.

IMPORTANT!

Indicates important information.

2.2 Warnings

WARNING! Vehicle seating requirements

The Total Control Head Array is not a headrest. If you use the

wheelchair as a seat in a motor vehicle, you must replace the

head array with a headrest approved by the wheelchair

manufacturer. If you do not, it can lead to bodily injury.

WARNING! Difficulty of use increases

when tilted

If the seat or backrest is tilted, you will require more strength

to move your head outside the activation zones to stop the

wheelchair from moving. Be sure that you can always lift your

head away from the activation zones. If you are unable to do

so, the wheelchair can injure you.

WARNING! Drive extra carefully when

lifted or tilted

If the seat or backrest is lifted or tilted while the wheelchair is

on flat ground, drive at a low speed. If the seat or backrest is

lifted or tilted, do not drive the wheelchair on slopes or over

obstacles. If you do, the wheelchair can become less stable

and injure you.

Safety - 5

WARNING! Do not remove the covers

The electronic sensors are sensitive to water and moisture.

Make sure that the electronic sensors are protected by their

covers. Do not remove the covers. If you do, moisture can

cause the sensors to inadvertently activate the wheelchair and

you can be injured.

WARNING! Risk of water build-up

The electronic sensors are sensitive to water and moisture.

Avoid getting the covers wet. If they do get wet, for example

from wet hair or rain, the covers may retain moisture that can

cause an inadvertent delayed activation of the wheelchair and

you can be injured.

WARNING! Covers must be completely dry

before use

The electronic sensors are sensitive to water and moisture.

Make sure that the covers are completely dry, both inside and

outside, before replacing them on the sensor pads. Make sure

that the covers are fitted correctly on the sensors and are not

inside out. If any moisture remains in the covers, it can cause

the sensors to inadvertently activate the wheelchair and you

can be injured.

WARNING! Replace damaged or torn

covers

The electronic sensors are sensitive to water and moisture.

Make sure that the covers are whole. Damaged or torn covers

must be replaced with Permobil parts. If the covers get

damaged or torn, moisture can cause the sensors to

inadvertently activate the wheelchair and you can be injured.

CAUTION! Cleaning requirements

For minor spot cleaning, the covers can be cleaned with a

damp cloth and mild detergent. Turn off the power before

cleaning. If more thorough cleaning is needed, follow the

washing instructions on the cover. Make sure that the cover is

dry before replacing it.

IMPORTANT! Scrapping and recycling

Electronics should be disposed of responsibly in accordance

with local recycling regulations. Contact Permobil for informa-

tion about scrapping agreements in force.

6- Safety

IMPORTANT! Electromagnetic fields

The electronics in a power wheelchair can be affected by

external electromagnetic fields (for example mobile phones).

Similarly, the electronics in the wheelchair itself also emit

electromagnetic fields that can affect the immediate sur-

roundings (for example certain alarm systems in businesses).

Safety - 7

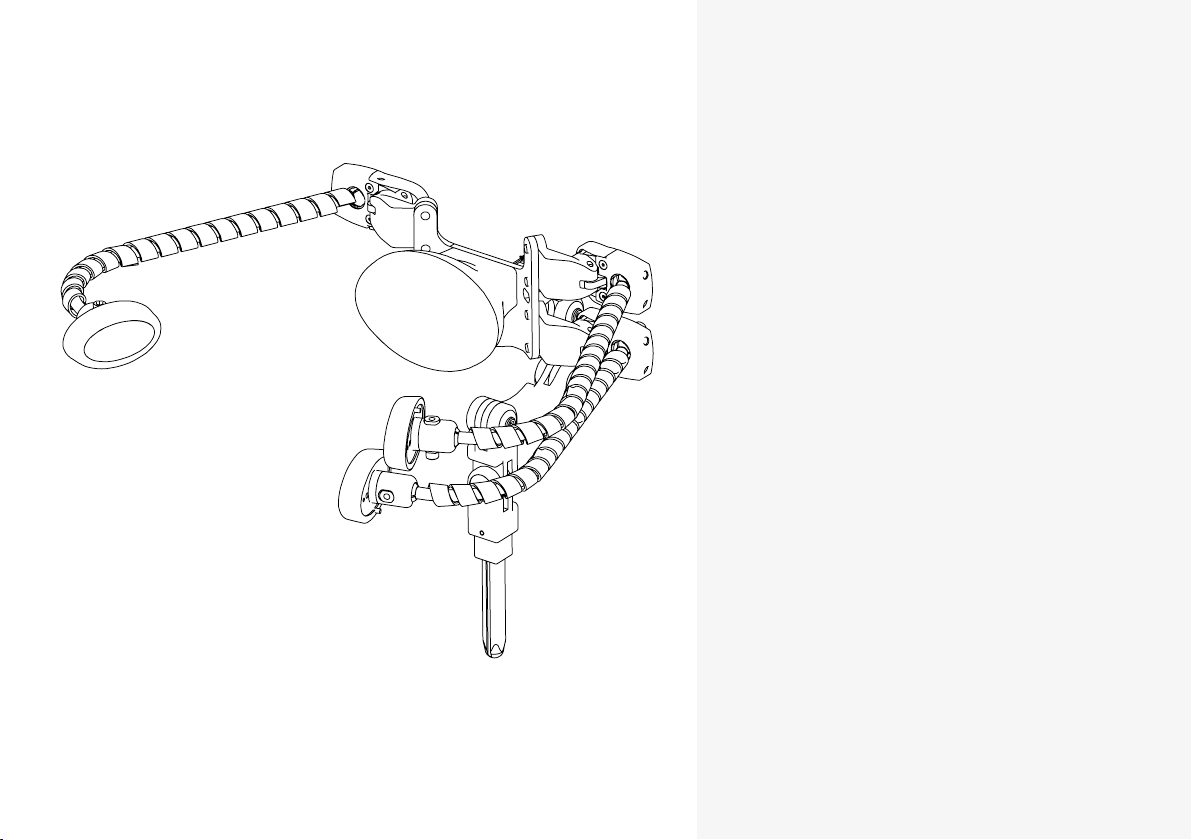

3 Overview

The Total Control Head Array is not a headrest.

It is a device that makes it possible to operate the

wheelchair with something other than a standard

joystick. It can operate all the modes and

functions of your power wheelchair. Your

healthcare provider will tailor the operation of

your head array system to meet your individual

needs and then they will train you to use your

Total Control Head Array.

Before you start using the Total Control Head

Array in public places, we recommend that you

try it out several times in an area with familiar

surroundings, so that you become comfortable

with operating your power wheelchair using the

Total Control Head Array.

8- Overview

3.1 Activation zones

Occipital pad has two proximity sensors. Control arms and can have

either proximity sensors or egg switches.

Activation zones for proximity sensors , , and , are shown as a gradient

shading. The lesser amount of shading indicates where the sensors can begin

to activate the control arms.

If your head array is configured with egg switches, pushing against egg

switches and will activate the control arms.

For instructions on how the activation zones correspond to the default

driving modes, see chapter 4.2

Driving modes

, page 14.

If the configuration of your head array needs to be adjusted, contact your

healthcare provider for assistance.

Overview - 9

3.2 The on/off switch and cable ports

On/off switch is located on the back of the occipital control module.

Additional cable ports can be found on the connection panel, which is

located on the underside of the occipital control module.

The functionality of the cable ports are as follows:

mode

left

forward/rearward

rearward only

right

on/off

10 - Overview
