PEUGEOT 307 Bedienungsanleitung
INSTRUMENTS AND CONTROLS
1.
Audio equipment control stalk.
2.
Steering lock and ignition.
3.
Windscreen wipers/wash-wipe/
trip computer stalk.
4.
Instrument dials.
5.
Driver’s air bag.
Horn.
6.
Gear lever.
7.
Handbrake.
8.
Electric mirror controls.
Window controls.
Rear window disarming control.
9.
Headlamp height adjustment.
10.
Side adjustable and closing
vent.
11.
Front side window demisting
vent.
12.
Speaker (tweeter).
13.
Windscreen demisting vents.

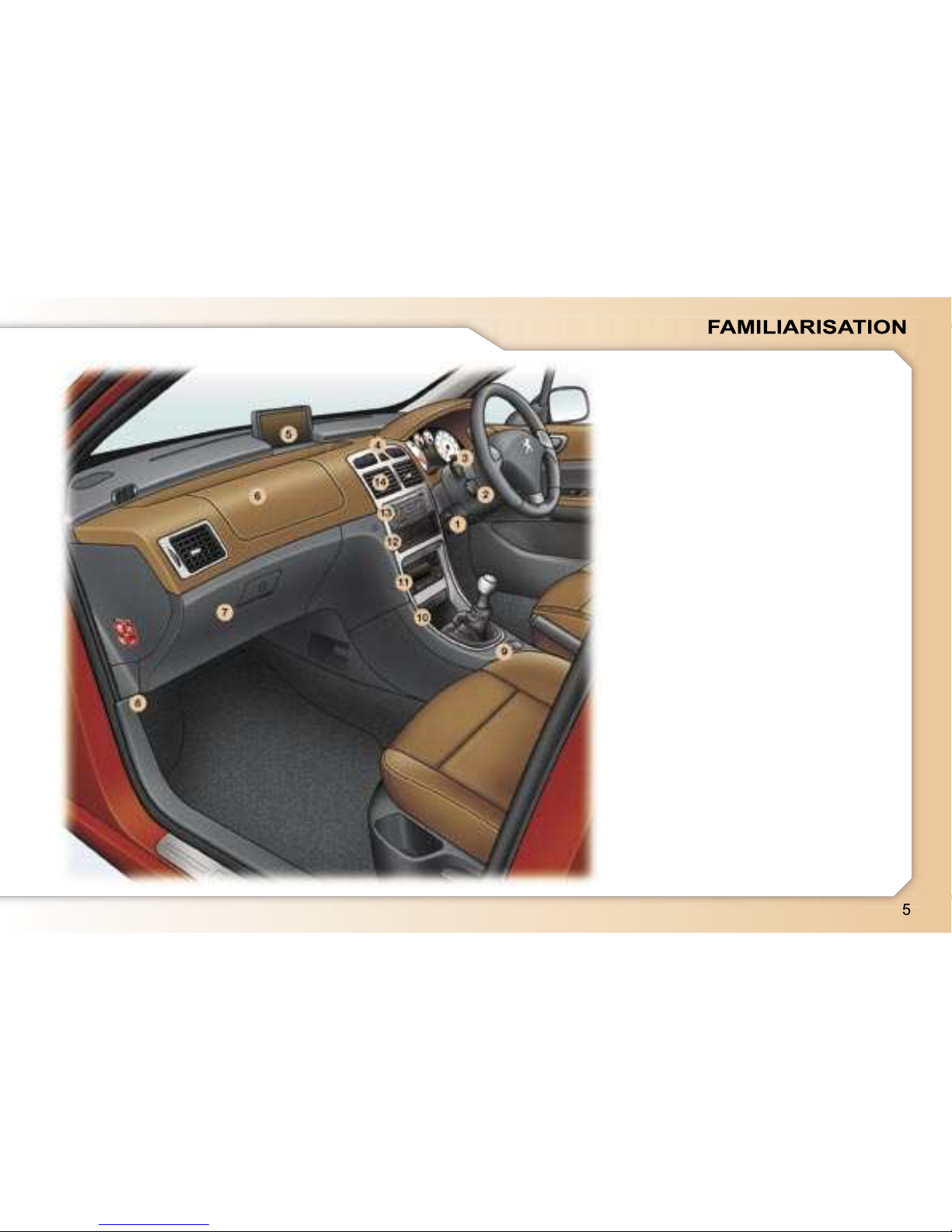

1.
Steering wheel adjustments
control.
2.
Cruise control/speed limiter
control.
3.
Lights and direction indicators
stalk.
4.
Alarm button.
Central locking button.
Hazard warning lights switch.
Electronic stability control
(ESP/ASR) button.
Front seat belts unfastening/not
fastened warning light.
5.
Multifunction display.
6.
Passenger air bag.
7.
Glove box/Audio/video sockets/
Fuse box.
8.
Bonnet opening control.
9.
12 volt socket.
10.
Front ashtray.
11.
Heating/air conditioning
controls.
12.
CD changer.
13.
RD4 audio equipment or RT4
GPS audio/telephone.
14.
Central adjustable and closing
vents.
INSTRUMENTS AND CONTROLS
THE REMOTE CONTROL KEY
Unfolding/Folding the key
First press button
A
.
Unlocking
Press button
C
to unlock the vehicle.
This is confirmed by rapid flashing of
the direction indicators for approxi-
mately two seconds.
STARTING
DISARMING THE
PASSENGER AIR BAG*
With the ignition switched
on, illumination of this warn-
ing light indicates that the
passenger air bag is dis-
armed (switch in the
"OFF"
position).
The warning light remains on through-
out the duration of disarming.
Disarming check
Locking
Press button
B
to lock the vehicle.
This is confirmed by fixed lighting of
the direction indicators for approxi-
mately two seconds.
* According to country.
92
The remote control permits locking,
deadlocking, unlocking and locating
of the vehicle, as well as folding and
unfolding of the exterior mirrors.
The key allows you to switch on the
ignition and mechanically and inde-
pendently operate the lock on the
glove box, the fuel filler cap, the pas-
senger air bag disarming switch and
the child lock.
From the driver’s door, the key allows
you to electrically control the locking,
deadlocking and unlocking of the
doors and the boot and the folding
and unfolding of the exterior mirrors.
61
A heavy object attached to the key
(key ring, ...) weighing down on the
shaft of the key in the ignition, may
cause a malfunction.
1. STOP position:
The ignition is off.
2. Running position:
The ignition is on and the
accessories can be used.
3. Starting position:
Operates the starter.
With the ignition off,
insert the key
into the passenger air bag disarming
switch
1
, turn it to the
"OFF"
position,
then remove it keeping the switch in
this position.
As soon as you remove the child
seat, turn the air bag switch to the
"ON"
position to activate the air bag
again.
FRONT SEATS
1.
Forwards/backwards
adjustment.
2.
Driver or passenger seat height
adjustment.
3.
Seat back angle adjustment.
4.
Access to rear seats (3-door).
5.
Head restraint height and angle
adjustment.
Never drive with the head re-
straints removed.
6.
Front removable armrest
(5-door).
7.
Storage drawer.
51
1.
Temperature
adjustment.
HEATING/MANUAL AIR
CONDITIONING
2.
Air flow adjustment.
3.
Air distribution
adjustment.
4.
Air intake/Air
recirculation.
5.
Demisting the rear
screen and mirrors.
6.
Air conditioning On/Off.
41
44
–
I require...
Heating or Manual air conditioning
Air distribution
Air flow
Air recirculation/Intake
of exterior air
Temperature
Manual AC
HOT
COLD
DEMISTING
DE-ICING
RECOMMENDED INTERIOR SETTINGS
46
1.
Automatic comfort
programme.
DUAL ZONE AUTOMATIC AIR
CONDITIONING
The driver and his front passenger
can each adjust the temperature to
their requirements.
It is preferable to use the automatic
mode which optimises all of the func-
tions: temperature, air flow, air distri-
bution and air recirculation.
2.
Driver’s temperature
adjustment.
3.
Passenger temperature
adjustment.
4.
Automatic visibility
programme.
5.
Air conditioning On/Off.
6.
Air distribution
adjustment.
7.
Air flow adjustment.
8.
Air intake/
Air recirculation.
9.
Rear screen and
mirrors demisting.
ELECTRIC MIRRORS STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT
ELECTRIC WINDOWS
Manual operation:
Press or pull the switch lightly.
The window stops as soon as the
switch is released.
1. Driver’s electric window
2. Passenger’s electric window.
3. Rear right electric window.
4. Rear left electric window.
5. Disarming the rear window
switches.
Move control
6
to the right or
left to select the mirror to be ad-
justed.
Move control
7
in all four direc-
tions to adjust.
Return control
6
to the centre
position.
When parking the vehicle, the mir-
rors can be folded back electrically,
by pulling control
6
rearwards or au-
tomatically on locking the vehicle us-
ing the remote control or the key.
49
When stationary, pull handle
A
to unlock the steering wheel.
Adjust the height and depth of
the steering wheel.
Lock it by pushing handle
A
fully.
50
Automatic operation:
Press or pull the switch firmly. One
touch completely opens or closes
the window.
65
Front
2
Rapid wipe.
1
Normal wipe.
I
Intermittent wipe.
0
Off.
AUTO
Automatic wipe or single
wipe.
Windscreen wash-wipe: pull the stalk
towards you.
LIGHTS STALK
Front and rear lights (ring A)
Lights off.
Automatic switching on
of the lights.
Side lights.
Rear fog lamp (rotation
of the ring forwards)
Front fog lamps (first
rotation of the ring for-
wards)
Front fog lamps and
rear fog lamp (second
rotation of the ring for-
wards)
Switching off: rotation of the ring
backwards.
71
Dipped/main beam
headlamps.
Vehicles fitted with a rear fog
lamp (ring B)
Vehicles fitted with front fog
lamps and a rear fog lamp (ring C)
Rear
Off
Intermittent wipe
Wash-wipe
74
The position is indicated on the in-
strument panel by the corresponding
indicator light.
WINDSCREEN WIPERS
STALK

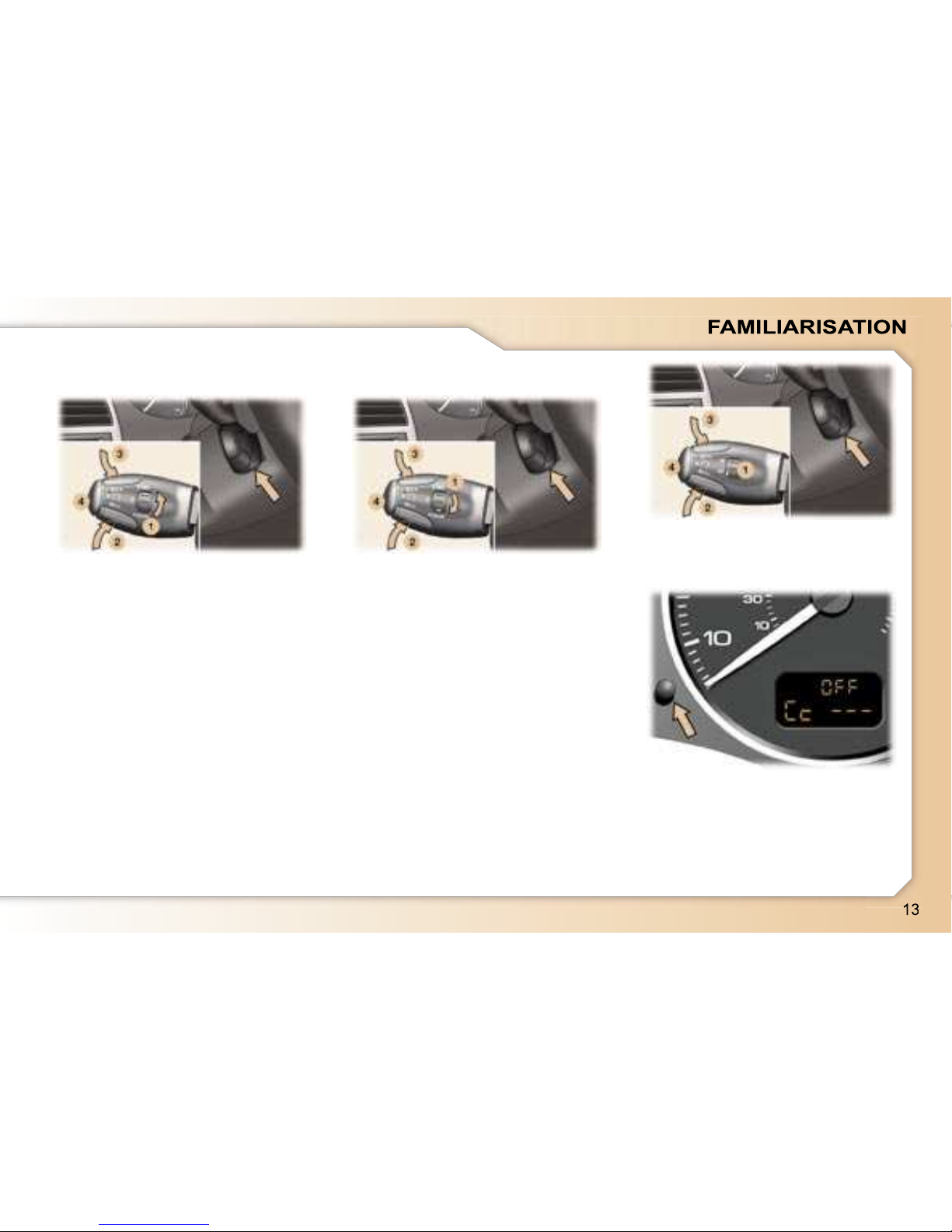

1.
Function Selection/Off.
2.
Decreasing of the speed.
3.
Increasing of the speed.
4.
Activation/Deactivation of the
system.
The values must be set with the en-
gine running.
98
CRUISE CONTROL
102
The cruise control or speed limiter
function appears on the instrument
panel when it is activated.
Pressing the button enables you to
alternate between the activated func-
tion display and the distance record-
er displays.
SPEED LIMITER
1.
Function Selection/Off.
2.
Storing of a speed/Decreasing
of the stored speed.
3.
Storing of a speed/Increasing of
the stored speed.
4.
Deactivation/Reactivation of the
cruise control.
In order to be stored or activated,
the vehicle speed must be above ap-
proximately 25 mph (40 km/h), with
at least fourth gear engaged on the
manual gearbox (second gear on the
automatic gearbox).
100
Instrument panel display
