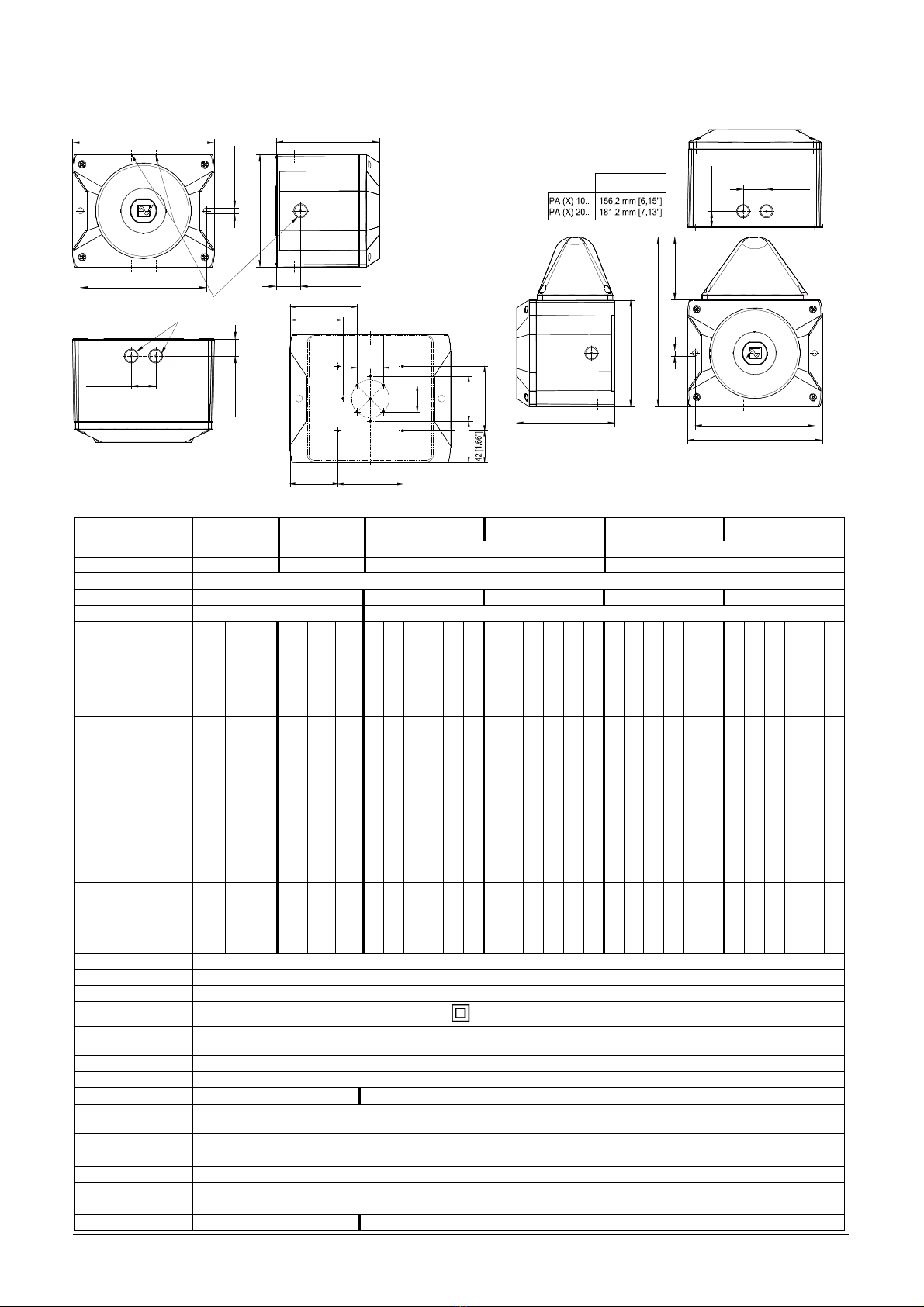

985 501 002 7
Approvals
(valid for marked equipment)
PA10/ PA 20, 110-230V AC: PA10/ PA 20, 24-48V DC: PA10-SSM, PA 20-SSM:
VdS 0786-CPD- 21184 VdS 0786-CPD- 21223 0786-CPD- 21224
Construction
Product Directive
(89/106/EWG)
PA 10/ PA 20
Options –SSM
Rated voltage 24 – 48 V DC 110V – 240V AC
Operating voltage range acc.
to EN54-3, EN54-23 18V – 60V
Option: -SSM (18V – 30V) 95V – 265V AC
Tone 2
15
60
104
131
146
Compliant with the Construction Product Directive (89/106/EWG)
1200Hz-500Hz (Saw tooth) DIN/PFEER P.T.A.P.
500Hz-1200Hz (Slow whoop)
825Hz (Continuous)
660Hz (Intermittent tone)
800Hz/ 1000Hz (Alternating tone)
544Hz/ 440Hz (NF S 32-001)
Signaling area EN54-3: see documents
30305-005-1 (PA 10) and 30306-005-1 (PA 20)
Environmental protection class Type B
The test was performed using the provided diaphragm nipples and the outer fixing holes.
PA10 / PA 20, 110 – 230V AC: PA10/ PA 20, 24 - 48V DC: PA10-SSM, PA 20-SSM:
G212116 G212191 G212192
VdS
Data see Construction Product Directive (89/106/EWG)
GL GLxxxxx (in preparation) Environmental Category C, H, EMC1
Rated voltage Audible-signal Appliance
Fire Alarm Equipment
ULSZ, ULSZ7
Audible and Visual signal Appliance
General Signal Equipment
UCST, UCST7 and UEES, UEES7
PA 10
PA 20
24V – 48V DC
(Fire Alarm Equipment)
12V – 48V DC
(General Signal Equipment)
x
Special application, limited
operating voltage range 18 –
60V DC
x
PA 10
PA 20
24V AC
110 – 240V AC - x
UL, cUL
PA X 10 ..
PA X 20 ..
115V AC
230V AC - x
PATROL-Sounders PA 10/ PA 20 comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
Inrush current
PA 10 Surge Current Peak Surge Current RMS (16,7ms frame) Voltage
12 – 48 V DC 27 A 4,5 A 60 V DC
24 V AC 11,5 A 6,8 A 30 V AC
110 – 240 V AC 18,5 A 1,45 A 265 V AC
Suitable for indoor and outdoor use.
Signaling area: see document 30305-005-1 (PA 10) and 30306-005-1 (PA 20)
Cable gland entries:
Conduit installation needs to be UL/ cUL listed fittings suitable for knockout openings. The supply wiring has to be enclosed in metal con-
duits for products for Fire Alarm Use.
Installation:
The units shall be installed indoors or outdoors in accordance with the manufacturer’s installation instructions as well as the National Electri-
cal Code (NFPA 70) and the National Fire Alarm Code (NFPA 72) for the units evaluated for Public Fire Alarm applications in the U.S. In
Canada, they shall be installed in accordance with the Canadian Electrical Code, Part 1 and the Standard for the Installation of Fire Alarm
Systems CAN/ULC-S524-M91 for the units evaluated for Public Fire Alarm applications. The installation shall also be in a manner accept-
able with the local authority having jurisdiction.
For audible application for Fire Alarm Service use both terminals for connection. Break wire run to provide Electrical Supervision (see UL
464 clause 39.1e). The tone no. 111 is to be used for evacuation use only (see UL 464 clause 39.1e)
Volume control: PA 20/ PA X 20 ..: The volume control has to be set to the secured factory position.
AXIS ANGLE dBA
Horizontal 32 deg. left or right -3
Horizontal 28 deg. left or right -6
Vertical 32 deg. left or right -3
cUL directional characteristics for
the horn:
Vertical 28 deg. left or right -6
Type Voltage UL 464 db(A) at 10 ft ++ CAN/ULc-S525-07
PA 10 (24-48 DC) 18V DC 82,4 (for tone 113) 92,4 (for tone 111)
Min. Output sound pressure
level: [dB(A)]
(Tone no. 2, 15, 60, 104, 131, 146, 111,
112, and 113 was used for this test.)
PA 20 (24-48 DC) 18V DC 84,3 (for tone 113) 99,3 (for tone 111)
Connecting cables:
7 [0.28"]
solid stranded
