FIREPLACE PREPERATION
A. Professionally clean chimney and fireplace floor of any
combustible material to limit the smell from the system.
.
B. Open fireplace damper fully and install Damper Stop
Clamp with 1/4x2” set screw (Part 14#). This clamp is
Designed to allow any combustion by-products to vent
(See Fig.2) Should the Damper Stop Clamp supplied fit,
not fit, a permenant damper stop clamp must be inst-
alled that will keep the damper open at a distance of not
The damper must be in the fully open position anytime
the unit is in operation.
C. Prior to connecting the gas log set, make sure that the
gas supply to the fireplace is completely shut off.
PREFABRICATED
FIREPLACE
MASONRY
FIREPLACE

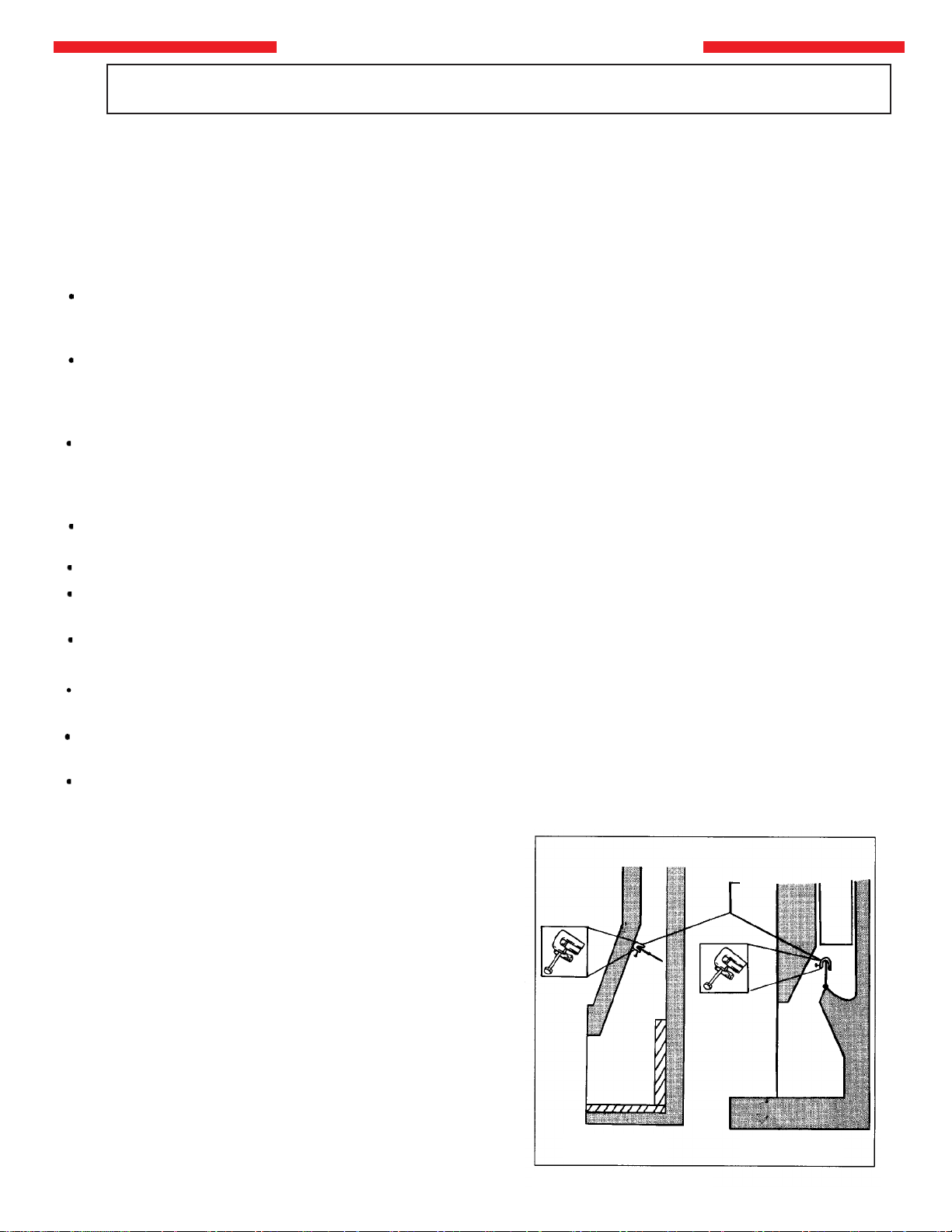

Figure 2. Damper stop clamp
PART NO. 14
less than 1 1/2”.
The smallest or minimum dimension of the chimney flue must be 8 inches in diameter . Do not use an
Energy fficient Gas Log Set if it is smaller than 8 inches. Do not use an Energy Efficient Gas Log Set if
fumes from the burner emerge into the room when the damper is fully open. This indicates that there is
not adequate draft for this log set and it must not be used until the fireplace draft is corrected.
This appliance must be installed with a Damper Stop Clamp (Part #14). When operating this gas log set,
the flue damper must be fully open.
The minimum inlet gas pressure for this appliance i s 7” water column for natural gas. The maximun inlet
This appliance must also be disconnected from the gas supply system by closing its individual manual
shutoff valve during any pressure testing at pressure equal to or less than 1/2 PSIG.
pressure is not to exceed 10” water column.
WARNING: For installation in a solid-fuel burning fireplace only. The fireplace chimney must have a perman-
ent vent opening to atmosphere of not less than 49.2 square inches, or as determined from the manufacturer's
installation instructions.
WARNING
: If you do not follow these instructions exactly, a fire or explosion may result, causing
property damage, personal injury or loss of life.
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING:Improper installation, adjustment, alteration, service or maintenance can cause injury or property
damage. Refer to the owner's information manual provided with this appliance. For assistance or additional
information consult a qualified installer, service agency or the gas supplier.
NOTE:The vent opening in the marking above shall be based on a 6-foot high chimney and the appliance in-
put rate as shown under MINIMUM FIREPLACE SIZE on Page 4..

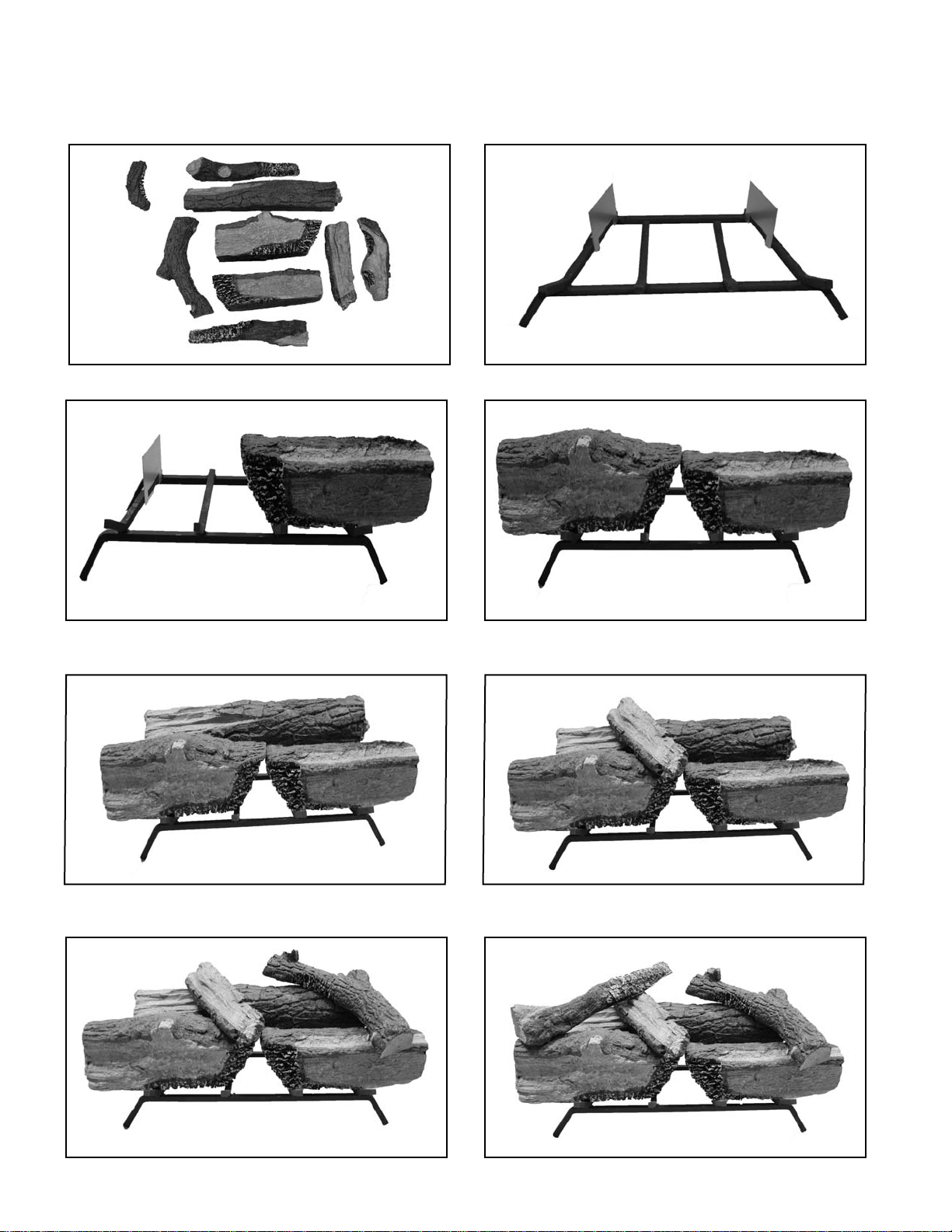

This gas log set is only to be installed and burned in a fully ventedfireplace with a fully functional
damper and chimney that is free of any obstructions. The fireplace must be constructed of non-
combustible materials and approved to burn wood.
Do not place clothing or other flammable material on or near the appliance.
Children and adults should be alerted to the hazards of high surface temperature and should be kept
lear to avoid burns or clothing ignition.
Do not burn wood, solid fuels, or other material in any fireplace fitted with a gas log set.WARNING:
FOR YOUR SAFETY:
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other ap
pliance.
A Fireplace screen must be in place when appliance is operating. Unless other provisions are made for
combustion air, the fireplace screen must have openings for combustion air.
c
Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the burner system which has been
under water.
E
