phaiser BHS-710 Bedienungsanleitung
BHS-710
Bluetooth®Headset
User manual
1. Notice Before Using
Thank you for purchasing the Bluetooth® Headset BHS-710. Please read this
User's Manual completely before you use the Headset.
BHS-710 designed for listening the high quality music wirelessly that based
on the latest Bluetooth® wireless technology. BHS-710 can be easily
- !-1
connected to a mobile phone for call conversation and music listening, it is
also capable to connect to the other Bluetooth®-enabled devices like
Notebook, iPod etc.
BHS-710 is compliant with Bluetooth V4.0 specification, supports HSP, HFP,
A2DP and AVRCP profiles. Please make sure your phone or other device
supports these profiles.
2. Specification
Bluetooth specification: V4.0
Operation frequency: 2.402-2.48GHz
Supported profile: HSP, HFP, A2DP,AVRCP
Operation range: Up to 10 meters
Talk time: 5hours
Play time: 4 hours
Standby time: 160 hours
Charge time: 1 Hours
3. Package Contents List
Please inspect this package and refer to the package contents list below to
verify all items were included in this package:
1) BHS-710 Bluetooth® headset(1)
2) USB Charging Cable(1)
- !-2
3) User's Manual(1)
4) Ear Cap (2x3 Sizes )
5) Ear Cap B (2x3 Sizes )

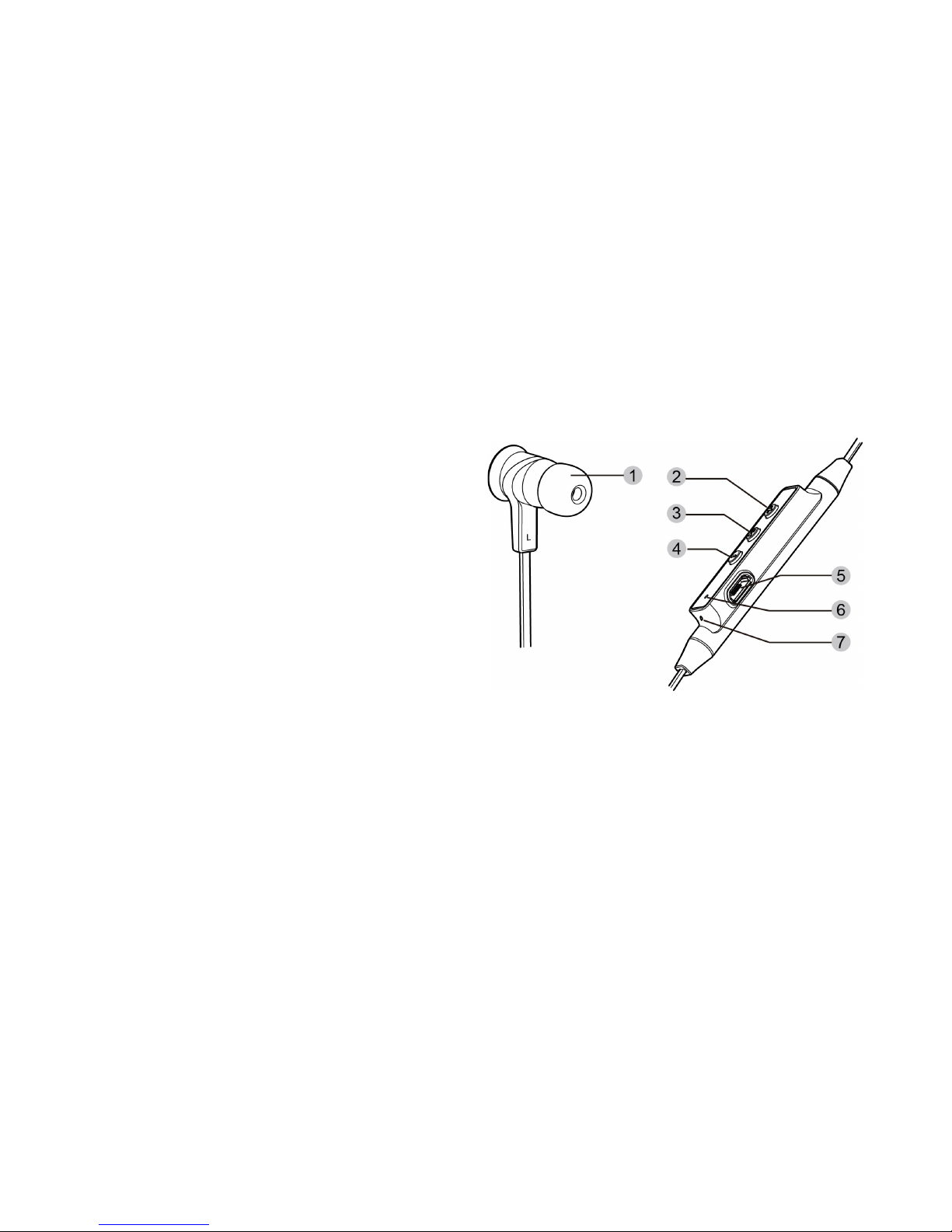

4. BHS-710 Bluetooth® Headset Overview
.Ear Cap
.Volume Up/Previous
三.Power/Play
四.Volume Down/Next
五.Micro USB Charge Port
六.Microphone
七.Indicator
5. Battery information
The device is equipped with an integrated lithium-polymer battery. The
battery cannot be replaced. Do not attempt to remove the battery from
the device since it would damage the device. The full performance of a
new battery is not achieved until after two or three complete charging-
discharging cycles. The battery can be charged and discharged several
hundred times, but it looses its capacity over time.
Disconnect the BHS-710 from the power supply as soon as the battery is
- !-3
fully charged, overcharging would reduce the service life of the battery. A
charged battery will lose its capacity if it is not used on a regular basis.
Important: Ensure that the battery is fully charged if you do not use the
device for a long period of time. To avoid a complete discharge of the
battery, the BHS-710 should be charged at least every 3 months.
6. Charging the battery
The BHS-710 is operated with a rechargeable battery. Charge the battery
completely before its first use. Read the section "Battery information"
before starting the charging process.
1) Connect USB cable to a general USB power supplier.
2) Connect the charger to the correct outlet.
3) When the charger is connected to the headset, the red indicator
light will turn on. Charging the battery fully may take up to
1hours.
- !-4
!
4) When the battery is fully charged, the red indicator light will turn
blue. Disconnect the charger from the headset and the outlet. The
headset is ready to use.
NOTE:
- For first time use, please charge the headset fully.
- The fully charged battery has power for up to 5 hours of talk-time and 4.5
hours music playing time, and up to 300 hours of standby time. However,
the talk and standby times may vary when used with different mobile
phones or other compatible Bluetooth® devices, usage settings, usage
styles, and environments. When the battery power is low, the headset will
remind you by voice prompt "Battery low" every 20 seconds, and the red
- !-5
indicator light starts to flash.
- For using the BHS-710 with iPhone, an additional battery meter (!) will
be activated and the remaining battery capacity will display on your phone.!
7. Pair to your Bluetooth® phone
Before you use your headset the first time, you must pair the unit with a
Bluetooth® enabled mobile phone. Pairing is a one-time process and
required only for the first connection with the Mobile phone. The BHS-710
can be connected with two mobile phones simultaneously.
1) Keep the BHS-710 within 1 meter range of a Bluetooth®-ready
Mobile phone.
- !-6
2) Press and hold the Power/Play button for about 5s, the indicator
light will flashes red and blue intermittently, the device is now in
pairing mode.
3) Find the Bluetooth® setting of your Mobile phone and start the
search for Bluetooth® devices. (For further details, please read
the operating instructions of your Mobile phone).
4) From the list of devices found, select the "BHS-710".
5) If required, enter the PIN code "0000" and confirm the entry. Once
the pairing process was successful, the BHS-710 will connect to
Mobile phone automatically then switch to standby mode, the
indicator will flash blue every 5 seconds.
Note:
1) If pairing is not completed within 2 minutes, the headset will turn
off. If this happens, please repeat the pairing steps.
2) The BHS-710 supports Multi-connection that allows for the
simultaneous use of the BHS-710 with two mobile phones. After
paring successfully with 2 mobile phones, switch off the headset
and switch on again, the headset will connect to both 2 mobile
phones automatically. Otherwise, you can connect the headset on
the cellphone manually.
8. Turning headset on /off
Turn on your headset
- !-7
Long press the Power/Play for 3s to turn on your headset. If your headset
has completed the pairing process successfully, when the headset is turned
on, it will connect to the phone you last connected automatically. Please
ensure your phone's Bluetooth® function is active.
Turn off the headset
Long press the power button for 3s to turn off the headset. the Red
indicator will flash red.
Note:
To conserve power, if the headset is not connected to a device for
approximately 10 minutes, the headset will turn off automatically.
9. Selecting the Voice prompt language
The BHS-710 supports voice prompt for the headset’s status announcement
in 5 different languages(English, Chinese, Spanish, French, German). At the
standby state with connection, long press Answer button to shift the
languages one by one, short press the Power/Play to select the languages.
10.Wearing the headset
For the best sound performance and a secure, comfortable fit, be sure the
ear buds to rest gently in your ear and drape around the back of our neck.
Use the provided fit kit to find the ear tip that works best for you.
- !-8
!
!
11.Using for music play
Play/Pause
Press Power/Play button to get the music play or pause.
Next/Previous song
Press and hold Next button to skip to next song or chapter, press and hold
Previous button to go back previous song or chapter.
Increase/Decrease volume
Press Volume Up button to increase volume, press Volume Down button to
decrease volume.
- !-9
!
Note:
The BHS-710 supports A2DP profile that allows stereo music streaming from
a Bluetooth phone. The music will pause automatically while a call is dialed
out/incoming, and resume when the call conversation has ended.
12.Using for phone call
Last number re-dialing
At standby status, double press the Answer, the last number you dialed
will be re-dialed.
Note: the last number re-dialing is available only for the first device if two
Mobile phones are connected. The connection sequence can be determined
by reconnect manually.
Answering a call
Press Answer shortly to answer the incoming call.
Reject an incoming call
Press and hold Answer for 2 seconds to reject the incoming call.
Transferring a call
Press and hold Volume Up for 2 seconds to transfer the call between the
phone and headset.
Ending a call
Press the Answer shortly to end a call.
- !-10
