Phanteks Evolve Shift XT Bedienungsanleitung

| www.phanteks.com

INSTALLATION GUIDE

VERSION 1.0

INSTRUCTIONS

Thank you for choosing Phanteks. This manual will guide you

through the installation process of the Evolv Shift XT Hi-Res

Display. If you have any questions, please contact us through

our customer service or social media.

Remove the magnetic aluminum front

panel.

Slide the mesh panels up to remove

them.

Remove the thumb screw at the rear. Slide the chassis to the front (1) and lift it

from the bottom panel (2).

Slide the locks inwards to unlock. Slide the top panel to the front (1) and lift

the top panel up with two hands (2).

This manual is for the following models:

PH-ES121XT_LCD Evolv Shift XT Hi-Res Display

Phanteks will not take responsibility for any damages incurred due to incorrect

installation or usage of this product.

HI-RES DISPLAY

HDMI CABLE

pre-connected

SATA CABLE

pre-connected

POWER SWITCH CABLE

pre-connected

INCLUDED ACCESSORIES

REMOVE EXTERNAL PANELS

All external panels must be removed to install the Evolv Shift XT Hi-Res Display.

04 05 06

02 03

THUMBSCREW

REMOVE

| www.phanteks.comINSTALLATION GUIDE

Feed the cables through the designated chassis cut-out.

The Hi-Res Display can now be installed. If a system has already been installed into the chassis, it can remain installed.

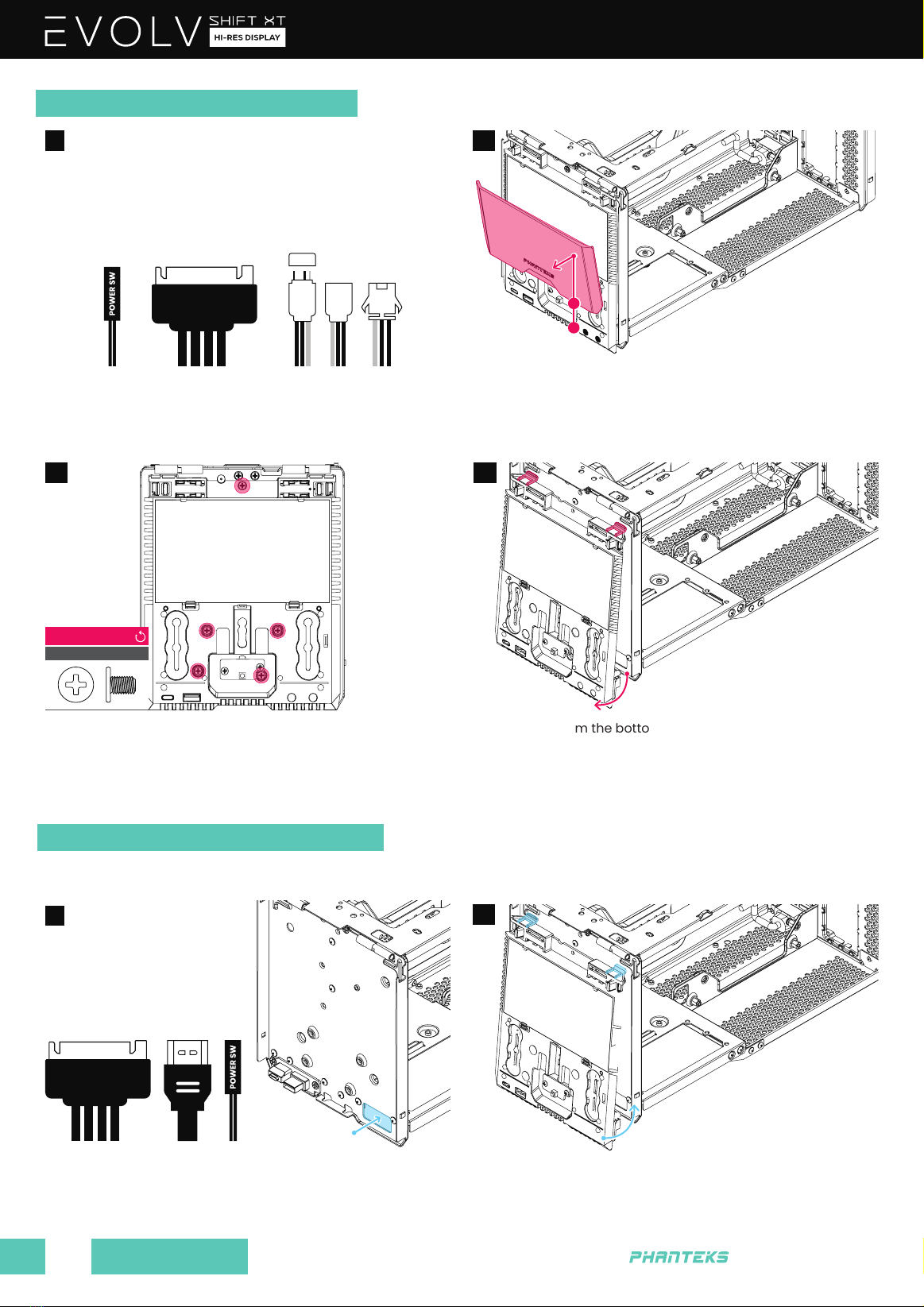

REMOVE ORIGINAL FRONT PANEL

INSTALL THE HI-RES DISPLAY PANEL

Remove all highlighted screws.

Save them for installing the Hi-Res Display.

Lift the panel from the bottom out of the chassis.

Carefully remove the front IO cables out of the chassis.

CASE SCREW

REMOVE

Place the Hi-Res Display panel into the chassis.

Make sure it is alligned and seated properly.

Disconnect these front IO cables.

SATA HDMI POWER SW

Slide the front aluminum panel upwards (1), slide it further up

with some force (2). Remove the panel.

POWER SW SATA D-RGB CABLES

INSTALLATION GUIDE

VERSION 1.0

| www.phanteks.com INSTALLATION GUIDE 03

Secure the Hi-Res Display with the original 5 screws. Place the front aluminum panel back and slide is down.

CASE SCREW

INSTALL

Connect the SATA cable to the power supply.

Connect the HDMI to the graphic card.

Connect the POWER Switch cable to the motherboard.

Re-install all external panels.

CONNECT THE HI-RES DISPLAY PANEL

REINSTALL ALL EXTERNAL PANELS

We recommend to route the HDMI cable along the bottom of the

graphics card. The HDMI cable can then be routed out the rear of

the chassis through the PCI thumb screw cut-out.

POWER SUPPLY

GRAPHICS CARD

MOTHERBOARD HEADER

SATA

HDMI

POWER SW

| www.phanteks.comINSTALLATION GUIDE

Fallow these steps to setup the Hi-Res Display correctly and further optimize its usability.

For any questions or feedback, please contact us through e-mail or social media.

SET THE ORIENTATION

SET THE RESOLUTION

OPTIONAL | PREVENT CURSOR FROM MOVING TO SECOND SCREEN

OPTIONAL | INCREASE THE SCALING

OPTIONAL | SET THE SCREEN TO EXTEND

OPTIONAL | HIDE THE TASKBAR ON SECOND SCREEN

CUSTOMER SERVICE

Set the Display Orientation to ‘Landscape’.

Set the Display Resolution to its native 2560 x 1440 pixels.

Position the Hi-Res Display diagonally of the main display. The cursor can not move to

the Hi-Res Display easily (but not impossible).

Go to: START > SETTINGS > SYSTEM > DISPLAY

Set the Scaling to 200%.

Set the second display to ‘Extend’.

Go to: START > SETTINGS > PERSONALISATION > TASKBAR

Go to: START > SETTINGS > SYSTEM > DISPLAY

Turn “OFF” Show Taskbar On All Displays, this shows only the taskbar on Display 1.

WINDOWS DISPLAY SETTINGS

US & Canada

[email protected]

International

[email protected]

SOCIAL MEDIA Phanteks Phanteks Phanteks @phanteks
