Service

Coee Machine

06-DECEMBER-2018

ServiceManual

Rev. 02 - DEC 2018

TYPE 12NC DESCRIPTION

HD8827/01 882882701010 HD8827/01 PHI 3000 V2 CMF BK 230 WE

HD8827/09 882882709300 HD8827/09 PHI 3000 V2 CMF BK 230 CEE

HD8827/09 882882709870 HD8827/09 PHI 3000 V2 CMF BK 230 RU

HD8829/01 882882901010 HD8829/01 PHI 3000 V2 EASYCAP. BK 230 WE

HD8829/09 882882909300 HD8829/09 PHI 3000 V2 EASYCAP. BK 230 CE

HD8829/09 882882909870 HD8829/09 PHI 3000 V2 EASYCAP. BK 230 RU

HD8829/11 882882911010 HD8829/11 PHI 3000 V2 EASYCAP. SIL 230/5

HD8829/11 882882911300 HD8829/11 PHI 3000 V2 EASYCAP. SL 230 EU

HD8829/15 882882915470 HD8829/15 PHI 3000 V2 EASYCAP. SL 220/60

HD8830/10 882883010220 HD8830/10 PHI 3000 V2 EASYCAP. GBK 230/50

HD8830/12 882883012220 HD8830/12 PHI 3000 V2 EASYCAP. GWH 230/50

MODIFICATIONS TO SERVICE MANUAL

From Rev. To Rev. Chapter Inserted Modied

Rev01 Rev02 Updated index of involved models

Rev01 Rev02 1.1 Updated CRP list

Philips 3000 V2

PHILIPS 3000 V2

Technical specication

Power supply and output: 240 V~ 50 Hz 1850 W - 230 V~ 50/60 Hz 1850 W - 120 V~ 60 Hz 1500 W

Power consumption: During heating phase- approx. 5.6 A

Boiler: Stainless steel (230 V~) 1900 W - (120 V~) 1300 W - (100 V~) 1100 W for coee, hot water and steam dispensing

Safety system: 2 thermostats at 190°C one shot

Temperature monitoring: (NTC) variable resistor sensor - transmits the value to the electronic card

Automatic dosage: Dose adjustment controlled by the electronic system

Gear motor: 2 rotation directions; power supply 24VC

Coee grinder: Direct current motor with at ceramic grinder blades

Pump: Ulka Type EP5/S GW approx. 13-15 bar with reciprocating piston and thermal switch 100°C 48 W, 230V, 50

Hz, 120V, 60Hz 100V, 50/60 Hz

Overpressure valve: Opening at approx. 16-18 bar

Water circuit lling time: Approx. 15 sec Max. on rst lling cycle

Heating time: Approx. 45 sec.

Grinding time: Approx. 8-10 sec.

Housing material ermoplastic material

Size (w x h x d) 215 x 330 x 429 mm (data may vary depending on the model)

Weight 7 Kg

Power Cord length 0,8 -1,2 m

Cup size Up to 152 mm

Water tank 1800 ml

Water lter In tank

Coee bean hopper capacity 250g

Coee grounds drawer capacity 15 pucks

Energy Eciency Label A

Energy saving mode consumption < 1 Wh

Pump pressure 15 bar

Boiler Stainless steel type

Safety devices ermal fuse

Nominal voltage - Power rating –

Power supply Data stored on the below label placed inside the service door

Serial Number TW901616236813 TW90= product + production location - 1616 = year & production week - 236813 = unique following

number

PHILIPS 3000 V2

Table of contents Page

1. Introduction

1.1. Consumer Replaceable Parts (CRP) List 1

1.2. Material 2

1.3 Specic tools and equipment 2

1.4. Safety warnings 3

1.5. Water circuit diagram 3

1.6. Electrical diagram 4

1.7. Service POLICY grid as used for coee machine 5

1.8. External machine parts Philips 3000 V2 CMF 5

1.9. External machine parts Philips 3000 V2 EASY CAPPUC-

CINO

1.10. Internal machine parts 7

1.11. Customer menu in the Philips 3000 V2 CMF 8

1.12. Customer menu in the Philips 3000 V2 EASY CAPPUC-

CINO

1.13. Troubleshooting 10

1.14. Brew Unit mainteinance: Where to grease 13

1.15. Position of the Brew Unit 13

2. Technical specications

2.1. Specication for the measurement of the coee products

temperature.

2.2. Specication for the measurement of the Milk products

temperature.

2.3. Machine parameters and performance 4

3. Operating logic

3.1. Single microswitch 1

3.2. Temperature sensor (adjustment) 1

3.3. Coee cycle 2

3.4. Coee grinder Philips 3000 V2 3

3.5. Low bean level detection, dose quantity adjustment,

coee grinder blocked

3.6. Dose self-learning (SAS) 4

3.7. Water level detection (water tank) 5

3.8. Descaling request 5

3.9. Water lter 6

3.10. Milk Solution 6

Table of contents Page

4. Service mode

4.1. Test Mode Philips 3000 V2 1

4.2. SteamOut 8

5. Espresso Philips Service Center

5.1. Espresso Philips Service Center (EPSC) 1

6. Service and maintenance

6.1. Repair Flow 1

7. Disassembly

7.1. Outer Shell 1

7.2. Coee grinder 2

7.3. Grinder blades 2

7.4. Coee grinder adjustment 3

7.5. Carafe connection and hot/steam water dispenser 3

7.6. Central plate 4

7.7. Pin boiler 4

7.8. Gear motor 4

7.9. Pump 5

7.10. Flow-meter 5

7.11. Boiler 5

7.12. CPU board 6

7.13 Programming access for EPSC (Espresso Philips Service

Center)

7.14. KYB interface and display 6

7.15. Fitting and removing Oetiker clamps 7

PHILIPS 3000 V2

CHAPTER 1

INTRODUCTION

PHILIPS 3000 V2 01 INTRODUCTION

1/13

Consumer Replaceable Parts are parts which we encourage consumers to replace themselves (as required);

these parts can be removed without help of a screwdriver

1.1. Consumer Replaceable Parts (CRP) List

CRP CTN 12NC Description Compatible for Picture (assembled)

CP0165/01 421941308111 Dip tray

All black

models(exept

glossy black)

CP0507/01 421941310521 Dip tray Silver models

CP0150/01 996530073476 Water container All models

CP0166/01 421941308121 Dump box All models

CP0151/01 421944034471 Drip tray grate All models

CP0739/01 421944092331 Brew group All models

CP0504/01 421944070662

BEAN

COF.CONTAINER

LID (from

S.N:FROM S/N.

TW901645704032)

All models

PHILIPS 3000 V2 01 INTRODUCTION

2/13

1.2. Material

Material Code and Description

Thermal paste Heat resistance > 200°C

Descaler 21001901 “ACC SAE DECALCIFIER 5 L 1 UNIT”

Grease solvent 132253695601 “PARALIQ GB 363”

Silicone grease 14-INTGR22004 “ACC TUBE FIN FOOD GREASE 2 400 ML”

 1.3.Specictoolsandequipment

As well as the standard equipment, the following is required:

12NC Description Notes

-Flathead screwdriver # 0, # 2

-Torx screwdriver (T10-T20)

-Cutter

-Cable tie tightening tool

-Pliers for Oetiker clamps

- Digital ermometer Type K (accuracy for temperature of 0,05 % or ± 0,3°C)

- Temperature probe 80PK-22 (80AK-A ermocouple adapter required)

- Scale KERN EMB 500-1 or comparable device with a base

accuracy of 0,05 % or ± 0,5 g

- Power meter Voltcra EnergyCheck 3000 or comparable device with

a base accuracy of 1 % or ± 5W

-Stopwatch Basic model

996530009845 Serkit Tool needed for programming with our service tool

-EPSC (Espresso Philips Service

Center)

Tool used to ash the SW on the machines (for SW

upgrade and diagnostics mode). Refer to SDA_114585.

CP0159/01 421941306191 Black water

dispenser Easycap only

CP0158/01 996530068626 Black milk intake

tube connector Easycap only

CP0332/01 421944066941 Cappuccinatore Easycap only

CP0377/01 421944068711 Complete milk

carafe Easycap only

PHILIPS 3000 V2 01 INTRODUCTION

3/13

1.4. Safety warnings

Please, read the Service manual of the machine before starting any maintenance.

Operation, maintenance and/or repair of this device has to be carried out only by qualied persons, trained

for work at or with electric devices.

During the machine disassembly the operator has to pay attention to hot and under pressure parts.

All parts involved can be nd in the hydraulic circuit below schema.

e machine hydraulic circuit can reach maximum pressure of 16/18 bar.

When the machine arrives at the Service Center in descaling mode interrupted, or making Descaling , take

EXTREME CARE to avoid any unintentional contacts with the descaler.

Aer the product has been repaired, it should function properly and has to meet the safety requirements and

legal regulations as ocially laid down at this moment.

e technicians to operate under safety conditions, needs to:

1. Use personal safety devices;

2. Disconnect the appliance from the power mains before repairing;

3. Before and aer repair, it is recommended to perform dielectric strength tests (is domestic

appliance is rated as insulation class 1).

Pump

Safety valve

Water

discharge

Steam pipe

ter tank

Two-way solenoid valve

Brewing Unit

Flowmeter

Boiler

Water

Hot water /steam

From this point circuit

High temperaure

From this point circuit

in pressure

Flowmeter

Steam and hot water

Two-way solenoid valve

Pump

Brewing Unit

Boiler

Safety valve

Water

discharge

Water tank

Image 1

1.5. Water circuit diagram

PHILIPS 3000 V2 01 INTRODUCTION

4/13

1.6. Electrical diagram

PHILIPS 3000 V2 01 INTRODUCTION

5/13

1.7. ServicePOLICYgridasusedforcoeemachines

During the repair is always recommended to use, if possible, single parts rather than the correspondent as-

sembly.

 1.8. ExternalmachinepartsPhilips3000V2CMF

Aroma plus

Hot water

Steam

Espresso

Memo Memo Memo

Calc

clean

Espresso lungo Coee

1 2 3

7 8 9

2930

19 18

1ESPRESSO button

2 ESPRESSO LUNGO button

3 COFFEE button

4 ON/OFF button

5 AROMA STRENGTH button

6 HOT WATER/ STEAM button

7 Descaling cycle light

8 CALC CLEAN button

9 Rinse cycle light

10 General warning light

11 No coee light

12 Empty coee grounds container light

13 No water light

14 Coee dispensing spout

15 Classic milk frother

16 Lid of the water tank

17 Lid of the bean hopper

18 Main switch

19 Socket for cord

20 Service door

21 Grinder adjustment knob

22 Water tank

23 Brew group

24 Inside of maintenance door with clean-

ing instructions

25 Coee exit duct

26 Coee residues drawer

27 Drip tray full indicator

28 Coee grounds container

29 Drip tray

30 Drip tray cover

31 Cord

32 Cleaning brush

33 Grease

34 Water hardness tester

35 Multifunctional tool (grinder adjust-

ment key and coee duct cleaning

tool)

PHILIPS 3000 V2 01 INTRODUCTION

6/13

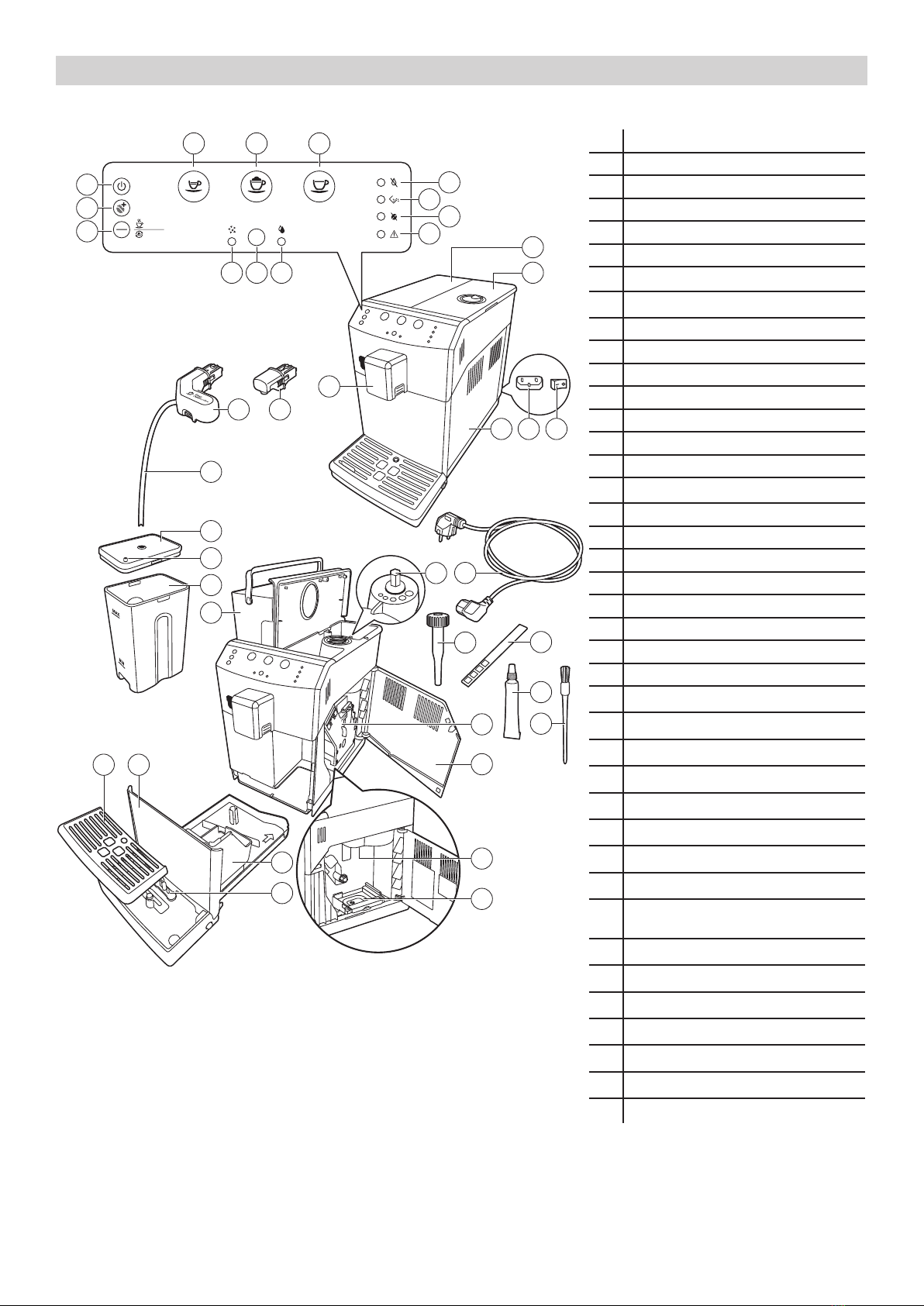

 1.9.ExternalmachinepartsPhilips3000V2EASYCAPPUCCINO

Aroma plus

Hot water

Espresso

Memo Memo Memo

Calc

clean

Coee

Cappuccino

Milk clean

1 2 3

7 8 9

2827

17 16

1ESPRESSO button

2 CAPPUCCINO button

3 COFFEE button

4 ON/OFF button

5 AROMA STRENGTH button

6 HOT WATER/ MILK CLEAN button

7 Descaling cycle light

8 CALC CLEAN button

9 Rinse cycle light

10 General warning light

11 No coee light

12 Empty coee grounds container light

13 No water light

14 Lid of the water tank

15 Lid of the bean hopper

16 Main switch

17 Socket for cord

18 Service door

19 Coee dispensing spout

20 Hot water dispensing spout

21 Automatic milk frother

22 Suction tube

23 Top of the milk carafe

24 Pin on top of the milk carafe

25 Milk carafe

26 Water tank

27 Drip tray cover

28 Drip tray

29 Coee grounds container

30 Drip tray full indicator

31 Coee residues drawer

32 Coee exit duct

33 Inside of service door with cleaning

instructions

34 Brew group

35 Cleaning brush

36 Grease

37 Water hardness tester

38 Multifunctional tool

39 Cord

40 Grinder adjustment knob

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Kaffeemaschine Handbücher

Philips

Philips Senseo Viva Café Bedienungsanleitung

Philips

Philips HD8829 Bedienungsanleitung

Philips

Philips HD7466 Bedienungsanleitung

Philips

Philips Senseo HD7863/80 Bedienungsanleitung

Philips

Philips Senseo HD7812/50/C Bedienungsanleitung

Philips

Philips Saeco Minuto HD8772 Bedienungsanleitung

Philips

Philips HD7854/84 Bedienungsanleitung

Philips

Philips HD7900 Bedienungsanleitung

Philips

Philips HD7761 Bedienungsanleitung

Philips

Philips Saeco Tchibo Cafissimo TUTTOCAFFE Bedienungsanleitung

Philips

Philips Senseo Twist HD7870/90 Bedienungsanleitung

Philips

Philips Daily HD7459/40 Bedienungsanleitung

Philips

Philips Xelsisevo HD8953 Bedienungsanleitung

Philips

Philips HD7810/95 Bedienungsanleitung

Philips

Philips HD7823/11 Bedienungsanleitung

Philips

Philips HD8652 Bedienungsanleitung

Philips

Philips HD5120 Bedienungsanleitung

Philips

Philips HD8745/18 Bedienungsanleitung

Philips

Philips SENSEO HD7828 Bedienungsanleitung

Philips

Philips HD7459/20R1 Bedienungsanleitung

Philips

Philips Senseo HD7830/50 Bedienungsanleitung

Philips

Philips HD7804 Bedienungsanleitung

Philips

Philips Senseo Excel HD7840 Bedienungsanleitung

Philips

Philips Senseo HD6569 Bedienungsanleitung

Beliebte Kaffeemaschine Handbücher anderer Marken

Taurus

Taurus Livorno 6 Bedienungsanleitung

Delta-q

Delta-q QUICK Bedienungsanleitung

Bunn

Bunn LCA-1 Fehlerbehebungshandbuch

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Montageanleitung

Saeco

Saeco Vienna Plus Sup 018M Bedienungsanleitung

DeLonghi

DeLonghi DC300 Bedienungsanleitung

INCAPTO

INCAPTO BXCO1470E Bedienungsanleitung

Bosch

Bosch TASSIMO finesse TAS16B Series Bedienungsanleitung

Exido

Exido 245-072 Bedienungsanleitung

Animo

Animo OptiVend Choco Bedienungsanleitung

Siemens

Siemens TQ505DF Series Bedienungsanleitung

DeLonghi

DeLonghi ECI341 Bedienungsanleitung

Krups

Krups KT406511 Bedienungsanleitung

Cimbali

Cimbali M32 Classic Bedienungsanleitung

Bosch

Bosch TES 515 SERIES Bedienungsanleitung

Tekmatix

Tekmatix TMFM - 65 Bedienungsanleitung

Scarlett

Scarlett SC-CM33005 Bedienungsanleitung

LAVAZZA

LAVAZZA CLASSY PLUS Bedienungsanleitung
