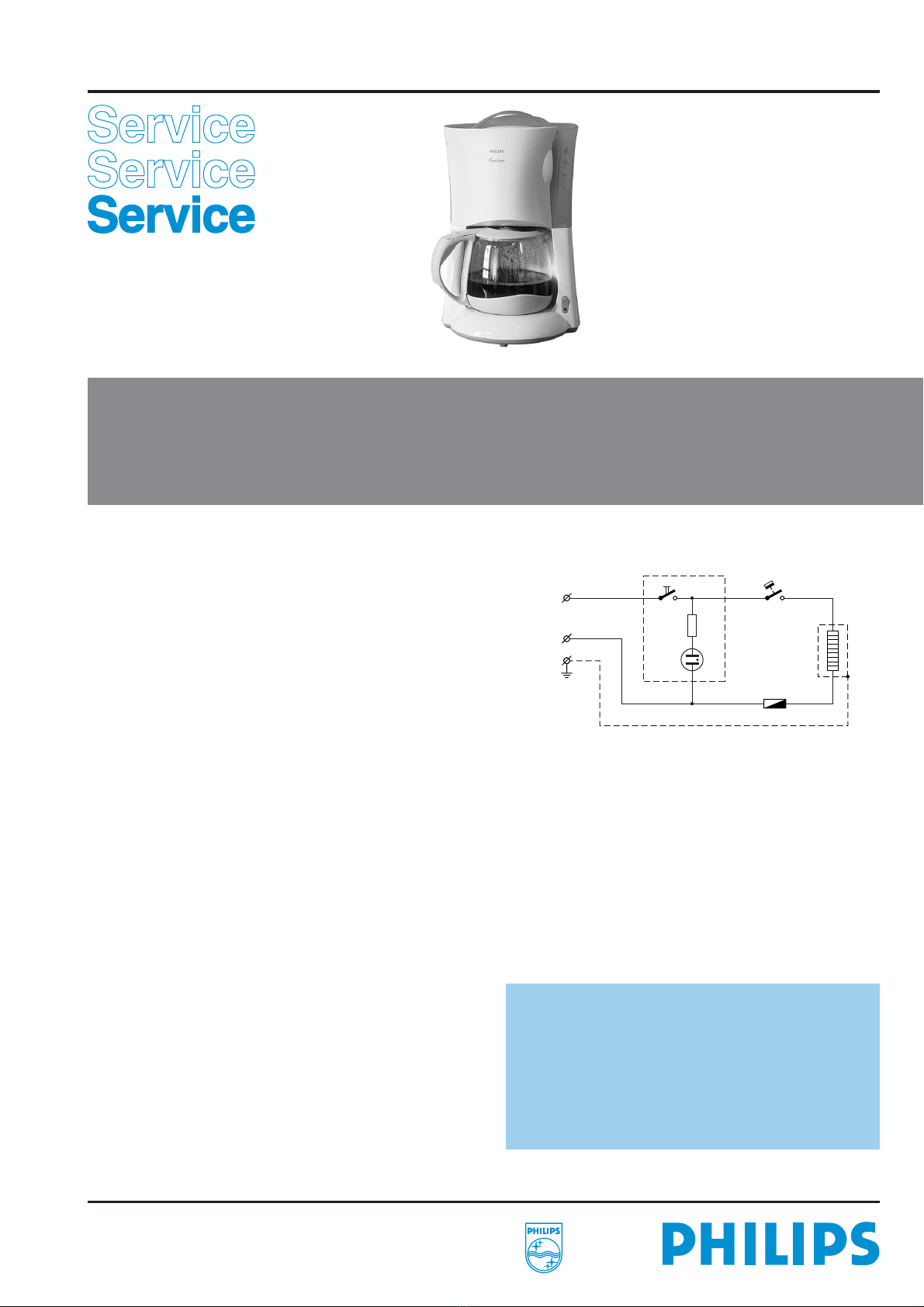

Philips Cucina HD 7524/6 Bedienungsanleitung

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Coffeemaker “Cucina”

HD 7524/6

SAP Coding HD 7524/6

Optional

PRODUCT INFORMATION

Voltage : 100-110-220 V

Frequency : 50-60 Hz

Power consumption : 1100 W

Contents jug : 1200 cc

Coloursetting : ivory / blue

Filter size : 1 x 4

SERVICE INFORMATION

Thermostat switch-off temp : 140°C

Thermal fuse cut-off temp : 228°C

REPAIR INSTRUCTIONS

1. Electrical circuit

When the appliance does not work, check the

electrical circuit. If the thermal fuse or thermostat

prove defective, the complete pump unit has

to be replaced.

2. De-scaling

If the water system is nearly or less clogged by

scale then operate the coffeemaker a few times with

vinegar or with a 10-15% solution of either vinegar-

acid, citric acid or tartar-acid, into cold tap water.

Do not use other de-scaling agents as these may

harm the appliance.

If this procedure does not restore the function, then

switch off the coffeemaker when the acid has passed

through during appr. 3 min. Keep the appliance in this

condition overnight and continue/repeat the cleaning

operation. After the de-scaling procedure, operate the

coffeemaker twice with tap water in order to rinse away

any residual substances.

4322 277 00651

01/06

This product meets the requirements regard-

ing interference suppression on radio and TV.

- After the product has been repaired, it should

function properly and has to meet the safety

requirements as ofﬁcially laid down at this

moment.

3. Base removal

Besides two screws, two plastic snap connections have

to be detached by means of using a simple screwdriver,

as indicated on the base of the appliance.

Commercial trade number : HD 7964 (Blue handle)

1 9965 000 09521 Tank lid

2 9965 000 09522 Tank cover

3 9965 000 09523 Tank

4 9965 000 09525 Cover

5 9965 000 09526 Filter

6 9965 000 09505 Seal cover

7 9965 000 09506 Locking plate

8 9965 000 09507 Spring valve

9 9965 000 09524 Switch

10 9965 000 09509 Seal heatingplate

11 9965 000 09510 Heatingplate

12 9965 000 09511 Hose piece

13 9965 000 09512 Valve

14 9965 000 09513 Pump

15 9965 000 09514 Thermostat

16 9965 000 09515 Pump spring

17 9965 000 09516 Hose

18 9965 000 09517 Bottom plate

19 9965 000 09518 Stud

20 9965 000 09519 Jug lid

21 9965 000 09520 Jug

22 9965 000 09529 Buffer ring

23 9965 000 09530 Spring buffer ring

HD 7524/6
