Introduction

When setting up your television set for the first time, we advise you

to use the quick installation guide included below.

Please read the following instructions carefully to familiarise yourself with all

the features available on your set.

We hope our technology meets entirely with your satisfaction.

Installation

Installing the television set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

The keys on the television set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Tuning in to the TV channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Quick installation (first-time users) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Renumbering programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Manual tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Other settings on the INSTALLATION menu . . . . . . . . . . . . . . . . . . . . . . 4

Use

Using other menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Adjusting sound and picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Storing adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Locking the set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Timer function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Remote control keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Peripherals

Video recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Other equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Side panel connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Video recorder key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Table of Contents

Recycling

The materials used in your set are either reusable or can be recycled.

To minimise environmental waste, specialist companies collect used appliances and

dismantle them after retrieving any materials that can be used again (ask your

dealer for further details).

æPositioning the television set

Place your TV on a solid, stable surface, leaving a space of at least 5 cm

around the appliance.

To avoid accidents, do not put anything on the set such as a cloth or

cover, a container full of liquid (vase) or a heat source (lamp).The set

must not be exposed to water.

ÂConnections

• Insert the aerial plug into the Msocket at the rear of the set.

Smaller sets are equipped with an internal aerial. Under certain conditions,

reception can be poor.You can improve it by repositioning the aerial. If the

reception remains unsatisfactory, an external aerial should be used.

• Insert the mains plug into a wall socket (220-240 V / 50 Hz).

êRemote control

Insert the two R6-type batteries (supplied) making sure that they are the

right way round.

The batteries supplied with this appliance do not contain mercury or nickel

cadmium. Please do not discard your used batteries if you have access to a

recycling facility (if in doubt, consult your dealer).When the batteries are

replaced, use the same type.

®Switching on

To switch on the set, press the on/off key.

A red indicator comes on and the screen lights up.

Go straight to the chapter Quick installation on the following page.

If the television remains in standby mode, press P on the remote

control.

The indicator flashes when you use the remote control.

The television set has 4 keys which are located on the front or the top

of the set depending on the model.

The VOLUME - + (-a+) keys are used to adjust the sound level.

The PROGRAM - + (- P +) keys are used to select the required

programmes.

To access the menus, hold down the VOLUME - and VOLUME + keys

simultaneously.Then use the PROGRAM - + keys to select an adjustment

and the VOLUME - + keys to make the adjustment.

To exit from the menu, hold down the VOLUME - and VOLUME + keys

for a few seconds.

Note: when the LOCK function is activated, these keys are unavailable (see

page 6).

Installing your television set

The keys on the TV set

Tuning in to channels

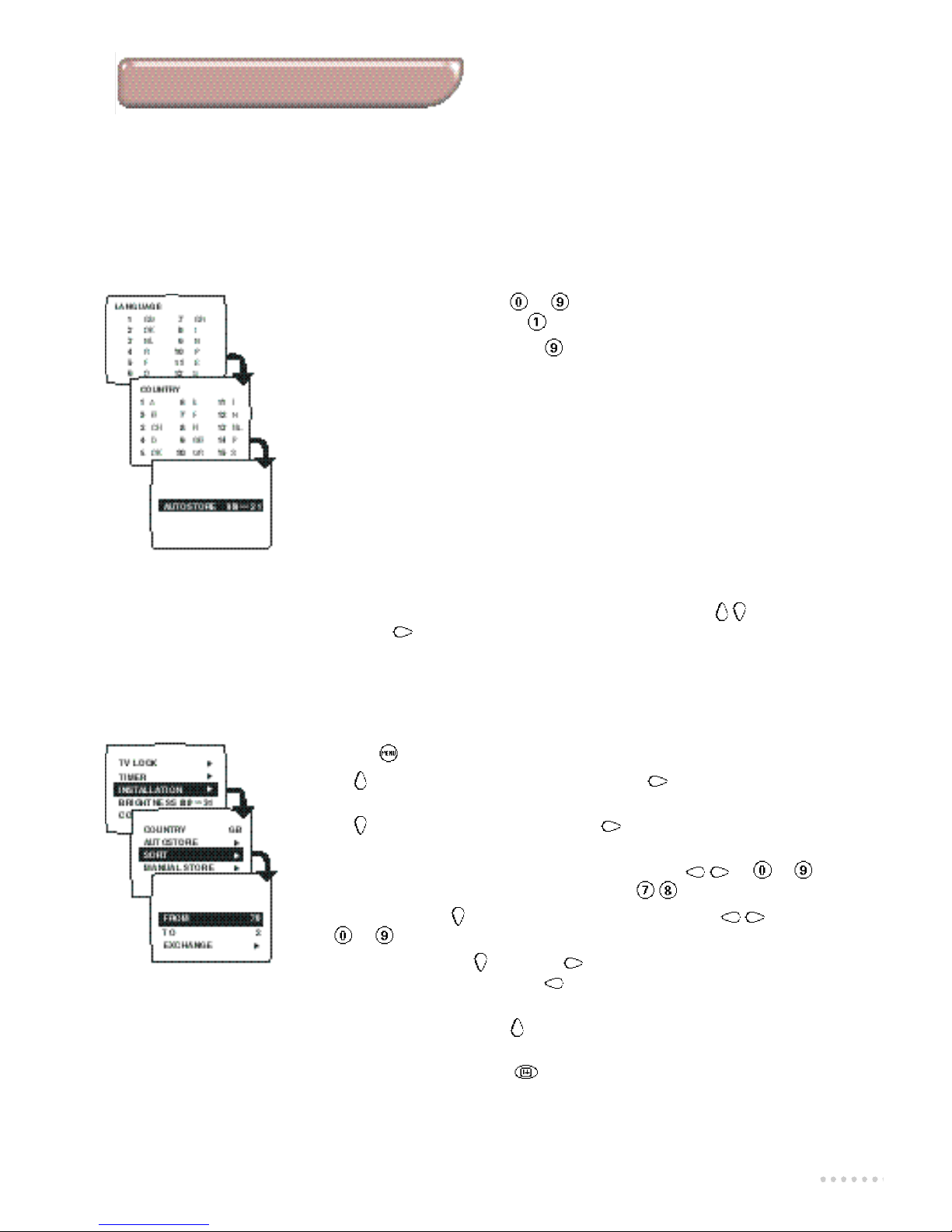

Quick installation (first use)

The following operations are all described in the enclosed quick

installation guide.We advise you to use it.

The first time you switch on the television, a menu appears on the screen.

This menu asks you to choose the language of the other menus.

If the menu does not appear, hold down the PROGRAM- and PROGRAM+ keys

(ora-and P -)

on the set for 4 seconds to bring it up.

æUse the keys numbered from to on the remote control to choose

your language (for English, press ).Another menu appears.

ÂSelect your country (for GB, press ).

êAs soon as your country is entered, tuning in starts automatically.

The operation takes a few minutes.A display shows the search status and

the number of programmes found.When it has finished, the menu

disappears and the last programme is displayed.

If no programmes are found, refer to the chapter entitledTips on p. 10.

®If the transmitter or the cable network broadcasts the automatic sort

signal, the programmes will be correctly numbered.

†If not, the programmes found will be numbered in descending order

starting at 99, 98, 97, etc. (or 79, 78, ...).

Use the SORT menu to renumber them.

Some transmitters or cable networks broadcast their own sort parameters (region,

language, etc.).Where this is the case, make your choice using the keys and

confirm with .

æPress the key.The main menu is displayed.

ÂPress once to select INSTALLATION, then press .

The INSTALLATION menu appears.The LANGUAGE option is activated.

êPress 3 times to select SORT then press .

The SORT menu appears.The FROM option is activated.

®Select the programme you wish to renumber using keys or to .

Example: to renumber programme 78 as 2, press .

†Select option A (key ) and enter the new number with keys

or to (for the example given, enter 2)

ÚSelect EXCHANGE (key ) and press .The message EXCHANGED

appears, the exchange takes place ( to cancel). In our example,

programme 78 is renumbered as 2 (and programme 2 as 78).

ºSelect the option FROM (key ) and repeat stages ®to Úas many times

as there are programmes to renumber.

îTo exit from the menus, press .

To renumber the programmes found

æPress .The main menu is displayed on-screen.

ÂPress once to select INSTALLATION and press .The INSTALLATION

menu appears.

êUse to select a setting and to adjust.

• LANGUAGE: to change the menu language.

• COUNTRY: to select the country you are in (GB for Great Britain).

This setting affects the automatic programme sort.

• AUTOSTORE: press to begin storing.The operation takes a few minutes.

When it is complete, the INSTALLATION menu reappears automatically.

For more information, see the Quick Installation chapter, steps êto †

on the previous page.

To exit or interrupt the search, press .

• EXTERNAL: press to bring up the menu.You have access to a series of

names which allow you to customise the names of the external sockets.

When you next select an external socket, its chosen name will be displayed

for a few seconds.

®To exit from the menus, press .

Manual tuning

This menu allows you to store the programmes one by one.

æPress .The main menu comes up on the screen.

ÂPress once to select INSTALLATION then press .

êSelect MANUAL STORE ( ) and press .

The MANUAL STORE menu appears.

®Select SYSTEM (only available on certain models). Use to choose UK

(standard I), FRANCE (standard LL') or WEST- EU (standard BG reception).

†Select SEARCH and press .The search begins.

As soon as a programme is found, the search will stop.

If you know the frequency of the programme required, simply enter its

number using keys to .

If no programme is found, refer to the Tips chapter on p. 10.

ÚIf reception is unsatisfactory, select FINE TUNE and press or to fine

tune.

ºSelect PROGRAM NO. and enter the required programme number using

or to .

îSelect STORE and press .

The message STORED appears.The programme has been stored.

œRepeat steps †to îas many times as there are programmes to store.

To exit the menus, press .

Other settings on the INSTALLATION menu

Using other menus

To adjust a menu:

æDisplay the menu. ÂSelect a setting. êAdjust.

Note: the menus disappear automatically after 30 seconds if no further adjustments are made.

To exit from the menus, press (or to come back to the previous stage).

You can store your own sound and picture settings.

æFirst carry out your menu settings.

ÂNext, select PERSONAL and press .The message STORED is displayed.

The settings are stored.

Values are saved under PERSONAL in the Smart sound and picture controls

( and )

Note: volume and DELTA VOL. are automatically stored and do not need to be stored

in the PERSONAL menu.

Press .You can adjust: BRIGHTNESS,COLOUR,CONTRAST,SHARPNESS,

TINT,CONTRAST+ and NOISE RED..

• SHARPNESS: alters the crispness of the image,

• TINT: alters the colour balance.There are 3 options: COLD (blue tint), NORMAL

(balanced) or WARM (red tint).

• CONTRAST+: automatically adjusts the image contrast according to content

(the darkest part of the image is always black).

• NOISE RED.: alleviates fuzziness (snowy picture).This setting is useful when

reception is difficult.

Press .You can adjust DELTA VOL. and, for stereo models only, BALANCE,

TREBLE,BASS and AVL.

• DELTA VOLUME (volume difference): allows you to compensate for the volume

differences between the different programmes or the EXT sockets.This setting is

available for programmes 1 - 40 and the EXT sockets.

• AVL (Automatic Volume Leveller): automatic volume control used to avoid sudden

increases in volume, particularly when changing programme or during advertisements.

Adjusting the picture

Adjusting the sound

Storing settings

This function (only available on certain models) allows you to lock the set in order

to limit its use completely or partially.

Key lock

æPress , select TV LOCK ( ) and press .

ÂSet the LOCK to ON.The keys are locked.

êSwitch off the set and put the remote control out of sight.The set cannot be

used (it can only be switched on using the remote control).

To cancel: switch LOCK to OFF.

Programme lock

æPress , select TV LOCK ( ) and press .

ÂSelect PARENTAL CONT. and press .

êEnter your confidential access code.The first time, enter the code 0711 then

confirm by re-entering 0711.The menu appears.

®Select PROGRAM NO. and use keys or to to enter the number

of the programme or socket you wish to lock.

To lock all of them, select ALL.

†Select LOCK then YES.

ÚRepeat stages ®and †for each programme to be locked.You can lock 5

programmes separately.

ºPress to exit.To watch a programme which has been locked you will now

need to enter the confidential code; otherwise the screen will remain blank.

When a locked programme is displayed, use the P keys to access other

programmes (the keys are used to enter the code). Caution: in the case of

encrypted programmes which use an external decoder, it is necessary to lock the

corresponding EXT socket (and not the programme number).

To unlock all programmes

Repeat stages æ- êabove, then:

®Select CLEAR ALL and press .All programmes are unlocked.

To change the confidential code

Repeat stages æ- êabove, then:

®Select CHANGE CODE and enter your own 4-digit number.

†Confirm by entering it again.Your new code will be stored.

If you have forgotten your confidential code, enter the universal code 0711 twice.

To exit: press .

This function (only available on certain models) allows you to use your TV as an

alarm clock.

æPress , select TIMER ( ) and press .

ÂThe SET CLOCK menu appears. Enter the time ( or ).

Important: the time is updated automatically each time the set is switched on

using teletext information taken from programme 1. If programme 1 does not

have teletext, the update will not take place.

êSelect TIMER ACTIVE and press to switch the timer on or off.

®Select PROGRAM NO. and enter the number of the programme required.

†Select START TIME and enter the time at which the set is to switch on.

ÚPress to put the set into standby mode. It will switch on automatically at

the programmed time. If you leave the set switched on, it will merely change

programmes at the set time.

The set switches off automatically after 4 hours if no further commands are given.

Locking the set

Timer function

The keys on the remote control

Depending on the model, there are 2 different versions of the remote control.

To set the TV to standby mode.The red indicator

lights up.To switch the set back on, press P , P

or to .

Brings up the previous or following programme.

For direct access to programmes

For a 2-digit programme number, the second

digit

must be entered before the dash disappears.

On certain programmes, the title of the programme is

displayed for a few seconds at the bottom of the screen.

To view a programme which has been locked, you must

enter the confidential code number (see p. 6).

Hold down for 5 seconds to permanently display the

programme number. Press quickly to display or

remove the programme number, the time and the

sound mode (stereo models only).

To adjust the sound level.

To disable or enable the sound.

To access a series of settings: CINEMA,MUSIC,

SPEECH and return to PERSONAL.

To access a series of settings: RICH (when the room

is very light), NATURAL (optimum conditions), SOFT

(when the room is very dark) and return to

PERSONAL.

To call up or exit from the menus. Use and

to adjust.

The menus disappear automatically after 30 seconds if no

further command is given.

Press several times to select EXT sockets (see p.9).

To select an automatic standby period (from 0 to 240

minutes).

The key allows the picture to be enlarged

vertically to get rid of the black bands around

cinema-format films.The key allows the picture to

be compressed vertically (16:9 format).

To switch from STEREO (and NICAM STEREO)

programmes to MONO or, for bilingual transmissions,

to choose between DUAL fand DUAL g(and

NICAM DUAL f,NICAM DUAL gand mono).

NICAM is a process by which sound is transmitted as a

digital quality.

Activates/deactivates the surround sound effect. In stereo,

this gives the impression of the loudspeakers being further

apart. In mono, a stereo spatial effect is simulated.

Press: To obtain:

Standby

Select

Programme

Numerical

Keys

Screen

Information

Volume

Mute

Smart sound

controls

Smart picture

controls

Select EXT

sockets

* Only available on certain models.

Timer

* Screen

Format

* Incredible

Surround

* Sound Mode

Teletext

Teletext is an information system, broadcast by certain channels, which can be read like a newspaper. It

also provides subtitles for people with hearing difficulties or those who are unfamiliar with the language

in which a particular programme is being broadcast (cable networks, satellite channels, etc.).

Press: To obtain:

To call up or exit from teletext.At first, the main

index page appears with a list of the items available.

Each page has a corresponding 3-figure number.

If the selected channel does not broadcast teletext, 100

will appear and the screen will remain blank (in this case,

exit from teletext and choose another channel).

Use keys to or to enter the page number

required. For example: for page 120, press .

The number is displayed in the top left-hand corner, the

page counter starts searching and the page is displayed.

Repeat the procedure to consult another page.

If the counter continues searching, this means that the

selected page is not broadcast. Choose another number.

Coloured zones are displayed at the bottom of the

screen.The 4 coloured keys give access to the

corresponding subjects or pages.

The coloured zones flash when the subject or the page is

not yet available.

To switch teletext temporarily on or off.

Press this key to display the upper, then lower part of

the screen, and then to return to the normal page size.

Some pages contain sub-pages which follow on

automatically from one another.This key allows sub-

page sequence to be enabled or disabled.The # sign

appears in the top left hand corner.

To activate or deactivate screen overlay.

Use this key to reveal/conceal hidden information

(answers to puzzles).

To return to the table of contents (normally page 100).

For teletext programmes 1 to 41, you can store 4

favourite pages which you can then access via the

coloured keys .

æPress .

ÂEnter the number of the page required.

êPress then the coloured key of your

choice.The page is stored.

®Repeat steps Âand êfor the other coloured

keys.

†From now on, when you consult teletext, your

favourite pages appear in colour at the bottom of

the screen.

To get back to the normal subject headings, press .

To remove these settings, hold down for 3 seconds.

Stop the

sequence of

sub-pages

Overla ying te xt

on the TV picture

Reveal

Favourite pages

(available only on

certain models)

* Temporary

on/off

Dir ect access to

subject headings

Selecting a

teletext page

Switch teletext

on/off

Page

enlargement

* Only available with the remote control shown above.

*Tab le of contents

To select connected equipment

Press to select EXT(1) and, on models with 2 euroconnector

sockets: EXT2 and Y/C2 (S-VHS signal on EXT2).

The switch is automatic on most appliances (decoders, etc.).

Depending on the model, sockets are on the front

(sometimes under a flap) or on the right-hand side of the set.

Headphones

When the earphones are plugged in, the sound on the set is

cut off.Adjust the volume using the akeys.

The headphones must have an impedance of between 32 and

600 ohms.

Camcorder

Certain models are equipped with AUDIO/VIDEO

connections.You will find 1 video input + 1 sound input

(mono versions) or 2 sound inputs left (L) and right (R) on

stereo versions. Make the connections, then use the key

to select EXT (or EXT2 for models with 2 euroconnector

sockets).The switch between the front and rear sockets is

automatic with priority on front sockets.

For a monophonic camera, connect the sound signal to the AUDIO

L input. Use the key to reproduce the sound through the left

and right TV speakers.

Video recorder (only)

Connect as shown using a good quality euroconnector

cable.

If your video recorder does not have a euroconnector socket, the

only connection possible is via the aerial cable.You will therefore

need to tune in your video recorder test signal and assign it

programme number 0 (see manual store, p. 4).To reproduce the

video recorder picture, press .

Video recorder with decoder

Connect the decoder to the second euroconnector on the

video recorder.You can then record scrambled transmissions.

Satellite receiver, decoder, DVD, games, etc.

For sets equipped with two euroconnector sockets, it is

best to connect the equipment which produces RGB signals

(digital decoder, DVD drives, games, etc.) to EXT1 and the

equipment which produces S-VHS signals (S-VHS and Hi-8

video recorders) to EXT2.

Video recorder

Connecting other appliances

Depending on the model, the TV is equipped with 1 or 2 euroconnector sockets, EXT1 and EXT2.

The EXT1 socket controls audio video input/output and RGB input.

The EXT2 socket (if available) controls audio video input/output and S-VHS input.

Front panel connections

Other equipment

Poor reception or no picture

The proximity of mountains or high

buildings can cause ghost pictures, echoing

or shadows. If this is the case, try tuning the

picture using FINE TUNE (p. 4).

Do you have the right system (p. 4)?

Check that the aerial plug or euroconnector

plug is properly connected.

Check also that your aerial is capable of

receiving broadcasts in this frequency range

(UHF or VHF).

Adjusting the picture

If the picture is out of focus, or if you are

having difficulties finding the right settings,

select one of the Smart picture controls

(p. 7) and store it using the PERSONAL

setting (p.5).

In case of bad reception (fuzzy picture), set

the NOISE RED to ON: p. 5.

The picture is in black and white

To read a video cassette, check that it is

recorded in the same format as that of the

video recorder (PAL,SECAM or NTSC).

No sound

If certain programmes have a picture but

no sound, this is because you do not have

the correct TV system (see p. 4).

Standby

When you switch on the set, if it remains

in standby mode and the LOCKED message

is displayed, this means that the LOCK

function is activated (p. 5).

The set switches automatically to standby if it

receives no signals for a period of 15 minutes.

When it is in standby mode, the set uses

energy.To save electricity, we advise you to

switch it off using the on-off button.

Still having problems?

If the set breaks down, never try to repair

it yourself. Consult your after-sales service

department instead.

Tips

Video recorder key

The key, on the side of the remote control, controls the main functions

of the video recorder.This key is only available on the remote control shown

opposite.

For the following commands, press and:

standby,

/ enter a number,

bring up the video recorder menu*,

select*,

set*,

OK confirm*.

P select programme,

vrecord,

srewind,

ustop,

qplay,

rfast forward,

Gprogramming*,

• Some programming features are not available on all video recorders (cursors,

menu, OK key, etc.).

The video recorder is compatible with our own-brand video recorders as well as with

all the models using the RC5 standard.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Röhrenfernseher Handbücher

Philips

Philips 36PW8719/05 Bedienungsanleitung

Philips

Philips TS3259C Bedienungsanleitung

Philips

Philips 20PT6446/37 Bedienungsanleitung

Philips

Philips 28PW9513 - annexe 1 Bedienungsanleitung

Philips

Philips 32PT553S Bedienungsanleitung

Philips

Philips 21PT3375 Bedienungsanleitung

Philips

Philips TS2544C Bedienungsanleitung

Philips

Philips 14PT2116 Bedienungsanleitung

Philips

Philips PL9119C Bedienungsanleitung

Philips

Philips 32PF7331 Bedienungsanleitung

Philips

Philips 21PT5221 Bedienungsanleitung

Philips

Philips 21PT6257 Bedienungsanleitung

Philips

Philips 28 PT 7156 Bedienungsanleitung

Philips

Philips 14PT1686V Bedienungsanleitung

Philips

Philips COLOR TV 36 INCH TABLE TS3658C Bedienungsanleitung

Philips

Philips 21PT1663 Bedienungsanleitung

Philips

Philips 4000 Series 21PT4628/V7 Bedienungsanleitung

Philips

Philips 14PT3426/V7 Bedienungsanleitung

Philips

Philips 21AA3356/20B Bedienungsanleitung

Philips

Philips 28PW8818 Bedienungsanleitung

Philips

Philips MAGNAVOX 27TS57C1 Bedienungsanleitung

Philips

Philips 15PT2527 Bedienungsanleitung

Philips

Philips 21PT4204 Bedienungsanleitung

Philips

Philips MathLine 32PW9765 Bedienungsanleitung

Beliebte Röhrenfernseher Handbücher anderer Marken

JVC

JVC AV-21QS5SP Bedienungsanleitung

Hitachi

Hitachi 27CX01B Bedienungsanleitung

LG 30FZ1DC Bedienungsanleitung

Sony

Sony FD TRINITON WEGA KV-24FS120 Bedienungsanleitung

RCA

RCA F19442 Bedienungsanleitung

Samsung

Samsung CS761 Bedienungsanleitung

Panasonic

Panasonic TC-29P100 Series Bedienungsanleitung

RCA

RCA F19422 Bedienungsanleitung

Sony

Sony WEGA KV 32HS20 Bedienungsanleitung

Samsung

Samsung SlimFit TX R3079WH Bedienungsanleitung

Palsonic

Palsonic MODEL 5179G Bedienungsanleitung

Toshiba

Toshiba CF13H22 Bedienungsanleitung

Magnavox

Magnavox MS3650C - 36" Smart Ctv Handbuch

Toshiba

Toshiba 14AF41 Bedienungsanleitung

Mitsubishi

Mitsubishi CS-35305 Bedienungsanleitung

Hitachi

Hitachi 35UX60B, 35TX10B Bedienungsanleitung

Sony

Sony KD-34XBR970 - 34" Hdtv 16x9 Format Bedienungsanleitung

Toshiba

Toshiba 27A34 - 27" CRT TV Bedienungsanleitung
