Philips 21PT5006 Bedienungsanleitung
Real Flat Television
User Manual
21PT5006
29PT5006
25PT5016
29PT5016
21PT5026
29PT5026
PHI
Safety information / Tips .......................................................................................................
Before calling service ............................................................................................................
TV hookup (Basic connection) ...........................................................................................
Remote control use and care .............................................................................................
Audio/Video connections (Playback) .................................................................................
Audio/Video connections (Recording) ..............................................................................
Remote control functions ....................................................................................................
TV control functions .............................................................................................................
Menu language selection .......................................................................................................
Automatic tuning of channels ..............................................................................................
Manual tuning of channels ....................................................................................................
Colour / Sound system .........................................................................................................
Fine Tuning of channels ..........................................................................................................
Picture adjustments ............................................................................................................... 19
Sound adjustments ................................................................................................................
Format adjustments ...............................................................................................................
Signal Strength ........................................................................................................................
Active Control ........................................................................................................................
Smart Picture ..........................................................................................................................
Smart Sound ............................................................................................................................
Personal Zapping ....................................................................................................................
Teletext ....................................................................................................................................
Specifications ..........................................................................................................................
Recycling Directive – To minimise harm to the environment, the batteries supplied
with the TV set do not contain mercury or nickel cadmium. If possible, when
disposing of batteries, use recycling means available to you.Your TV set uses materials which
are reusable or which can be recycled.To minimise the amount of waste in the environment,
specialist companies recover used sets for dismantling and collection of reusable materials
(contact your dealer).
CONTENTS
Introduction
Basic Installation functions
TV Installation
Features
General
°
3
4
5
6
8
9
12
5
11
13
14
16
17
29
20
21
22
23
24
25
26
27
Safety information
• Disconnect mains plug when :
– the red light below the TV screen is flashing continuously.
– a bright white line is displayed across the screen.
– cleaning the TV screen. Never use abrasive cleaning agents. Use a slight damp chamois leather
or soft cloth.
– there is a lightning storm.
– the set is left unattended for a prolonged period of time.
• No naked flame sources, such as lighted candles, should be placed on top of the TV or in the
vicinity.
• Do not place your TV set under direct sunlight or heat.
• Leave at least 5 cm around each side of TV set to allow for proper ventilation.
• Avoid placing your set (e.g. near the window) where it is likely to be exposed to rain or water.
• No objects filled with liquids should be placed on top the TV so as to avoid dripping or
splashing of liquids on the set.
Tips
• Do not leave your set on standby mode for a prolonged period of time. Switch off set to
allow it to be demagnetised. A demagnetised set supports good picture quality.
• Do not shift or move the set around when it is switched on. Uneveness in colour in some
parts of the screen may occur.
• Never attempt to repair a defective TV yourself. Always consult a skilled service personnel.
SAFETY INFORMATION AND USEFUL TIPS
3
Below is a list of frequently occurred symptoms. Before you call for service, make these simple
checks. Some of these symptoms can easily be rectified if you know what to do.
Symptoms What you should do
Colour patch • Switch off the TV by the mains power button.Wait for 20
(uneveness) minutes before switching on again.
• Check the TV is not placed too near speakers or magnetic
objects.
No power • Check the TV’s AC power cord is plugged into the mains socket.
If there is still no power, disconnect plug.Wait for 60 seconds
and re-insert plug. Switch on the TV again.
No picture • Check the antenna connection at the rear of the TV.
• Possible TV station problem.Try another channel.
Good picture • Try increasing the volume.
but no sound • Check that the sound is not muted. If it is muted, press the
Mute button on the remote control to restore sound.
Good sound but poor • Try increasing the contrast and brightness setting.
colour or no picture
Snowy picture and • Check antenna connection at the rear of the TV.
noise
Horizontal dotted lines • Possible electrical interference e.g. hairdryer, vacuum
cleaner, etc. Switch off appliances.
Double images or • Possible poor positioning of antenna. Using a highly
“Ghost” images directional antenna may improve reception.
TV not responding to • Check life span of batteries of remote control handset. remote
remote control • Aim remote control directly at remote sensor lens on the front
panel of the TV.
BEFORE CALLING SERVICE
4

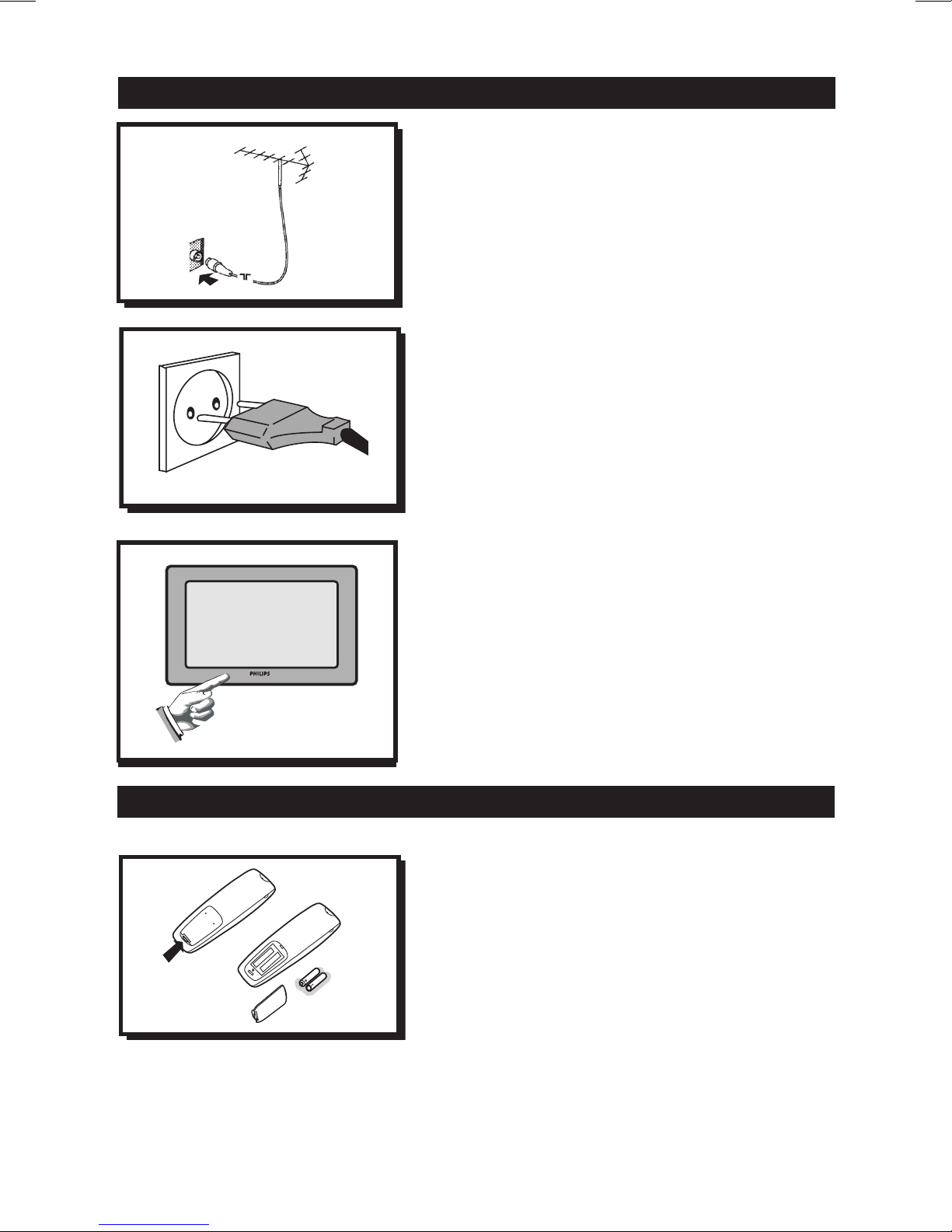

Antenna connection
• Connect the aerial plug to the antenna socket
on the backcover.
• Insert the mains plug into the wall socket.
Mains connection
• For correct mains voltage, refer to type sticker
at the rear of the TV set
• Consult your dealer if mains supply is different.
Note :This diagram is not representative of the
actual plug and socket.
Switching on the set
• Press the main power button to switch on/
off theTV.
• If the set is on standby (indicator is lit),
press the Power button on the remote
control to switch on set.
• Insert the correct type of batteries into the
compartment.
• Ensure the batteries are placed in the right
direction.
TV HOOKUP (BASIC CONNECTION)
REMOTE CONTROL CARE AND USE
5

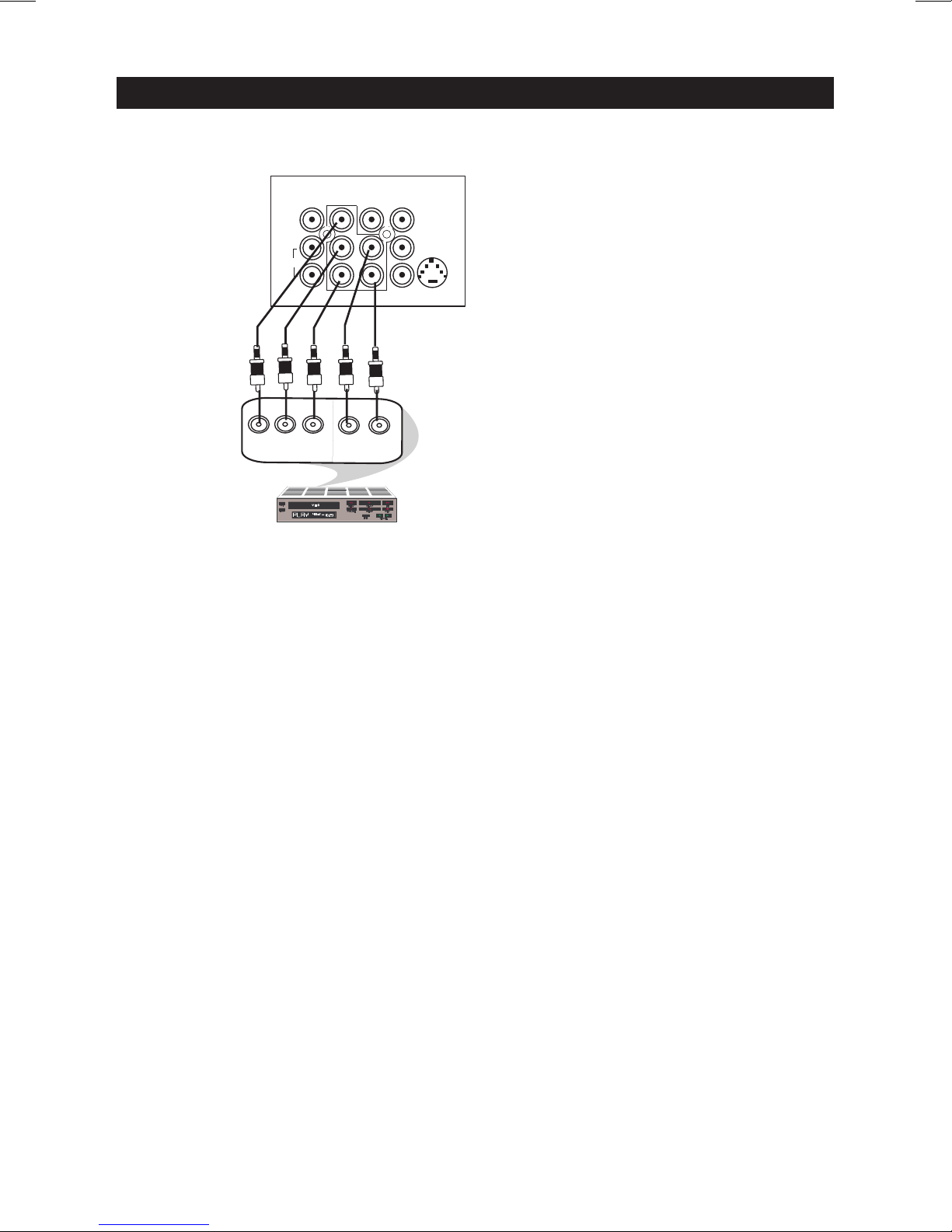

AV sockets on rear of TV
Back of DVD
DVD (with “Y” , “Pb” and “Pr”
and Output sockets)
You can view the playback of DVD discs by using the COMPONENT VIDEO INPUT (CVI)
sockets on the rear of the TV.
– Connect the CVI cables from the “Y”, “Pb” and “Pr” INPUT of the TV to the “Y”, “Pb”and
“Pr” OUTPUT of the DVD to view playback of DVD discs.
AUDIO/VIDEO CONNECTIONS (PLAYBACK)
OUT
AUDIO
YL
OUT
R
Pb Pr
L/Mono
R
S-VIDEO
VIDEO
AUDIO
AV1 in AV2 inMonitor out
COMPONENT VIDEO INPUT
Y
Pb
Pr
6

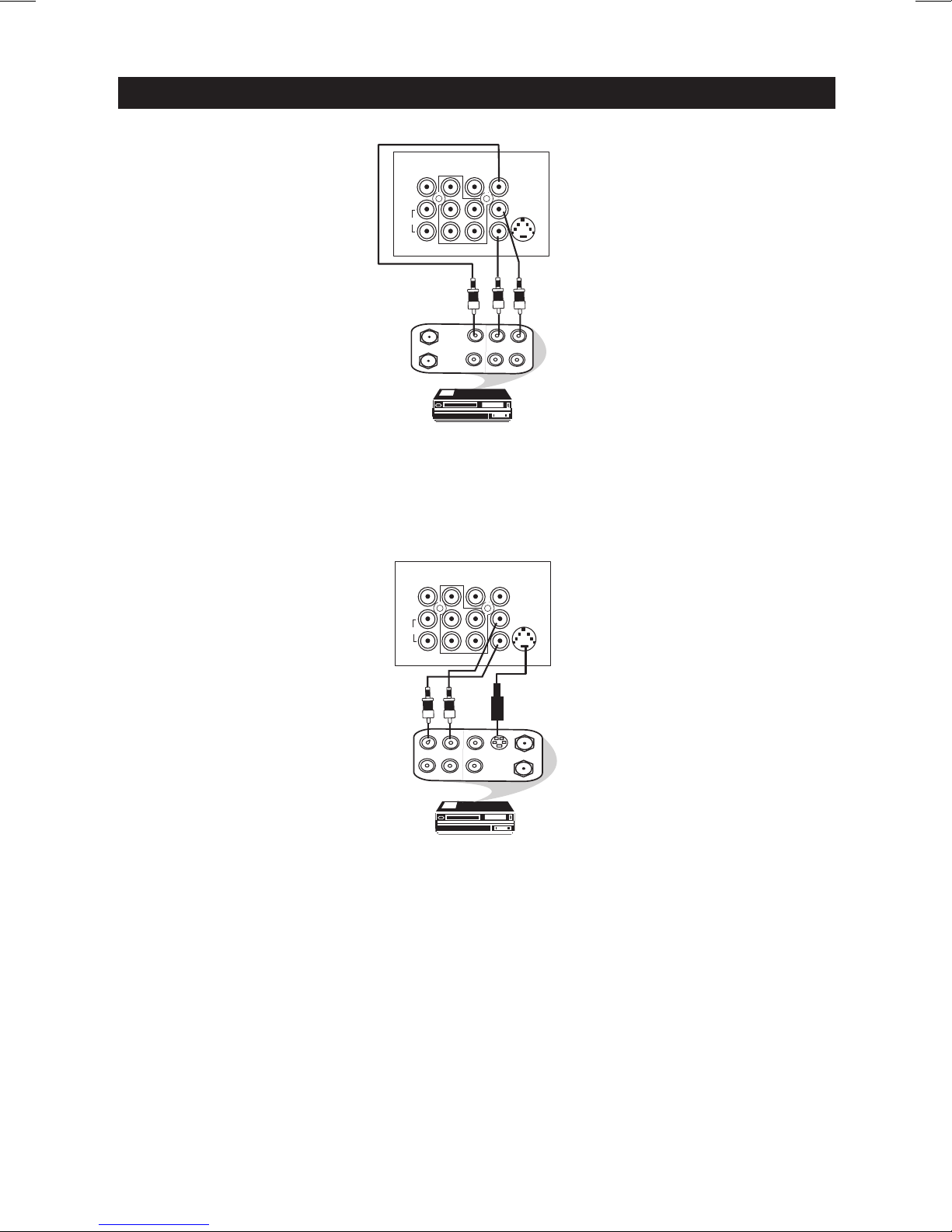

AV sockets on
the rear of TV
Back of VCR
VCR (with Video and
Audio output sockets)
You can view the playback of VCR tapes (Video Disc players, camcorders, etc.) by using the AUDIO
and VIDEO INPUT sockets on the rear of the TV.
– Connect the video and audio RCA cables from the VIDEO and AUDIO IN on the rear of the
TV to the AUDIO and VIDEO OUT of the VCR.
AV sockets on
the rear of TV
Back of S-VHS VCR
The S-Video connection on the rear of the TV is used for the playback of S-VHS VCR tapes,Video Discs,
Video Games or Compact Disc-Interactive (cd-i) discs. Better picture detail and clarity is possible with
the S-Video playback as compared to the picture from a normal antenna (RF) connection.
– Connect the S-VIDEO cable from the S-VIDEO socket on the rear of the TV to the S-VHS
OUT of the VCR.
– Connect the audio RCA cables from the AUDIO IN on the rear of the TV to the AUDIO
OUT of the VCR.
Note : You need not connect the VIDEO IN of the TV if S-VIDEO IN is connected.
ANTENNA
OUT
IN
OUT
IN
AUDIO
RL
VIDEO
IN
OUT
L/Mono
R
S-VIDEO
VIDEO
AUDIO
AV1 in AV2 inMonitor out
COMPONENT VIDEO INPUT
Y
Pb
Pr
ANTENNA
OUT
IN
OUT
IN
AUDIO
RLVIDEO
IN
OUT OUT
S-VIDEO
L/Mono
R
S-VIDEO
VIDEO
AUDIO
AV1 in AV2 inMonitor out
COMPONENT VIDEO INPUT
Y
Pb
Pr
AUDIO/VIDEO CONNECTIONS (PLAYBACK)
7

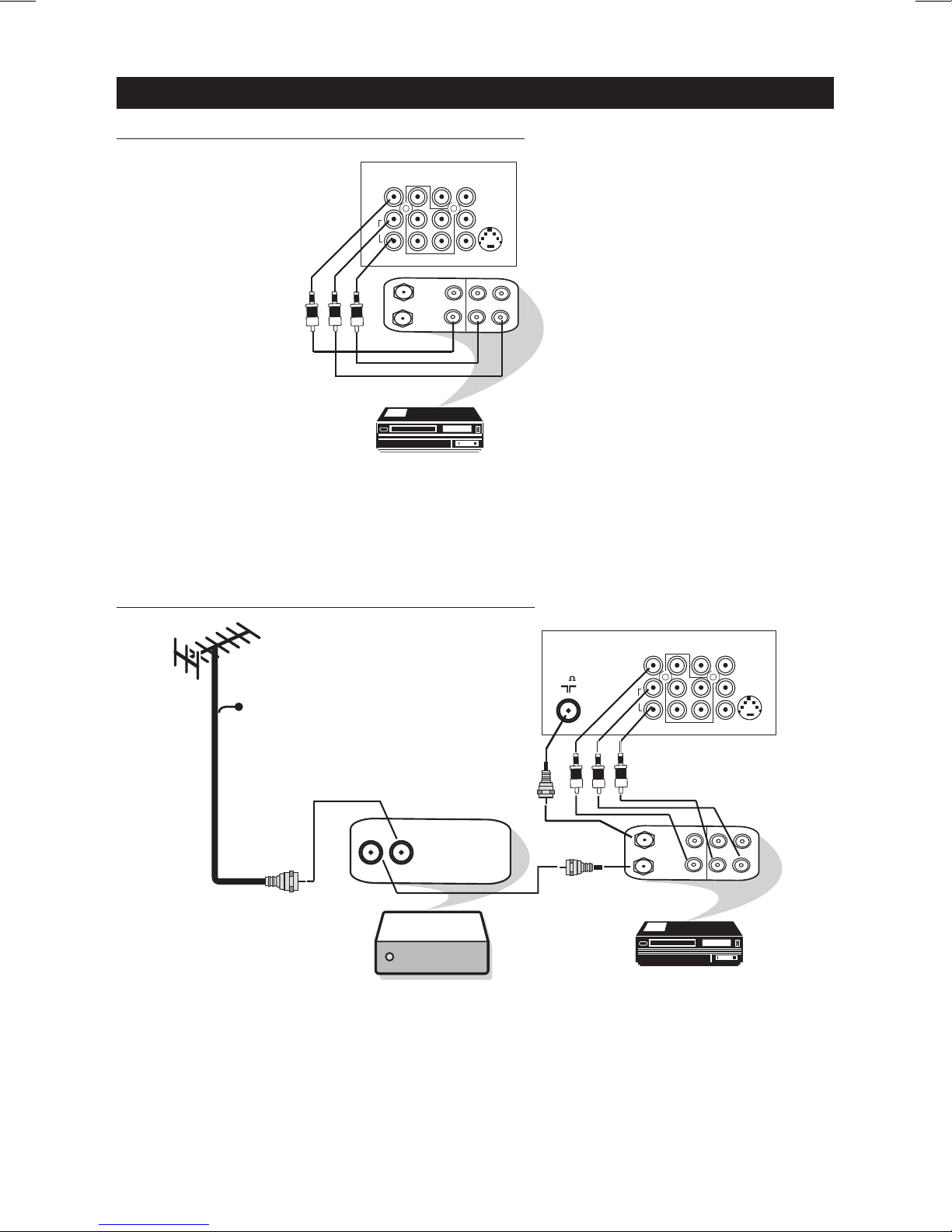

Connection for recording from the TV channel
AV sockets on
the rear of TV
VCR (with Video and
Audio input sockets)
– Connect the video and audio RCA cables from the INPUT sockets of the VCR to the
MONITOR OUT on the rear of the TV.
– To enhance the sound of your TV, connect the audio cables to an external audio
system instead of the VCR. For mono equipment, connect only the AUDIO L socket.
Connection for recording from cable TV to VCR
AUDIO/VIDEO CONNECTIONS (RECORDING)
ANTENNA
OUT
IN
OUT
IN
AUDIO
RL
VIDEO
IN
OUT
L/Mono
R
S-VIDEO
VIDEO
AUDIO
AV1 in AV2 inMonitor out
COMPONENT VIDEO INPUT
Y
Pb
Pr
75
Cable INCable OUT
ANTENNA
OUT
IN
OUT
IN
AUDIO
RL
VIDEO
IN
OUT
L/Mono
R
S-VIDEO
VIDEO
AUDIO
AV1 in AV2 inMonitor out
COMPONENT VIDEO INPUT
Y
Pb
Pr
– Connect the RF cable from the OUTput of the set top box to the Antenna IN of the VCR.
From the VCR’s Antenna OUT, connect the RF cable to the Antenna socket on the rear of the
TV.
– Connect the video and audio RCA cables from the INPUT sockets of the VCR to the
MONITOR OUT on the rear of the TV.
AV sockets on
rear of TV
VCR (with Video and Audio
input sockets)
Set top box
Cable
8

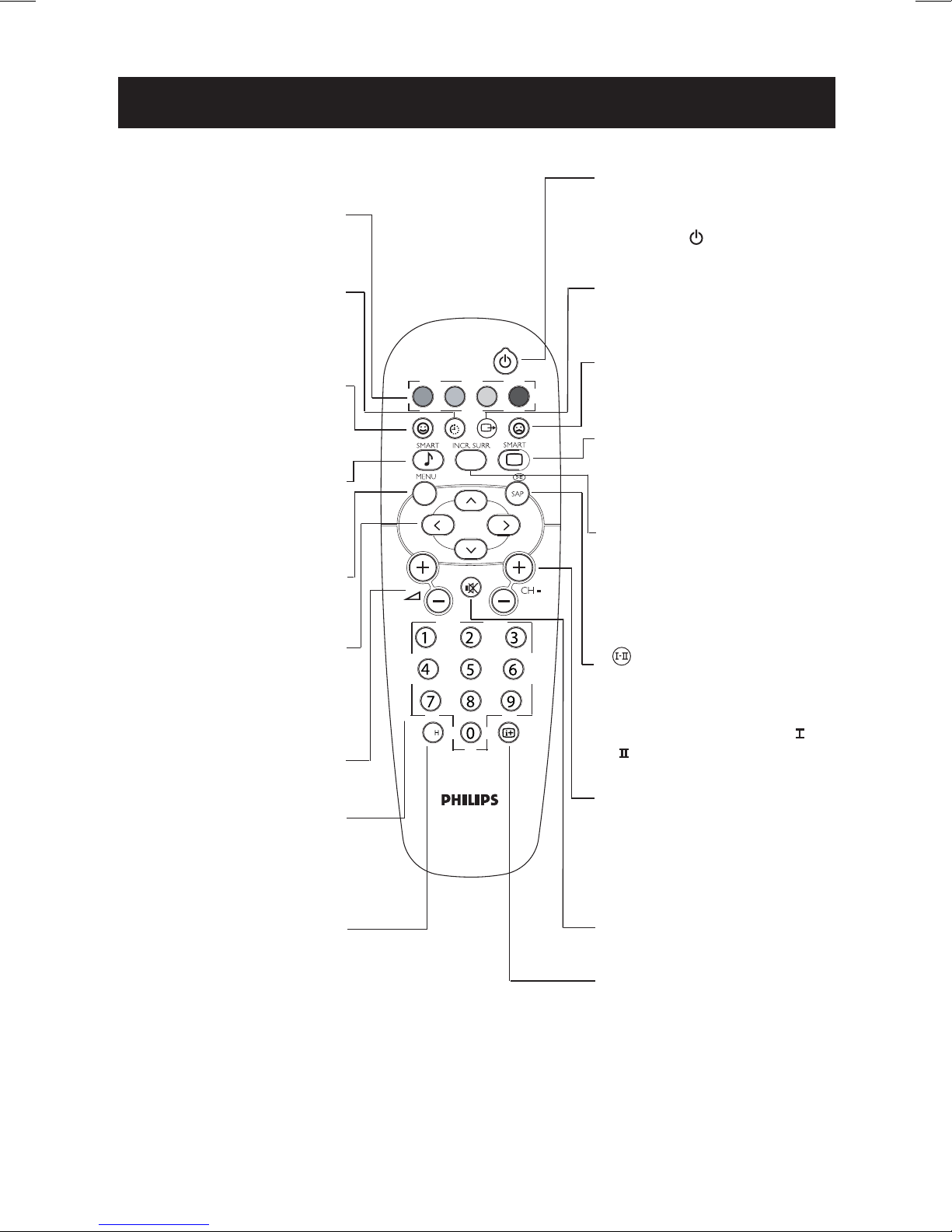

REMOTE CONTROL FUNCTIONS
A/C
POWER
(Refer to the correct page for the remote control that came with your set)
Personal Zapping
You can surf up to 10 personal
channels for each key (p. 26)
Sleeptimer
To select a time period after
which the set switch to standby
mode automatically.
Add Personal Zapping list
Adds and stores channels into
Personal Zapping list (p. 26)
Smart Sound
Used to access a series of
stored settings:Theatre, Music,
Voice or Personal.
Menu
To call up or exit menus.
Cursor
These 4 keys are used to move
around the menus or provide
direct access to the different
picture formats
Volume
To adjust the sound level.
Digit keys
Direct access to the channels.
For a 2-digit channel, enter the
2nd digit before the dash
disappears.
Alternate channel
Switches between the current
and the previous channel.
Standby
Lets you place the TV set on
standby. To turn on the TV, press
CH + or –, , AV, A/CH or
digit keys.
AV channel selection
Press several times to select AV1,
CVI,AV2,YPbPr or Side.
Delete Personal Zapping list
Deletes stored channels from
Personal Zapping list (p. 26)
Smart Picture
Used to access a series of
stored settings: Rich, Natural,
Soft, DVD/ VCD or Personal.
Incredible Surround
To enable/disable the Incredible
Surround feature. In stereo, the
speakers appear further apart. In
mono, a pseudo-spatial effect is
obtained.
During stereo transmission, to
switch from Stereo to Mono.
During dual sound transmission,
to switch betwen language or
.
Channel selection
To access the next or previous
channel.The number and sound
mode are displayed for a few
moments whenever you select a
new channel.
Mute
To mute or restore sound.
On screen display
To display/clear the on screen
information. Hold down key for
3 seconds to activate permanent
display of channel number.This
key is also used to exit from the
menu.
9

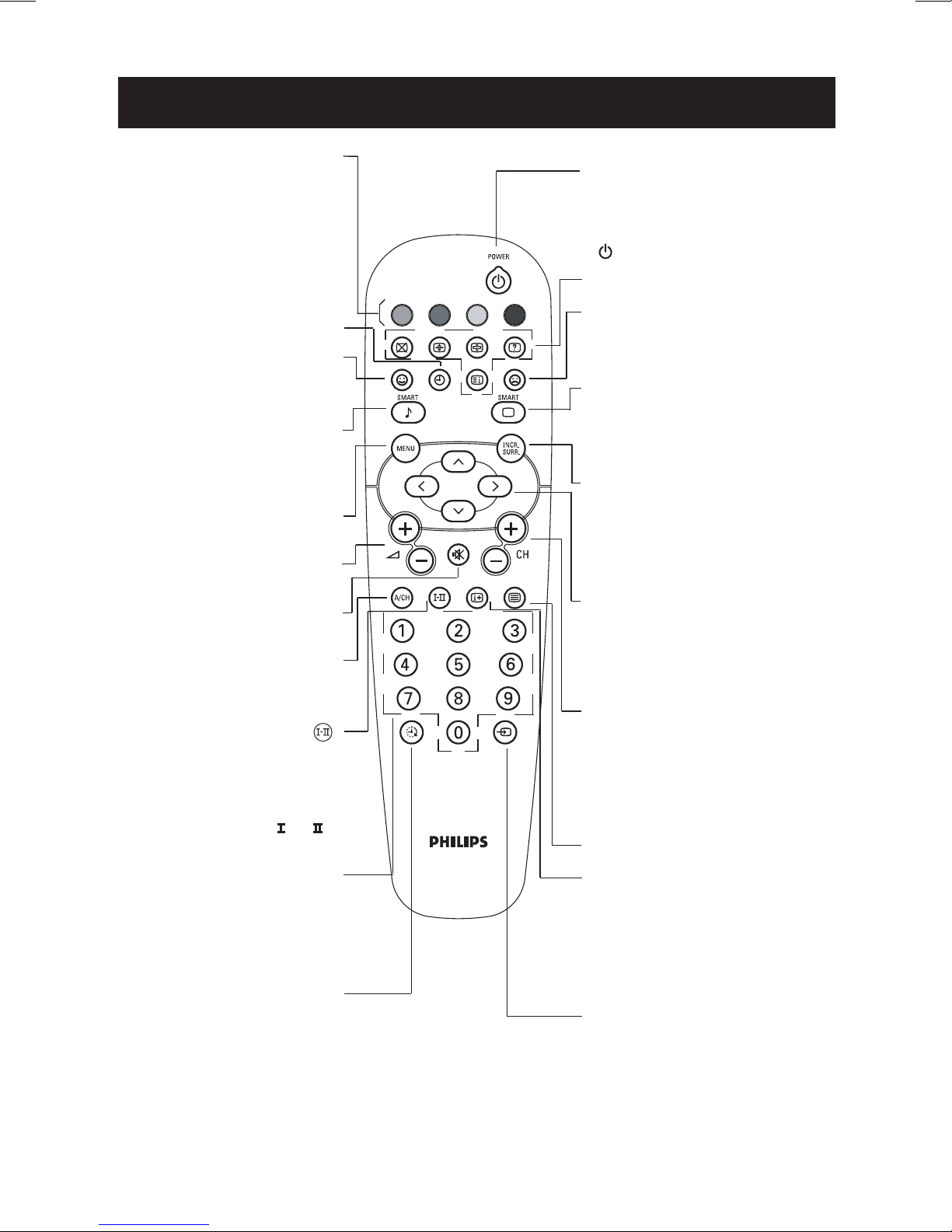

Teletext /Personal Zapping
In teletext mode; the colour
keys allows direct access to an
item or corresponding pages
(p 27-28) In Personal Zapping
mode; you can surf up to 10
personal channels
for each key (p. 26)
Add Personal Zapping list
Adds and stores channels into
Personal Zapping list (p. 26)
Smart Sound
Used to access a series of
stored settings:Theatre,
Music,Voice or Personal.
Menu
To call up or exit menus.
Volume
To adjust the sound level.
Mute
To mute or restore sound.
Alternate channel
Switched between the current
and the previous channel.
Digit keys
Direct access to the channels.
For a 2-digit channel, enter the
second digit before the first
digit disappears.
Sleeptimer
To select a time period after
which the set switch to standby
mode automatically.
Standby
Lets you place the TV set on
standby.
To turn on the TV, press CH + or –,
, AV, A/CH or digit keys
Delete Personal Zapping list
Deletes stored channels from
Personal Zapping list (p. 26)
Smart Picture
Used to access a series of stored
settings:Rich,Natural,Soft,
DVD/VCD or Personal.
Incredible Surround
To enable/disable the Incredible Sur-
round feature. In stereo, the speak-
ers appear further apart. In mono, a
pseudo-spatial effect is obtained.
Cursor
These 4 keys are used to move
around the menus or provide di-
rect access to the different picture
formats.
Channel selection
To access the next or previous
channel.The number and sound
mode are displayed for a few mo-
ments whenever you select a new
channel.
On screen display
To display/clear the on screen infor-
mation. Press the key for 5 seconds
to activate permanent display of
channel number.This key is also
used to exit from the menu.
AV channel selection
Press several timesto select AV1,
CVI, AV2, YpbPr, or Side.
Teletext keys (p. 27-28)
Teletext keys (p. 27-28)
REMOTE CONTROL FUNCTIONS
(Refer to the correct page for the remote control that came with your set)
During stereo transmission, to
switch from Stereo to Mono.
During dual sound transmission,
to switch between language
or .
Not applicable.
10
Andere Handbücher für 21PT5006
1
Dieses Handbuch passt für folgende Modelle
25
Inhaltsverzeichnis
Andere Philips Röhrenfernseher Handbücher
Philips
Philips 21PT5520 Bedienungsanleitung
Philips
Philips 21PT5121 Bedienungsanleitung
Philips
Philips 21PT1546 Bedienungsanleitung
Philips
Philips 28PW9513 - annexe 1 Bedienungsanleitung
Philips
Philips 21PT1820 Bedienungsanleitung
Philips
Philips 20PT2005/94 Bedienungsanleitung
Philips
Philips 14PT2694 Bedienungsanleitung
Philips
Philips 21PT4429 Bedienungsanleitung
Philips
Philips TP3681C Bedienungsanleitung
Philips
Philips TA 7216 Bedienungsanleitung
Philips
Philips Television TV Bedienungsanleitung
Philips
Philips 21PT1181 Bedienungsanleitung
Philips
Philips Match Line 29PT9005 Bedienungsanleitung
Philips
Philips 21PT9460 Bedienungsanleitung
Philips
Philips PA0113C Bedienungsanleitung
Philips
Philips 14PT2683/05 Bedienungsanleitung
Philips
Philips 15PT2526 Bedienungsanleitung
Philips
Philips 25SL5766 Bedienungsanleitung
Philips
Philips COLOR TV 27 INCH TABLE 27TS54C Bedienungsanleitung
Philips
Philips COLOR TV 25 INCH TABLE HD2518C Bedienungsanleitung
Beliebte Röhrenfernseher Handbücher anderer Marken
Magnavox
Magnavox MS3650C - 36" Smart Ctv Handbuch
Toshiba
Toshiba 14AF41 Bedienungsanleitung
Mitsubishi
Mitsubishi CS-35305 Bedienungsanleitung
Hitachi
Hitachi 35UX60B, 35TX10B Bedienungsanleitung
Sony
Sony KD-34XBR970 - 34" Hdtv 16x9 Format Bedienungsanleitung
Toshiba
Toshiba 27A34 - 27" CRT TV Bedienungsanleitung
