Philips 21PT5217 Bedienungsanleitung

Real Flat Television

21PT5217

21PT5117

User manual

IMPORTANT

Before you begin:

Make sure your package includes the following items:TV and mains cord,

remote control, Instruction manual, antenna cable (optional) and Coaxial

cable (optional).

Attention:

1. Read your manual first – your Philips TV comes with a well-designed

remote control and onscreen display to ensure your TV is easy to

operate.

2. The tips provided in this manual will save you time and money as

charges for TV installation and adjustments of customer controls are

not covered under the warranty.

3. For information outside of this manual, such as sales locations and

other Philips products, please visit www.philips.com which will

automatically link you to your local Philips website.

4. Please refer to the ‘Tips’on page 14 before calling for service.

5. In case of a need to call for service, we recommend you to call from

your room where your TV is located and have on hand your remote

control, warranty card,TV model and serial number.

6Do not discard packaging materials:

•without thorough inspection for parts and that accessories that may be

packed separately inside the carton.

•during the warranty period should you need to exchange the set.

Recycling:

The materials used in your set are either reusable or can be recycled.

To minimise environmental waste, specialist companies collect used

appliances and dismantle them after retrieving any materials that can be

used again (ask your dealer for further details).

Disclaimer: Graphics in this manual are for illustration purpose and may not represent the

actual product

General User manual-21PT5317_5117 1

Ta b le of Contents

General

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Useful Tips . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installation

Installing your television set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Remote control keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Auto Store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Manual Store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Operation

Picture settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Sound settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Feature settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Signal Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Personal Zapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 0

Peripherals

DVD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Video recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Other equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Side connections (for 21PT5117). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Front connections (for 21PT5217). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Practical information

Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 5

Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

p1-2_21PT5217_5117.p65 07/28/04, 10:50 AM1

2 User manual-21PT5217_5117 General

Safety information

•Disconnect mains plug when :

–the indicator light below the TV screen is flashing continuously.

–abright white line is displayed across the screen.

–there is a lightning storm.

–the set is left unattended for a prolonged period of time.

•cleaning the TV screen. Never use abrasive cleaning agents. Use a slight damp chamois

leather or soft cloth.

•No naked flame sources, such as lighted candles, should be placed on top of the TV or in

the vicinity.

• Do not place your TV set under direct sunlight or heat.

•Leave at least 10 cm around each side of TV set to allow for proper ventilation.

•Avoid placing your set (e.g. near the window) where it is likely to be exposed to rain

or water.

•No objects filled with liquids should be placed on top the TV so as to avoid dripping

or splashing of liquids on the set.

Useful information

•Do not leave your set on standby mode for a prolonged period of time. Switch off set

to allow it to be demagnetised. A demagnetised set supports good picture quality.

• Do not shift or move the set around when it is switched on. Uneveness in colour in

some parts of the screen may occur.

•Never attempt to repair a defective TV yourself.Always consult a skilled service

personnel.

p1-2_21PT5217_5117.p65 06/30/04, 9:38 AM2

Installation User manual-21PT5217_5117 3

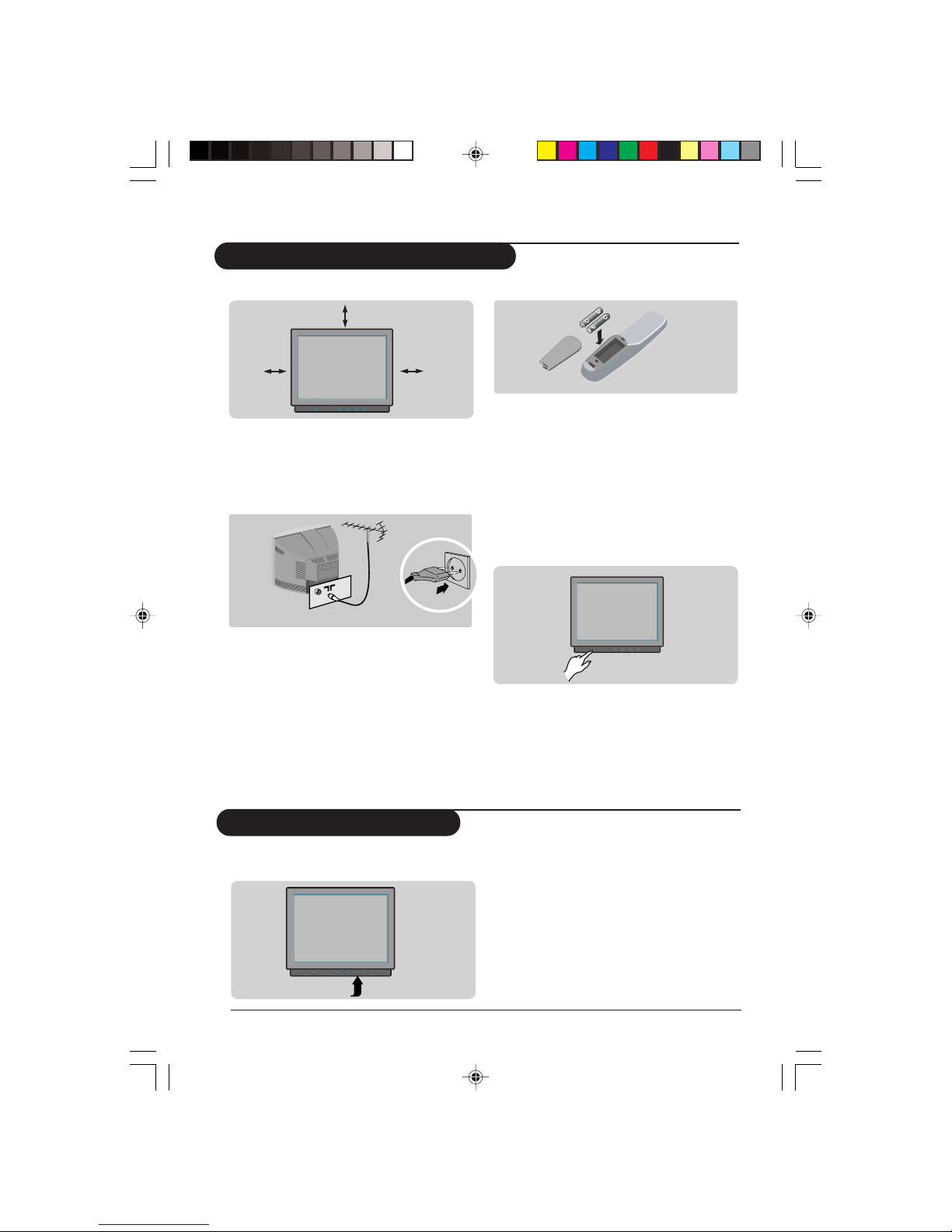

Positioning the television set

Installing your television set

Place your TV on a solid, stable surface,

leaving a space of at least 10 cm around the

appliance.

Connections

10 cm10 cm

10 cm

•Insert the aerial plug into the xsocket

at the rear of the set.

If you are using an indoor aerial, reception

may be difficult in certain conditions. You

can improve reception by rotating the

aerial. If the reception remains poor, you

will need to use an external aerial.

•Insert the mains plug into a wall socket.

Diagram may differ from the actual plug.

Remote control

Insert the two R6-type batteries (supplied)

making sure that they are the right way

round.

The batteries supplied with this appliance do

not contain mercury or nickel cadmium.

If you have access to a recycling facility, please do

not discard your used batteries (if in doubt,

consult your dealer).

Switching on

To switch on the set, press the on/off key.

A red indicator means that the television is on

standby mode. Refer to the next page on ‘Remote

Control keys’ for the various keys that you could

use to switch on the set.An indicator light will

flash when it is receiving signal from the remote

control.

The keys on the TV set

The television set has 4 keys which are

located at front.

The VOLUME – + keys are used to adjust the

sound levels.The CHANNEL v ^keys are

used to select channels.

To access or exit the main menu, press down

theVOLUME – + keys, simultaneously.

To select an item in the main menu, press the

CHANNEL v or ^key.

To select an adjustment, press down the

VOLUME – or + key.

p3-7_21PT5217_5117.p65 07/06/04, 5:09 PM3

4 User manual-21PT5217_5117 Installation

Remote control keys

Standby

Lets you place the TV set on standby.

To turn on the TV, press CH + or –,

2,AV,A/CH or digit keys

Teletext keys (p. 10)

Delete Personal Zapping list

Deletes stored channels from

Personal Zapping list (p. 9)

Teletext /Personal Zapping

In teletext mode; the colour keys

allows direct access to an item or

corresponding pages (p. 10)

In Personal Zapping mode; you can

surf up to 10 personal channels

for each key (p.9)

Smart Picture

Used to access a series of stored

settings: DVD/VCD, Rich, Natural,

Soft, Multimedia or Personal.

Incredible surround

To activate/disable the Incredible

surround feature. In stereo, the

speakers appear further apart.

In mono, a pseudo-spatial effect is

achieved.

Cursor

These 4 keys are used to move

around the menus or provide

direct access to the different

picture formats.

Channel selection

To access the next or previous

channel.The number and sound

mode are displayed for a few

moments whenever you select a

new channel.

Teletext key (p. 10)

On screen display

To display/clear the on screen

information. Press the key for 5

seconds to activate permanent

display of channel number.This key

is also used to exit from the menu.

AV channel selection

Press several times to select AV1,

AV2 or FRONT (for 21PT5117).

Add Personal Zapping list

Adds and stores channels into

Personal Zapping list (p.9)

Smart Sound

Used to access a series of stored

settings:Theatre, Music,Voice or

Personal.

To call up or exits menus.

Volume

To adjust the sound level.

Mute

To mute or restore sound.

Alternate channel

Switched between the current and

the previous channel.

During stereo transmission, to

switch from Stereo to Mono. During

dual sound transmission, to switch

betwen language Y or Z.

Digit keys

Direct access to the channels. For

a 2-digit channel, enter the

second digit before the first digit

disappears.

Sleeptimer

Selects a period of time after

which the TV will go into standby

mode automatically.

No function

p3-7_21PT5217_5117.p65 07/06/04, 5:09 PM4

Installation User manual-21PT5217_5117 5

Language

When there is no signal input to the TV, you

may encounter instability of the screen display.

In this instance, please use the key to select

an AV channel.

The Language feature is used to change the

display language for menus.

&Press the key.

éWith the cursor, select the Install menu

and follow by the Language.

“Use the key to select a language of

your choice.

‘To quit the menus, press .

Auto Store

This menu is used to store all available

channels automatically.

&Press the key.

éWith the cursor, select the Install menu

and follow by the Auto Store.

All the available TV channels will be stored.

This operation takes a few minutes.The display

shows the progress of the search and the

number of channels found.

To exit or interrupt the search, press .

If no channels are found, consult the possible

solutions on p.14.

Auto Store

p3-7_21PT5217_5117.p65 07/06/04, 5:09 PM5

6 User manual-21PT5217_5117 Installation

Manual Store

‘Sound System: use the or key

to select the desired sound system; Auto,

BG, I, DK or M.

(Search: Press . The search starts.

Once a channel is found, the scanning

stops. Go to the next step.

If no picture is found, consult the possible

solutions (p.14)

§Channel: enter the required channel

with the , or digit keys.

Fine Tune: if the reception is not

satisfactory, adjust using the or

keys.

!Store: Press . The channel is stored.

çRepeat steps “to ‘for each channel

you wish to store.

0To quit the menus, press .

This menu is used to store channels one at a

time.

&Press the key.

éWith the cursor, select the Install menu

and follow by the Manual Store.

“Colour System: use the or key

to select the desired colour system;

Auto, PAL, NTSC 3.58, NTSC 4.43

or SECAM.

Channel edit

This feature allows you to skip or edit

channels which have bad or weak TV signal or

channels you do not watch often.

Once a channel is skipped, you cannot have

access to it by the Channel + or – key.You can

only access the channels by the digit (0-9) keys.

&Press the key.The Main menu is

displayed on the screen.

éWith the cursor, select the Install menu

followed by the Channel Edit menu.

“Enter into the menu and select the

channel number you wish to skip by the

digit keys.

‘Then use the key to select Skipped.

Use the key to select On.

(Repeat steps “and ‘for each

channel you wish to skip.

§To quit the menus, press .

To restore skipped channels

&Repeat steps &to “ above.

éUse the key to select Skipped and

the key to select Off.

“Repeat steps &and é for each

channel you wish to skip.

‘To quit the menus, press .

p3-6_21PT5217_5117.p65 07/07/04, 2:08 PM6

Operation User manual-21PT5217_5117 7

Picture settings

&Press then . This will call up the

Picture menu.

Description of the adjustments:

• Brightness: this changes picture brillance.

• Colour: this changes the intensity of the

colour.

• Contrast: this changes the difference

between the light and dark tones.

• Sharpness: this changes the picture

definition.

• Colour Temp.: this changes the colour

rendering: Cold(bluer), Normal(balanced) or

Warm(redder).

•NR: attenuates picture noise (snow) in

difficult reception conditions.

éUse the or keys to select a

setting and the or keys to adjust.

Note: during the picture adjustment, only

the selected line remains displayed. Press

or to display the menu again.

“Press to exit.

Sound settings

&Press , select Sound ( ) and press

. This will call up the Sound menu.

éUse the or key to select a setting

and the or key to adjust.

“Press to exit.

Description of the adjustments:

• Treble Boost/Treble: this alters the high

frequency sound.

• Bass Boost/Bass: this alters the low

frequency sound.

• Balance: this balances the sound on the left

and right speakers.

•AVL (Automatic Volume Leveller): this is used

to limit increases in sound, especially on

channel change or advertising slots.

For 21PT5217

For 21PT5117

p7-11_21PT5217_5117.p65 07/28/04, 10:51 AM7

8 User manual-21PT5217_5117 Operation

Format

This feature enhances your viewing pleasure

by providing you with a choice of two picture

formats:- 4:3 and Expand 4:3.

&Press , use the or key to select

Features and press the key.

This will call up the Features menu.

éUse the key to select Format and

press the key to select 4:3 or

Expand 4:3.

“Press the key to exit.

Description of function:

4:3 – select this format if you want to display

a conventional picture using the full surface of

the screen.

Expand 4:3 – select this format if you want

to expand pictures transmitted in a

‘letterbox’ format (black horizontal bars at

the top and bottom of the screen) to fill up

the entire screen.

4:3

Letterbox

Expand 4:3

Features settings

&Press , select Features () and press

. This will call up the Features menu.

Description of the features:

•Format: see explanation on the next few

pages.

• Signal Strength : see explanation on the

next few pages.

p7-11_21PT5217_5117.p65 07/07/04, 2:41 PM8

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Röhrenfernseher Handbücher

Philips

Philips MatchLine 29PT 9416 Bedienungsanleitung

Philips

Philips 28PT7007 Bedienungsanleitung

Philips

Philips 14PT4137C Bedienungsanleitung

Philips

Philips 28PW6315/05 Bedienungsanleitung

Philips

Philips 28PW9623 Bedienungsanleitung

Philips

Philips HD2717C Bedienungsanleitung

Philips

Philips 14PT1365/05 Bedienungsanleitung

Philips

Philips 27-REAL FLAT SDTV 27PT9015D - Hook Up Guide Bedienungsanleitung

Philips

Philips 29PT6433 Bedienungsanleitung

Philips

Philips 25SL5766/30S Bedienungsanleitung

Philips

Philips TR2517C Bedienungsanleitung

Philips

Philips 32PT663R Handbuch

Philips

Philips 21PT3626/V7 Bedienungsanleitung

Philips

Philips COLOR TV 32 INCH TABLE TS3258C Bedienungsanleitung

Philips

Philips 29PT5518/01 Bedienungsanleitung

Philips

Philips 21PT1181 Bedienungsanleitung

Philips

Philips 28PW8719 Bedienungsanleitung

Philips

Philips 14PT3525/V7 Bedienungsanleitung

Philips

Philips Magnavox PR 1906C Bedienungsanleitung

Philips

Philips 25PT5536 Bedienungsanleitung

Philips

Philips 21PT1820 Bedienungsanleitung

Philips

Philips COLOR TV 36 INCH TABLE TS3654C Bedienungsanleitung

Philips

Philips 28PW9309 Bedienungsanleitung

Philips

Philips COLOR TV 25 INCH TABLE TS2544C Bedienungsanleitung

Beliebte Röhrenfernseher Handbücher anderer Marken

JVC

JVC AV-21QS5SP Bedienungsanleitung

Hitachi

Hitachi 27CX01B Bedienungsanleitung

LG 30FZ1DC Bedienungsanleitung

Sony

Sony FD TRINITON WEGA KV-24FS120 Bedienungsanleitung

RCA

RCA F19442 Bedienungsanleitung

Samsung

Samsung CS761 Bedienungsanleitung

Panasonic

Panasonic TC-29P100 Series Bedienungsanleitung

RCA

RCA F19422 Bedienungsanleitung

Sony

Sony WEGA KV 32HS20 Bedienungsanleitung

Samsung

Samsung SlimFit TX R3079WH Bedienungsanleitung

Palsonic

Palsonic MODEL 5179G Bedienungsanleitung

Toshiba

Toshiba CF13H22 Bedienungsanleitung

Magnavox

Magnavox MS3650C - 36" Smart Ctv Handbuch

Toshiba

Toshiba 14AF41 Bedienungsanleitung

Mitsubishi

Mitsubishi CS-35305 Bedienungsanleitung

Hitachi

Hitachi 35UX60B, 35TX10B Bedienungsanleitung

Sony

Sony KD-34XBR970 - 34" Hdtv 16x9 Format Bedienungsanleitung

Toshiba

Toshiba 27A34 - 27" CRT TV Bedienungsanleitung
