Introduction

Thank you for purchasing this television set.

This handbook has been designed to help you install and operate yourTV set.

We would strongly advise you read it thoroughly.

We hope our technology meets entirely with your satisfaction.

Installation

Installing the television set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Tuning in theTV channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

• Selecting the menu language and the country . . . . . . . . . . . . . . . . . . . . . . . .4

•Automatic store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

• Re-numbering programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

•To exit the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

• Manual store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

• Naming programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Operation

The keys on theTV set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

The remote control keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

• Displaying the programme number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

•Adjusting the current picture and sound settings . . . . . . . . . . . . . . . . . . . . .3

• 16:9 format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

• Sleeptimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Using other menus:picture,sound,features . . . . . . . . . . . . . . . . . . . . . . . . . . .7

• Storing adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

• Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

•Timer menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Video recorder key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Peripherals

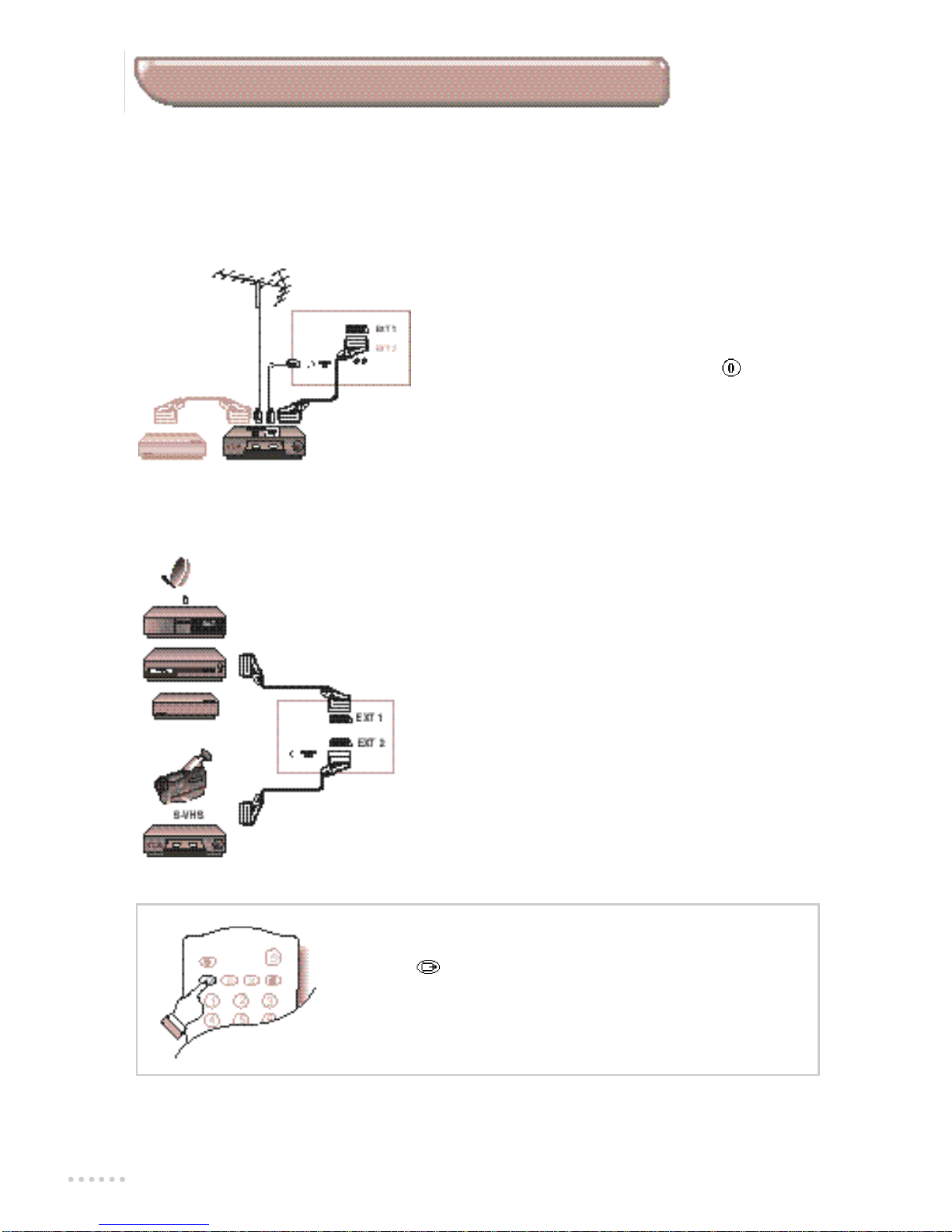

• Connecting peripheral equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

•Video recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

• Other equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

•Amplifier,headphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

• Side panel connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Practical information

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Table of contents

æPositioning the television set

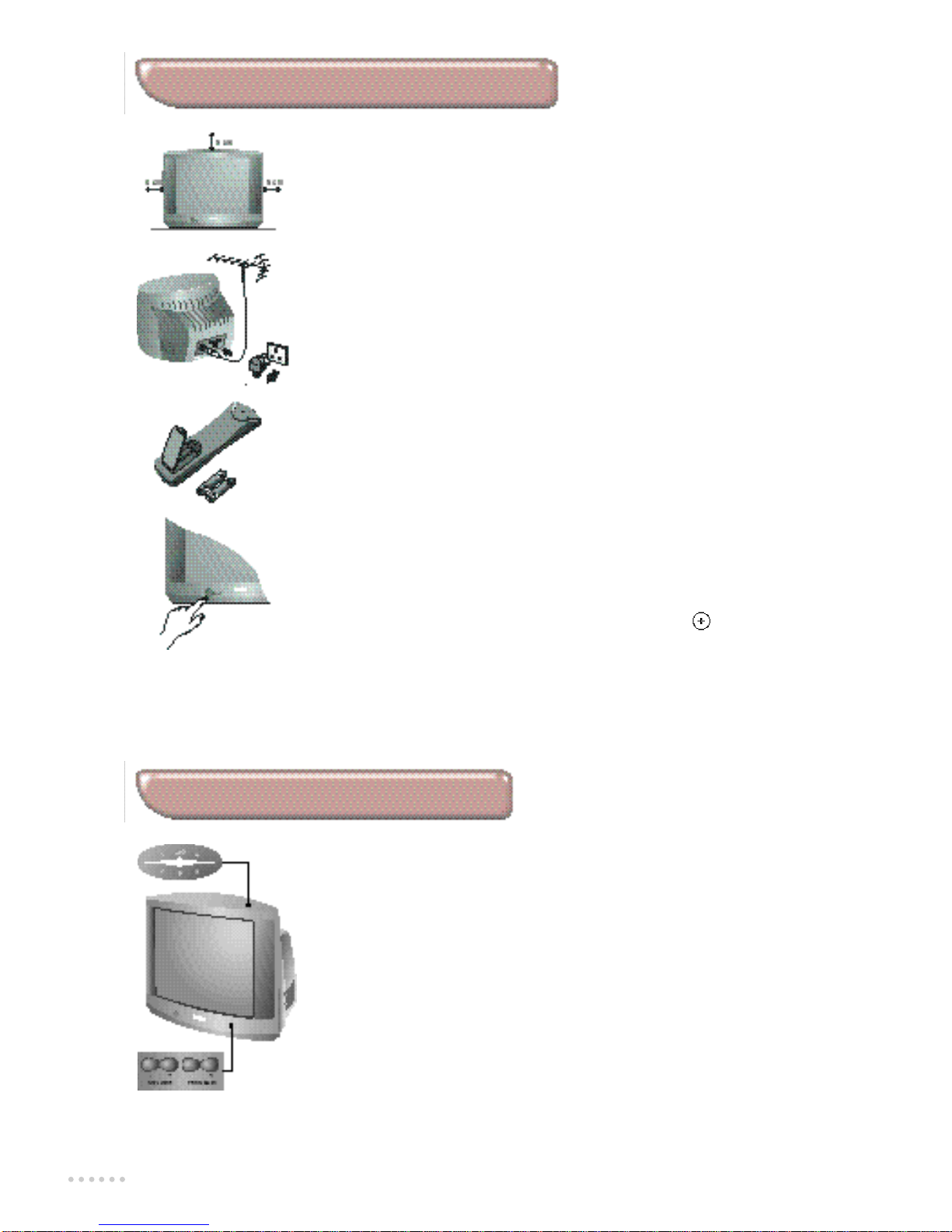

Place yourTV on a solid,stable surface.

To avoid any dangerous situations and operating fault,do not place

anything on theTV set and leave a space of at least 5cm around the

appliance.

ÂConnections

• Insert the aerial plug into the Msocket at the rear of the set.

• Insert the mains plug into a wall socket (220-240V / 50 Hz).

êRemote control

Insert the two R6-type batteries (supplied) making sure they are the

right way round.

In an effort to help protect the environment, the batteries supplied with this

television do not contain mercury or nickel cadmium.Please do not discard your

used batteries if you have access to a recycling facility (if in doubt,consult your

dealer).

®Switching on

Press the on/off key to switch on the television.

A red indicator comes on and the screen lights up.

If the television remains in standby mode,press the P on the remote

control.

The indicator flashes when you use the remote control.

The television set has 4 keys which are located on the front or the top

of the set depending on the model.

TheVOLUME - + (- a+) keys are used to adjust sound levels.

The PROGRAM - + (- a+) keys are used to select the required

programmes.

To access the menus,simultaneously hold down the VOLUME - and

VOLUME + keys.The PROGRAM - + keys may then be used to select an

adjustment and theVOLUME - + keys to make that adjustment.

To exit from the menus,hold down the 2VOLUME - andVOLUME + keys.

Note:when the LOCK function is activated, these keys are unavailable (refer to

FEATURES menu on page 7).

Installing the television set

The keys on theTV set

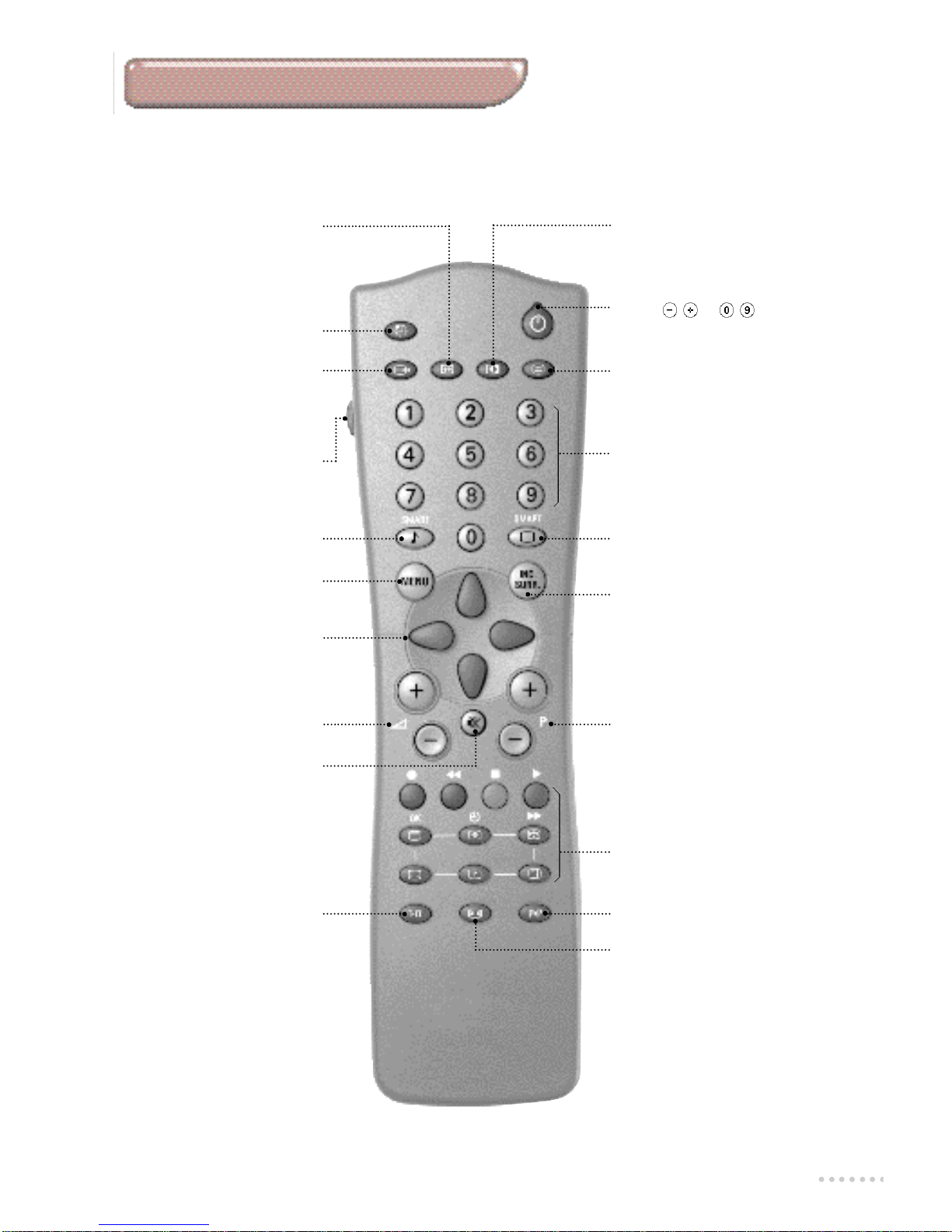

The remote control keys

Screen information

To display / remove the programme

number,the name (if itexists),the

time,the sound mode and the

time remaining on the timer.Hold

down for 5 seconds to

permanently display the

programme number on the screen.

Sleeptimer

To select the length of time before

the set automatically switches to

standby (from 0 to 120 minutes).

Select EXT sockets

Press several times to select

EXT1,S-VHS2,EXT2 and on

certain models EXT3 and

S-VHS3.

Video recorder (p.8)

Smart sound controls

To access a series of settings:

VOICE,MUSIC,THEATRE and

return to PERSONAL.

To display or exit from the menus.

Cursor

These 4 keys are used to move

within the menus.

Volume

To adjust the sound level

Mute

To disable or enable the sound.

Sound mode

To switch from STEREO to

MONO or to choose between

Dual I and Dual II for

bilingual transmissions.

ForTV sets fitted with NICAM

reception,depending on the

transmission,you can switch

from NICAM STEREO to

MONO or choose between

NICAM DUAL I,NICAM DUAL II

and MONO.

When the sound mode is switched

to MONO, the indication is

displayed in blue.

Picture adjustment

To activate / deactivate the

picture adjustment controls.

NEX TV IEW :

refer to the separate booklet

(only available on certain models).

Incredible Surround

To activate / deactivate the

surround sound effect.In stereo,

this gives the impression that the

speakers are furtherapart.In mono,

a stereo spatial effect is simulated.

Numerical keys

For direct access to programmes.

For a 2 figure programme number,

the 2nd figure must be entered

before the dash disappears.

Standby

To set theTV to standby mode.

To switch theTV set on again,

press P or .

Smart picture controls

To access a series of settings:

RICH,NATURAL,SOFT and

return to PERSONAL.

SelectingTV programmes

To move up or down a

programme.The number,(the

name) and the sound mode are

displayed for a few seconds.

For some programmes equipped with

teletext,the title of the programme

appears at the bottom of the screen.

Teletext features (p.9)

Previous programme

To access the previously viewed

programme.

16:9 formats

To access the picture formats

EXPAND 14/9* (the picture is

enlarged) and COMPRESS 16:9

(the picture is compressed

vertically).

* only available on certain models.

For more information,refer to the

Glossary on p.11.

Tuning-in theTV channels

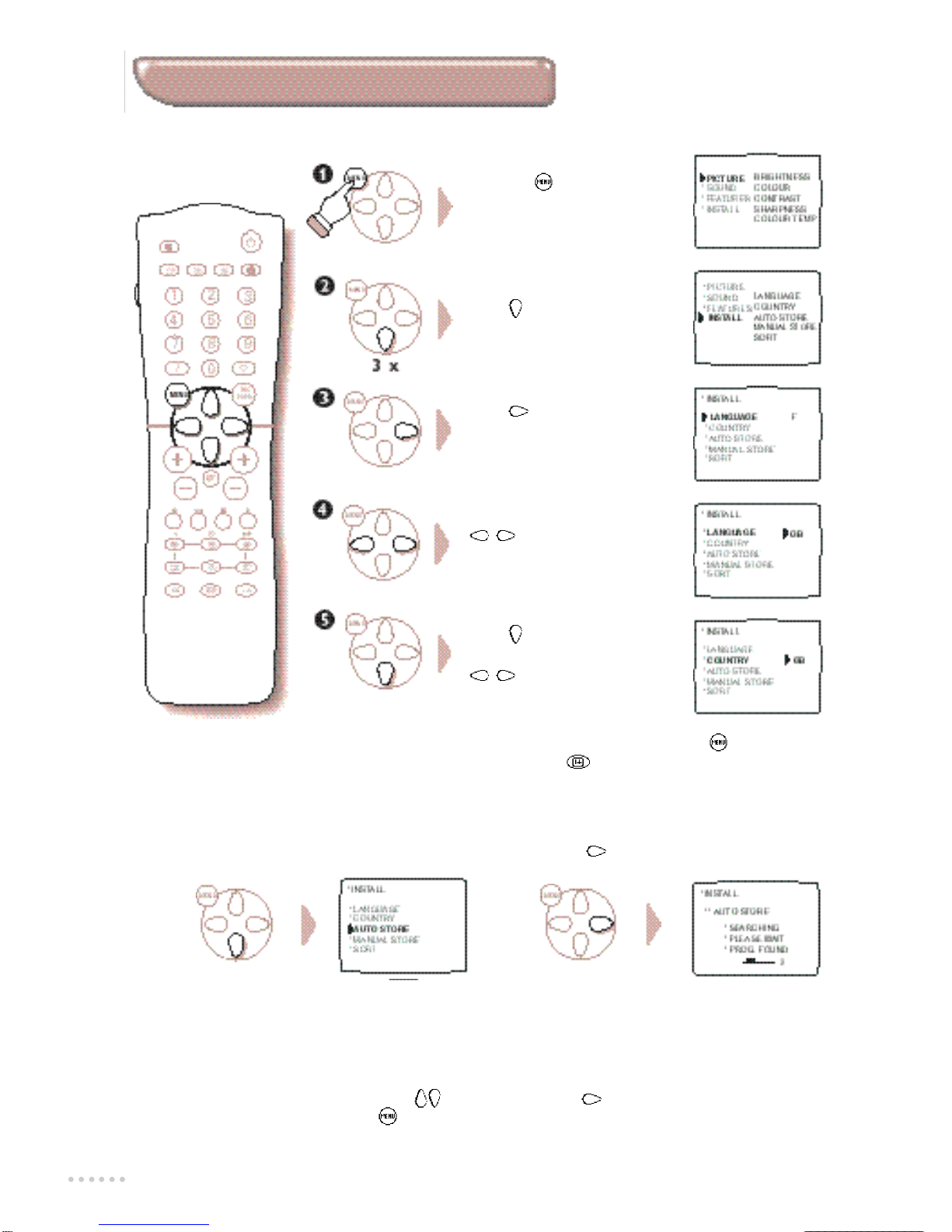

Selecting the language and the country

Automatic store

Carry out the above operations,then:

If you wish to exit the menus,press the key twice

(or once on the key).

Press the key.The main

menu is displayed on the screen

Press 3 times to select

INSTALL.

Press .The INSTALL menu

appears.The LANGUAGE

option is activated.

Select your language using the

keys.The menus appear

in the language selected.

Press to select COUNTRY.

Select your country using the

keys (GB for Great

Britain).

The search operation takes a few minutes.When the search is complete,the INSTALL menu reappears

automatically.If the transmitter or the cable network emits the automatic sort signal,the programmes

are correctly numbered.If this is not the case,the programmes found are numbered in descending

order from number 99,98,97,etc.Use the SORT menu to re-number the programmes.

Certains broadcasters or cable networks transmit their own sorting parameters (region,language,etc).Where

this is the case,indicate your choice using the keys and confirm with .

To exit or interrupt the search,press the key. If no picture is found,refer to the chapter entitledTips on p.12.

ÚSelectAUTO STORE. ºPress .The search begins.

Re-numbering programmes

If the INSTALL menu is already displayed on the screen,go directly to step æ.

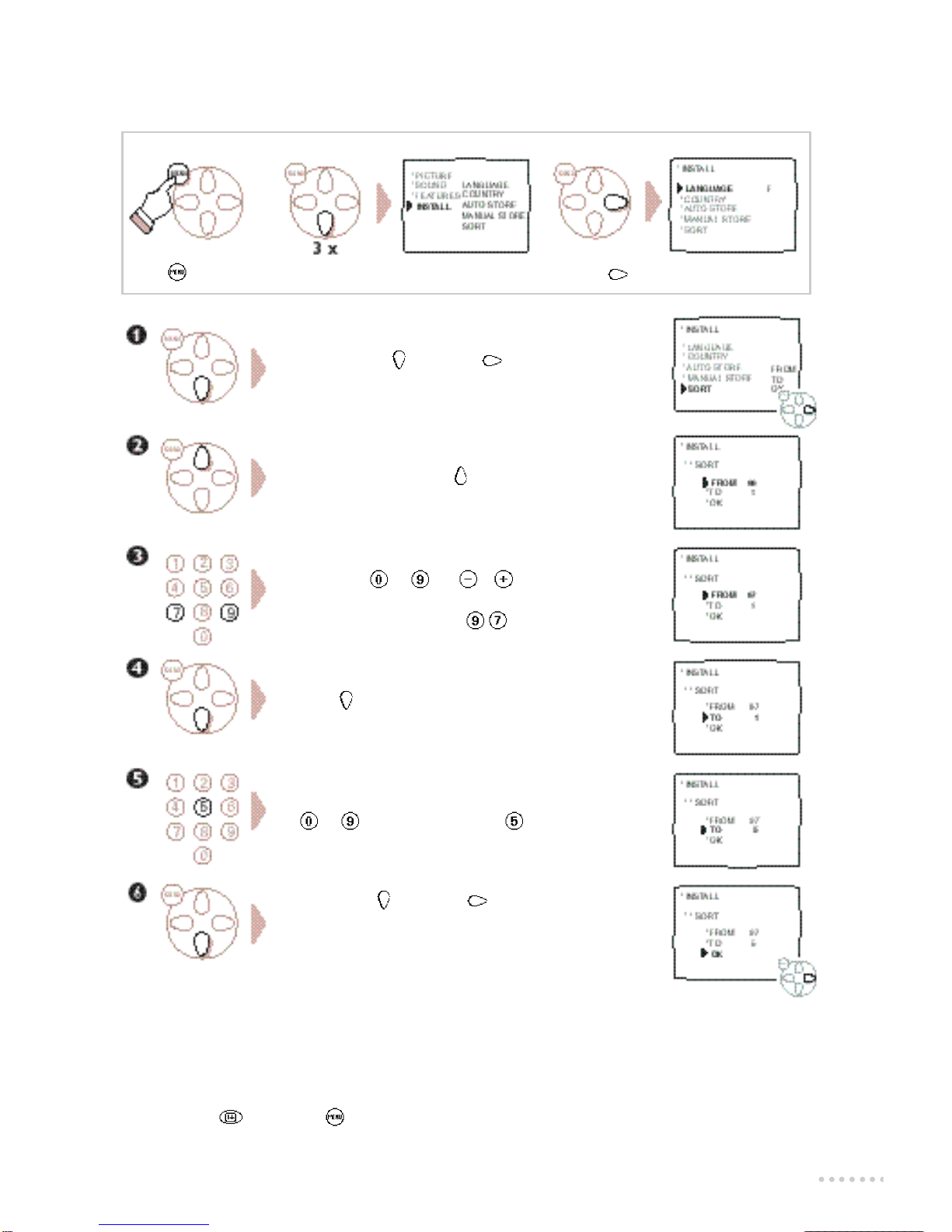

Display the programme you wish to re-number

using keys to (or P ).

If,for example,you want to re-number

programme 97 as 5:type .

Repeat operations Âto Úfor as many programmes as you wish

to re-number.

Press . Select INSTALL. Press .

Select SORT ( ) and press .

The SORT menu appears.

Select FROM using the key.

Press to selectTO.

Enter the new programme number using keys

to .In our example,type .

Select OK ( ) and press .The message

STORED appears and the exchange is made.

In our example,programme number 97 is re-

numbered as 5 (and 5 as 97).

To display the INSTALL menu

To exit the menus:

Press the key (or the key to return to the previous level).

Manual store

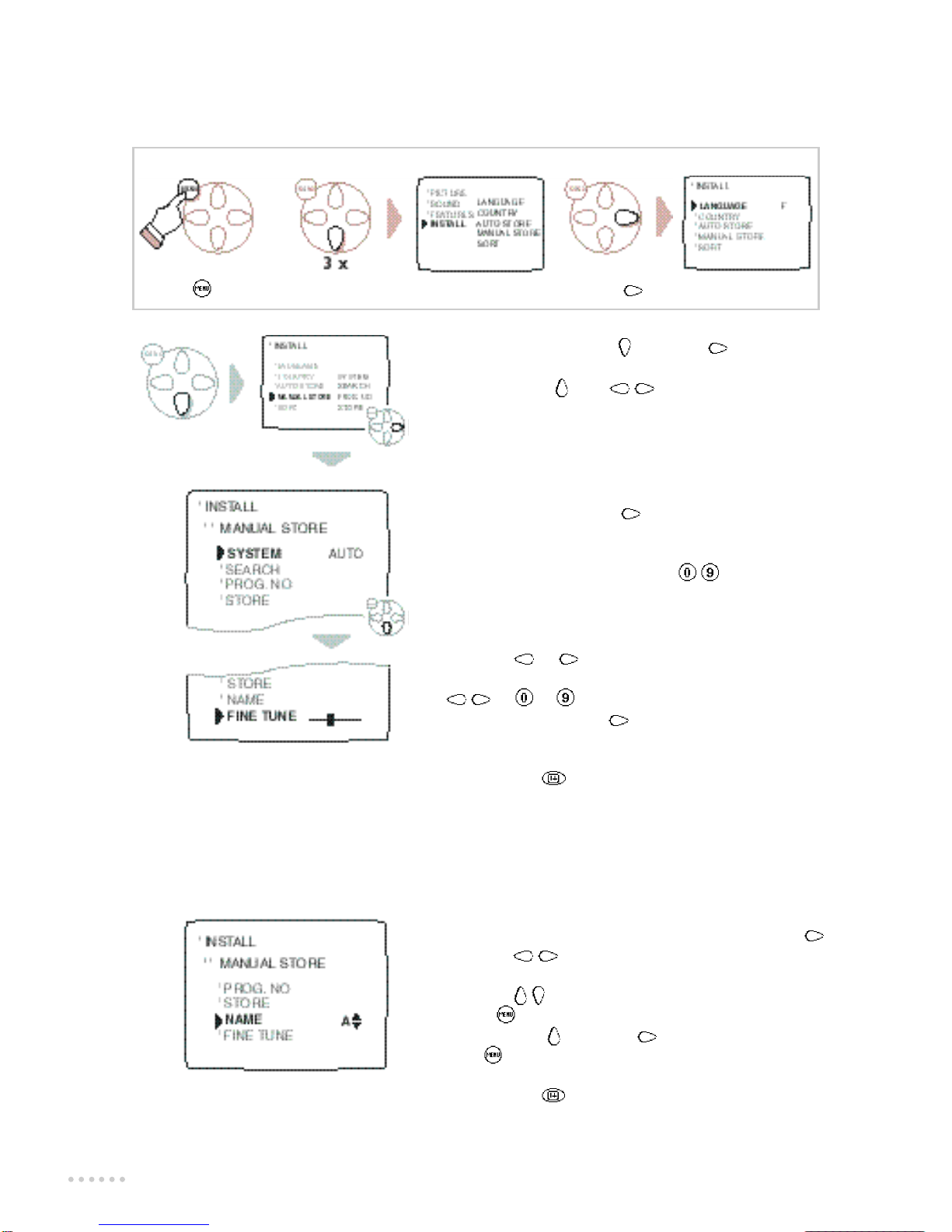

This menu allows you to store each programme manually.

If the INSTALL menu is already displayed on the screen,go directly to step æ.

To display the INSTALL menu

Press . Select INSTALL. Press .

æSelect MANUAL STORE ( ) and press .

The MANUAL STORE menu appears.

ÂSelect SYSTEM ( ).Use to selectAUTO

(automatic reception*) or standard reception with,

according to the model:W.EUR (standard BG),E.EUR

(standard DK),UK (standard I) or FRANCE (standard LL’).

* For transmissions from France (standard LL’),select the

FRANCE option but not theAUTO option.

êSelect SEARCH and press .The search begins.

As soon as a programme is found,the search will stop. If

you know the frequency of the programme required,

enter its number directly using the keys and go to

chapter †.

If no programme is found,refer to theTips chapter on page 12).

®If reception is un-satisfactory,select FINETUNE and hold

down key or .

†Select PROG.NO (programme number) and use the

or to keys to enter the desired number.

ºSelect STORE and press .The message STORED

appears.The programme is stored.

Repeat steps êto Úfor each programme to be stored.

To exit: press the key.

If you wish,you can name the first 30 programmes

(0 to 29).

æSelect the programme you wish to name.

ÂIn the MANUAL STORE menu,select NAME and press .

• Use the keys to move around in the area which

displays the name (5 characters).

• Use the keys to select the characters.

• Press once the name is entered.

êSelect STORE ( ) and press .The name is stored.

®Press and repeat the operation for each programme

you wish to name.

To exit: Press the key.

Naming programmes

Using other menus

To display a menu

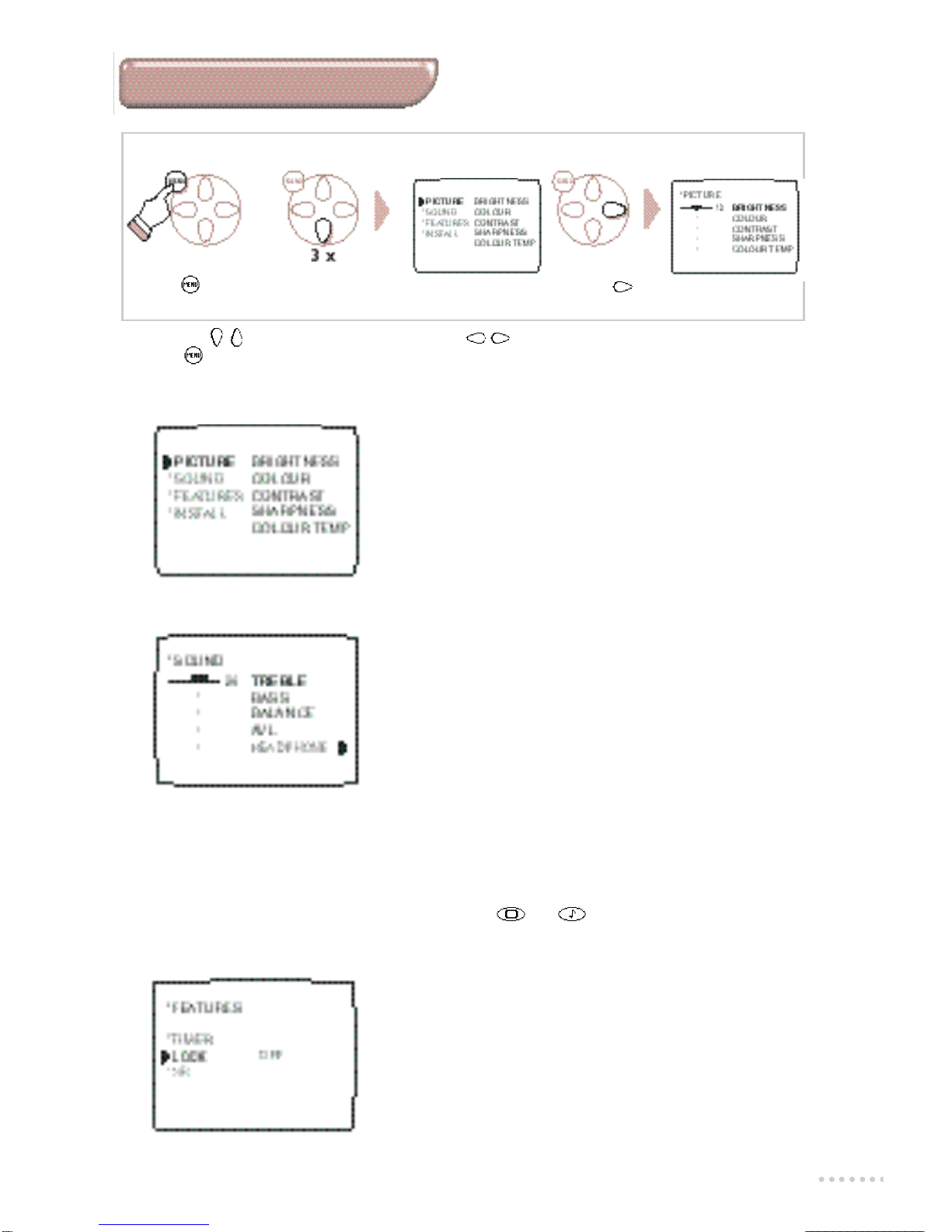

Press . Select the PICTURE,SOUND or

FEATURES. Press .The menu appears.

Use the keys to select an adjustment and to make that adjustment.

The key is used to exit from the menu displayed.

Sound menu

Storing adjustments automatically

Adjustments made in the PICTURE and SOUND menus and

to volume are stored automatically.

Values are stored under PERSONAL in the picture and sound

smart controls ( and keys).

Features menu

You can adjust BRIGHTNESS,COLOUR,CONTRAST,

SHARPNESS and COLOURTEMP

• SHARPNESS:modifies the clarity of the picture,

• COLOURTEMP (colour temperature):adjusts the colour

temperature of the picture.Three options are available here:

COOL (blue white),NORMAL (balanced) orWARM (red white).

You can adjustTREBLE,BASS,BALANCE,AVL and

HEADPHONE.

•AVL (automatic volume leveller):used for automatic level control

in order to avoid sudden increases in volume (particularly when

changing channels or during advertisements).

• HEADPHONES:this menu is used to access the separate headphone

VOLUME control,the BALANCE and the SOUND MODE (you can

choose between DUAL I and DUAL II for bilingual transmission).

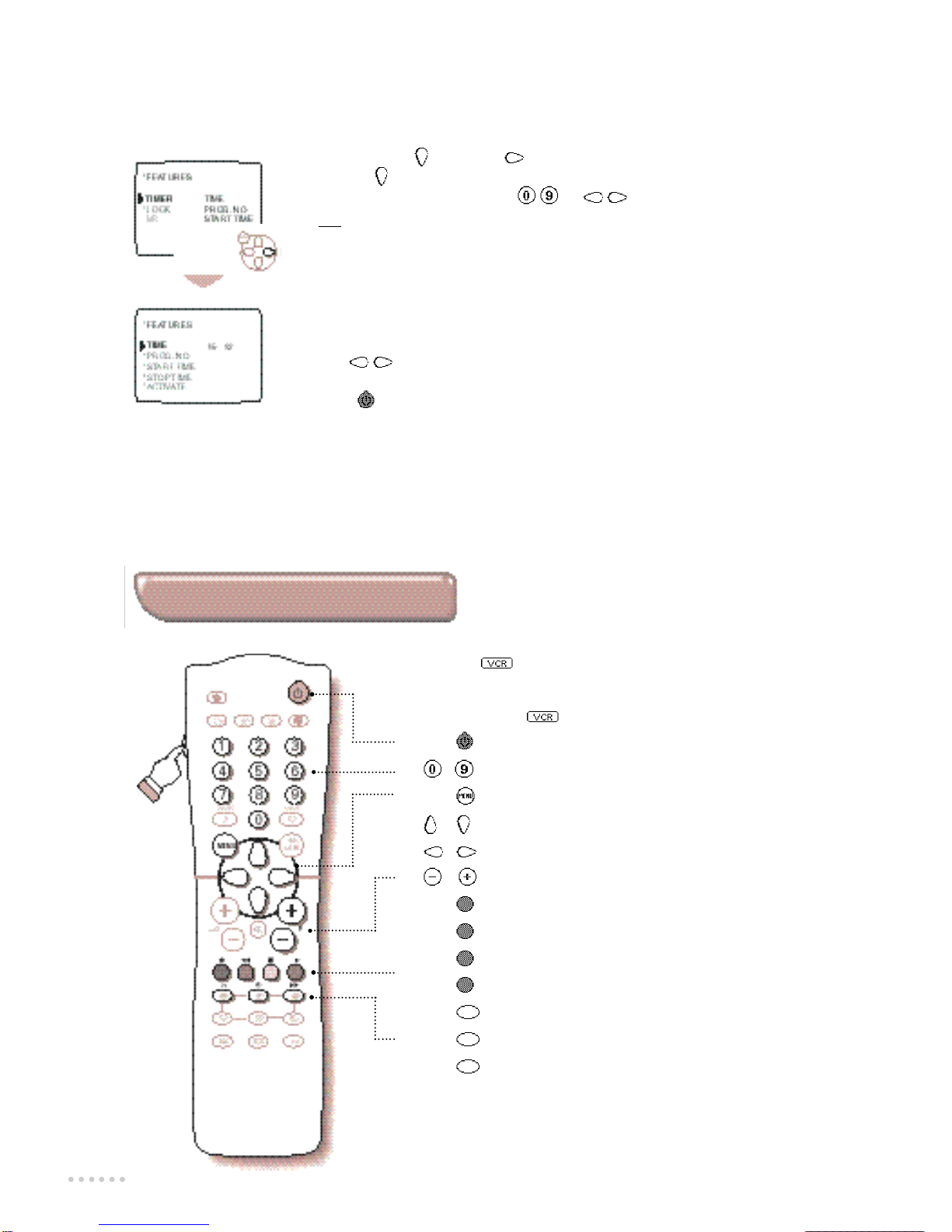

You can adjust:

•TIMER (see next page),

• LOCK:Set to ON to lock the television keys.Switch off the

TV and hide the remote control.TheTV cannot now be used

(only the remote control will enable you to switch theTV on).

To cancel:reset the LOCK to OFF.

• NR (Noise Reduction):Useful in case of poor reception to

reduce picture noise (snowy picture).

Picture menu

Timer menu

This menu allows you to use yourTV as an alarm clock.

In the FEATURES menu:

æSelectTIMER ( ) and press .TheTIMER menu appears.

Use the key to select the following settings:

ÂTIME:enter the current time ( or keys).

N.B.:Every time theTV is switched on, the clock is automatically updated on the

basis of the teletext information in programme No.1.If theTV set does not feature

teletext,this update will not occur.

êPROG.NO (programme number):enter the number of the programme.

®STARTTIME:enter the time at which you wish theTV to switch on.

†STOPTIME:enter the stop time (automatic stop).

ÚACTIVATE (this setting is hidden at the bottom of the screen).

Use to activate the programming ONCE or DAIL for every dayY.

The STOP position is used to cancel the timer.

ºPress to set theTV to standby.It will automatically switch on at the time

programmed.If you leave theTV switched on,it will only change programme

at the time indicated.

The combination of the LOCK andTIMER functions may be used to limit the length

of time your television is in use,for example,by your children.The ONCE position

allows you to programme the start time or the stop time (but not the both)

Video recorder key

Hold down the key to access the following functions:

standby,

/ enter a programme number,

display theVCR menu*

selection*

adjustment*

P programme selection,

vrecord,

srewind,

ustop,

qplay,

rfast forward,

;programming (on certain models),

OK validation.

* Some programming functions are not available on all models

(cursors,menu, OK key,etc.).

The remote control is compatible with all the video recorders in our

range as well as models which use the RC5 signalling standard.

The key,located on the side of the remote control

is used for the main functions of the video recorder.

Teletext is an information system,broadcast by certainTV channels,which can be consulted much like

a newspaper.It also provides sub-titles for people with hearing difficulties or those who are unfamiliar

with the language in which a particular programme is being broadcast (cable networks,satellite

channels,etc.).

Teletext

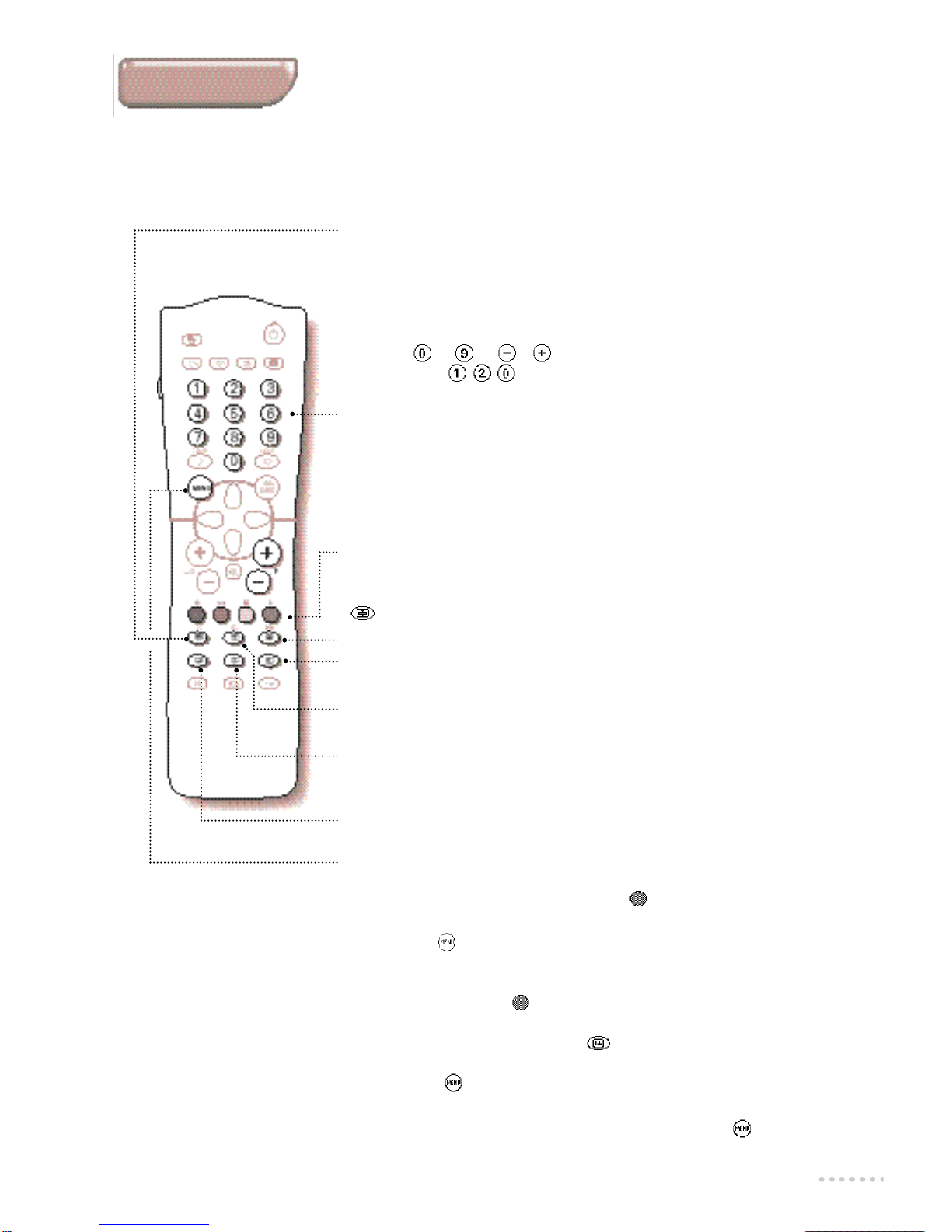

Switch teletext on / off

To call up or exit from teletext.The main index page presents a list of items

to which you have access.Each item has a corresponding 3 digit page number.

If the channel selected doesnot broadcast teletext,the message P100 is displayed

and the screen stays black (in this case,exit from teletext and select another channel).

Selecting a teletext page

Use keys to or P to enter the page number required.E.g.:

page 120,type .The number is displayed in the top left-hand

corner of the screen,the page counter starts searching and then the page

is displayed.Repeat the procedure to consult another page.

If > xxx < flashes briefly or the counter continues searching, this means that

the selected page is not broadcast.If this is the case,choose another number.

Direct access to an item

Coloured zones are displayed at the bottom of the screen.The 4

coloured keys are used to access the items or their corresponding pages.

The coloured zones flash when the page or the subject is not yet available

Stop the sequence of sub-pages

Certain pages have sub-pages which follow on automatically.Press the

key to disable and enable the sequence of sub-pages.The message

Iappears in the top left-hand corner of the screen.

Index

To return to the main index page (generally page 100).

Enlarging a page

Press this key to display the upper part,the lower part and then to

return to the normal page size.

Reveal

Use this key to reveal / conceal hidden information (solutions to games).

Overlaying text on theTV picture

To activate / deactivate the screen overlay.

Favourite pages

For teletext programmes 0 to 29,you can store 4 favourite pages which

you can then access via the coloured keys .

With the television in teletext mode

Press the key.The“L” symbol and a red rectangleis displayed at the

bottom of the screen (the1st time,the 4 rectangles are displayed in colour).

ÂEnter the 1st page number required.

êPress the green key and enter the 2nd page number.

®Repeat the operation for the yellow and the blue keys.

†To end programming,press the key for 3 seconds.The 4

rectangles are displayed in white,the pages are stored.

ÚPress the key to leave the favourite pages.The previous subjects

reappear at the bottom of the screen.

To use the stored pages when in teletext mode,press the key and

select one of the coloured keys.

Video recorder (only)

Carry out the connections featured opposite.Use a

good quality euroconnector cable.

If your video recorder does not have a euroconnector socket,

the only connection possible is via the aerial cable.You will

therefore need to tune in your video recorder's test signal and

assign it programme number 0 (refer to manual store, p.5).

To reproduce the video recorder picture,press .

Video recorder with decoder

Connect the decoder to the second euroconnector

socket of the video recorder.You will then be able to

record scrambled transmissions.

The television has 2 external sockets situated at the back of the set (EXT1 and EXT2).

The EXT1 socket has audio and video inputs/outputs and RGB inputs.

The EXT2 socket has audio and video inputs/outputs and S-VHS inputs.

To select connected equipment

Press the key to select EXT1, S-VHS2 (S-VHS signals from the

EXT2 socket),EXT2 and S-VHS3 or EXT3 for connections on the

front panel (according to the model),

Most equipment (decoder,video recorder) carries out the switching itself.

Satellite receiver,decoder,CDV,games,etc.

Carry out the connections featured opposite.

To optimise picture quality,connect the equipment

which produces the RGB signals (digital decoder, games,

certain CDV drives,etc.) to EXT1,and the equipment

which produces the S-VHS signals (S-VHS and Hi-8

video recorders) to EXT2 and all other equipment to

either EXT1 or EXT2.

Video recorder

Other equipment

Connecting peripheral equipment

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Röhrenfernseher Handbücher

Philips

Philips 21PT5107S Bedienungsanleitung

Philips

Philips TP3697B Bedienungsanleitung

Philips

Philips Matchline 34PW9818 Bedienungsanleitung

Philips

Philips 21PT9457 Bedienungsanleitung

Philips

Philips 36PT842H Handbuch

Philips

Philips 21PT4416/01 Bedienungsanleitung

Philips

Philips 21PT5305 Bedienungsanleitung

Philips

Philips TR2517C Bedienungsanleitung

Philips

Philips 29PT5458 Bedienungsanleitung

Philips

Philips 21PT4340/94 Bedienungsanleitung

Philips

Philips 32PW9545 - annexe 1 Bedienungsanleitung

Philips

Philips 32PW8729/05 Bedienungsanleitung

Philips

Philips 21PT5518/58 Bedienungsanleitung

Philips

Philips RD0946T Bedienungsanleitung

Philips

Philips 28PW6515 - annexe 1 Bedienungsanleitung

Philips

Philips 21PT5221S Bedienungsanleitung

Philips

Philips 14PT2666 Bedienungsanleitung

Philips

Philips 28PW6720D Bedienungsanleitung

Philips

Philips 20PT1422 Bedienungsanleitung

Philips

Philips 28PW8206 Bedienungsanleitung

Philips

Philips 21PT4437/94 Bedienungsanleitung

Philips

Philips 26LW5022/22 Bedienungsanleitung

Philips

Philips 29PT5307 Bedienungsanleitung

Philips

Philips 28PW9551 Bedienungsanleitung

Beliebte Röhrenfernseher Handbücher anderer Marken

JVC

JVC AV-21QS5SP Bedienungsanleitung

Hitachi

Hitachi 27CX01B Bedienungsanleitung

LG 30FZ1DC Bedienungsanleitung

Sony

Sony FD TRINITON WEGA KV-24FS120 Bedienungsanleitung

RCA

RCA F19442 Bedienungsanleitung

Samsung

Samsung CS761 Bedienungsanleitung

Panasonic

Panasonic TC-29P100 Series Bedienungsanleitung

RCA

RCA F19422 Bedienungsanleitung

Sony

Sony WEGA KV 32HS20 Bedienungsanleitung

Samsung

Samsung SlimFit TX R3079WH Bedienungsanleitung

Palsonic

Palsonic MODEL 5179G Bedienungsanleitung

Toshiba

Toshiba CF13H22 Bedienungsanleitung

Magnavox

Magnavox MS3650C - 36" Smart Ctv Handbuch

Toshiba

Toshiba 14AF41 Bedienungsanleitung

Mitsubishi

Mitsubishi CS-35305 Bedienungsanleitung

Hitachi

Hitachi 35UX60B, 35TX10B Bedienungsanleitung

Sony

Sony KD-34XBR970 - 34" Hdtv 16x9 Format Bedienungsanleitung

Toshiba

Toshiba 27A34 - 27" CRT TV Bedienungsanleitung
