Philips 21PT9460 Bedienungsanleitung

www.philips.com/welcome

EN User manual

21PT9460/44

21PT9460/55

• Before you connect the TV to the power

outlet, ensure that the power voltage

matches the value printed on the back

of the TV. Never connect the TV to the

power outlet if the voltage is different.

Risk of injury to children!Follow these

precautions to prevent the TV from toppling

over and causing injury to children:

• Never place the TV on a surface covered

by a cloth or other material that can be

pulled away.

• Ensure that no part of the TV hangs over

the edge of the surface.

• Never place the TV on tall furniture (such

as a bookcase) without anchoring both

the furniture and TV to the wall or a

suitable support.

• Educate children about the dangers of

climbing on furniture to reach the TV.

Risk of overheating!

• NeverinstalltheTVinaconnedspace.

Always leave a space of at least 4 inches

or 10 cm around the TV for ventilation.

Ensure curtains or other objects never

cover the ventilation slots on the TV.

Risk of injury, re or power cord damage!

• Never place the TV or any objects on the

power cord.

• To easily disconnect the TV power cord

from the power outlet, ensure that you

have full access to the power cord at all

times.

• When you disconnect the power cord,

always pull the plug, never the cable.

• Disconnect the TV from the power

outlet and antenna before lightning

storms. During lightning storms, never

touch any part of the TV, power cord or

antenna cable.

1 Important

Read and understand all instructions before you

use yourTV. If damage is caused by failure to

follow instructions, the warranty does not apply.

Safety

Risk of electric shock or re!

• Never expose the TV to rain or water.

Never place liquid containers, such as

vases, near the TV. If liquids are spilt on

or into the TV, disconnect the TV from

the power outlet immediately. Contact

Philips Consumer Care to have the TV

checked before use.

• Never place the TV, remote control or

batteriesnearnakedamesorotherheat

sources, including direct sunlight.

Topreventthespreadofre,keep

candlesorotheramesawayfromthe

TV, remote control and batteries at all

times.

• Never insert objects into the ventilation

slots or other openings on the TV.

Risk of short circuit or re!

• Never expose the remote control or

batteries to rain, water or excessive heat.

• Avoid force coming onto power plugs.

Loose power plugs can cause arcing or

re.

Risk of injury or damage to the TV!

• Two people are required to lift and carry

a TV that weighs more than 55 lbs.

• If the TV is transported in temperatures

below 5°C, unpack the TV and wait

until the TV temperature matches room

temperature before connecting the TV to

the power outlet.

English

Disposal of your old product and

batteries

Your product is designed and manufactured

with high quality materials and components,

which can be recycled and reused.

When this crossed-out wheeled bin symbol

is attached to a product it means that the

product is covered by the European Directive

2002/96/EC. Please inform yourself about the

local separate collection system for electrical

and electronic products.

Please act according to your local rules and

do not dispose of your old products with your

normal household waste.

Correct disposal of your old product helps to

prevent potential negative consequences for

the environment and human health.

Your product contains batteries covered by

the European Directive 2006/66/EC, which

cannot be disposed with normal household

waste.

Please inform yourself about the local rules

on separate collection of batteries because

correct disposal helps to prevent negative

consequences for the environmental and

human health.

Screen care

• Avoid stationary images as much as

possible. Stationary images are images

that remain on-screen for extended

periods of time. Examples include:

on-screen menus, black bars and time

displays. If you must use stationary

images, reduce screen contrast and

brightness to avoid screen damage.

• Unplug the TV before cleaning.

• Clean the TV and frame with a soft,

damp cloth. Never use substances such as

alcohol, chemicals or household cleaners

on the TV.

• Risk of damage to the TV screen! Never

touch, push, rub or strike the screen with

any object.

• To avoid deformations and color fading,

wipe off water drops as soon as possible.

a(Power)

• Switches the TV to standby if it is on.

• Switches on the TV if it is in standby.

bClose caption

Displays closed captions settings.

cAV

Selects connected devices.

dStereo

Switches Stereo and Nicam Stereo to

Mono.

eINCR. SURR.

Not used.

fA/CH

Toggles between the current channel and

the last viewed channel.

gMENU

Toggles the main menu on or off.

h(Navigation buttons)

Navigates menus.

iSMART (Smart picture)

Cyclesthroughpre-denedpicture

settings.

jMUTE

Mutes or restores audio output.

kCH +/- (Channel +/-)

Switches to the next or previous channel.

l0-9 (Numeric buttons)

Selects a channel or setting.

mNot used.

nNot used.

oOSD

Displays program information, if available.

pVOL +/- (Volume +/-)

Increases or decreases volume.

qSMART (Smart Sound)

Cyclesthroughpre-denedsound

settings.

rNot used.

2 Your product

Congratulations on your purchase, and

welcometoPhilips!Tofullybenetfromthe

support that Philips offers, register your product

at www.philips.com/welcome.

Product overview

This section gives you an overview of

commonly used controls and functions.

Remote control

English

Back connectors

aTV ANTENNA

Signal input from an antenna, cable or

satellite.

bMONITOR OUT

Audio and video output to analog devices

such as another TV or a recording device.

cAV IN (VIDEO and AUDIO L/R)

Analog audio and video input from analog

or digital devices such as DVD players,

satellite receivers and VCRs.

dComponent Video Input (YPbPr)

Video input from analog devices such as

DVD, receiver, game console, etc. This

connector is used with audio input.

sSLEEP

Sets a delay after which the TV switches

to standby.

tTIMER

Sets the timers.

uNot used.

vSAP

Selects Secondary Audio Program (SAP),

stereo or mono.

Controls and indicators

a: Switches the product on or off.

bStandby indicator

cRemote control sensor

dVOLUME +/- : Increases or decreases

volume.

eCHANNEL / : Switches to the next

or previous channel.

d e

VOLUME

CHANNEL

VOLUME CHANNEL

Side connectors

aVIDEO IN

Composite video input from analog

devices such as VCRs.

bAUDIO IN L/R

Audio input from analog devices

connected to VIDEO.

English

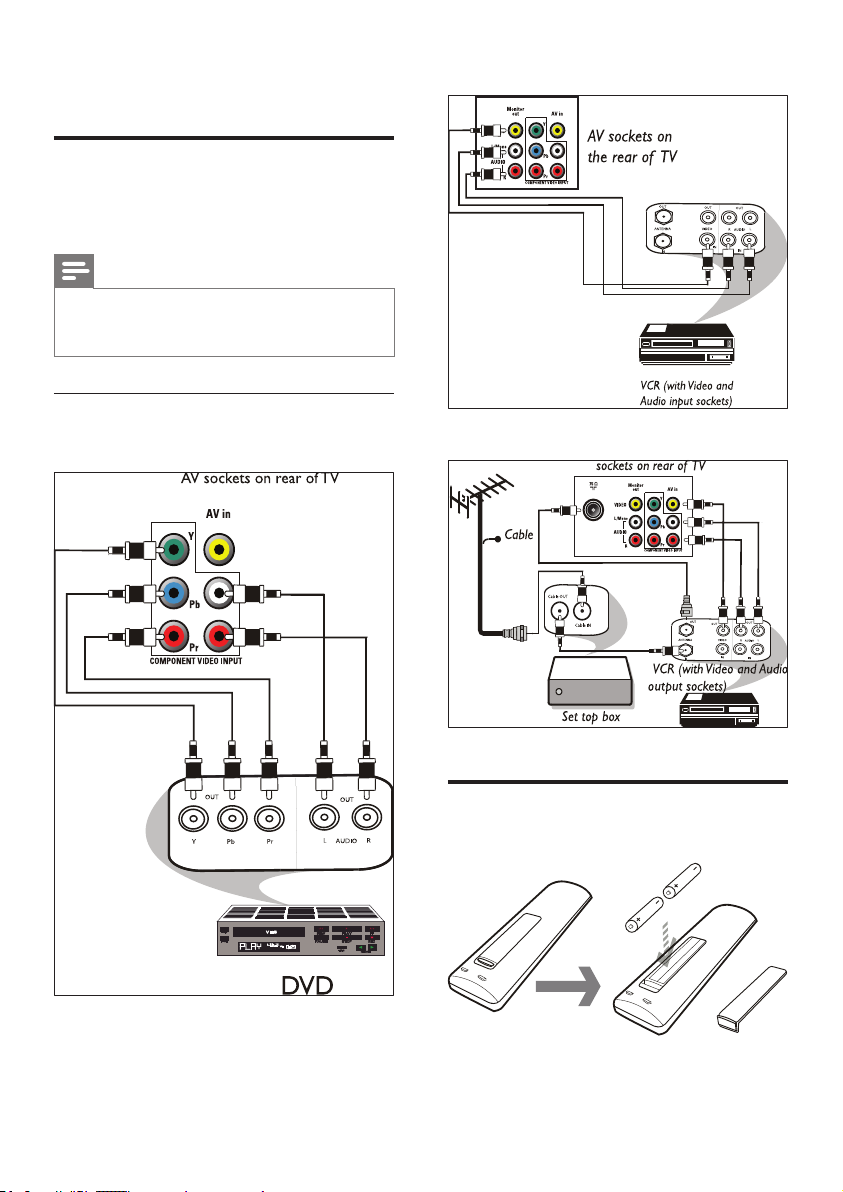

Connect a video recorder:

Connect a video recorder and a set-top box:

Insert remote control

batteries

3 Get started

Connect devices

This section describes how to connect various

devices with different connectors.

Note

•Different types of connectors may be used to

connect a device to your TV, depending on

availability and your needs.

Connect devices

Connect a video player:

4 Install channels

Automatically install channels

This section describes how to search and store

channels automatically.

Note

•Make sure the TV is in TV mode.

1Press MENU.

2Select [Install] > [Auto Program].

3Press to start auto search.

4Press MENU to exit and return to the

previous menu.

Manually install channels

This section describes how to search and store

analog TV channels manually.

Note

•Make sure the TV is in TV mode.

1Press MENU.

2Select [Install] > [Manual] > [Channel

No.].

3Press or the numeric buttons to key

in the channel number.

4Press to select [Color System]. Press

to select your desired color system.

5Press to select [Fine Tune]. Press to

adjust.

6Press to select [Store?]. Press to

select [Stored].

7Press to select [Skipped]. Press to

select [On] to skip channel.

8Press MENU to exit and return to the

previous menu.

English

Switch channels

• Press CH +/- on the remote control or

/at the front of the TV.

• Enter a channel number using the

Numeric buttons.

Watch connected devices

Use the source button

Press AV repeatedly to cycle through the

various sources.

Adjust TV volume

To increase or decrease volume

• Press VOL +/-.

• Press +/- at the front of the TV.

• Press to mute the sound.

• Press again to restore the sound.

5 Use your

product

This section helps you perform basic operations

(see ‘Use more of your product’ on page 9).

Switch your TV on/off or to

standby

To switch on

• If the standby indicator is off, press at

the front of the TV.

• If the standby indicator is red, press on

the remote control.

To switch to standby

• Press on the remote control.

»The standby indicator switches to red.

To switch off

• Press at the front of the TV.

»The standby indicator switches off.

Tip

•Though your TV consumes very little power

when in standby, energy continues to be

consumed. When not in use for an extended

period of time, disconnect the TV power cable

from the power outlet.

Change picture and sound

settings

Change picture and sound settings to suit your

preferences.Youcanapplypre-denedsettings

or change settings manually.

Use smart picture

Usesmartpicturetoapplypre-dened

picture settings.

1Press SMART repeatedly to cycle

through the four settings.

• [Personal]Settings are set to your

preference.

• [Soft]Emphasizes warm colours. This

setting is suitable for dimly lit rooms.

• [Natural]Emphasizes original colors.

• [Rich]Emphasizes vibrant colours.

This setting is the optimal setting

when you are viewing TV

programmes in a brightly lit room.

2Press to exit.

Manually adjust picture settings

1Press MENU.

2Press the navigation buttons to enter the

[Picture] menu.

3Press to select from the following

settings and adjust:

• [Brightness]Adjusts the intensity and

details of dark areas.

• [Color]Adjusts color saturation.

• [Contrast]Adjusts the intensity of

bright areas, keeping dark areas

unchanged.

• [Sharpness]Adjusts the level of

sharpness in image details.

6 Use more of

your product

Access TV menus

Menus help you to install channels, change

picture and sound settings and access other

features.

1Press MENU.

»The menu screen appears.

2Press the to select and navigate

through one of the following menus.

• [Picture]Adjusts the picture setting

for optimal viewing.

• [Sound]Adjusts the sound setting.

• [Features]Accesses features.

• [Install]Selects the channel

installation menu.

3Press OKtoconrmyourchoice.

Contrast +

Brightness

MAIN

Install


Features

Sound Color

Contrast

Sharpness

Color Temp

English

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Röhrenfernseher Handbücher

Philips

Philips 21PT1354/58 Bedienungsanleitung

Philips

Philips 14PT1686 Bedienungsanleitung

Philips

Philips 33SL5901 Bedienungsanleitung

Philips

Philips 21PT3426/V7 Bedienungsanleitung

Philips

Philips 24PW6005/58 Bedienungsanleitung

Philips

Philips 14PT1501/62 Bedienungsanleitung

Philips

Philips 20PT 91S Bedienungsanleitung

Philips

Philips 28PW9551 Bedienungsanleitung

Philips

Philips 28PW6542 Bedienungsanleitung

Philips

Philips 17HT3154 Bedienungsanleitung

Philips

Philips PR1921C Bedienungsanleitung

Philips

Philips 28PW9528 Bedienungsanleitung

Philips

Philips PPC936C Bedienungsanleitung

Philips

Philips 21PT6457 Bedienungsanleitung

Philips

Philips 32PW8609/12S Bedienungsanleitung

Philips

Philips 29PT5005 Bedienungsanleitung

Philips

Philips 21PT3952 Bedienungsanleitung

Philips

Philips 32PW9545 - annexe 1 Bedienungsanleitung

Philips

Philips PR1305C Bedienungsanleitung

Philips

Philips COLOR TV 36 INCH TABLE TS3654C Bedienungsanleitung

Philips

Philips 21PT3429/94 Bedienungsanleitung

Philips

Philips 29PT5124/16R Bedienungsanleitung

Philips

Philips 28PW8506 Bedienungsanleitung

Philips

Philips 21PT4457/58 Bedienungsanleitung

Beliebte Röhrenfernseher Handbücher anderer Marken

JVC

JVC AV-21QS5SP Bedienungsanleitung

Hitachi

Hitachi 27CX01B Bedienungsanleitung

LG 30FZ1DC Bedienungsanleitung

Sony

Sony FD TRINITON WEGA KV-24FS120 Bedienungsanleitung

RCA

RCA F19442 Bedienungsanleitung

Samsung

Samsung CS761 Bedienungsanleitung

Panasonic

Panasonic TC-29P100 Series Bedienungsanleitung

RCA

RCA F19422 Bedienungsanleitung

Sony

Sony WEGA KV 32HS20 Bedienungsanleitung

Samsung

Samsung SlimFit TX R3079WH Bedienungsanleitung

Palsonic

Palsonic MODEL 5179G Bedienungsanleitung

Toshiba

Toshiba CF13H22 Bedienungsanleitung

Magnavox

Magnavox MS3650C - 36" Smart Ctv Handbuch

Toshiba

Toshiba 14AF41 Bedienungsanleitung

Mitsubishi

Mitsubishi CS-35305 Bedienungsanleitung

Hitachi

Hitachi 35UX60B, 35TX10B Bedienungsanleitung

Sony

Sony KD-34XBR970 - 34" Hdtv 16x9 Format Bedienungsanleitung

Toshiba

Toshiba 27A34 - 27" CRT TV Bedienungsanleitung
