Introduction

Thank you for purchasing this television set.

This handbook has been designed to help you install and operate your

TV set.We would strongly advise you read it thoroughly.

Tuning in to theTV channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Using other menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Remote control keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

The keys on theTV set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installing your television set

æPositioning the television set

Place yourTV on a solid,stable surface,leaving a space of at least 5 cm

around the appliance.

To avoid accidents,do not put anything on the set such as a cloth or

cover,a container full of liquid (vase) or a heat source (lamp).The set

must not be exposed to water.

ÂConnections

• Insert the aerial plug into the Msocket at the rear of the set.

Smaller sets are equipped with an internal aerial.Under certain conditions,

reception can be poor.You can improve it by repositioning the aerial.If the

reception remains unsatisfactory,an external aerial should be used.

• Insert the mains plug into a wall socket (220-240V / 50 Hz).

êRemote control

Insert the two R6-type batteries (supplied) making sure that they are the

right way round.

The batteries supplied with this appliance do not contain mercury or nickel

cadmium.Please do not discard your used batteries if you have access to a

recycling facility (if in doubt,consult your dealer).When the batteries are

replaced,use the same type.

®Switching on

To switch on the set,press the on/off key.

A red indicator comes on and the screen lights up.

Go straight to the chapter Quick installation on the following page.

If the television remains in standby mode,press P on the remote

control.

The indicator flashes when you use the remote control.

L9 1871.1 GB 1/8 3/10/01 14:03 Page 1

Tuning in to channels

Quick installation (first use)

The first time you switch on the television,a menu appears on the screen.

This menu asks you to choose the language of the other menus.

If the menu does not appear,hold down the PROGRAM- and PROGRAM+ keys

(ora-and P-)

on the set for 4 seconds to bring it up.

æUse the keys numbered from to on the remote control to choose

your language (for English,press ).Another menu appears.

ÂSelect your country (for GB, press ).

êAs soon as your country is entered, tuning in starts automatically.

The operation takes a few minutes.A display shows the search status and

the number of programmes found.When it has finished, the menu

disappears and the last programme is displayed.

If no programmes are found,refer to the chapter entitledTips on p.8.

®If the transmitter or the cable network broadcasts the automatic sort

signal,the programmes will be correctly numbered.

†If not,the programmes found will be numbered in descending order

starting at 99,98,97,etc.(or 79,78,...).

Use the SORT menu to renumber them.

Some transmitters or cable networks broadcast their own sort parameters (region,

language,etc.).Where this is the case, make your choice using the keys and

confirm with .

æPress the key.The main menu is displayed.

ÂPress once to select INSTALLATION,then press .

The INSTALLATION menu appears.The LANGUAGE option is activated.

êPress 3 times to select SORT then press .

The SORT menu appears.The FROM option is activated.

®Select the programme you wish to renumber using keys or to .

Example:to renumber programme 78 as 2,press .

†Select optionA (key ) and enter the new number with keys

or to (for the example given,enter 2)

ÚSelect EXCHANGE (key ) and press .The message EXCHANGED

appears,the exchange takes place ( to cancel).In our example,

programme 78 is renumbered as 2 (and programme 2 as 78).

ºSelect the option FROM (key ) and repeat stages ®to Úas many times

as there are programmes to renumber.

îTo exit from the menus,press .

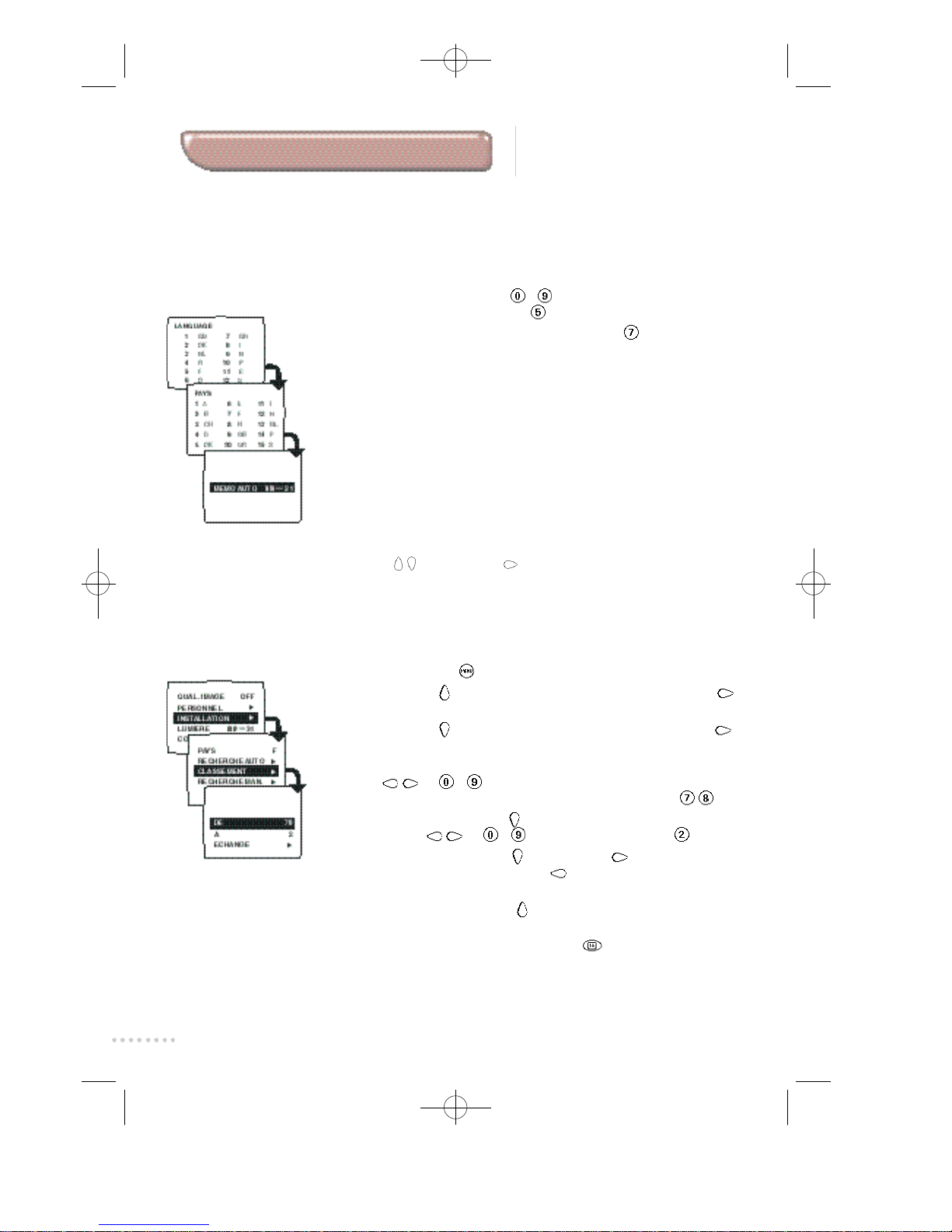

To renumber the programmes found

L9 1871.1 GB 1/8 3/10/01 14:03 Page 2

æPress .The main menu is displayed on-screen.

ÂPress once to select INSTALLATION and press .The INSTALLATION

menu appears.

êUse to select a setting and to adjust.

• LANGUAGE:to change the menu language.

• COUNTRY:to select the country you are in (GB for Great Britain).

This setting affects the automatic programme sort.

• AUTOSTORE: press to begin storing.The operation takes a few minutes.

When it is complete,the INSTALLATION menu reappears automatically.

For more information,see the Quick Installation chapter,steps êto †

on the previous page.

To exit or interrupt the search,press .

• EXTERNAL:press to bring up the menu.You have access to a series of

names which allow you to customise the names of the external sockets.

When you next select an external socket,its chosen name will be displayed

for a few seconds.

®To exit from the menus,press .

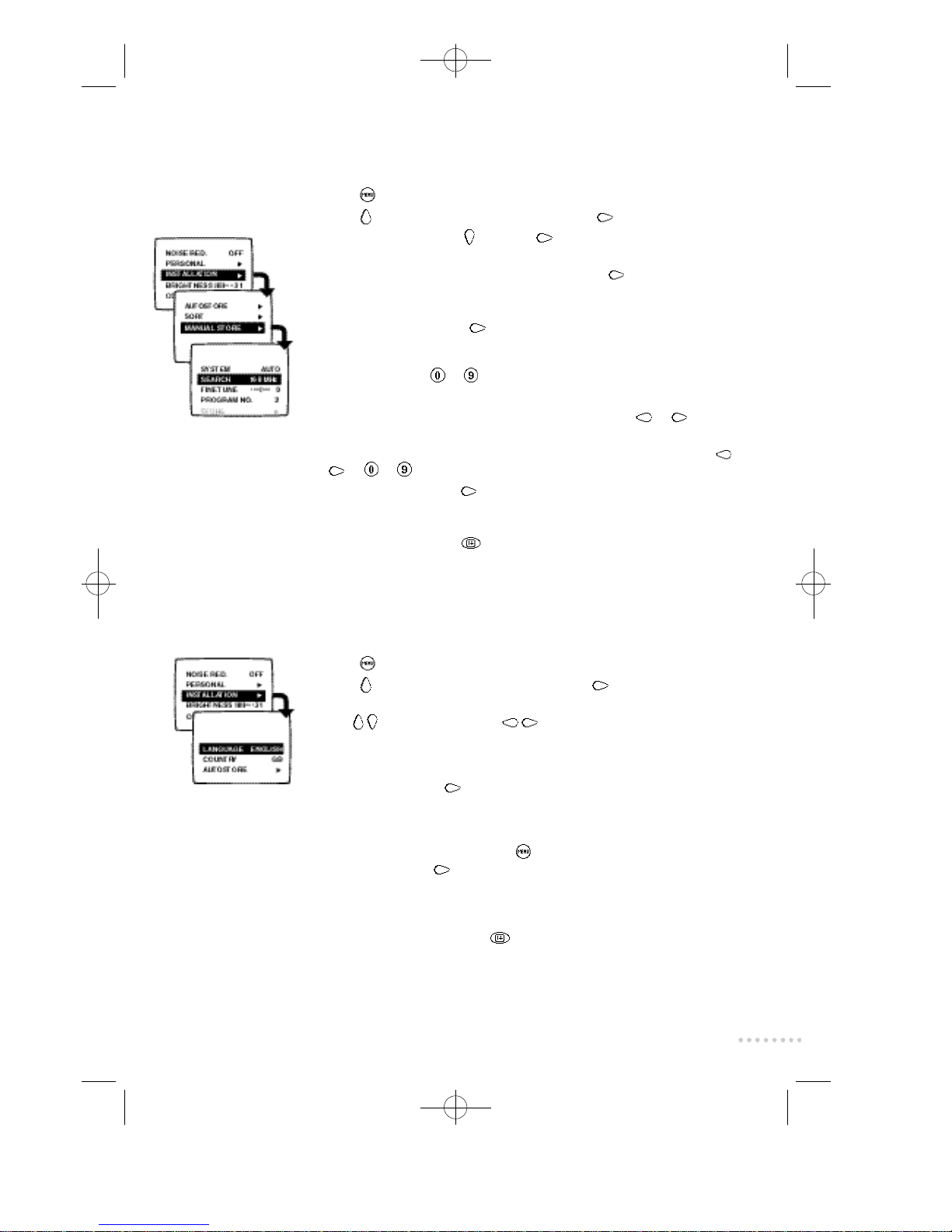

Manual tuning

This menu allows you to store the programmes one by one.

æPress .The main menu comes up on the screen.

ÂPress once to select INSTALLATION then press .

êSelect MANUAL STORE ( ) and press .

The MANUAL STORE menu appears.

®Select SYSTEM (only available on certain models).Use to select AUTO

(automatic detection) or manual detection:EAST- EU (standard DK) or

WEST- EU (standard BG).

†Select SEARCH and press .The search begins.

As soon as a programme is found,the search will stop.

If you know the frequency of the programme required,simply enter its

number using keys to .

If no programme is found,refer to theTips chapter on p.8.

ÚIf reception is unsatisfactory,select FINE TUNE and press or to fine

tune.

ºSelect PROGRAM NO.and enter the required programme number using

or to .

îSelect STORE and press .

The message STORED appears.The programme has been stored.

œRepeat steps †to îas many times as there are programmes to store.

To exit the menus,press .

Other settings on the INSTALLATION menu

L9 1871.1 GB 1/8 3/10/01 14:03 Page 3

Using other menus

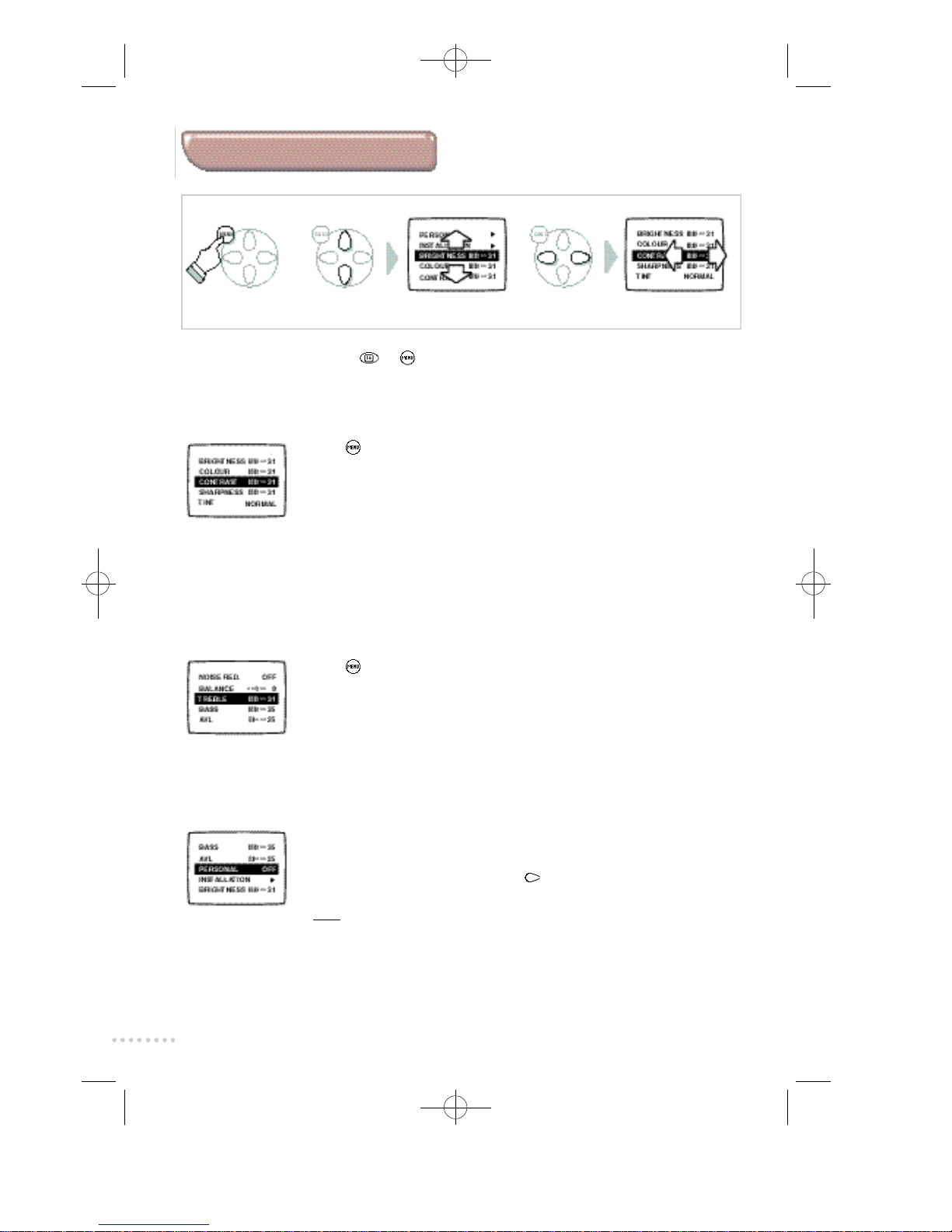

To adjust a menu:

æDisplay the menu. ÂSelect a setting. êAdjust.

Note: the menus disappear automatically after 30 seconds if no further adjustments are made.

To exit from the menus, press (or to come back to the previous stage).

You can store your own sound and picture settings.

æFirst carry out your menu settings.

ÂNext,select PERSONAL and press .The message STORED is displayed.

The settings are stored.

Note: volume and DELTAVOL.are automatically stored and do not need to be stored

in the PERSONAL menu.

Press .You can adjust: BRIGHTNESS,COLOUR,CONTRAST,SHARPNESS,

TINT,CONTRAST+ and NOISE RED..

• SHARPNESS:alters the crispness of the image,

•TINT:alters the colour balance.There are 3 options: COLD (blue tint), NORMAL

(balanced) orWARM (red tint).

• CONTRAST+:automatically adjusts the image contrast according to content

(the darkest part of the image is always black).

• NOISE RED.:alleviates fuzziness (snowy picture).This setting is useful when

reception is difficult.

Press .You can adjust DELTA VOL. and,for stereo models only,BALANCE,

TREBLE,BASS and AVL.

•AVL (AutomaticVolume Leveller):automatic volume control used to avoid sudden

increases in volume, particularly when changing programme or during

advertisements.

Adjusting the picture

Adjusting the sound (stereo models only)

Storing settings

L9 1871.1 GB 1/8 3/10/01 14:03 Page 4

The keys on the remote control

Depending on the model,there are 2 different versions of the remote control.

To set theTV to standby mode.The red

indicator lights up.To switch the set back on,

press P ,P or to .

Brings up the previous or following programme.

For direct access to programmes

For a 2-digit programme number, the second

digit must be entered before the dash disappears.

On certain programmes, the title of the programme

is displayed for a few seconds at the bottom of the

screen.

To adjust the sound level.

To disable or enable the sound.

To call up or exit from the menus.Use and

to adjust.

The menus disappear automatically after 30 seconds

if no further command is given.

To retrieve the settings stored using the

PERSONAL menu (see p.4).

Press several times to select EXT sockets

(see p.7).

To select an automatic standby period (from 0

to 240 minutes).

To switch from STEREO (and NICAM

STEREO) programmes to MONO or,for

bilingual transmissions,to choose between

DUAL fand DUAL g(and NICAM DUAL f,

NICAM DUAL gand mono).

NICAM is a process by which sound is

transmitted as a digital quality.

Hold down for 5 seconds to permanently

display the programme number.Press quickly to

display or remove the programme number,the

time and the sound mode.

Press: To obtain:

Standby

Select

Programme

Numerical

Keys

Volume

Mute

Favourite

pages.

Select EXT

sockets

Timer

Sound Mode

(stereo models

only)

Screen

Information

(stereo models

only)

Screen

Format

(Only available on

certain models)

The key allows the picture to be enlarged

vertically to get rid of the black bands around

cinema-format films.The key allows the

picture to be compressed vertically (16:9

format).

L9 1871.1 GB 1/8 3/10/01 14:03 Page 5

Teletext (Only available on certain models)

Teletext is an information system,broadcast by certain channels,which can be read like a newspaper.

It also provides subtitles for people with hearing difficulties or those who are unfamiliar with the

language in which a particular programme is being broadcast (cable networks,satellite channels,etc.).

Press: To obtain:

Reveal

To call up or exit from teletext.At first,the

main index page appears with a list of the items

available.Each page has a corresponding 3-figure

number.

If the selected channel does not broadcast teletext,

100 will appear and the screen will remain blank (in

this case, exit from teletext and choose another

channel).

Use keys to or to enter the page number

required.For example:for page 120,press .

The number isdisplayed in the top left-hand corner,

the page counter starts searching and the page is

displayed.Repeat the procedure to consult another

page.

If the counter continues searching, this means that the

selected page is not broadcast. Choose another number.

To return to the table of contents (normally page

100).

Coloured zones are displayed at the bottom of

the screen.The 4 coloured keys give access to

the corresponding subjects or pages.

The coloured zones flash when the subject or the

page is not yet available.

Press this key to display the upper,then lower

part of the screen,and then to return to the

normal page size.

Some pages contain sub-pages which follow on

automatically from one another.This key allows

sub-page sequence to be enabled or disabled.

The Isign appears in the top left hand corner.

To activate or deactivate screen overlay.

Use this key to reveal/conceal hidden

information (answers to puzzles).

Page

enlargement

Stop the

sequence of

sub-pages

Overla ying te xt

on theTV picture

Table of contents

Selecting a

teletext page

Switch teletext

on/off

Direct access to

subject headings

L9 1871.1 GB 1/8 3/10/01 14:03 Page 6

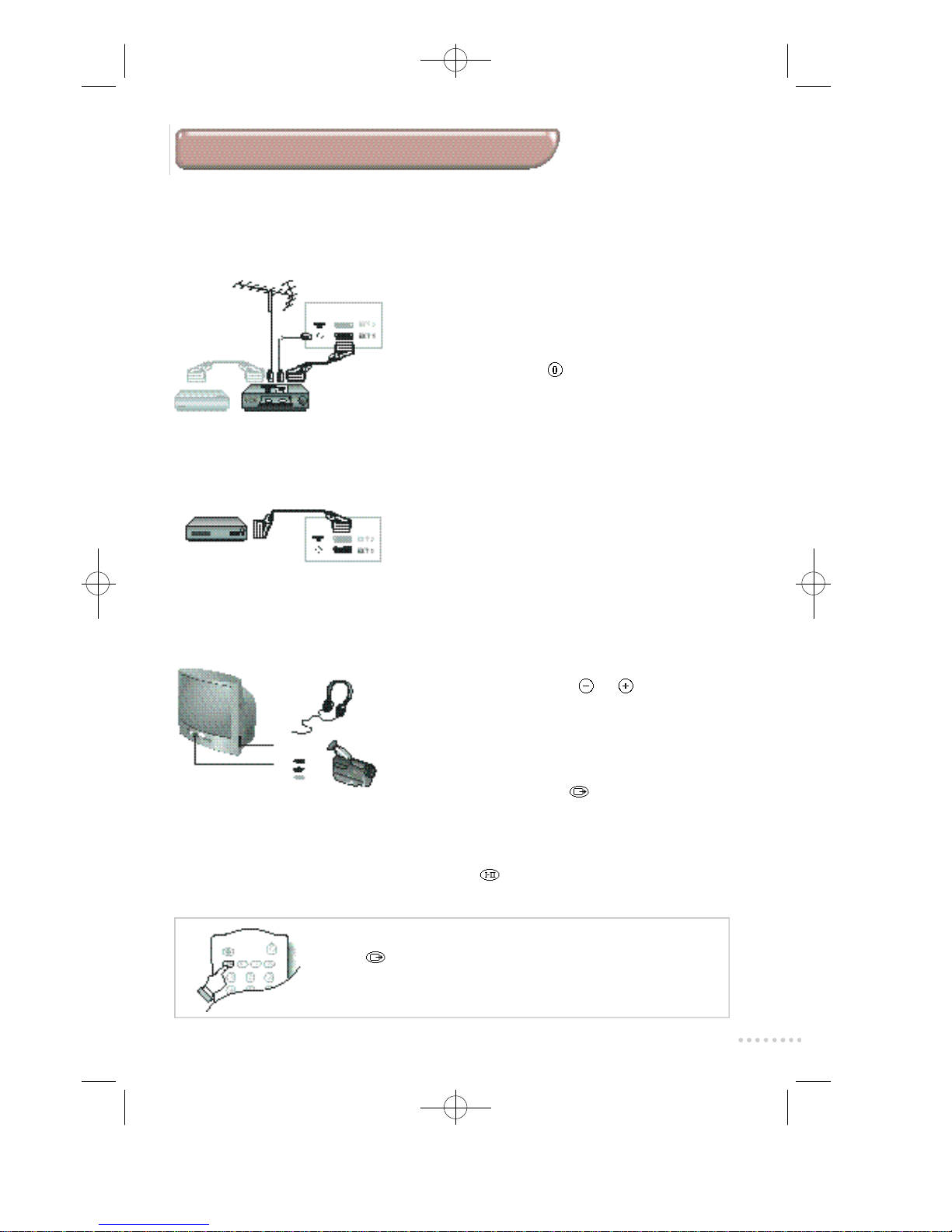

To select connected equipment

Press to select EXT(1) and,on models with 2 euroconnector

sockets:EXT2 and Y/C2 (S-VHS signal on EXT2).

The switch is automatic on most appliances (decoders,etc.).

Depending on the model,sockets are on the front (sometimes

under a flap) or on the right-hand side of the set.

Headphones (Only available on certain models)

When the earphones are plugged in,the sound on the set is cut

off.Adjust the volume using the akeys.

The headphones must have an impedance of between 32and 600 ohms.

Camcorder

Certain models are equipped with AUDIO/VIDEO connections.

You will find 1 video input + 1 sound input (mono versions) or

2 sound inputs left (L) and right (R) on stereo versions.Make

the connections,then use the key to select EXT (or EXT2

for models with 2 euroconnector sockets).The switch between

the front and rear sockets is automatic with priority on front

sockets.

For a monophonic camera,connect the sound signal to the AUDIO L

input.Use the key to reproduce the sound through the left and

rightTV speakers.

Video recorder (only)

Connect as shown using a good quality euroconnector

cable.

If your video recorder does not have a euroconnector socket,the

only connection possible is via the aerial cable.You will therefore

need to tune in your video recorder test signal and assign it

programme number 0 (see manual store,p. 3).To reproduce the

video recorder picture,press .

Video recorder with decoder

Connect the decoder to the second euroconnector on the

video recorder.You can then record scrambled transmissions.

Satellite receiver,decoder,DVD, games,etc.

For sets equipped with two euroconnector sockets,it is

best to connect the equipment which produces RGB signals

(digital decoder,DVD drives,games, etc.) to EXT1 and the

equipment which produces S-VHS signals (S-VHS and Hi-8

video recorders) to EXT2.

Video recorder

Connecting other appliances

Depending on the model,theTV is equipped with 1 or 2 euroconnector sockets,EXT1 and EXT2.

The EXT1 socket controls audio video input/output and RGB input.

The EXT2 socket (if available) controls audio video input/output and S-VHS input.

Front panel connections (Only available on certain models)

Other equipment

L9 1871.1 GB 1/8 3/10/01 14:03 Page 7

Poor reception or no picture

The proximity of mountains or high buildings can cause ghost pictures,

echoing or shadows.If this is the case,try tuning the picture using FINE

TUNE (p.3).

Do you have the right system (p.3)?

Check that the aerial plug or euroconnector plug is properly connected.

Check also that your aerial is capable of receiving broadcasts in this

frequency range (UHF or VHF).

Adjusting the picture

In case of bad reception (fuzzy picture),set the NOISE RED to ON: p.4.

The picture is in black and white

To read a video cassette,check that it is recorded in the same format as

that of the video recorder (PAL,SECAM or NTSC).

No sound

If certain programmes have a picture but no sound,this is because you

do not have the correctTV system (see p.3).

Standby

The set switches automatically to standby if it receives no signals for a

period of 15 minutes.

When it is in standby mode,the set uses energy.To save electricity,we

advise you to switch it off using the on-off button.

Still having problems?

If the set breaks down,never try to repair it yourself.Consult your after-

sales service department instead.

Recycling

The materials used in your set are either reusable or can be recycled.

To minimise environmental waste,specialist companies collect used

appliances and dismantle them after retrieving any materials that can be

used again (ask your dealer for further details).

Tips

The television set has 4 keys which are located on the front or the top

of the set depending on the model.

The VOLUME - + (-a+) keys are used to adjust the sound level.

The PROGRAM - + (- P +) keys are used to select the required

programmes.

To access the menus,hold down the VOLUME - and VOLUME + keys

simultaneously.Then use the PROGRAM - + keys to select an adjustment

and the VOLUME - + keys to make the adjustment.

To exit from the menu,hold down the VOLUME - and VOLUME + keys

for a few seconds.

The keys on theTV set

L9 1871.1 GB 1/8 3/10/01 14:03 Page 8

Introduction

Vous venez d’acquérir ce téléviseur,merci de votre confiance.

Nous vous conseillons de lire attentivement les instructions qui suivent

pour mieux comprendre les possibilités offertes par votre téléviseur :

Recherche des chaînes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Utilisation des autres menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Les touches de la télécommande . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Télétexte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Raccordements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Les touches du téléviseur . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Conseils . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installation du téléviseur

æPositionnement du téléviseur

Placez votre téléviseur sur une surface solide et stable en laissant un

espace libre d’au moins 5 cm autour de l’appareil.Pour prévenir toute

situation dangereuse,ne rien poser dessus tel qu’un objet couvrant

(napperon),rempli de liquide (vase) ou dégageant de la chaleur (lampe).

De plus,le téléviseur ne doit pas être exposé à des projections d’eau.

ÂRaccordements

• Introduisez la fiche d'antenne dans la prise Msituée à l’arrière.

Les téléviseurs à petite taille d’écran sont équipés d’une antenne d’intérieur.

Dans certaines conditions, la réception peut être difficile.Vous pouvez

l’améliorer en faisant tourner l’antenne. Si la réception reste médiocre, il faut

utiliser une antenne extérieure.

• Branchez le cordon d’alimentation sur le secteur (220-240V / 50 Hz).

êTélécommande

Introduisez les 2 piles de type R6 fournies en respectant les polarités.

Les piles livrées avec l’appareil ne contiennent ni mercure ni cadmium nickel,dans

un souci de préserver l’environnement.Veillez à ne pas jeter vos piles usagées

mais à utiliser les moyens de recyclage mis à votre disposition (consultez votre

revendeur).En cas de remplacement,utilisez des piles de même type.

®Mise en marche

Pour allumer le téléviseur,appuyez sur la touche marche-arrêt.

Un voyant s’allume en rouge et l’écran s’illumine.

Allez directement au chapitre installation rapide ,page suivante.

Si le téléviseur reste en veille,appuyez sur la touche P de la

télécommande.

Le voyant clignote lorsque vous utilisez la télécommande.

L9 1871.1 FR 2/8 3/10/01 14:02 Page 1

Recherche des chaînes

Installation rapide (première mise en service)

La première fois que vous allumez le téléviseur, un menu apparaît à l’écran.

Ce menu vous invite à choisir la langue des menus.

Si le menu n’apparaît pas, maintenez appuyées pendant 4 secondes les touches

PROGRAM- et PROGRAM+ (oua-et P-) du téléviseur, pour le faire apparaître.

æUtilisez les touches numérotées à de la télécommande pour choisir

votre langue (pour le Français tapez ).Un autre menu apparaît.

ÂSélectionnez ensuite votre pays (pour la France tapez ).

êDès que votre pays est entré,la recherche démarre automatiquement.

L’opération prend quelques minutes.L’affichage montre la progression de la

recherche et le nombre de programme trouvés.A la fin,le menu disparaît et

le dernier programme est affiché.

Si aucun programme n’est trouvé,reportez vous au chapitre conseils p.8.

®Si l’émetteur ou le réseau câblé transmet le signal de classement

automatique,les programmes seront correctement numérotés.

†Si ce n’est pas le cas,les programmes trouvésseront numérotés en ordre

décroissant à partir du numéro 99,98,97,... (ou 79,78,...).

Vous devez utiliser le menu CLASSEMENT pour les renuméroter.

Certains émetteurs ou réseaux câblés diffusent leurs propres paramètres de

classement (région,langage, ...).Dans ce cas,vous devez indiquer votre choix avec

les touches puis valider avec .

æAppuyez sur la touche .Le menu principal s’affiche à l’écran.

ÂAppuyez 1 fois sur pour sélectionner INSTALLATION et appuyez sur .

Le menu INSTALLATION apparaît.Le choix LANGUE est actif.

êAppuyez 3 fois sur pour sélectionner CLASSEMENT et appuyez sur .

Le menu CLASSEMENT apparaît.Le choix DE est actif.

®Sélectionnez le programme que vous souhaitez renuméroter en utilisant les

touches ou à .

Exemple:vous voulez renuméroter le programme 78 en 2:tapez .

†Sélectionnez le choix A(touche ) et entrez le nouveau numéro souhaité

avec les touches ou à (dans notre exemple tapez )

ÚSélectionnez ÉCHANGE (touche ) et appuyez sur . L’indication

ÉCHANGÉ apparaît,l’échange s’effectue ( permet d’annuler).Dans notre

exemple le programme 78 est renuméroté en n° 2 (et le n°2 en 78).

ºSélectionnez le choix DE (touche ) et recommencez les étapes ®à Ú

autant de fois qu’il y a de programmes à renuméroter.

îPour quitter les menus,appuyez sur la touche .

Pour renuméroter les programmes trouvés

L9 1871.1 FR 2/8 3/10/01 14:02 Page 2

Inhaltsverzeichnis

Sprachen:

Andere Philips Röhrenfernseher Handbücher

Philips

Philips TP3697B Bedienungsanleitung

Philips

Philips 25HT3317 Bedienungsanleitung

Philips

Philips MX2791B Bedienungsanleitung

Philips

Philips 20PT653R Bedienungsanleitung

Philips

Philips 29PT9221/93R Bedienungsanleitung

Philips

Philips 21PT5207 Bedienungsanleitung

Philips

Philips COLOR TV 25 INCH TABLE TR2517C Bedienungsanleitung

Philips

Philips 21PT5006 Bedienungsanleitung

Philips

Philips COLOR TV 25 INCH TABLE TS2544C Bedienungsanleitung

Philips

Philips TS3259C Bedienungsanleitung

Philips

Philips 14PT1548/01 Bedienungsanleitung

Philips

Philips 21PT5409 Bedienungsanleitung

Philips

Philips 21PT5121 Bedienungsanleitung

Philips

Philips 27PT541S Handbuch

Philips

Philips 32PW6341/85 Bedienungsanleitung

Philips

Philips MatchLine 29PT9006 Bedienungsanleitung

Philips

Philips 21PT9467C Bedienungsanleitung

Philips

Philips MatchLine 29PT 9416 Bedienungsanleitung

Philips

Philips PA0113C Bedienungsanleitung

Philips

Philips PC0119N Bedienungsanleitung

Philips

Philips 21PT3525/V7 Bedienungsanleitung

Philips

Philips PL9119C Bedienungsanleitung

Philips

Philips PR1330B Bedienungsanleitung

Philips

Philips 28PW9513/32 Bedienungsanleitung

Beliebte Röhrenfernseher Handbücher anderer Marken

JVC

JVC AV-21QS5SP Bedienungsanleitung

Hitachi

Hitachi 27CX01B Bedienungsanleitung

LG 30FZ1DC Bedienungsanleitung

Sony

Sony FD TRINITON WEGA KV-24FS120 Bedienungsanleitung

RCA

RCA F19442 Bedienungsanleitung

Samsung

Samsung CS761 Bedienungsanleitung

Panasonic

Panasonic TC-29P100 Series Bedienungsanleitung

RCA

RCA F19422 Bedienungsanleitung

Sony

Sony WEGA KV 32HS20 Bedienungsanleitung

Samsung

Samsung SlimFit TX R3079WH Bedienungsanleitung

Palsonic

Palsonic MODEL 5179G Bedienungsanleitung

Toshiba

Toshiba CF13H22 Bedienungsanleitung

Magnavox

Magnavox MS3650C - 36" Smart Ctv Handbuch

Toshiba

Toshiba 14AF41 Bedienungsanleitung

Mitsubishi

Mitsubishi CS-35305 Bedienungsanleitung

Hitachi

Hitachi 35UX60B, 35TX10B Bedienungsanleitung

Sony

Sony KD-34XBR970 - 34" Hdtv 16x9 Format Bedienungsanleitung

Toshiba

Toshiba 27A34 - 27" CRT TV Bedienungsanleitung
