Your remote control 2

Preparation 3

Installation 5

Store TV channels 5

Select the menu language and country 5

Automatic installation 6

Manual installation 6

Give name 7

Reshuffle the programme list 7

Select favourite TV channels 7

Install TV setup 8-11

EasyLink features are based on the “one touch operation” approach.This

means that a sequence of actions are executed at the same time in both

the television and the video cassette recorder, provided both are fitted

with the EasyLink function and connected with the eurocable

supplied with your video recorder.

Installation

Operation

Use of the remote control 12-14

Use of the menus

Picture menu 15

Sound menu 16-19

Features menu 20

Dual Screen 21

NEXTVIEW 22-26

Teletext 27-29

Keys on top of the TV 29

Connect peripheral equipment

Connecting and selecting equipment 30-34

Remote control functions for peripherals 34-35

Recording 36

Tips 37

Index 38

Glossary 39

4934.3 gb /05 12-01-2000 14:37 Page 1

Mha

SMART

ACTIVE

CONTROLSMART

213

546

879

®Ò‡π

†

æb

Mqa

MOVIE SPORT CHILD NEWS OTHER

VCR DVD SAT

TUNER CD

OK MENU

TAPE CDR

SMARTSMART

PICTURESOUND

¬V P

◊

fh Uf

yÚ

pπ

yÚ

®q

bﬁcd

INSTANT

ZOOM

Preparation

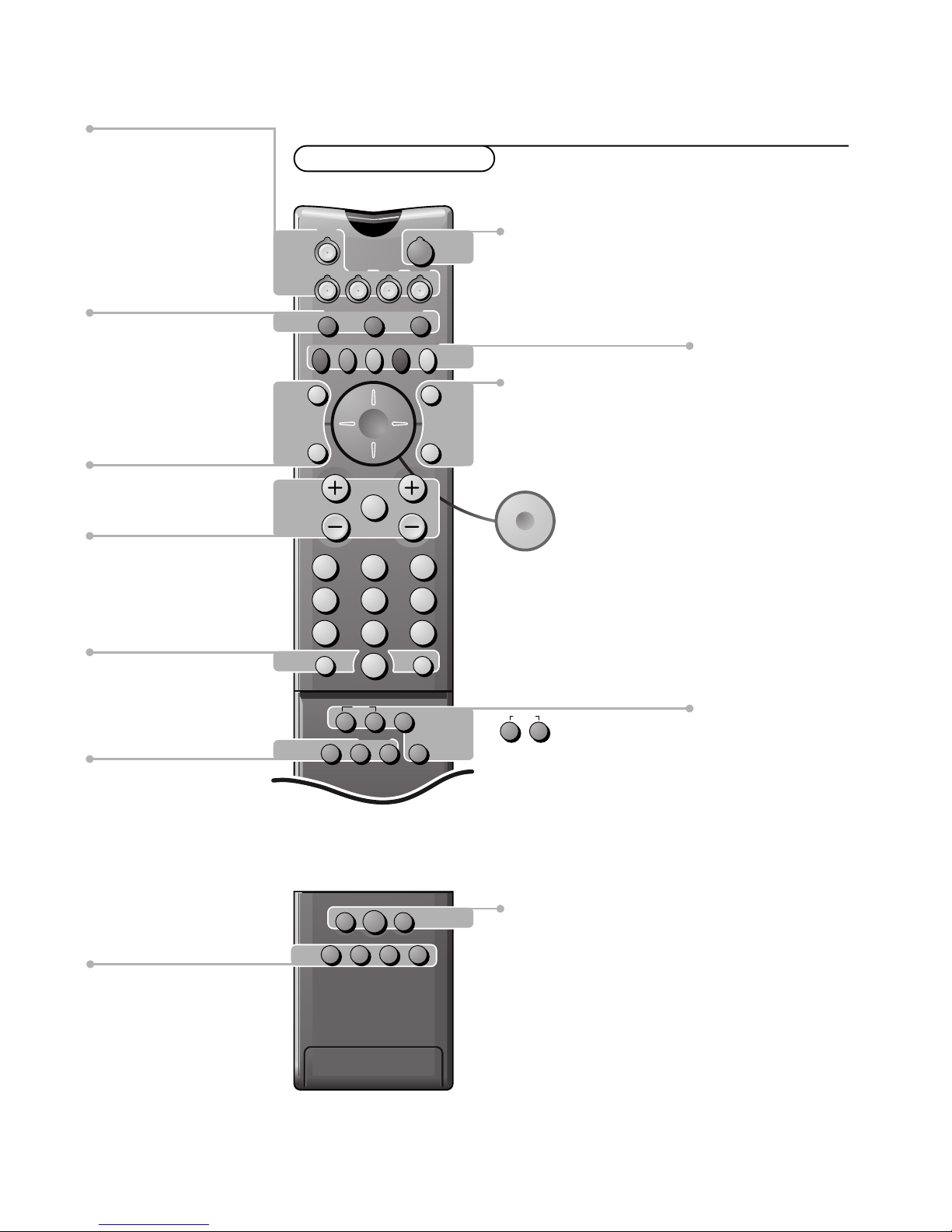

Your remote control

Preparation

Teletext p. 28

Utime display/subpage selection

fsolution to puzzles

display PDC/VPS code

henlarge

Preduce image noise p. 14

Zoom p. 14

hzoom on/off

Smart Controls

Msmart sound p. 13

hactive control p. 13

asmart picture p. 13

Dual Screen p. 21

bdual screen on

cno function

dstill teletext picture

ﬁstrobe p. 13

Bswitch to standby p. 12

ion screen info p. 12

0previous programme p. 12

◊video recorder/DVD function p. 12

Xbilingual choice/sound info p.14

TXT language group selection p. 28

EasyLink p. 14

®INSTANT recording

qpicture format p. 14

bteletext on/off p. 27

Ïmain menu on/off p. 15

cursor to select

your choice p. 15

Installation p. 5

Vvolume up/down p. 12

¬sound mute p. 12

Pprogramme selection p. 12

Peripherals p. 34

wselection of EXT1,EXT2,EXT3,

EXT4or FRONT

TV, videorecorder (VCR), DVD,

Satellite (SAT), TUNER,CD,TAPE or

cd-recordable (CDR) selection.

Colour keys

- select TV channels by theme p. 14

- direct teletext page or

subject selection p. 27

Audio and Video equipment

p. 34-35

Ono function

Sfreeze the picture p. 12

hold teletext page p. 28

Qsurround modes p. 12

æNEXTVIEW on/off p. 12

OK activate your choice

4934.3 gb /05 12-01-2000 14:37 Page 2

Place the TV on a solid surface.

For ventilation, leave at least 5 cm free all around the TV.

Do not place the TV on a carpet.

To prevent any unsafe situations, do not place any objects on top of the TV.

Avoid heat, direct sunlight and exposure to rain or water.

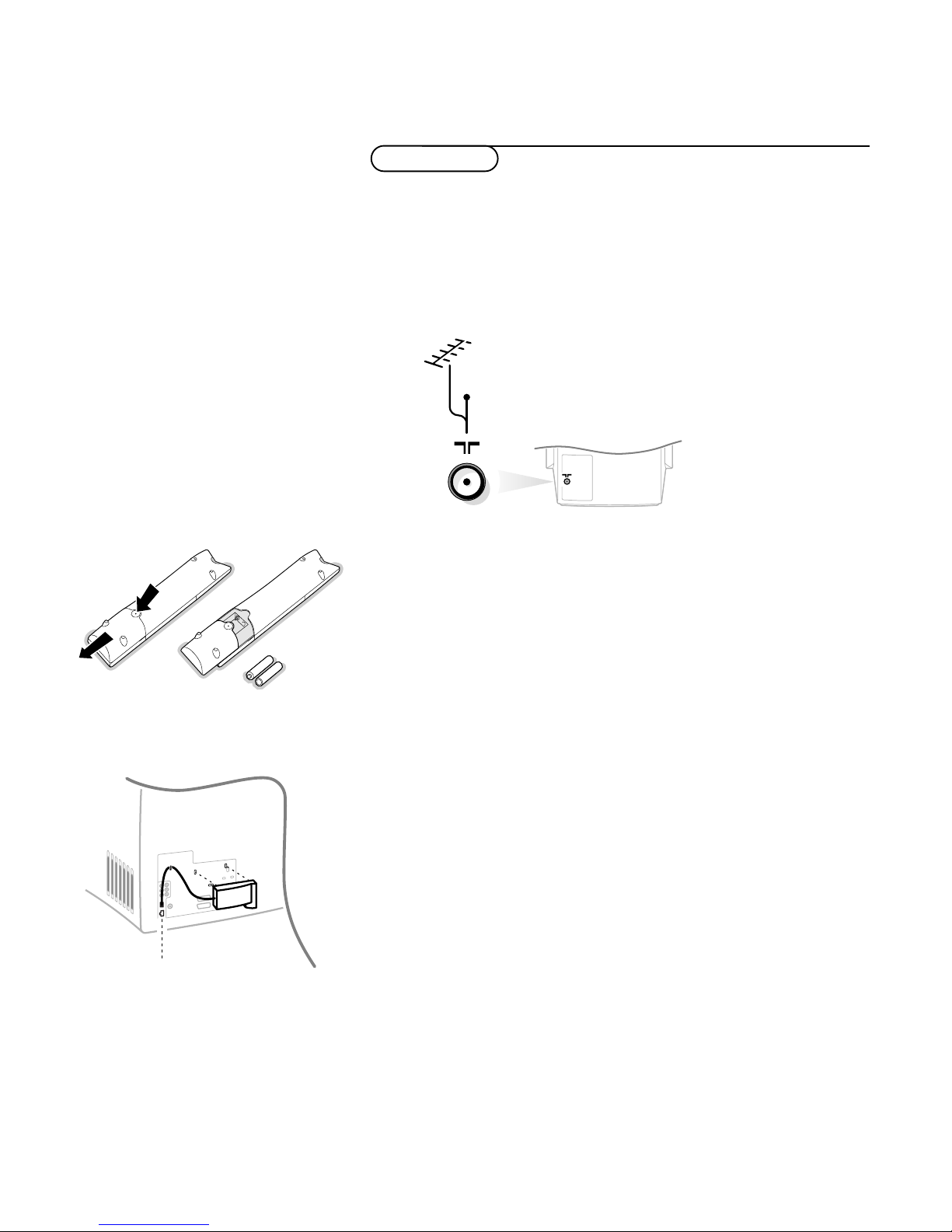

éInsert the aerial plug firmly into the aerial socket xat the back of the TV.

For best picture quality use the suppressor-aerial cable supplied.

“Remote control: Remove the cover of the battery compartment.

Insert the 2 batteries supplied (Type R6-1,5V).

Press the TV key to be sure your remote control is in the TV mode.

The batteries supplied do not contain the heavy metals mercury and cadmium.

Nevertheless in many countries exhausted batteries may not be disposed of with

your household waste. Please check on how to dispose of exhausted batteries

according to local regulations.

Note: this remote control functions with TVs which use the RC6 signalling standard.

‘Wireless surround speaker system.

Supplied and separately packed with your TV are:

- a wireless module (with antenna if provided) with an integrated cable

- 2 surround loudspeakers

Receiver box

•Attach the wireless module to the back of the TV as shown opposite.

•Connect the attached cable to the WIRELESS MODULE connector.

3Preparation

Preparation

CABLE

WIRELESS MODULE

R6 / AA

4934.3 gb /05 12-01-2000 14:37 Page 3

4Preparation

Surround loudspeakers

There are two surround loudspeakers supplied. One is the active loudspeaker,

including the RF receiver, a power switch, the mains supply, a channel selector,

a red and black connector clip, a left/right surround loudspeaker switch and a

3.5 mm stereo jack to make a wired connection with your TV in case there is

interference or the wireless connection is not possible.The other

loudspeaker is a passive one which has to be connected with the active

loudspeaker with the supplied speaker cable.

•Set the slide channel switch 1at the bottom of the active loudspeaker to

channel 1. (In the factory channel 1 has been chosen as the default channel.)

See also Sound Setup, p. 10.

•Connect the active to the passive loudspeaker with the supplied speaker

cable 2.

Push the connector clip down, insert one end of the colour coded wire into

the opening of one connector clip and push it up again. Insert the other end

of the same colour coded wire in the same colour connector clip of the

other loudspeaker. Do the same with the other wire in the other connector

clips. Do not insert the wires too far.

•The Surround sound loudspeakers should always be located behind or to

either side of the listener. If preferred you can also hang the loudspeakers on

the wall.

The maximum distance between the TV and the surround speakers should

not exceed 15 m.

Note: people moving around close to the TV may interfere with the sound

transmission.

•Set the slide switch 3to the right if the active loudspeaker is positioned to

the right side of the listener, to the left if it is positioned to the left side of

the listener (seen from the point of view of watching the TV).

•Connect the active loudspeaker to the mains with the mains cable 4.

•Switch on the active loudspeaker with the POWER switch 5.

The red indicator at the front of the active surround speaker shows that the

speaker is in standby.

During sound transmission the indicator turns to green and back to red after

10-15 min. after the TV has been switched off.

To switch the active speaker off, use the POWER switch.

(Insert the mains plug of the TV in the wall socket having a mains voltage

of 220V-240V.

To prevent damaging the mains (AC) cord which could cause a fire or electric

shock, do not place the TV on the cord.

§Switch the TV on : Press the power switch Aon the front of your TV.

A green indicator on the front of the TV lights up and the screen comes on.

If the indicator is red, press the -P+ keys on the remote control.

The green lamp blinks every time you press a key on the remote control.

When you switch on your set for the first time, the menu LANGUAGE

automatically appears on the screen. The explanation appears in different languages

one at a time. Choose your own language and press the OK key on the remote

control.

4934.3 gb /05 12-01-2000 14:37 Page 4

5Installation

Open the door of the remote control.

éPress U and fat the same time.

Installation

Select the INSTALLATION menu

Use the cursor in the up/down, left/right directions to select a menu item.

éPress the OK key to activate.

“Use the Ïkey to return or to switch the menu off.

To use the menus

MENU TITLE

Subject 1

Subject 2

Subject 3

JSubject 4

Subject 5

Subject 6

JSubject 4 L M

pπ

213

546

879

¬V P

◊

X®qP

yÚ

ZOOM

INSTANT

213

æb

TV VCR DVD SAT

TUNER CD TAPE CDR

¬V P

MOVIE OTHERNEWSCHILDSPORT

OK MENU

select menu item

activate

return or switch

main menu off

First, select your language and country.

Select Menu language and press the OK key.

éSelect your language and press the OK key.

Use the cursor up/down to scroll through the list and to bring up other

languages which are not displayed on the screen at present.

“Select Country and press the OK key.

‘Select the country where you are now located and press the OK key.

Use the cursor up/down to scroll through the list and bring up other

countries which are not displayed on the screen at present.

Select Other when none of the countries applies.

You can now search for and store the TV channels in two different ways:

using automatic installation or manual installation (tuning-in channel by

channel).

Select your choice and press the OK key.

Select the menu language and country

MENU TITLE

Menu language

JINSTALLATION

MENU TITLE

....

JCountry

MENU TITLE

English

....

JMenu language

Store TV channels

After the new or extra TV channels have been stored, the TV automatically transfers those TV channels to the video recorder if it is equipped with the

EasyLink function. The message EasyLink : Downloading ...... appears on the screen. The programme list of the video recorder is now the same

as the one of the TV. If the TV is connected to a video recorder which supports the NEXTVIEWLink function, the TV also automatically transfers the

language and country selections to the video recorder.

4934.3 gb /05 12-01-2000 14:37 Page 5

6Installation

Searching for and storing TV channels is done channel by channel.

You must go through every step of the Manual Installation menu.

Selection mode is only present and lights up if the country selected also

offers the channel option (C-channels for aerial channels, S-channels for cable

channels).

You can choose either channel or frequency mode.

Select the TV system

Select the country or part of the world from where you want to receive the

TV channel.

If you are connected to a cable system, select your country or part of the

world where you are now located.

éPress the cursor down and enter the programme number with the digit keys.

“Search for a TV channel

Press the cursor left/right.

The frequency or the channel number increases until a TV channel is found.

Direct selection of a TV channel

If you know the frequency, the C- or S-channel number, enter it directly with

the digit keys 0 to 9.

Ask for a list from your cable company or dealer, alternatively consult the

Table of frequencies on the inside backcover of this handbook.

‘Fine tune

In case of poor reception, you can improve the reception by adjusting the

frequency with the cursor left/right.

(To store your TV channel, select Store and press the OK key.

Repeat steps to (to store another TV channel.

§To exit from the menu press the Ïkey on the remote control.

Manual installation

(Selection mode)

System

Programme no.

Fine tune

Store

JSystem K

In the Automatic Installation menu select Start and press the OK key to

activate the searching. All TV channels are searched for and stored

automatically.

If a cable system which broadcasts ACI (Automatic Channel Installation) or a

TV channel transmitting a teletext page with the frequencies and programme

names of all the TV channels which can be received, is detected, the search is

stopped and a programme list appears.

The programme list is automatically filled with all the programme numbers

and names of the TV channels transmitted.

It is possible that the cable company or the TV channel displays a broadcast

selection menu. Layout and items are defined by the cable company or the TV channel.

Make your choice with the cursor and press the OK key.

To exit from the menu press the Ïkey on the remote control.

Go on to page 7.

Automatic installation

Start

Stop

TV is searching

One moment please ...

JStart K

Automatic installation

Start

Stop

1 BBC1

2 BBC2

3 CNN

....

JStop K

4934.3 gb /05 12-01-2000 14:37 Page 6

7Installation

Give name

It is possible to change the name stored in the memory or to assign a name

to a TV channel which has not yet been entered. A name with up to 5 letters

or numbers can be given to the programme numbers 0 to 99. For example

SUPER, BBC1,...

Between 99 and 0 you can also name any peripherals that are connected to a

euroconnector.

Select Give name in the INSTALLATION menu and press the OK key.

éSelect the programme number.

“Press the OK key.

‘Select the character with the cursor up/down.

(Select the following position with the cursor right.

§Select the following character.

èPress the OK key when finished.

!Press the Ïkey to return to the INSTALLATION menu.

Space, numbers and other special characters are located between Z and A.

According to your preference you can change the order of the stored TV

channels.

Select Reshuffle in the INSTALLATION menu and press the OK key.

éSelect the programme number you want to exchange.

“Press the OK key.

‘Select the new number you want to exchange it with.

(Press the OK key.

Repeat the operation until all TV channels are allocated as you like.

§Press the Ïkey to return to the INSTALLATION menu.

Reshuffle the programme list

After leaving the installation you can browse through the TV channels by

pressing the - P + keys. Only those TV channels which are in the favourite list

will be displayed. Non-favourite TV channels can still be selected with the digit

keys. By default all stored TV channels are added to the favourite list.

Select Favourite programmes in the INSTALLATION menu and press

the OK key.

éSelect your favourite programme number.

“Select Ye s or No with the cursor left/right.

‘Repeat for every TV channel you want to make a favourite or a

non-favourite TV channel.

(Press the Ïkey to return to the INSTALLATION menu.

In order for NEXTVIEW to function properly, the first TV channel from the favourite list

should also broadcast the correct local date and time via teletext.

Select Favourite TV channels

INSTALLATION

Menu language

Country

Automatic installation

Manual installation

Give Name

Reshuffle

Favourite programmes

SETUP

JGive name

Give name

EXT1

EXT2

EXT3

EXT4

FRONT

1 BBC1

2 BBC2

3 ....

4 ....

5 ....

Reshuffle

EXT1

EXT2

EXT3

EXT4

FRONT

1 CNN

2 BBC2

3 ....

4 ....

5 ....

J1 CNN

Favourite programmes

0 ... No

1 ... Yes

2 ... No

3 .... No

4 .... Yes

5 ....

J2 ... Yes

4934.3 gb /05 12-01-2000 14:37 Page 7

8Installation

The Setup menu allows you to adjust initial settings, i.e. those which are not

related to the installation of the TV channels.

The Setup menu contains items that control the settings of the TV’s functions,

features, services and peripherals you may have connected.

Use the cursor in the up/down, left/right directions to select the menu item.

éUse the OK key to activate.

“Use the Ïkey to return or switch menu off.

Digital sources

See Connect Peripheral Equipment, p. 31 to connect your digital equipment,

like a DVD, a digital satellite tuner or a similar digital device.

Sound Setup

See p. 10-11.

Define Decoder/Descrambler programme numbers

If a decoder or a descrambler is connected, see p. 30, you can define one or

more programme numbers as decoder programme numbers.

Press the cursor left/right to select the input used to connect to your

decoder Off,EXT1 or EXT2.

Select Off if you do not want the selected programme number being

activated as a decoder programme number.

Select EXT2 when the decoder is connected to your EasyLink video recorder.

When selecting the decoder, the message EasyLink: Downloading Presets....

appears on the screen.

Picture tilt (if provided)

Select Picture tilt with the cursor up/down.

Keep the cursor left/right pressed to adjust the rotation of the picture.

Information line

Select On and after the selection of a TV programme or after pressing the

ikey on the remote control, a TV channel which broadcasts teletext may

transmit the name of the TV channel, the programme name or another

message.This is displayed on screen next to information about sound, picture

format and DNR setting.

When selected Off, only sound, picture format and DNR information is

displayed after the selection of a TV channel or after pressing the ikey.

Install TV Setup

INSTALLATION

Menu language

Country

Automatic installation

Manual installation

Give name

Reshuffle

Favourite programmes

SETUP

JSETUP

Decoder/Descrambler

Programme

Decoder status

JProgramme

SETUP

Digital Sources

Sound setup

Decoder/Descrambler

(Picture tilt)

Information line

Factory settings

NEX

IEW

provider none, 0...99

Auto format yes/no

INSTALLATION

JDigital sources

4934.3 gb /05 12-01-2000 14:37 Page 8

9Installation

Factory settings

Select Factory settings and press the OK key to restore picture and sound

settings, predefined in the factory.

Auto format

Selecting Ye s causes the screen to automatically fill as much of the picture as

possible when TV programmes are not carrying special signals detecting the

correct screen format.

With the qkey on the remote control you can still select other picture

formats. See p. 14.

NEXTVIEW provider

Most broadcasters in Europe are offering teletext pages containing the day’s

programme schedule.These pages can be requested by switching the TV to

Teletext Guide.

An increasing number of broadcasters are offering an extended programme

guide service called NEXTVIEW.

NEXTVIEW is a new way of presenting programme schedules and offers more

features than basic teletext.With NEXTVIEW it is possible to show for instance

all the movies or children programmes for tonight or the following days.

If you select None as NEXTVIEW provider, the TV will capture all data from

the available TV channels which broadcast NEXTVIEW. Broadcaster defined

menus will not be available.

If you select a programme number of a TV channel stored in the favourite list

as NEXTVIEW provider, the selected TV channel will provide NEXTVIEW data

and additional information of its own broadcasts as well as from other (non

selected) TV channels.

Normally you will select the NEXTVIEW provider that transmits most

information in your language.You can make the best selection via information

from TV announcements or from the newspapers.

Important:

In order for NEXTVIEW to function properly, the first TV channel from the favourite list

should also broadcast the correct local date and time via teletext.

Please check at startup if the time and date are correct in the NEXTVIEW screen.

Remark:

Not all TV channels support NEXTVIEW.

How to make use of NEXTVIEW, see p. 22.

4934.3 gb /05 12-01-2000 14:37 Page 9

10 Installation

Sound Setup menu

Auto Surround

Sometimes the broadcaster transmits special signals for Surround Sound

encoded programmes.

Dependent on your speaker configuration, the TV automatically switches to

the best surround sound mode when Auto Surround is switched On.

However it is possible to overwrite this setting.

Wireless Surround

To make use of the wireless surround loudspeakers, use the cursor left/right

to select the same channel as you selected on the active loudspeaker.

(In the factory, channel 1 has been selected as default.)

Under most circumstances an interference free sound reproduction will be

guaranteed.

To avoid interference from external RF (wireless) equipment such as

headphones, RF audio, remote controls for lights it may be necessary to shift

to another wireless channel number. Do not use a mobile telephone close to

the wireless equipment as interference might occur.

In practice only 3 or 4 channels are available because at least a gap of two

channels is necessary to have enough separation.

Always be sure that the active surround speaker and the Wireless Surround

setting are switched to the same transmitting channel. Otherwise no sound or

only a distorted sound will be heard on the surround speakers.

When the TV is tuned to a channel in the neighbourhood of 864 MHz

(433 MHz in case you purchased a TV with a typenumber in the range 28-

32PW9615/01 or /58 or 32PW9765/01 or /58), the transmitter is switched off

because no RF surround sound is possible. This is necessary to avoid interfered

picture.You can improve the picture quality by using the suppressor aerial cable

supplied.

When no RF surround sound is possible or when there is too much

interference, use the wired back up solution with a 3.5 mm stereo jack. In this

case select Off in the Wireless surround menu item.

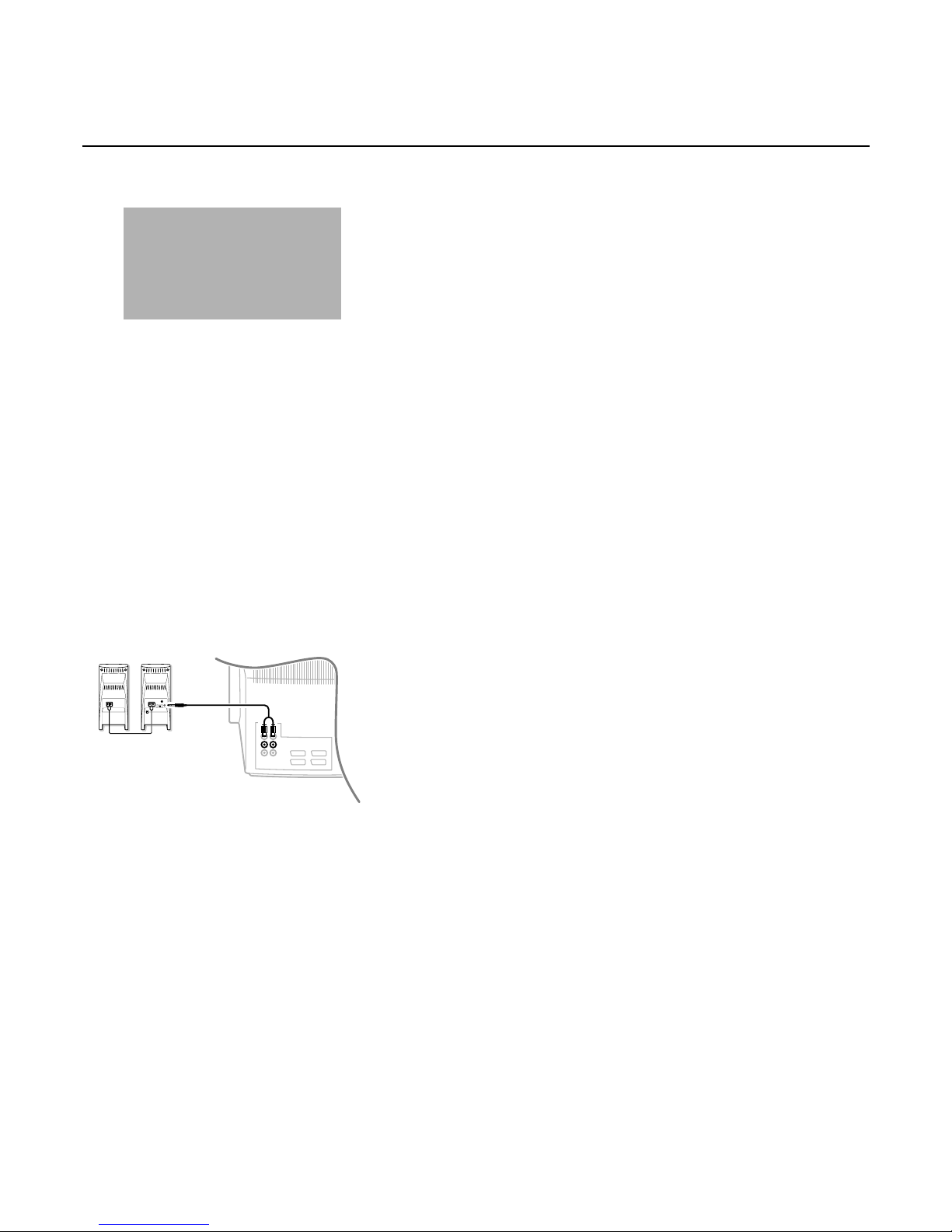

Connect the cable with the PRE-AMP IN (TV) connector at the back of the

active surround loudspeaker and with the black and red REAR R or Linputs

at the back of the TV.

Wireless headphone

When selecting the menu item Wireless surround, also the menu item

Wireless headphone is displayed.

It indicates the transmitting channel in case you want to operate a wireless

headphone.The transmitting channel is automatically selected dependent on

the transmitting channel chosen for Wireless surround.

Important:

Sets with the typenumber 28-32PW9615/01 and /58 and 32PW9765/01 and /58

will only operate with a wireless headphone for 433 MHz.

All other typenumbers will only operate with wireless headphones for 864 MHz.

Sound setup

Auto Surround

Wireless Surround

Wireless headphone

Extra front speakers

Distance to front

Distance to rear

REAR

4934.3 gb /05 12-01-2000 14:37 Page 10

Andere Handbücher für 28PW9615

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Röhrenfernseher Handbücher

Philips

Philips 27-WIDE HOTEL-MOTEL A-V SMART CARD PCW227C Handbuch

Philips

Philips 28PW6341 Bedienungsanleitung

Philips

Philips COLOR TV 27 INCH TABLE TS2754C Bedienungsanleitung

Philips

Philips 29PT9221/93R Bedienungsanleitung

Philips

Philips 15PT166A/00 Bedienungsanleitung

Philips

Philips 21PT4458 Bedienungsanleitung

Philips

Philips 21PT4475 Bedienungsanleitung

Philips

Philips 27PT563S Handbuch

Philips

Philips 14PT3426/V7 Bedienungsanleitung

Philips

Philips 14PT1620 Bedienungsanleitung

Philips

Philips MAGNAVOX PR1910B1 Bedienungsanleitung

Philips

Philips 34PT9420/69R Bedienungsanleitung

Philips

Philips 21PT6333 Bedienungsanleitung

Philips

Philips TP3697B Bedienungsanleitung

Philips

Philips 13PR10G99 Bedienungsanleitung

Philips

Philips TS2757C Bedienungsanleitung

Philips

Philips 20PT653R Bedienungsanleitung

Philips

Philips 14HT3154N Bedienungsanleitung

Philips

Philips 28PW6108 Bedienungsanleitung

Philips

Philips PR1910B Bedienungsanleitung

Philips

Philips TP3681C Bedienungsanleitung

Philips

Philips 32PT563S Bedienungsanleitung

Philips

Philips 27PT8420/37B Bedienungsanleitung

Philips

Philips 28PW6542 Bedienungsanleitung

Beliebte Röhrenfernseher Handbücher anderer Marken

JVC

JVC AV-21QS5SP Bedienungsanleitung

Hitachi

Hitachi 27CX01B Bedienungsanleitung

LG 30FZ1DC Bedienungsanleitung

Sony

Sony FD TRINITON WEGA KV-24FS120 Bedienungsanleitung

RCA

RCA F19442 Bedienungsanleitung

Samsung

Samsung CS761 Bedienungsanleitung

Panasonic

Panasonic TC-29P100 Series Bedienungsanleitung

RCA

RCA F19422 Bedienungsanleitung

Sony

Sony WEGA KV 32HS20 Bedienungsanleitung

Samsung

Samsung SlimFit TX R3079WH Bedienungsanleitung

Palsonic

Palsonic MODEL 5179G Bedienungsanleitung

Toshiba

Toshiba CF13H22 Bedienungsanleitung

Magnavox

Magnavox MS3650C - 36" Smart Ctv Handbuch

Toshiba

Toshiba 14AF41 Bedienungsanleitung

Mitsubishi

Mitsubishi CS-35305 Bedienungsanleitung

Hitachi

Hitachi 35UX60B, 35TX10B Bedienungsanleitung

Sony

Sony KD-34XBR970 - 34" Hdtv 16x9 Format Bedienungsanleitung

Toshiba

Toshiba 27A34 - 27" CRT TV Bedienungsanleitung
