User Manual

ADVANCED INSTRUCTIONS

3/24/04

PANEL INDEX

Panel

Sequence

and

Panel Index

COVER

PANEL

Side 1

Side 2

Advanced Remote Features

Using the Guide . . . . . . . . . . . . . . .1

Surf . . . . . . . . . . . . . . . . . . . . . . . .2

DSURF . . . . . . . . . . . . . . . . . . . . .3

PIP . . . . . . . . . . . . . . . . . . . . . . . . .4

Picture Format . . . . . . . . . . . . . . .5

Advanced Menu Features

Picture Controls . . . . . . . . . . . . . .6

Convergance . . . . . . . . . . . . . . .7-8

Sound Controls . . . . . . . . . . . . . . .9

Bass Bosst . . . . . . . . . . . . . . . . . .10

AVL . . . . . . . . . . . . . . . . . . . . . . .11

Surround Sound . . . . . . . . . . . . . .12

SAP, Alt Audio . . . . . . . . . . . . . .13

Audio Out,

Speakers Dig Out . . . . . . . . . . . .14

Intellitune, Smart Picture . . . . . . .15

Sleep . . . . . . . . . . . . . . . . . . . . . .16

Timer . . . . . . . . . . . . . . . . . . .17-19

AutoLock . . . . . . . . . . . . . . . .20-23

PIP . . . . . . . . . . . . . . . . . . . . . . . .24

Closed Caption . . . . . . . . . . .25-26

Picture Format . . . . . . . . . . . . . . .27

Channel Edit . . . . . . . . . . . . . . . .28

AutoChron . . . . . . . . . . . . . . .29-30

Weak Digital Signal . . . . . . . . . . .31

Channel and Volume Display . . . .32

Emergency Alert . . . . . . . . . . . . .33

Factory Channel Reset . . . . . . . . .34

SUBJECT Panel # SUBJECT Panel #

SURF

12 > add? ADD?

Here's the Space for the program

info which can run to four lines

Here's the Space for the program

info which can run to four lines

10:00 am - 11:00am

Program name

80 - 1 PBS1DTV

HDTV

Mon 17 Oct

10:00

Here's the Space for the program

info which can run to four lines

Here's the Space for the program

info which can run to four lines

10:00 am - 11:00am

Program name

80 - 1 PBS1DTV

HDTV

Mon 17 Oct 10:15am

80-1

80-2

80-3

80-4

80-5

10:00 1:00

Here's the Space for the program

info which can run to four lines

Here's the Space for the program

info which can run to four lines

10:00 am - 11:00am

Program name

80 - 1 PBS1DTV

HDTV

Mon 17 Oct 10:15am

80-1

80-2

80-3

80-4

80-5

10:00 1:00

Channel and Name

Current date and time

Program

name

Program

time

TIme Selector

Available

Subchannels

Program information

Signal Type

Guide

ADVANCED REMOTE FEATURES

USING THE GUIDE

The guide can provide you with infor-

mation about the current program

as well as upcoming programs. The

content and accuracy of the guide is

entirely dependent on the broadcaster

or cable company.

1Press the GUIDE button to

open the Guide window. If the

broadcaster or cable company

is providing it, information

about the current program and

programs throughout the day

are displayed.

2Use the CURSOR LEFT or

RIGHT button to select a time.

The program name, time,

inforamtion, as well as signal

type are displayed.

ADVANCED REMOTE FEATURES

USING SURF

After you set up a list of your

favorite signal sources in the SURF

list, you can press the SURF button to

see the list and quickly tune to a

favorite signal source. Place up to 10

signal sources in the SURF list.

1Once you are viewing the

channel you want to add to

the surf list, press the SURF

button. The Surf list box

appears. The number of the

current channel is shown with

ADD? to the right. Press the

CURSOR RIGHT button to

add the channel to the Surf

list. The text should switch

from “add?” to “delete?” The

text gives the next available

action, therefore, when it says

“delete?” the channel has been

added.

2Press the NUMBER but-

tons, CH(annel) +/– but-

tons to select another signal

source to add to the Surf list.

Press the SURF button and

then the CURSOR RIGHT

button to add the channel to

the list.

Repeat this step, filling the list

with up to 10 favorite signal

sources. NOTE: If you exceed

10 channels a warning message

will inform you to delete a

channel before adding another.

3To tune to a favorite signal

source from the list, press

the SURF button. The Surf

list box appears. Press the

SURF button or the CURSOR

DOWN button or UP as many

times as necessary to tune to

the channel.

SURF

12 > delete? ADD?

SURF

12 > add? ADD?

Channel is deleted.

Channel is added.

HELPFUL HINTS

•

To delete a signal source

from the list, press the

SURF button. The Surf list

box appears. Press the

SURF button or the

CURSOR DOWN button

or UP as many times as

necessary to select the

signal source to be delet-

ed. Then press the CUR-

SOR RIGHT button to

delete the signal source.

The screen will say

“add?” when the channel

has been deleted.

ADVANCED REMOTE FEATURES

USING DSURF

DSURF locks the tuner into a “digi-

tal only” mode. Like a “Caps

Lock” button on a computer keyboard,

DSURF limits channel selection to digi-

tal channels only.

1Press DSURF.

2Use Channel + or - to select a

channel. Only digital channels

are available. A small icon,

appears next to the channel to

indicate DSURF is activated.

3Press DSURF again to return

to normal channel selection

and the DSURF icon disappears

EVENING WORLD NEWS

TONIGHT'S HEADLINES

EVENING WORLD NEWS

TONIGHT'S HEADLINES

5.1 5.1

WXYZ

(Digital)

5.1 5.1

WXYZ

(Digital)

EVENING WORLD NEWS

TONIGHT'S HEADLINES

EVENING WORLD NEWS

TONIGHT'S HEADLINES

ADVANCED REMOTE FEATURES

USING PICTURE-IN-PICTURE (PIP)

The Picture-In-Picture (PIP) feature

allows you to display a subscreen

within your main screen and watch two

video sources at once. Because your set

has one tuner, you need to use a VCR

as a second tuner for your PIP picture.

Tune to your favorite show on the main

screen while scanning other AV inputs in

the PIP window. See panel 24 to select

the PIP source.

1Press the PIP button to

turn PIP on.

2Press the PIP button a sec-

ond time to make the PIP win-

dow smaller.

3To select a video source to

watch in the PIP window, see

“Selecting a PIP Source”on

panel 24.

4Press the PIP button a third

time to turn PIP off.

MOVING THE PIP SCREEN

Press the POS button. Each time

you press this button, the PIP screen

moves to another corner of the main

screen.

FREEZING THE PIP SCREEN

Press the FREEZE button. The

picture in the PIP screen stands still.

Stopping motion allows you to write

down onscreen phone numbers or

addresses.

SWITCHING THE MAIN AND PIP

SCREENS

Press the SWAP button. The main

screen and PIP screen change places.

POSITION

SWAP

FREEZE

Ski Vacations

P.O. Box 55512

Anytown,USA 87654

1-800-555-1212

FREEZE

Button

SWAP

Button

POSITION

Button

ADVANCED REMOTE FEATURES

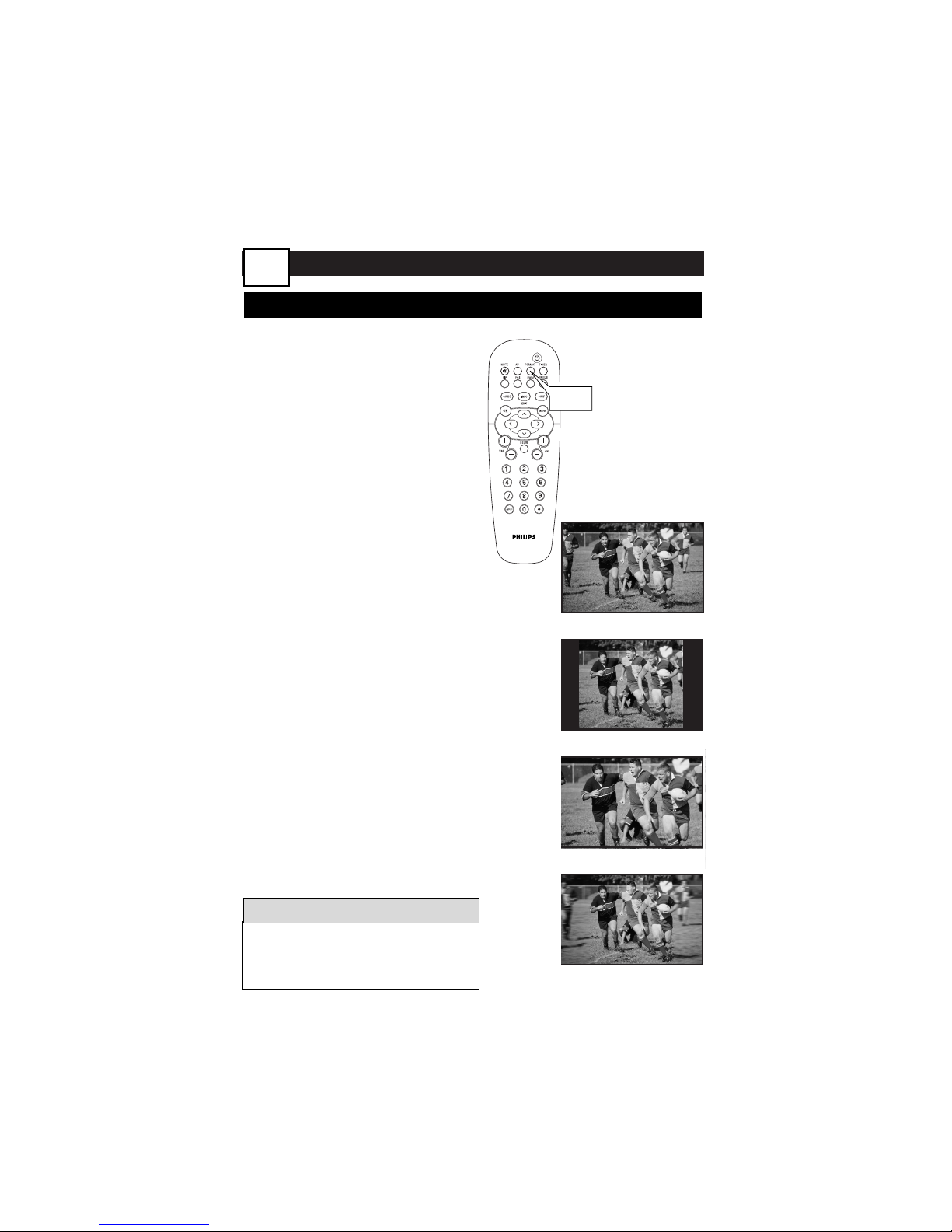

USING PICTURE FORMAT CONTROL

Your TV’s wide screen (16:9 aspect ratio)

delivers a home-cinema experience not

possible with a conventional (4:3 aspect

ratio) set. High-definition (HD) programs

originating in 16:9 format and other

widescreen-format video sources appear

more lifelike, dramatic, and theatrical.

Border bars are diminished or eliminated.

Most anamorphic-DVD programs will fill the

wide screen without border bars.

Selecting a Picture Format

Using the Remote Control

Use your TV’s picture-format modes

with video sources you connect to the

ANTENNA, CABLE AV1, AV2, AV3,

AV4, AV5, SIDE inputs on the TV. While

watching a video source—with no

onscreen menu or display present—

press the FORMAT button once to see

the currect mode. Press it again to

change to the next mode.

FORMAT

Button

Picture-format Modes

NATIVE (16:9) is the default for your

DTV because HD programs are broad-

cast in this format. Analog channels are

expanded horizontally.

4:3 shows an analog the picture in its

original, conventional (4:3 aspect ratio)

format.

ZOOM expands, or zooms, the picture

both vertically and horizontally, eliminat-

ing or reducing the size of border bars.

PANORAMIC stretches the outer por-

tions of the picture horizontally.

To prevent uneven picture-tube aging,

do not leave border bars or other sta-

tionary images on screen for extended

periods of time.

WARNING

NATIVE (16:9)

4:3

ZOOM

PANORAMIC

ADJUSTING PICTURE CONTROLS

o adjust your TV picture controls,

select a channel and follow these

steps. See descriptions of the picture-

adjustment options below.

Press the MENU button on

the remote control to show the

onscreen menu.

Press the CURSOR RIGHT

button. BRIGHTNESS will be

highlighted and an adjustment bar

will be shown to the right.

Press the CURSOR RIGHT

button or LEFT to adjust the

BRIGHTNESS level of the pic-

ture. Or press the CURSOR

DOWN button to select anoth-

er picture control to adjust.

Press the INFO/EXIT button

to exit the menu.


SOUND

FEATURES

INSTALL

BRIGHTNESS


SHARPNESS

COLOR

TINT

BRIGHTNESS


SHARPNESS

COLOR

TINT


BRIGHTNESS


SHARPNESS

COLOR

TINT


BRIGHTNESS


SHARPNESS

COLOR

TINT


BRIGHTNESS


SHARPNESS

COLOR

TINT


BRIGHTNESS


SHARPNESS

COLOR

TINT


SHARPNESS

COLOR

TINT

COLOR TEMP NORMAL


2,3

ADVANCED MENU FEATURES

Picture-adjustment Options

Remember, when the bar scale is cen-

tered , the control settings

are at mid-range levels. Picture adjust-

ments are described as follows:

BRIGHTNESS raises and lowers the

black level of the picture.

PICTURE raises or lowers the intensity

of the picture (also called contrast).

SHARPNESS improves the detail in the

picture.

COLOR adds or eliminates color.

TINT adjusts the picture to obtain natu-

ral skin tones.

COLOR TEMP offers NORMAL,

COOL, or WARM picture preferences.

NORMAL keeps whites white.

WARM makes whites less blue.

COOL makes whites more blue.

ADVANCED MENU FEATURES

ADJUSTING CONVERGENCE:CONVERGE RED/BLUE

our projection TV has three color pro-

jection tubes: one for red, one for

green, and one for blue. When mixed in

proper proportion, the beams of light

coming from the tubes can produce any

color. To create a clear picture, however,

these color beams must be precisely

aligned. This alignment is called conver-

gence.

NOTE: Allow the TV to warm up for 20

minutes before adjusting convergence.

Press the MENU button to

show the onscreen menu. Press

the CURSOR RIGHT button to

enter the PICTURE submenu.

Then press the CURSOR

DOWN button repeatedly until

MANUAL CONVERGE is high-

lighted.

Press the CURSOR RIGHT

button to enter the MANUAL

CONVERGE submenu. If you

want to adjust the Red

Convergence, press the CUR-

SOR RIGHT button to enter the

adjust mode. To adjust the Blue

Convergence, press the CUR-

SOR DOWN button to high-

light CONVERGE BLUE, then

press the CURSOR RIGHT but-

ton to enter adjust mode.

In adjust mode, press the

CURSOR RIGHT, LEFT,

UP, or DOWN button to

adjust the cross hair until the

color outline around it is gone.

(The adjustment is automatically

saved in the TV’s memory.) To

return to the MANUAL CON-

VERGE menu, press the MENU

button. To exit the onscreen

display, press the INFO/EXIT

button.

CONVERGE RED

CONVERGE BLUE

MULTIPOINT RED

MULTIPOINT BLUE

SAVE MULTIPOINT


MANUAL CONVERGE

Converge Red

2,3

neercS

ecnaraeppanoitcA

suoiraV

segami

tuohguorht

eritneeht

evaherutcip

.seniltuoder

ehttsujdA

EGREVNOC

.lortnocDER

derynafinehT

,niamerseniltuo

ehttsujda

TNIOPITLUM

.lortnocDER

suoiraV

segaim

tuohguorht

eritneeht

evaherutcip

.seniltuoeulb

ehttsujdA

EGREVNOC

.lortnocEULB

eulbynafinehT

,niamerseniltuo

ehttsujda

TNIOPITLUM

.lortnocEULB

Determining Which

Manual Converge

Control to Use

ADVANCED MENU FEATURES

ADJUSTING CONVERGENCE:MULTIPOINT RED/BLUE

he Multipoint Red/Blue Convergence

controls allow you to adjust picture con-

vergence at specific points on the TV

screen.

Press the MENU button to

show the onscreen menu. Press

the CURSOR RIGHT button to

enter the PICTURE submenu.

Then press the CURSOR

DOWN button repeatedly until

MANUAL CONVERGE is high-

lighted.

Press the CURSOR RIGHT

button to enter the MANUAL

CONVERGE submenu. Press

the CURSOR DOWN button

repeatedly until MULTIPOINT

RED or MULTIPOINT BLUE is

highlighted. Then press the

CURSOR LEFT or RIGHT but-

ton to enter Navigate mode.

Press the CURSOR LEFT,

RIGHT, UP, or DOWN but-

ton to move to a cross hair

that has a color outline. Then

press the INFO/EXIT button to

enter adjust mode.

Press the CURSOR LEFT,

RIGHT, UP, or DOWN but-

ton to adjust the cross hair

until the color outline is

gone.Then press the INFO/EXIT

button to return to NAVIGATE

mode. Repeat steps 3 and 4

until all misaligned cross hairs

have been adjusted.

For your adjustments to be

stored in the TV’s memory,

you must activate SAVE

MULTIPOINT.

To save your multipoint

adjustments, press the MENU

button to return to the MANU-

AL CONVERGE menu. Press the

CONVERGE RED

CONVERGE BLUE

MULTIPOINT RED

MULTIPOINT BLUE

SAVE MULTIPOINT


MANUAL CONVERGE

▲

CONVERGE RED

CONVERGE BLUE

MULTIPOINT RED

MULTIPOINT BLUE

SAVE MULTIPOINT


MANUAL CONVERGE

to Navigate Exit to Adjust

▲

MULTIPOINT RED

MULTIPOINT BLUE

SAVE MULTIPOINT

UNDO MULTIPOINT

RESTORE FACTORY


MANUAL CONVERGE

1,5

2,3

3,4

CURSOR DOWN button repeat-

edly until SAVE MULTIPOINT is

highlighted. Then press the CUR-

SOR LEFT or RIGHT button to

store your adjustments in the TV’s

memory.

To undo the multipoint adjust-

ments you just made, highlight

UNDO MULTIPOINT and press

the CURSOR LEFT or RIGHT but-

ton.

To restore the TV’s conver-

gence to factory settings, high-

light RESTORE FACTORY and

press the CURSOR LEFT or

RIGHT button.

6Press the INFO/EXIT button

to exit the menu.

Andere Handbücher für 51PP9910

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips HDTV Handbücher

Philips

Philips 37HF7544D Bedienungsanleitung

Philips

Philips 30-REAL FLAT PROGRESSIVE SCAN WIDESCREEN HDTV 30PW9100D - Hook Up... Bedienungsanleitung

Philips

Philips 32PFL8404H Handbuch

Philips

Philips 40PUT6400 Bedienungsanleitung

Philips

Philips Matchline 34PW9818 Bedienungsanleitung

Philips

Philips 6402 series Bedienungsanleitung

Philips

Philips SBB250D Bedienungsanleitung

Philips

Philips 37PF7320A Bedienungsanleitung

Philips

Philips 27PT830H Bedienungsanleitung

Philips

Philips 26HF5334D Bedienungsanleitung

Philips

Philips 32PT8302/37B Bedienungsanleitung

Philips

Philips 26-LCD HDTV MONITOR COMMERCIAL FLAT HDTV 26HF5544D - Hook Up... Bedienungsanleitung

Philips

Philips 27PT8320 Bedienungsanleitung

Philips

Philips 32PF7320A Bedienungsanleitung

Philips

Philips 42HF7544D/27 Bedienungsanleitung

Philips

Philips PFL50 7M/08 Series Bedienungsanleitung

Philips

Philips 26MF231D Kurzanleitung

Philips

Philips 50PF9631D-37B Bedienungsanleitung

Philips

Philips 51-PROJECTION HDTV PIXEL PLUS 51PP9200D Kurzanleitung

Philips

Philips 32PT8302 Bedienungsanleitung

Philips

Philips Magnavox 27MT5405 Bedienungsanleitung

Philips

Philips 26PW8402 Bedienungsanleitung

Philips

Philips 63PF9631D/37B Bedienungsanleitung

Philips

Philips 32PW9551 Bedienungsanleitung

Beliebte HDTV Handbücher anderer Marken

Vizio

Vizio M602i-B3 Bedienungsanleitung

JVC

JVC LT-40C750 Bedienungsanleitung

Pendo

Pendo PNDLFHU55 Bedienungsanleitung

RCA

RCA RTU7575-B Bedienungsanleitung

Sharp

Sharp LC60LE830UN Bedienungsanleitung

LEECO

LEECO uMax85 Bedienungsanleitung

LG 50PC1DRA Bedienungsanleitung

Samsung

Samsung Tantus HCJ555W Bedienungsanleitung

Sceptre

Sceptre X23 Bedienungsanleitung

Medion

Medion LIFE P13901 Bedienungsanleitung

Vizio

Vizio D32h-C0 Bedienungsanleitung

JVC

JVC EM39T Bedienungsanleitung

Sceptre

Sceptre X460BV-FHD Bedienungsanleitung

BEA

BEA 49B4KUHD Bedienungsanleitung

EQD

EQD Auria EQ3288 Bedienungsanleitung

JVC

JVC LT-24C660 Bedienungsanleitung

RCA

RCA Scenium D32TF20 Bedienungsanleitung

LG M3702C Bedienungsanleitung
