English

EN 5

Contents

1 Important 6

Safety and important notice 6

2 Your product 7

Features highlight 7

Product overview 8

3 Connect 11

Place the unit 11

Connect video cables 12

Connect subwoofer 14

Connect radio antenna 15

Connect audio cables/other devices 15

Mount the DVD Home Theatre unit 17

4 Get started 19

Prepare the remote control 19

Find the correct viewing channel 20

Start Ambisound setup 20

Turn on Progressive Scan 22

Activate EasyLink control 23

Select a play source 24

5 Play 25

Play from disc 25

Play video 26

Play music 29

Play photo 30

Play from USB device 31

Play from portable media player 32

Play from radio 32

6 Adjust sound 35

Control the volume 35

Adjust Bass/Treble 35

Select Ambisound 35

Select a preset sound effect 36

7 Adjust settings 37

General setup 37

Audio setup 39

Video setup 40

Preference Setup 42

8 Additional information 45

Update software 45

Care 45

Speciﬁcations 46

9 Troubleshooting 47

10 Glossary 49

6EN

Recycle notice

This electronic equipment contains a large

number of materials that can be recycled or

reused if disassembled by a specialised

company. If you are disposing of an old

machine, please take it to a recycling centre.

Please observe the local regulations regarding

disposal of packaging materials, exhausted

batteries and old equipment.

This product incorporates copyright protection

technology that is protected by method claims

of certain U.S. patents and other intellectual

property rights owned by Macrovision

Corporation and other rights owners. Use of

this copyright protection technology must be

authorised by Macrovision Corporation, and is

intended for home and other limited viewing

uses only unless otherwise authorised by

Macrovision Corporation. Reverse engineering

or disassembly is prohibited.

1 Important

Safety and important notice

Warning!

Risk of ﬁre or electric shock!

Ensure that air can circulate freely through the

ventilation holes on this unit. Allow at least 5~10 cm

clearance around the unit.

Never expose this unit to direct sunlight, naked

ﬂames or heat.

Never place this unit on other electrical equipment.

Keep away from this unit during lightning storms.

Never remove the casing of this unit. Please leave all

maintenance work to qualiﬁed personnel.

Keep this unit away from water, moisture and liquid-

ﬁlled objects.

•

Caution!

Remove batteries if they are exhausted or if the

remote control is not to be used for a long time.

Do not mix batteries (old and new or carbon and

alkaline, etc.).

Batteries contain chemical substances, they should

be disposed of properly.

Visible and invisible laser radiation when open.

Avoid exposure to beam.

Where the MAINS plug or an appliance coupler is

used as the disconnect device, the disconnect device

shall remain readily operable.

•

English

EN 7

Your product

2 Your product

Congratulations on your purchase, and

welcome to Philips! To fully beneﬁt from the

support that Philips offers, register your product

at www.philips.com/welcome.

The all-in-one SoundBar DVD Home Theatre is

designed to complement your home perfectly.

Enjoy the SoundBar DVD Home Theatre with

state-of-the-art Ambisound surround sound and

picture quality without the clutter of multiple

speakers.

Features highlight

Video upscaling to 1080p

You can now watch the DVDs in the highest

picture quality available for your HDTV. This

DVD Home Theatre offers full high-deﬁnition

video playback up to 1080p resolution for an

amazing viewing experience. A highly detailed

picture and increased sharpness delivers a more

true-to-life picture.

EasyLink

EasyLink uses the HDMI CEC (Consumer

Electronics Control) industry standard protocol

to share functionality with all HDMI CEC

compliant devices over HDMI. It enables the

connected devices to control each other with a

single remote control.

Note

Philips does not guarantee 100% interoperability

with all HDMI CEC devices.

•

Ambisound

Philips Ambisound technology reproduces

multi-channel surround sound with fewer

speakers to give an embracing surround

experience without the hassle of setting up a

full range of speaker systems.

USB direct and MP3 link

Simply plug your USB device into the USB

socket to play your MP3/WMA/JPEG/DivX ﬁles;

or plug your portable media player to the MP3

LINK socket to enjoy the music play in superb

sound quality.

Sync the audio output with the video play

This DVD Home Theatre provides you the

feature of delaying the audio output if the video

signals that go directly to the TV is slower than

the audio streams.

Region codes

DVD movies are usually not released at the

same time in all regions of the world, thus all

DVD players are programmed to a speciﬁc

region code.

Countries DVD region code

Asia Paciﬁc,

Taiwan, Korea

ALL

Australia,

New Zealand

ALL

China

ALL

India

ALL

8EN

Product overview

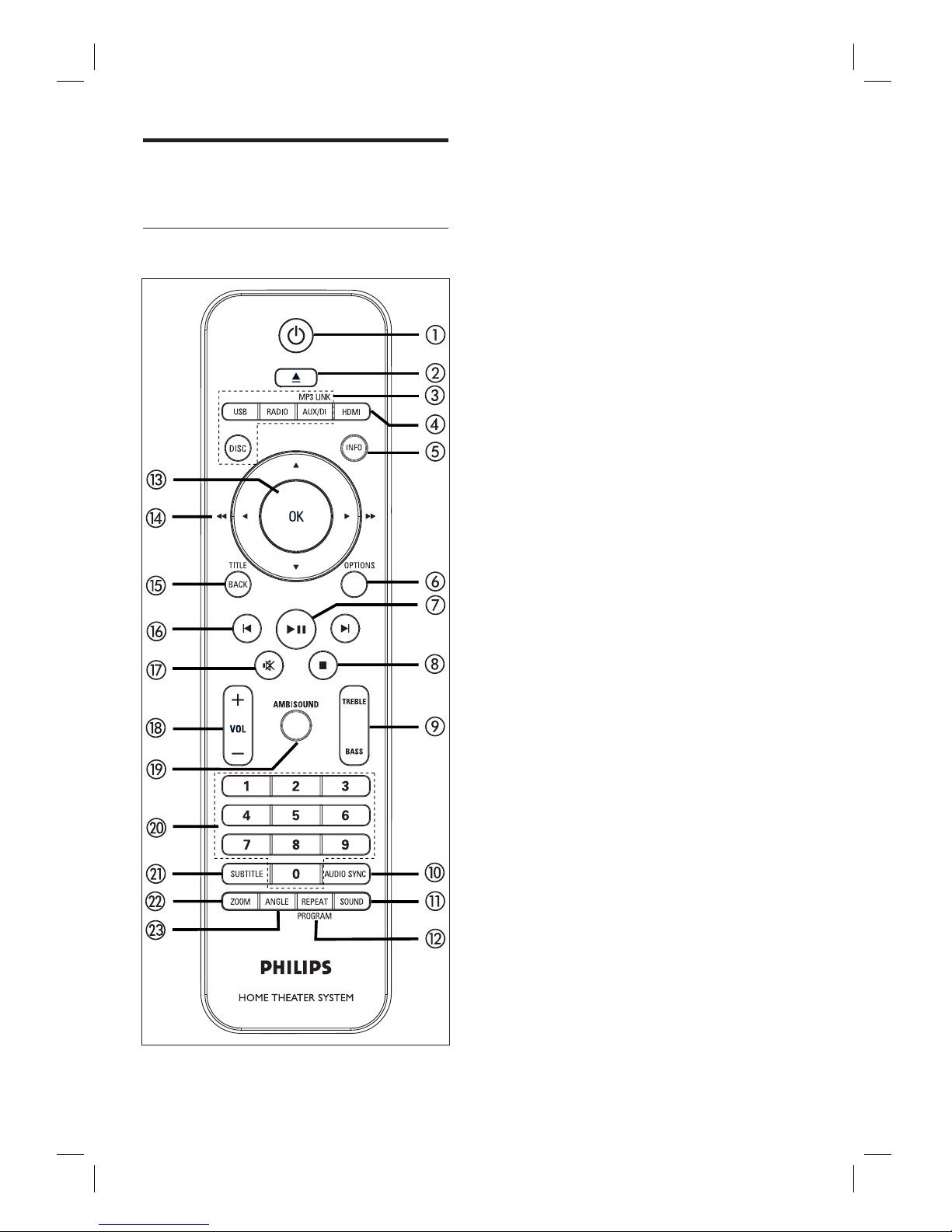

Remote control

Turn on this unit or turn off to standby

mode.

Press and hold to turn off this unit and

all the HDMI CEC compliant TV/

devices (for EasyLink control only).

bZ(Open/Close)

Open or close the disc compartment.

cSource buttons

DISC: switch to DISC mode. While in

disc mode, access or exit disc menu.

USB: switch to USB mode.

RADIO: switch to FM or AM/MW

band.

AUX/DI /MP3 LINK: switch to AUX1

INPUT, AUX2 INPUT, AUX3 INPUT,

DIGITAL INPUT or MP3 LINK that

corresponds to the socket you used to

connect the external device.

dHDMI

Select a video resolution setting for

HDMI output.

eINFO

Display the current status or disc

information.

Display photo ﬁles in 12 thumbnails

view.

fOPTIONS

Access or exit Options menu (this

menu provides various setting options).

gu(Play/Pause)

Start or pause disc play.

RADIO: start auto radio installation

(only available for ﬁrst time setup).

•

English

EN 9

Your product

hx(Stop)

Stop disc play.

RADIO: erase the current preset radio

station.

iTREBLE / BASS

Switch to treble or bass mode. Then

press VOL +- to set its level setting.

jAUDIO SYNC

Select an audio language/channel.

Press and hold to access audio sync

setting. Then press VOL +- to set

the audio delay time.

RADIO: toggle between FM stereo and

mono mode.

kSOUND

Select a predeﬁned sound effect.

lREPEAT / PROGRAM

Select various repeat or shufﬂe modes;

turns off repeat or shufﬂe mode.

RADIO: press this button to start

manual radio preset.

RADIO: press and hold this button to

start automatic radio preset.

mOK

Conﬁrm an entry or selection.

nCursor buttons (v V b B)

Navigate through the on-screen menu.

Press left or right for fast backward or

forward search.

RADIO:press up or down to tune the

radio frequency.

RADIO: press left or right to start auto

search.

•

oBACK / TITLE

Return to the previous display menu.

For DVD, go to title menu.

For VCD version 2.0 or SVCD with

PBC turned on: return to the menu

during playback.

pí/ ë(Previous/Next)

Skip to the previous or next title/

chapter/track.

RADIO: select a preset radio station.

qH(Mute)

Mute or restore the volume.

rVOL +-

Adjust the volume level.

sAMBISOUND

Select different surround sound

output: auto, multi-channel or stereo.

tNumeric buttons

Enter a preset number or item to play.

uSUBTITLE

• Select DVD or DivX subtitle language.

vZOOM

Zoom in or out the picture on the TV.

wANGLE

Select a different viewing angle of a

DVD movie.

•

10 EN

971

MP3 LINK

Main unit

a2 STANDBY-ON

Turn on this unit or turn off to standby

mode.

Press and hold to turn on this unit from

a low power standby mode.

bSOURCE

Select a play media: DISC, USB, RADIO

FM, RADIO AM/MW, DIGITAL INPUT,

AUX1 INPUT, AUX2 INPUT, AUX3

INPUT or MP3 LINK.

cVOL +-

Adjust the volume level.

dPLAY PAUSE u

Start or pause disc play.

RADIO: start auto radio installation

(only available for ﬁrst time setup).

STOP x

Stop disc play.

RADIO: erase the current preset radio

station.

eOPEN CLOSE Z

Open or close the disc compartment.

•

fDisplay panel

gDisc compartment

Left side panel

hMP3 LINK socket

To connect portable audio player.

i(USB) socket

• To connect USB ﬂash drive, USB

memory reader or digital camera.

•

Andere Handbücher für HTS6100/93

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Heimkinosystem Handbücher

Philips

Philips HTS3531/F7 Bedienungsanleitung

Philips

Philips HTS5510C/98 Bedienungsanleitung

Philips

Philips LX3600D/25 Bedienungsanleitung

Philips

Philips HTS3541/12 Bedienungsanleitung

Philips

Philips LX600 Betriebsanleitung

Philips

Philips HTD3510 Bedienungsanleitung

Philips

Philips HTB3520 Bedienungsanleitung

Philips

Philips HTS3264-Mk2 Bedienungsanleitung

Philips

Philips HTS3568DW/98 Bedienungsanleitung

Philips

Philips HTS5500C Bedienungsanleitung

Philips

Philips MCD700/93 Bedienungsanleitung

Philips

Philips HTS5120/12 Bedienungsanleitung

Philips

Philips HTD3542 Bedienungsanleitung

Philips

Philips MX6000I/22S Bedienungsanleitung

Philips

Philips HTS3325 Bedienungsanleitung

Philips

Philips HTS3511E Bedienungsanleitung

Philips

Philips MX2500 Bedienungsanleitung

Philips

Philips MCD107/51 Bedienungsanleitung

Philips

Philips MCD908/12 Bedienungsanleitung

Philips

Philips HTB3560K Bedienungsanleitung

Philips

Philips HTS3251/12 Bedienungsanleitung

Philips

Philips HTS3260/12 Bedienungsanleitung

Philips

Philips DS6800W/10 Bedienungsanleitung

Philips

Philips MCD802/12 Bedienungsanleitung

Beliebte Heimkinosystem Handbücher anderer Marken

Samsung

Samsung HT-ES4200K Bedienungsanleitung

Harman Kardon

Harman Kardon HS 100 Bedienungsanleitung

Samsung

Samsung HT-P10 Bedienungsanleitung

Goodmans

Goodmans GDVD19SWS Bedienungsanleitung

Moxi

Moxi media center Bedienungsanleitung

Samsung

Samsung HT-EM35 Bedienungsanleitung

LG HE903PAW Bedienungsanleitung

Bose

Bose SoundTouch 520 Bedienungsanleitung

Sony

Sony BDV-N990W Bedienungsanleitung

Manta

Manta GK-500 Bedienungsanleitung

Sharp

Sharp SBW800 Bedienungsanleitung

LG LHT799 Bedienungsanleitung

Samsung

Samsung HT-TWZ415 Bedienungsanleitung

Loewe

Loewe REFERENCE 52 SL FHD+ 200 NMP Bedienungsanleitung

Samsung

Samsung AH68-02166R Bedienungsanleitung

RCA

RCA 600-Watt Bedienungsanleitung

Sony

Sony HT-7100DH Bedienungsanleitung

Samsung

Samsung HT-DS630T Bedienungsanleitung
