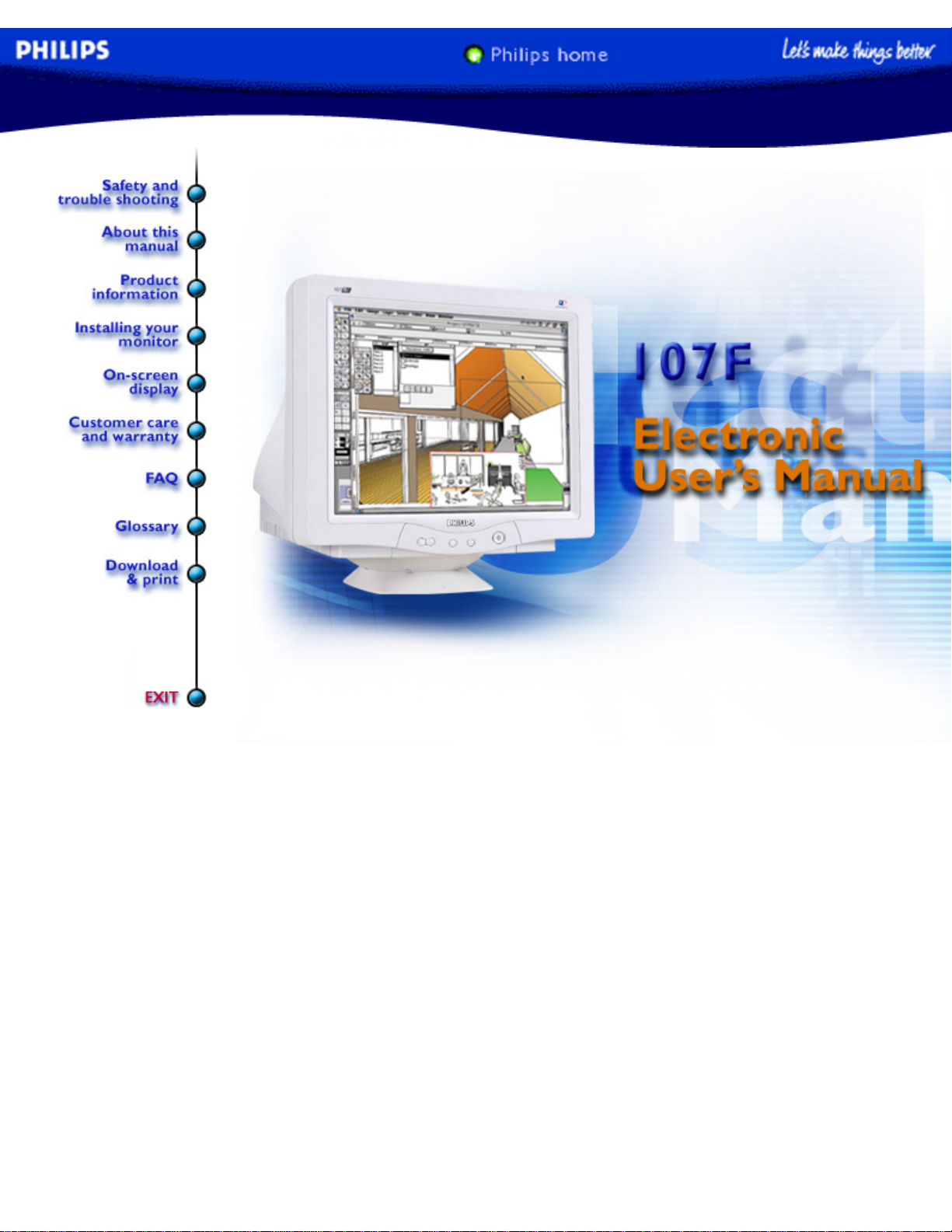

Philips 107E5 Montage- und Bedienungsanleitung

electronic user's manual

file:///D|/EDFU/crt_17_5/edoc/ENGLISH/107F/manual.html7/15/2004 5:32:10 PM

Safety & Troubleshooting

Safety and Troubleshooting Information

Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Other

Related Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments, or procedures other than those

specified in this documentation may result in exposure to shock, electrical

hazards, and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

●Disconnect the monitor from the power supply if the monitor is not to be used for an

extended period of time.

●Do not attempt to remove the back cover, as you will be exposed to a shock hazard. The

back cover should only be removed by qualified service personnel.

●Do not place objects on top of the monitor cabinet, objects could fall into vents or cover them

and prevent proper cooling of the monitor's electronic devices.

●To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain

or excessive moisture.

●Do not use alcohol or ammonia-based liquid to clean the monitor. If necessary, clean with a

slightly damp cloth. Disconnect the monitor from the power supply before cleaning.

●When positioning the monitor, make sure the power plug and outlet are easily accessible.

Consult a service technician if the monitor does not operate normally when operating instructions of

this manual are followed.

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_17_5/edoc/ENGLISH/107F/SAFETY/SAFETY.HTM7/15/2004 5:32:41 PM

About This Electronic User's Manual

About This Guide • Other Documents You May Need • Notational Descriptions

About This Guide

This electronic user's guide is intended for anyone who uses the Philips Color Monitor. It describes

the monitor's features, setup, operation and all other information, which is the same exact

information described in our printed version.

The sections are as follows:

●Safety and Troubleshooting Information provides tips and solutions for common problems,

and other related information you may need.

●About This Electronic User's Manual gives overview of what information are included as well

as notation icon descriptions and other documentation you can refer to.

●Product Information gives an overview of the monitor's features and as well as the technical

specifications for this monitor.

●Installing Your Monitor describes the initial setup process and gives an overview of how to

use the monitor.

●On Screen Display provides information on adjusting the settings on your monitor.

●Customer Care and Warranty is a list of worldwide Philips consumer information centers

along with the help desk phone numbers and information on the applicable warranty of your

product..

●Glossary provides more information for technical terms.

●Download allows users to install the entire manual on their hard drive.

●Frequently Asked Questions provides answers to commonly asked questions.

RETURN TO TOP OF THE PAGE

Other Documents You May Need

In addition to this Electronic User's Guide, you may need to refer to the following documentation:

file:///D|/EDFU/crt_17_5/edoc/ENGLISH/107F/ABOUT/ABOUT.HTM (1 of 3)7/15/2004 5:32:41 PM

About This Electronic User's Manual

●Philips Color Monitor Quick Start Guide which summarizes the steps for setting up the

monitor. This is included with this product.

RETURN TO TOP OF THE PAGE

Notational Descriptions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in

italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: This icon indicates important information and tips that help you make

better use of your computer system.

CAUTION: This icon indicates information that tells you how to avoid either

potential damage to hardware or loss of data.

WARNING: This icon indicates the potential for bodily harm and tells you how

to avoid the problem.

SMART HELP: This icon indicates helpful information when adjusting the On

Screen Display of your monitor.

Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such

cases, the specific presentation of the warning is mandated by regulatory authority.

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/crt_17_5/edoc/ENGLISH/107F/ABOUT/ABOUT.HTM (2 of 3)7/15/2004 5:32:41 PM

About This Electronic User's Manual

broadcasting in whole or in part is prohibited without written consent of Philips Electronics N.V.

file:///D|/EDFU/crt_17_5/edoc/ENGLISH/107F/ABOUT/ABOUT.HTM (3 of 3)7/15/2004 5:32:41 PM

107F Product Information

Product Information

Product Features • LightFrame™ for Windows • Technical Specifications • Automatic Power

Saving • Physical Specification • Pin Assignment • Product Views

Product Features

Model Regulation Color

107F51 MPRII Gray

107F56 MPRII Blue/Silver

107F5

●17-inch (16.0" VIS) color monitor with excellent front of screen performance for use with

MACs and PCs

●Autoscan covers horizontal frequencies up to 71 kHz offering a maximum resolution of 1280

x 1024 with flicker free display of 1024 x 768 at up to 89 Hz.

●Real Flat High Contrast CRT with high-resolution 0.25 mm dot pitch (0.21 hdp)

●LightFrame™ for brightest and sharpest display of movie and photo windows.

●Large screen display in a small footprint: 17-inch conventional monitor with maximum depth

of only 424 mm/16.7"

●Multimedia Base option.

●sRGB for true on screen color representation.

●FCC, CE (in selected countries only) and ISO9241, ISO14001 certified

RETURN TO TOP OF THE PAGE

LightFrame™ for Windows

file:///D|/EDFU/crt_17_5/edoc/ENGLISH/107F/PRODUCT/PRODUCT.HTM (1 of 12)7/15/2004 5:32:43 PM

107F Product Information

Introduction

Philips LightFrame™ feature enriches the experience of pictures and video on a Philips CRT

(picture tube) monitor. LightFrame™ will boost the brightness and sharpness of photos and videos

on the monitor screen.

To control the LightFrame™ feature in your monitor, you have to install the LightFrame™

application which you will find on this CD-ROM.

Note

Philips LightFrame™ will only work with monitors that have been built to use this software. Earlier

Philips monitors or other manufacturers’ monitors will not work with this special software. It is

recommended that you install this software only on a Philips monitor designed to use it. These

monitors can be identified by the LightFrame™ logo on the front of the monitor.

This software is not designed for use with LCD flat screen monitors.

LightFrame™ will work with true Windows-based programs and DOS-based programs that operate

in a Windows environment. It will not work with DOS-based programs operating only in a DOS

environment.

Language Selection

While English is the default language of LightFrame™, the User Interface can be set up to operate

in Dutch, French, German, Italian, Portuguese, Spanish, Simplified Chinese, Traditional Chinese or

Korean.

Installation

1) To install LightFrame™, place the CD in the CD-ROM drive.

2) Next, when the menu of items on the CD appears on your screen, click on 'Install

LightFrame™'.

file:///D|/EDFU/crt_17_5/edoc/ENGLISH/107F/PRODUCT/PRODUCT.HTM (2 of 12)7/15/2004 5:32:43 PM

107F Product Information

3) Now, follow the on-screen prompts to properly install the program. The software checks to

see if you have a compatible monitor. You must agree to the license agreement terms for the

software to install.

4) After installation, LightFrame™ automatically loads and the icon appears in the taskbar.

Notes

If LightFrame™ detects that your monitor is not LightFrame™ compatible, a message appears on

the monitor screen. If you see this message, you can select to abort or continue the installation.

However, if you continue the installation, LightFrame™ will probably not work on the monitor.

How to use LightFrame™

After installation, LightFrame™ starts up automatically whenever the computer is started.

For information about using LightFrame™ please refer to the help information which is available

after installation.

Compatibility

This version of LightFrame™ is compatible with

Windows® 95

Windows® 98

Windows® Me (Millenium Edition)

Windows® XP

Windows® 2000 Professional Edition.

LightFrame™ 3 -- Frequently Asked Questions (and answers)

LightFrame™

Q: Is LightFrame™ 2 compatible with LightFrame™ 3?

file:///D|/EDFU/crt_17_5/edoc/ENGLISH/107F/PRODUCT/PRODUCT.HTM (3 of 12)7/15/2004 5:32:43 PM

107F Product Information

A: No. If you run LightFrame™1 or 2 software with a Philips LightFrame™ 3 monitor, nothing

will happen.

Q:Can I use LightFrame™ 3 software on my LightFrame™ 1 / 2 monitor.

A:No for a LightFrame™ 1 or 2 monitor you need to use LightFrame™ 1 or 2 software. It is

however possible to use the LightFrame™ 2 software on a LightFrame™ 1 monitor.

Q:What is the difference between LightFrame™ 1, LightFrame™ 2 and LightFrame™ 3?

A:LightFrame™ 1 was the very first generation of the LightFrame™ feature introduced by Philips. In

that version the user needs to manually turn on/off the feature and select the window or area to

apply it to.

LightFrame™ 2 offers the automatic detection in Internet Explorer on top of the LightFrame™ 1

functions. With this feature LightFrame™ will automatically scan a web page in Internet Explorer,

find the largest picture and enhance it.

LightFrame™ 3 offers everything that LightFrame™ 2 has but now with the possibility to enhance

multiple pictures at the same time. So in a web page LightFrame™ will find all the pictures and

enhance them simultaneously or in a photo viewing application you can enhance multiple photos at

once. Furthermore LightFrame™ 3 comes with an easy to activate full screen function. This is

especially handy for games and movies. Just one click on the full screen button and LightFrame™

enhances your total monitor.

Q:Can I upgrade my current Philips monitor to LightFrame™ 3?

A:No. For LightFrame™ 3 Philips developed special hardware which is build into the monitor.

Therefore upgrading from LightFrame™ 1 or 2 to 3 is not possible. It is however possible to

upgrade your LightFrame™ 1 monitor to LightFrame™ 2 by installing the LightFrame™ 2 software.

Q:Can I install LightFrame™ 3 over an older version?

A:When you install LightFrame™ 3 the setup wizard will scan your system to check if you have an

older version installed. If so, the setup wizard will remove that version before continuing with the

installation of the new version. Please be aware that for LightFrame™ 3 you also need a monitor

file:///D|/EDFU/crt_17_5/edoc/ENGLISH/107F/PRODUCT/PRODUCT.HTM (4 of 12)7/15/2004 5:32:43 PM

107F Product Information

which is capable of running the LightFrame™ 3 feature.

Q:How can I tell which version LightFrame™ my monitor can support?

A:To check which version of LightFrame™ is supported by your monitor check the LightFrame logo

which you will find on the top, right-hand corner of the monitor. If this logo has a small 3 in it, your

monitor is ready for LightFrame™ 3. Otherwise you should use the LightFrame™ 1 or 2 software.

Q: How many windows can I enhance at the same time?

A:In LightFrame™ 3 it is possible to enhance up to 8 windows at the same time. It is however

important to understand that when other windows, toolbars or menus overlap the enhanced

windows, the maximum number of enhanced windows can be less.

Q:How many pictures can LightFrame™ enhance in Internet Explorer?

A:In Internet Explorer LightFrame™ 3 can enhance up to 16 pictures at the same time.

LightFrame™ 3 filters the pictures it finds based on the minimum size of the picture therefore it may

happen that some pictures are not enhanced when you open a web page.

Q:Can I enhance two or more area’s at the same time?

A:Yes. With LightFrame™ 3 you have the possibility to select several windows with pictures and

videos and enhance them at the same time.

Q:Some times my mouse changes to a light bulb with a plus sign and sometimes with a

minus sign. What is the difference?

A:The mouse pointer in the shape of a light bulb indicates that LightFrame™ is ready to accept a

selection from you for which window should be enhanced.

If there is a minus sign it means that you are moving over a window where LightFrame™ is already

active and clicking this window will switch the enhancement off. A plus sign appears when moving

over a window which is not enhanced and clicking that one will enable LightFrame™ on that

window.

Q:What is wrong when my mouse changes into a light bulb with a red cross?

A:Nothing. It just means that your mouse moves outside the application where you already have

one or more windows enhanced. You can only select windows with in the same application. The

file:///D|/EDFU/crt_17_5/edoc/ENGLISH/107F/PRODUCT/PRODUCT.HTM (5 of 12)7/15/2004 5:32:43 PM

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Monitor Handbücher

Philips

Philips 150C4FS Bedienungsanleitung

Philips

Philips 226V4L Bedienungsanleitung

Philips

Philips 272B7QUBHEB Bedienungsanleitung

Philips

Philips 170S7FG - 17" LCD Monitor Bedienungsanleitung

Philips

Philips LCD widescreen monitor 220EW8FB Bedienungsanleitung

Philips

Philips 243S5 Bedienungsanleitung

Philips

Philips i Line 241i8 Bedienungsanleitung

Philips

Philips Brilliance 329P9 Bedienungsanleitung

Philips

Philips 109F76 Bedienungsanleitung

Philips

Philips SoHo 150S4FG Bedienungsanleitung

Philips

Philips BDH5021V Bedienungsanleitung

Philips

Philips 220BW9 - Brilliance - 22" LCD Monitor Montage- und Bedienungsanleitung

Philips

Philips 191EW9 Bedienungsanleitung

Philips

Philips Brilliance 328P6AUBREB/11 Bedienungsanleitung

Philips

Philips 42PFL4755/V7 Bedienungsanleitung

Philips

Philips Brilliance 200P4VB Bedienungsanleitung

Philips

Philips 19B4LPCS/00 Bedienungsanleitung

Philips

Philips 150S7FG/05 Bedienungsanleitung

Philips

Philips Brilliance 170P6EB Bedienungsanleitung

Philips

Philips 107E76 Bedienungsanleitung

Philips

Philips 237E4QSD/93 Bedienungsanleitung

Philips

Philips 19P4QYEB/11 Bedienungsanleitung

Philips

Philips 7BM749-00H Bedienungsanleitung

Philips

Philips 220BW8ES/00 Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung

LG M1950D-PZ Bedienungsanleitung

Sceptre

Sceptre D40 Bedienungsanleitung
