Philips AY4301 Bedienungsanleitung

Max7BT Model Name

Attn.: Arcelia Maldonado

EMC Compliance Management Group

670 National Avenue,

Mountain View, CA 94043

Date: July 23, 2004

To Whom It May Concern:

Concerning the product model name. The Max7BT will be labeled and sold under the

model name “AY4301”.

Please refer to the product labeling for additional information.

Yours Sincerely,

Victor Beda

EET

UUnnpplluugg ssaaffeellyy

To avoid loss of data, disconnect your player safely.

Exit any active application working with your player. PPCC uusseerrss: click on the task tray.

MMaacc uusseerrss: rag and drop your player into TTrraasshhbefore disconnecting.

Remove the USB cable.

AATTTTEENNTTIIOONN!!

WIN OWS 98SE USERS:

To avoid installation problems, OO NNOOTT CCOONNNNEECCTTyour player to your

computer until AAFFTTEERRinstallation completes.

PPrreeppaarraattiioonnss

CCoonnnneecctt ppllaayyeerr ttoo ccoommppuutteerr

Open the USB cover. Connect your player to your computer using

the supplied USB cable.

IInnssttaallll

Insert the supplied C into your computer’s C -ROM drive.

Follow screen instructions to complete installation.

OOrrggaanniizzee aanndd ttrraannssffeerr mmuussiicc vviiaa MMMM // MMUUSSIICCMMAATTCCHH

Launch MM/ MUSICMATCH on your PC from Windows desktop

or SSttaarrttmenu.

Launch MM on your MAC from desktop or MMaacciinnttoosshh HH.

Organize and transfer music files from your computer to your player.

TIP

Please refer to your computer’s manual for the exact position of

your USB port. Look for the USB symbol on the processing unit of

your computer.

✔

CChhaarrggee

Open the USB cover. Connect the supplied charger to the USB port

and the main power supply. For extended battery power, please

charge for at least 4 hours for first time use.

TIP

This indicator shows your battery information during charging.

✔

PPoowweerr oonn aanndd eennjjooyy!!

Press and hold 22;;for 2 seconds to power on if the player does not

power on automatically. Enjoy your new running / music experience!

PSA26028thmay.qxd 28/5/04 18:26 Page 1

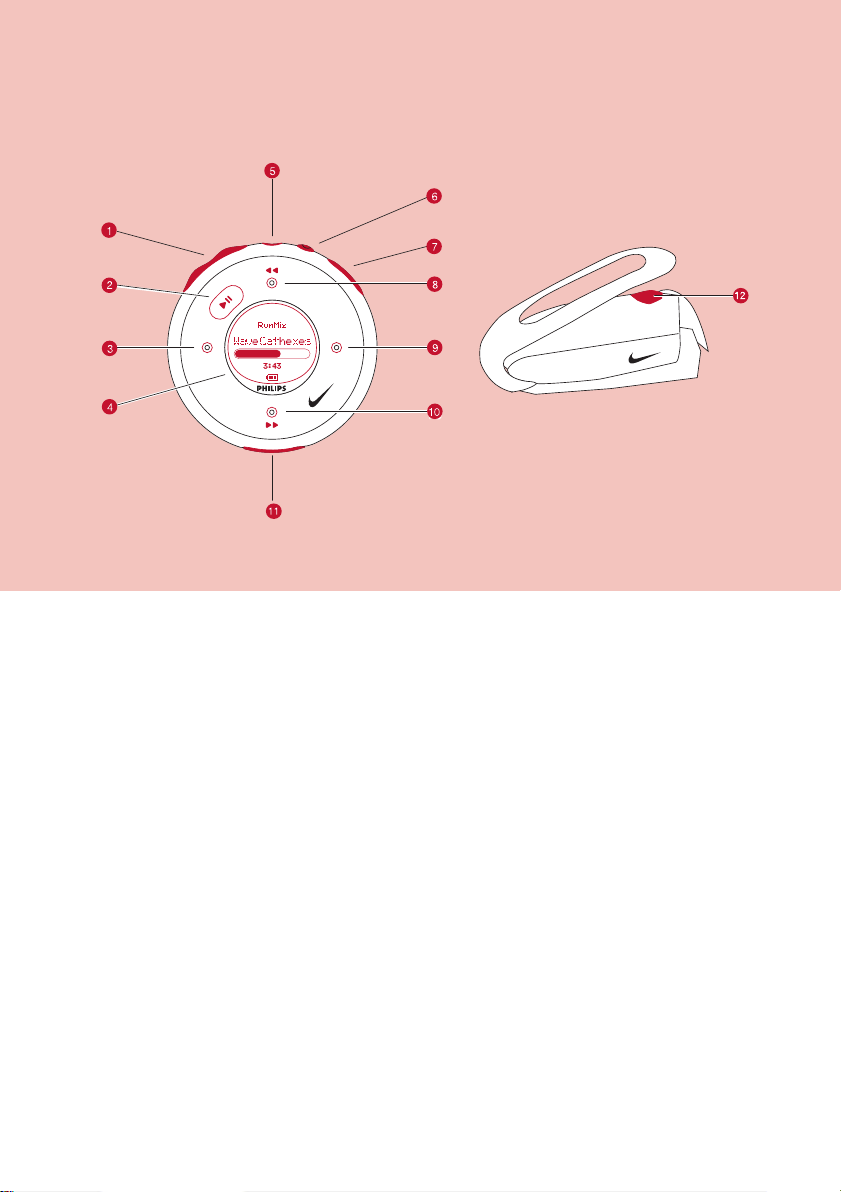

NNaammee ooff PPaarrttss

1−−// ++Volume control, press −−to decrease; press ++to increase

222;;Press and hold to power on / off; press briefly to play / pause

311Left

4LLCC ddiissppllaayyynamically displays menu, options and track information

5HHeeaaddpphhoonneess jjaacckkConnects headphones or waistband remote control

6VVooiiccee ffeeeeddbbaacckkActivates running feedback

7RRuunnStarts / stops recording running activities

833 , 55Up / Previous / Fast rewind

922Right

044 , 66own / Next / Fast forward

!UUSSBB ppoorrtt //Open cover to connect to computer / charge your player

CChhaarrggiinngg ssoocckkeett

@SSMMPower ON / OFF speed and distance monitor

PSA26028thmay.qxd 28/5/04 18:26 Page 2

MMeennuu NNaavviiggaattiioonn

MMuussiiccPPllaayylliissttss

AArrttiissttss

AAllbbuummss

GGeennrreess

AAllll TTrraacckkss

RRaaddiioo

SSeettttiinnggssSSttrroobbee lliigghhtt

SShhuuffffllee && RReeppeeaatt

BBBB

EEqquuaalliizzeerr

BBaacckklliigghhtt

CCoonnttrraasstt

LLaanngguuaaggee

SSyynncchhrroonniizzee

Press and hold 22;;to power on.

Press and hold 11for the root menu.

See specific chapters for details of each setting.

e.g. Playlist001... PlaylistXXX

e.g. A ... Z

Preset 1

Preset 10

Autosearch

...

11 22

own

Left Right

e.g. A ... Z

RRuunnnniinnggHHiissttoorryyList of Freerun logs by date

CCaalliibbrraattiioonnMMaannuuaall

AAuuttoommaattiicc

FFaaccttoorryy sseettttiinnggss

VVooiiccee ffeeeeddbbaacckk

iissttaannccee uunniittss

PSA26028thmay.qxd 28/5/04 18:26 Page 3

Press and hold 22;;to power on.

From the root menu, press 22to enter the music mode.

Any radio playback will stop as you enter the music mode.

Press 33to scroll up or 44to scroll down for your option.

Press 22for next or 11for previous levels of library.

Press 22;;to play.

MMuussiicc MMooddee:: BBaassiicc OOppeerraattiioonn

Library options Artists list

Playscreen

Press 33 ,33for the previous or 44, for the next track.

Press 33 to play the same track again.

Press and hold 44to fast forward or 33 to rewind in a track during playback.

Press and hold 22;;to power off. Your player will save your current

music playback status and resume next time you power on.

Press 22;;to pause during playback.

*Actual display varies with use 4

TIP

> To display library options during playback, press 11.

> To display the root menu, press and hold 11.

✔

PSA26028thmay.qxd 28/5/04 18:26 Page 4

MMuussiicc MMooddee:: LLiibbrraarryy OOppttiioonnss aanndd FFaasstt SSccrroolllliinngg

Press 33 to scroll up or 44 to scroll down for your library option.

Press 22 on AArrttiissttto display the artist library

Press 22for the next or 11for the previous level of library.

Artists list in alphabetical order

Press and hold 44for 2 seconds to scroll down quickly.

Press and hold 33for 2 seconds to scroll up quickly.

Release button to stop scrolling.

Browsing tracks quickly.

*Actual display varies with use 5

PSA26028thmay.qxd 28/5/04 18:26 Page 5

IInnssttaalllliinngg tthhee ssppeeeedd aanndd ddiissttaannccee mmoonniittoorr

Use an appropriately-sized coin to twist clockwise to open the speed monitor

battery door. Remove the plastic insert (first time users only). Insert an AAA

alkaline battery with matching polarity. Replace the battery door, pressing

fully in and twist anti-clockwise to secure the closing.

Press and hold 22;;for 2 seconds to power on your player.

Press SSMMfor 2 seconds to power on the monitor. You monitor will blink.

The monitor is now ready to record your running activities.

Unhook the rubber strap and detach the clip. Loosen shoelaces and slide

monitor clip under laces. Securely attach the monitor to your running shoe.

The monitor should rest just below where laces tie and be secure enough to

stay in place during running for optimal accuracy.

TBD

After running is completed, terminate the logging (see page 11).

Press and hold SSMM for 2 seconds to power off your monitor after use.

TIP

Batteries contain chemical substances, so they should be disposed of

properly.

Incorrect use of batteries can cause the electrolyte leakage

and will corrode the compartment or cuase the batteries to burst.

Remove the batteries if the set is not to be used for a long time.

✔

AATTTTEENNTTIIOONN: Anyone beginning an exercise regimen for the first time

(especially users of pacemakers or other implanted devices) should

consult a physician or health professional before using the MP3RUN.

TIP

> Your S M automatically shutdown when there is no connection with

your player for 10 minutes or no activity is detected for 30 minutes.

Press SSMMfor 2 seconds to power on the monitor again.

> Replace the battery when your monitor blinks rapidly (usually after 50 hrs

of use for a high quality alkaline battery).

✔

PSA26028thmay.qxd 28/5/04 18:26 Page 6

Press and hold 22;;for 2 seconds to power on your player.

From the root menu, press 44, 44, 44, 22to enter the settings mode.

Select SSYYCCHHRROONNIIZZEEand press 22. Press 22;; for 4 seconds to start synchronization

when prompted.

IIMMPPOORRTTAANNTT!!

Your player will link with the first monitor which gives out signals.

Make sure there is no activated sensors within 15 meters.

Press and hold SSMMon your monitor for 2 seconds.

The speed and distance monitor light will blink rapidly.

Wait for the player screen to display

SSyycchhrrnnooiizzee ccoommpplleettee.

Your player is now synchronized with your monitor.

2 SEC

TBD

SSyynncchhrroonniizziinngg ppllaayyeerr wwiitthh

ssppeeeedd aanndd ddiissttaannccee mmoonniittoorr

Please synchronize your player with the speed and distance monitor if:

> you have bought a new speed and distance monitor; or

> you cannot establish connection between your player and the speed and distance monitor

*Actual display varies with use

PSA26028thmay.qxd 28/5/04 18:26 Page 7

RRuunnnniinngg mmooddee:: AAuuttoommaattiicc ccaalliibbrraattiioonn

Press and hold 22;;to power on.

From the root menu, press 44, 22 to enter the running mode.

To calibrate the speed and distance sensor, select CALIBRATION > AUTOMATIC.

Press RUN and start running 400 metres on the inner lane of a marked track as prompted.

Press RUN again when you have completed your track.

Press 22;; to save the calibration value.

TIP

If you want to stop the calibration during running, press 11 to

discard the calibration value.

✔

Your speed and distance sensor provides unprecedented accuracy right out of the box.

In addition, an optional calibration procedure can be performed to guarantee optimal accuracy

for a specific user, which will correct for individual stride variations such as pronation or supina-

tion. Calibration can be performed either automatically or manually.

*Actual display varies with use

PSA26028thmay.qxd 28/5/04 18:26 Page 8

RRuunnnniinngg mmooddee:: MMaannuuaall ccaalliibbrraattiioonn

Press and hold 22;;to power on.

From the root menu, press 44, 22 to enter the running mode.

To calibrate the speed and distance sensor, select CALIBRATION > MANUAL.

Press 33or 44to select calibration offset (from 0.50 to 1.50). Change the offset value

to make small adjustments. If the monitor is under measuring a known distance,

increase the offset value. ifferent shoe models may affect the monitor’s calibration.

Adjust the offset value accordingly if you notice differences between shoes.

To optimize S M performance for different running style, you can manually

calibrate the S M.

TIP

> If you run 400m and the monitor returns a reading of 380m (5% under), you

should adjust the offset value to 1.05.

> Write down and keep your offset value. It will come in handy if your friends

borrow your MP3RUN and they change your calibration setting.

✔

*Actual display varies with use

PSA26028thmay.qxd 28/5/04 18:26 Page 9
