Home Cinema Projector

Garbo

Philips

User guide

English

Packaging contents 4

Optional accessories 4

5-8

Controls 5-6

Remote control 7

Connections 8

9-10

Positioning the projector and screen 9

Switching on the projector 9

Adjusting the focus and size of the image 10

Adjusting the vertical angle of the projector 10

Keystone correction 10

Moving/transporting the projector 10

Preparation 10

Moving/transporting the projector 10

Inserting the batteries in the remote control 10

11-16

General information 11

Video input 11

Computer input 11

Universal Serial Bus (USB) 11

External monitor connection 11

Connecting to video equipment 12-14

CVBS 12

S-VHS 12

Scart connection 12

Component/HDTV (Pr,Y, Pb/ Cr,Y, Cb) 13

Scart connection (RGBS) 14

Connecting to a computer 15-16

PC/Macintosh 15

Connection to an external monitor 16

1. Introduction

2. Functional overview

3. Set up

4. Installation

Philips Home Cinema Projector English User guide Garbo 2

Index

17-26

Preparation 17

General 17

Messages 17

General explanation 17

Feedback messages 17

Some examples 17

On Screen Display Menu 18-26

Menu tree 18-19

General explanation 20

Video/S-Video adjustments 21

Picture adjustments 21

Display adjustments 21

Computer adjustments 22-25

Picture adjustments 22

Display adjustments 22

Some examples 23

Picture Format 23

Vertical Shift 23

Digital Zoom/Magnification 24

Auto image 24

Horizontal size 24

Shift 25

General adjustments 26

Audio adjustments 26

General settings 26

27-29

Cleaning 27

Cleaning the cabinet 27

Cleaning the lens 27

Cleaning the dust filter 27

Lamp 28

Lamp replacement 28-29

Resetting the lamplife time 29

30-33

5. Operation

6. Maintenance

7.Troubleshooting

Philips Home Cinema Projector English User guide Garbo 3

Index

Congratulations on your purchase of one of the most sophisticated and reliable products on the

market today.We are sure that, used properly, it will bring you years of enjoyment.You will want

to keep this manual handy, as it is a convenient source of information about your projector.

For your own protection and prolonged operation of your projector,please read the enclosed

Safety Sheet.

Please confirm that the following items are packed in the projector box.They are provided to

help you use or set up your projector.

Projector Remote control + batteries Audio/Video RCA Cable

Lens cap - 3122 434 21540 2 x AAA Zinc Carbon, 1.5 V 4822 320 12281

3139 228 60500

VGA Cable S-Video cable Mains Lead

3122 438 75110 3122 438 75140 Europe:4822 321 11399

USA: 4822 321 11294

UK: 4822 321 11431

Printed User Guide Cd-rom (with Projection Assistant, Quick set up Card and

3103 435 90030 Warranty card,User Guide, Safety Sheet

Data sheet and more.) 3103 435 9000

3103 438 70060

Scart/RCA Audio Video Scart/RCA component

adapter (not for USA version) Video adapter (not for USA version)

2422 033 00345 3122 438 71170

• LCA 1120/00 - Soft bag - 8670 911 20009

• LCA 3116/00 - 132 W replacement lamp - 8670 931 16009

• LCA 2211/00 - Ceiling mount - 8670 922 11009

• LCA 5310/00 - MonitorY-cable - 8670 953 10009

• LCA 5300/00 -VGA extension cable (15 m) - 8670 953 00009

For further information on parts and accessories, please contact the dealer from which you purchased

your Philips projector.

Packaging contents

Optional accessories

Note

Philips Home Cinema Projector English User guide Garbo 4

1. Introduction

LASER

VOLUME

OKMENU

STANDBYAV MUTE

D-ZOOMD-FREEZESOURCE

MOUSE RIGHTLEFT RIGHTLEFT

To mute the sound of the projector and to mute the picture.

To select the current projection source (Computer, Component, S-Video orVideo).

The button toggles between the four signals.

To adjust the volume.

To activate and deactivate the menu.

To confirm actions in the menu when the menu is on screen.

To switch the projector in or out of the Power/Standby mode.

The Standby indicator (text on button/ring around button):

–lights up orange when the projector is warming up;

–lights up red when the projector is in Power/Standby mode;

–lights up green as when the projector is operating;

–slowly blinks orange when the projector is cooling down.

–Lights up red in case of temperature error.

–Flashes in case of fan error.

–Lights up green when the lamp is on.

–Lights up orange when lamp life has almost expired.

–Lights up red when lamp life has expired.

–Fast blinks red when lamp start has failed.

To receive the signals from the remote control.

When the menu is active the Cursor Control controls the menu cursor to navigate through the

OSD menu.The cursor control works with up/down and left/right button operation.

To adjust the focus of the projected image.

To adjust the size of the projected image.

A(udio)/V(ideo) Mute 1

Source 2

– / + 3

Menu 4

OK 5

Standby/

Standby indicator 6

Temperature indicator 7

Lamp indicator 8

IR sensor 9

Cursor Control 0

Focus ring !

Zoomring @

Philips Home Cinema Projector English User guide Garbo 5

2. Functional overview

Menu OK

Mute Source

Stand

Lamp

Tem p

Menu OK

Mute Source

Stand

Lamp

Tem p

789

123

Controls

To adjust the vertical angle of the projector.

To connect the projector to the mains.

To insert an optional locking device (Kensington lock).

Height/Level adjuster #

Dust filter $

Mains inlet socket %

Lock slit ^

Lamp compartment &

Philips Home Cinema Projector English User guide Garbo 6

2. Functional overview

%^&

Controls

2. Functional overview

To switch the projector in or out of the Power/Standby mode.

Function as the Left and Right mouse keys of your PC when USB or PS/2 connection has been

made.

To adjust the volume.

To activate and de-activating the menu.

To mute the sound of the projector.

To select the current projection source (Computer, Component, S-Video orVideo).

The button toggles between the four signals.

To capture a (moving) picture.The button toggles between the Freeze mode and the display

situation.

To switch the‘Digital Zoom’function‘On’or‘Off’(toggle button). In ‘On’condition, the zoom

centre can be selected using Cursor Control and the image is magnified with the zoom factor

chosen under‘Magnification’.

To mute the sound of the projector and to mute the picture.

To manipulate the mouse cursor on the connected computer as long as the menu is not active.

When the menu is active the Cursor Control controls the menu cursor to navigate through the

OSD menu.The cursor control works with up/down and left/right button operation.

The Cursor Control can only function as a mouse cursor when projector and computer are connected

via the USB or PS/2 connectors.Windows 98,Windows ME,Windows 2000 orWindows XP should be

installed on the computer when you make the USB connection.

To confirm actions in the menu when the menu is on screen.

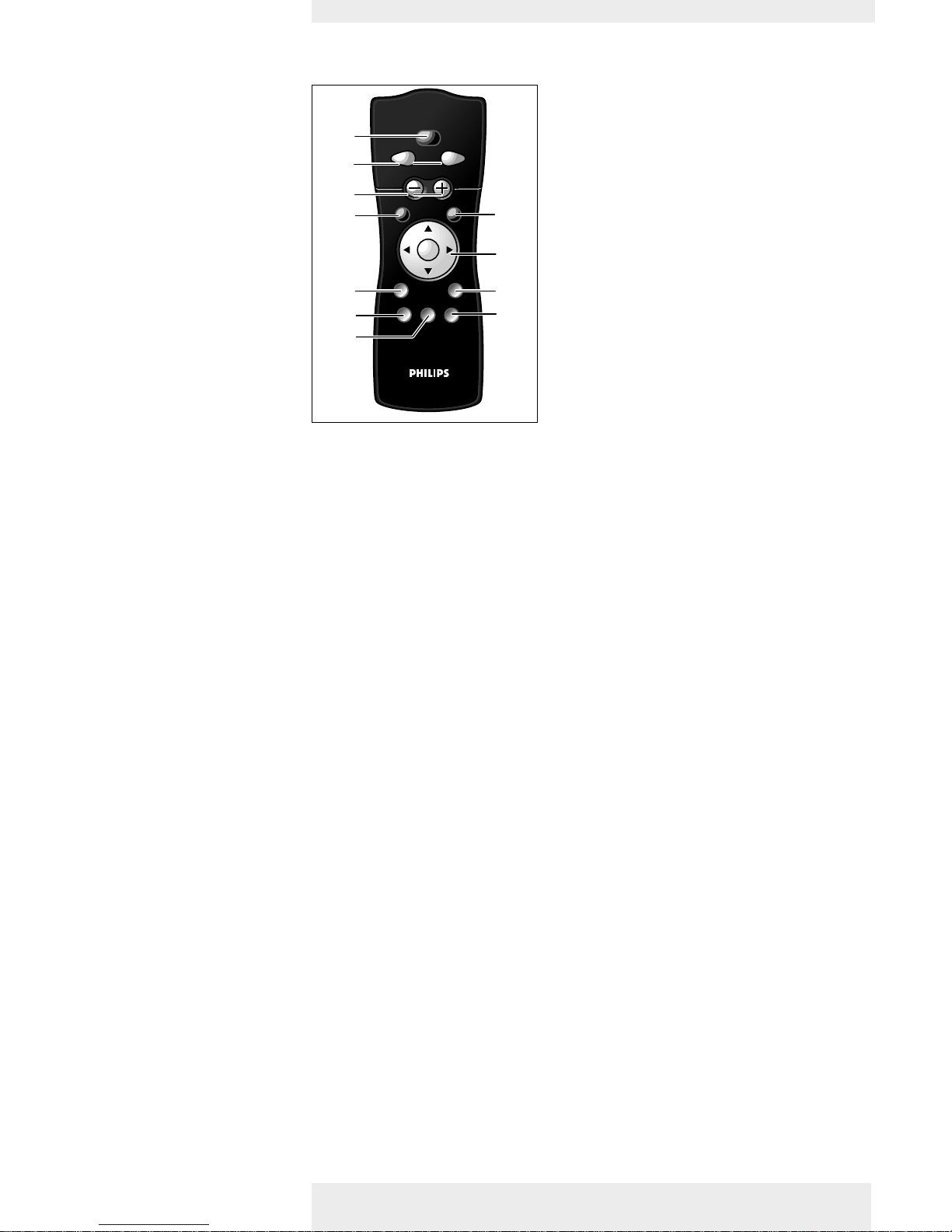

Stand by On 1

Mouse Left/Right 2

–Volume + 3

Menu 4

Mute 5

Source 6

D(igital)-Freeze 7

D(igital)-Zoom 8

A(udio)/V(ideo) Mute 9

Cursor Control 0

Note

OK !

Philips Home Cinema Projector English User guide Garbo 7

<Remote control

VOLUME

OKMENU

MUTE

D-ZOOMD-FREEZESOURCE

MOUSE RightLeft

Volume

OKMenu

Stand by

Mute

D-ZoomD-FreezeSource

Mouse RightLeft

AV MUTE

AV Mute

Video source connections

Input sockets to connect to DVD- and HDTV-video equipment

These sockets can be connected to the following output sockets: RGB-Y, YCbCr, YPbPr

(480p, 720p, 1080 i).

Input socket to connect to theVideo out socket of a video recorder, Laser Disc player, video

camera, DVD player, orTV with AV output socket.

This socket can be connected to CVBS output sockets.

Input sockets to connect to the Audio out sockets of a video recorder, laser disc player, video

camera orTV with A/V output socket.

Input socket to connect to the S-Video out socket of a S-VHS video recorder, aVCR,

Laser Disc player, DVD player, video camera orTV with AV output socket.

This socket can be connected to a S-Video/S-VHS (Y/C) output socket.

Data source connections

Input socket to connect to the Data out terminal of a computer.

Input socket to connect to the Audio out terminal of a computer.

In-/Output socket to connect a PC or Apple Macintosh computer equipped with a USB

downlink connection.When USB connection is used the mouse cursor on the connected

computer can be controlled via the projector remote control. Make sure Windows 98,

Windows ME, Windows 2000 orWindows XP is installed on the computer.

In-/Output socket to connect a PC or Apple Macintosh computer equipped with a PS/2

connection.When PS/2 connection is used the mouse cursor on the connected computer can

be controlled via the projector remote control.

Component in 1

Video 2

Audio L/R 3

S-Video 4

Computer 5

Audio in Computer 6

USB (upstream) 7

PS/2 8

Philips Home Cinema Projector English User guide Garbo 8

2. Functional overview

PS/2USB

Audio L

Audio R

Video

S-Video Data Audio in Data PS/2USB

Audio L

Audio R

Video

S-Video Data Audio in Data

578

1234

<Connections

3. Set up >

•Place the projector on a stable, level surface, out of direct sunlight and away from sources of

excessive dust,dirt, heat, water, moisture, vibration and strong magnetic fields.

•Allow sufficient cooling of the product by keeping all air inlets and outlets clear from

obstructions.

•Position the projector in such way that the viewers cannot watch into the projector light beam.

•Choose a screen size suitable for the number of viewers and the size of the room.

•Picture quality is best when you sit directly in front of the projector screen.

•The projector can be used for both front projection, rear projection and ceiling projection

applications.As default factory setting, the projector has been set up for front projection.You

can change to rear or ceiling projection via the‘Mirror’function in the‘Picture’menu.

1Insert the mains lead into the projectors Mains inlet socket and connect it to the wall socket.

–The Standby indicator lights up red,the projector is now in the Power/Standby mode.

2Remove the lens cap.

3Press any button on projector or remote control to switch on the projector.

–The Standby indicator lights up orange.

–When the projection lamp is on, the Standby indicator lights up green and the start-up

screen appears for several seconds.

4Press the Standby button to switch the projector back into the Power/Standby mode.

–The StandbyWarning screen will appear for 20 seconds.

•The StandbyWarning screen can be removed by pressing the OK button.

5Press the Standby button again to confirm.

–The projector will now go into Power/Standby mode.

You can also press the Standby button twice in succession to switch the projector into Power/Standby

mode immediately.

6To switch off the mains supply completely, disconnect the mains lead.

Save energy! Please put the projector in the Power/Standby position if you are not going to use the

projector for more than 15 minutes.

When no signal inputs are detected for 30 minutes, the projector automatically switches to Power/

Standby (Auto Standby).This setting can be changed in the ‘Settings’ menu

Before disconnecting the mains lead, make sure that the cooling fan has stopped (about 3 minutes

after the projector has been switched to Power/Standby).

Positioning the projector

and screen

Switching on the projector

Notes

Philips Home Cinema Projector English User guide Garbo 9

SCREEN

Front projection Ceiling front projection

Rear projection Ceiling rear projection

Menu OK

Mute Source

Stand

Lamp

Tem p

Menu OK

Mute Source

Stand

Lamp

Tem p



Warning







If the projector is switched off you have to wait

1 minute before you can switch on the projector 

again.



Press stand-by ey again to confirm.

Press OK ey to remove this warning.

PHILIPS

Home Cinema Projectors

•Use the Zoom ring to adjust the size of the image.

•Use the Focus ring to adjust the focus of the image.

To raise:

•Keep knob A pressed and lift to raise the projector.

–The Height/Level Adjuster B will come out.

To Lower:

•Keep knob A pressed and gently lower the projector.

•Use the Focus Ring and Zoom Ring to readjust the focus and size of the image.

If projector and screen are not properly placed, the picture will be distorted, producing a

keystoned image (picture top width larger than picture bottom width or vice versa).When a

keystoned image occurs the image ratio (4:3, 16:9) will still be guaranteed.This is especially

important when the projector is being used together with an ‘intelligent whiteboard’.

‘Keystone correction’allows you to correct picture distortion of the vertical keystone type by

internal scaling.This correction function is accessible through the‘Keystone Correction’option in

the‘Settings’menu of the On Screen Display (OSD) menu.

Preparation

1Press the Standby button twice to put the projector in Power/Standby.

–The Standby indicator starts blinking orange.

2Wait until the cooling fan has stopped (about 3 minutes after the projector has been put in

Standby) and disconnect the mains lead and all other cables.

3Put the lens cap back in place to prevent dust,dirt or other contamination from harming or

damaging the front of the projector lens when moving the projector.

Never place the projector on the side where the connections are located.

Moving/transporting the projector

The projector contains many glass and precision parts. If you need to transport the projector,

please follow these packing instructions to pervent accidental damage to the projector.

•When you are hand-carrying the projector, be sure to use a carrying case like the optional

softbag.

•When shipping the projector, use the original packaging material if possible. If you do not

have the original packaging, use equivalent materials, placing plenty of cushioning around the

projector.

•When transporting the projector as freight or checked luggage, first put it in a carrying case,

then pack it in a firm box,using cushioning around the case.

1Push and slide the lid in the direction of the arrow.

2Install two‘AAA’batteries as indicated inside the battery compartment.

3Replace the lid and snap it into place.

The maximum range of the remote control is approximately 15 m (± 50 feet).

Adjusting the focus and

size of the image

Adjusting the vertical angle

of the projector

Keystone correction

Moving/transporting the

projector

Note

Philips Home Cinema Projector English User guide Garbo 10

3. Set up

Focus ring

Zoom ring

PS/2

USB

AudioL

AudioR

Video

S-VideoDataAudioinData PS/2

USB

AudioL

AudioR

Video

S-VideoDataAudioin Data

Inserting the batteries in

the remote control

Note

Andere Handbücher für Garbo

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Philips Projektor Handbücher

Philips

Philips Screeneo S6 Bedienungsanleitung

Philips

Philips NeoPix 110 Bedienungsanleitung

Philips

Philips PicoPix PPX2450 Bedienungsanleitung

Philips

Philips NeoPix Ultra One+ Bedienungsanleitung

Philips

Philips Screeneo U5 Bedienungsanleitung

Philips

Philips PPX 3610 Bedienungsanleitung

Philips

Philips Screeneo HDP2510 Bedienungsanleitung

Philips

Philips ProScreen PXG20 Bedienungsanleitung

Philips

Philips LC4745 Bedienungsanleitung

Philips

Philips NeoPix Prime NPX540/INT Bedienungsanleitung

Philips

Philips NeoPix Easy 2 Bedienungsanleitung

Philips

Philips PicoPix Nano PPX120 Bedienungsanleitung

Philips

Philips bCool SV1 Bedienungsanleitung

Philips

Philips PICOPIX PPX1230 Bedienungsanleitung

Philips

Philips LC3132 - bSure SV2 SVGA LCD Projector Bedienungsanleitung

Philips

Philips LC7181 - Garbo Matchline WVGA LCD Projector Bedienungsanleitung

Philips

Philips NeoPix Easy Play NPX442/INT Bedienungsanleitung

Philips

Philips PicoPix Max PPX620 Bedienungsanleitung

Philips

Philips NeoPix 320 Bedienungsanleitung

Philips

Philips Screeneo U4 Bedienungsanleitung

Philips

Philips NeoPix Start+ Bedienungsanleitung

Philips

Philips HDP1690 Bedienungsanleitung

Philips

Philips PicoPix PPX2230 Bedienungsanleitung

Philips

Philips Hopper 20 series Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung

Asus

Asus ZenBeam Latte Bedienungsanleitung
