Philips SDV2940/05
Indoor/Outdoor UHF/VHF Television Aerial
Important installation information
The SDV2940/05 uses a power injection module to power the aerial ampli-
fier.

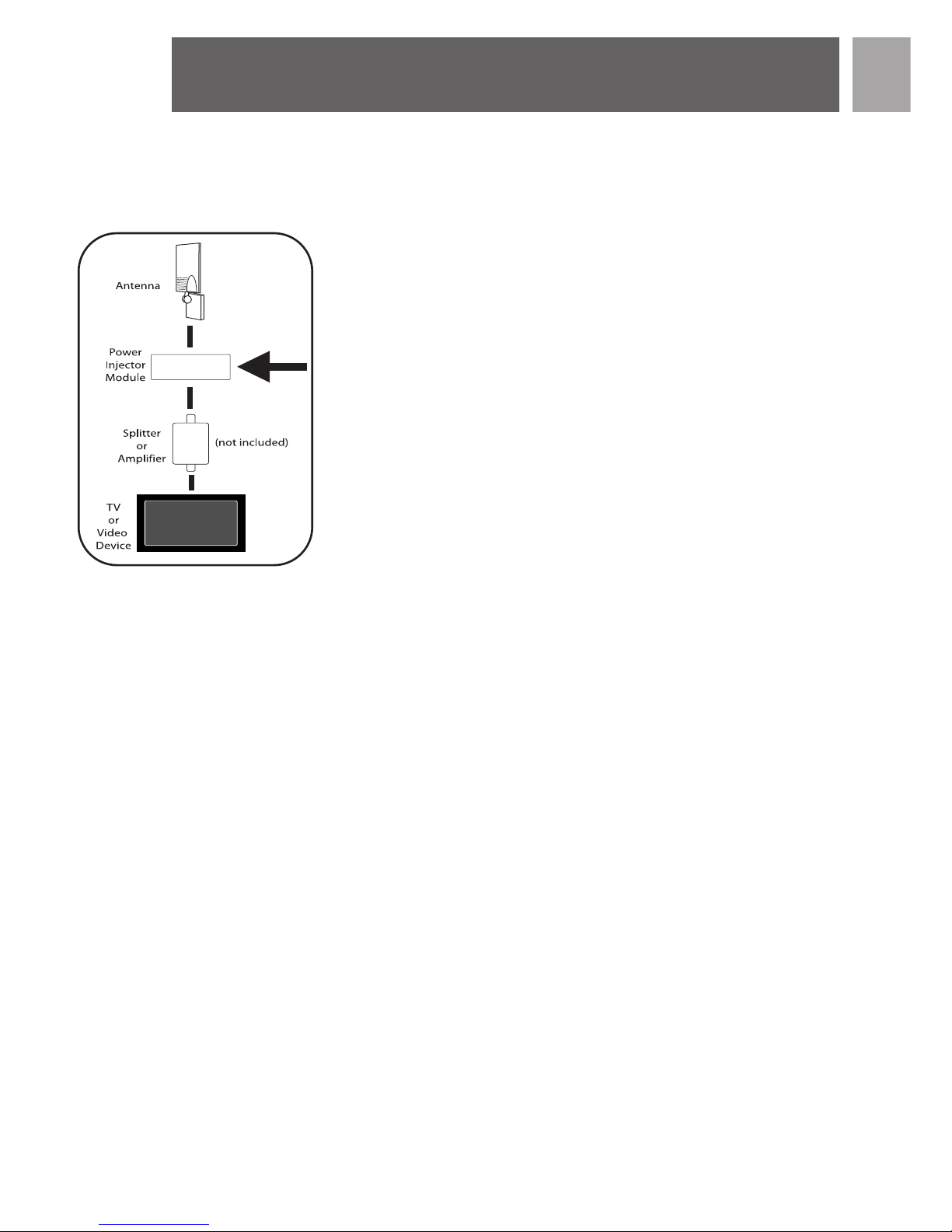

It is essential for proper operation of this aerial system that the amplifier be
connected between the aerial and any devices such as splitters, matching
transformers, networks, etc. SEE DIAGRAM TO LEFT.
Disregarding this important notice may result in damaging the power injec-
tor or improper operation / poor performance.
Parts included:
1. SDV2940 Aerial . . . . . . . . . . . . . . . . .1
2. Power supply 230V to 6VDC . . . . .1
3. Wall / Mast Bracket . . . . . . . . . . . . . .1
4. Nuts . . . . . . . . . . . . . . . . . . . . . . . . . .2
5. U-Bolts . . . . . . . . . . . . . . . . . . . . . . . .2
6. Mast clamps . . . . . . . . . . . . . . . . . . . .2
7. Nuts with lock washers . . . . . . . . . .4
7. L-Bracket . . . . . . . . . . . . . . . . . . . . . .1
8. 50mm Wood Screws . . . . . . . . . . . . .4
9. 6m coax cable with connectors . . . .1
10. Weather Boot . . . . . . . . . . . . . . . . . .1
11. Power Injector . . . . . . . . . . . . . . . . . .1
12. Plastic Anchors . . . . . . . . . . . . . . . . . .4
13. IEC to ‘F’ Connector . . . . . . . . . . . . .1
Determining signal strength
Before Installation determine the best location for optimum reception. It is
important for the aerial to havean unobstructed path to the transmitter.
For best results the aerial should be facing the transmitter location.
For digital television reception
To determine that you are within digital TV coverage check this web-site:
http://www.dtg.org.uk/consumer/coverage.html
You can also get more information about channels and transmitter loca-
tions to help in aiming the aerial here:
http://www.dtg.org.uk/retailer/transmitters.html
EN
Important Information
3
General tips for installation
1. Try to mount aerial as high as possible – this will extend the range.
2. If mounting inside - mount in such a way that the aerial is installed near
awindow which will give the aerial a clear view of the transmitter
3. Mounting the aerial in a loft will significantly reduce the signal received
–typically by as much as 50%.
Setting up a digital tuner with this aerial
Digital TV tuners require you to program the tuner with the available chan-
nels in your area. Generally this automatic process is part of the set-up of
the tuner .However, if you do not have the aerial set up properly you may
find that the tuner receives no viewable channels.
If you have access to a rooftop aerial or another aerial which is currently
connected to a digital tuner you may use that aerial to program the tuner.
The channels will be memorized in the tuner – which will make aligning this
aerial easier.
Another method is to connect the aerial directly to your TV (not using
tuner) and tune to analogue channels to find best location of the aerial.
Then, re-connect the digital tuner - if you have adequate signal level you
should be able to program the tuner.
For indoor wall mount installation:
NOTE: Complete all assembly work on the ground before installing on a
wall or an aerial mast.
1. Attach main body to the L – bracket as shown, using cross head screw
note the orientation of the bracket. Do not fully tighten the screw to
allow for later adjustment (fig. 1).
2. Using the Wall bracket as a guide, mark position for the four 50mm
wood screws. If possible locate a stud to screw into. If a stud is not
available,use included wall anchors (fig. 2). Certain wall materials may
require different wall anchors - not included, available at any hardware
store.
3. Attach the main body and L-bracket to wall / mast mounting bracket
using cross head screw (fig. 3), note the orientation of the bracket. )
Do not fullytighten this screwto allow for later adjustment (fig. 3).
EN Installation
4

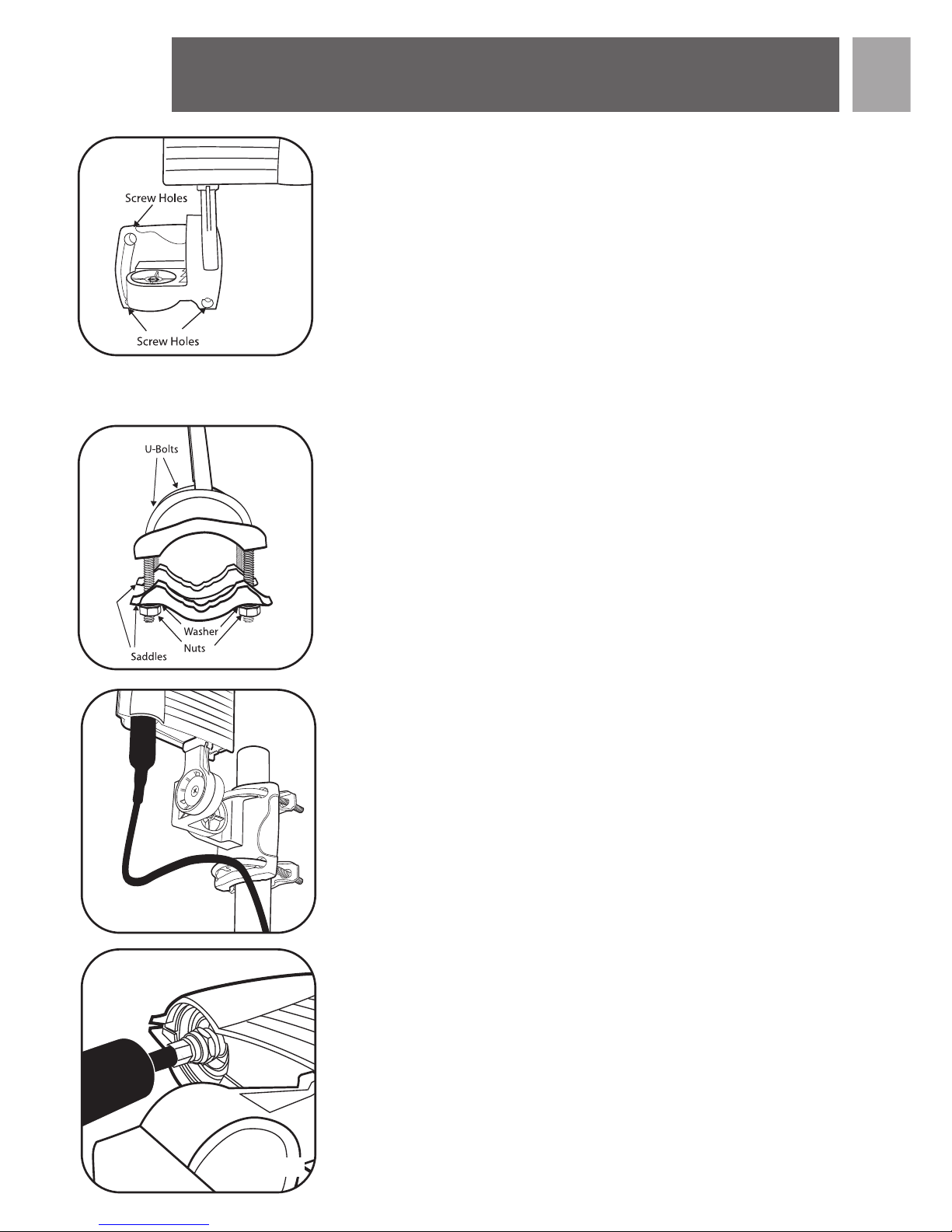

fig.1
fig.2
4. Tighten all screws and nuts to firmly affix the aerial to the wall.
5. Attach the cable to the F connector on the underside of the unit and
weather protection boot over the connection.
See next steps under – Connections to your TV
For outdoor mast mount installation:
NOTE: Complete all assembly work on the ground. Raise the completed
aerial after assembly.
1. Insert U-Bolts into the holes of the wall/mast bracket (fig. 4).
2. Slide the mast clamps onto the U-Bolts (fig. 4).
3. Attach the 4 nuts with lock washers to the U-Bolts - do not tighten
fully (fig. 4).
4. Slide the assembly onto the mast. Do not tighten fully, just snug
enough for the assembly to stay in place (fig. 5).
5. Attach the L-Bracket to the wall / mast bracket using cross head
screwand nut.
6. Attach the main body of the aerial to L bracket vertically (Note the
orientation of the bracket. Fullytighten this screw).
7. Tighten all screws and nuts to firmly affix the aerial to the mast.
8. Adjustment of the direction will be done by rotating the mast in its
mount.
9. Attach the cable to the connector on the underside of the unit and
weather protection boot over the connection (fig.6).
EN
Installation
5
fig.3
fig.4
fig.5
fig.6
Connections to your TV
As previously noted the amplifier (Power Injector + Power supply) must be
placed in-line between the aerial and before any splitter or additional
devices.
1. Connect the coaxial cable from the aerial to the connector labeled AMP
on the Power Injector.
2. Connect Power Injector to the aerial input on your TV, Digital Set-Top
box, Splitter and / or any other device.
Note –some set-top boxes require an “F” type connector – use the
adapter supplied.
3. Connect the Power Supply DC plug to the Power Injector then plug the
power supply adapter into a 230 Volt AC receptacle.
Safety Note -The power injector and power supply is for indoor use only!
Anote about coaxial cable -Your SDV2940/05 includes a 6m roll of RG-59
coaxial cable. If this is not adequate for your needs we recommend for best
possible signal integrity that you do not extend this cable.A better choice
is to replace the cable with either RG-6 or RG-6 Quad Shield cable. Both
of these cables are designed for minimal signal loss over longer cable runs.
This will ensure the best possible picture and overall performance.
Warranty information can be found at:
www.philips.com/guarantee
EN Connection to TV
6
Warranty
fig.7
Technical Support
For Technical support send an email with the model number of the prod-
uct and a detailed description of your problem to:
Email: accessorysuppor[email protected]
Printed in China
EN
Technical Support
7
8
Specifications aresubject to change without notice
Trademarks are property of Koninklijke Philips Electronics N.V. or their respective owners.
2006© Koninklijke Philips Electronics N.V.All rights reserved
www.philips.com
