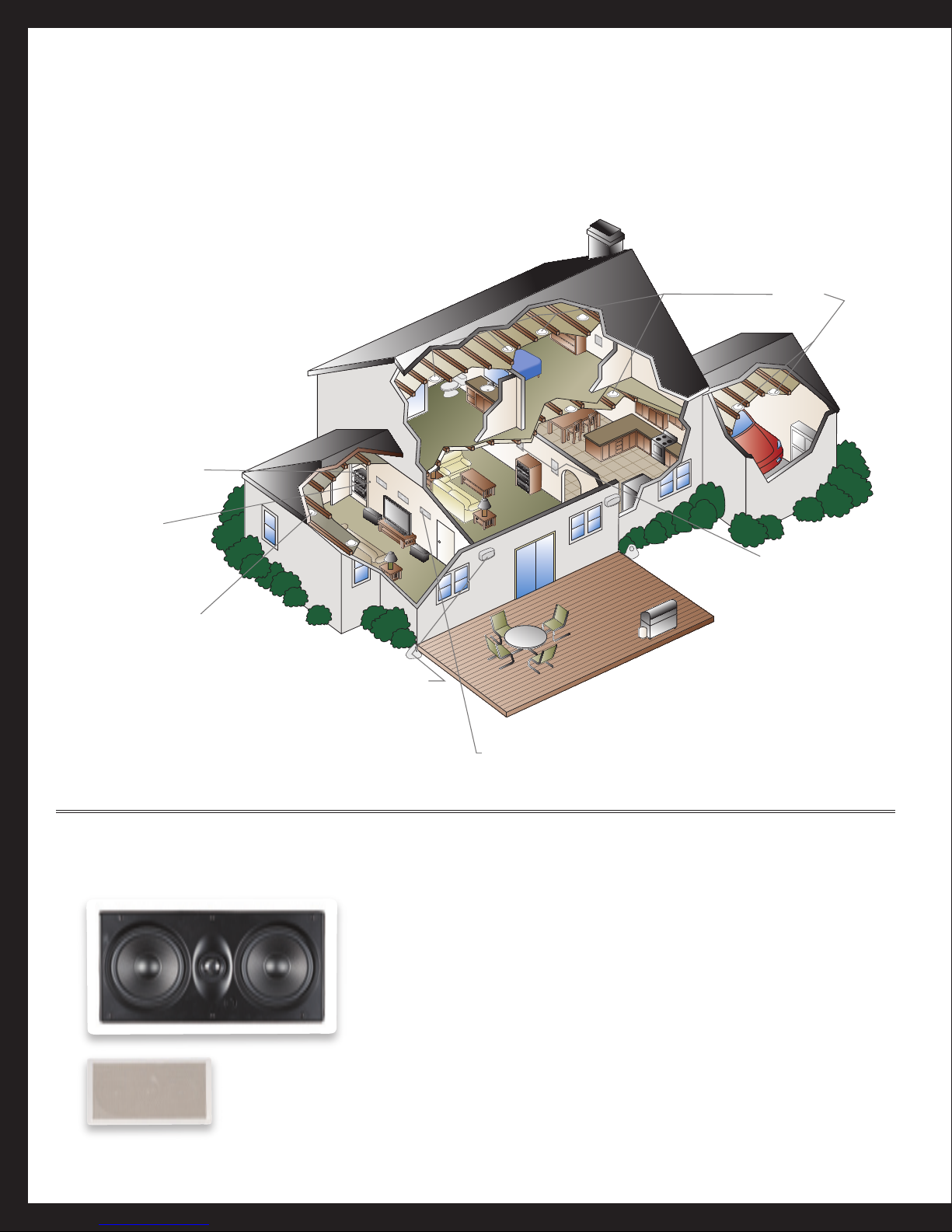

CLEAR SOUND ANYWHERE

Turn the entire home into a living theater with Phoenix Gold’s

affordable solutions. Speaker selectors deliver flexibility, and

with our in-ceiling, in-wall and indoor/outdoor speakers, there’s

a speaker solution for every need.

Volume Controls

Pg. 19

Speaker

Selectors

Pg. 16-18

In-Ceiling

LCRs Pg. 9

Indoor/Outdoor

Speakers

Pg. 11-13

In-Wall

LCRs

Pg. 6

In-Wall

Speakers

Pg. 6-7

In-Ceiling

Speakers

Pg. 8-9

IN-WALL SpEAkErS

IN-WALL 2-WAY LCR ATI515

FEATURES

Dual 5.25˝Polypropylene Woofers

25mm Pivoting Parachute Silk Dome Tweeter

Mid, Tweeter, Mid Conﬁguration (MTM)

Butyl Rubber Surround

Robust Dog-Leg Mounting System

Spray-Paintable Frame and Grill

Integrated Rear Dust Shield

Left, Center, Right Application

Magnetically Shielded

Sold Individually

SPECIFICATIONS

Power Handling: 15 - 150 Watts

Impedance: 8 Ω

Frequency Response: 60Hz - 20kHz

Sensitivity 2.83V/1m: 92dB

Cut-Out Dimension: 13 15⁄16 x 6 7⁄8˝

(354 x 175mm)

Mounting Depth: 3 1⁄2˝(89mm)

WITH GRILL

IN-WALL 2-WAY ATI6

FEATURES

6.5˝Polypropylene Woofer

25mm Pivoting Parachute Silk Dome Tweeter

Butyl Rubber Surround

Robust Dog-Leg Mounting System

Spray-Paintable Frame and Grill

Textured Woofer for Reduced Resonance

Sold as a Pair

SPECIFICATIONS

Power Handling: 15 - 200 Watts

Impedance: 8 Ω

Frequency Response: 40Hz - 20kHz

Sensitivity 2.83V/1m: 90dB

Cut-Out Dimension: 7 5⁄16 x 10 13⁄16˝(186 x 276mm)

Mounting Depth: 3 3⁄8˝ (85mm)

IN-WALL SpEAkErS

IN-WALL 2-WAY ATI8

FEATURES

8˝Polypropylene Woofer

25mm Pivoting Parachute Silk Dome Tweeter

Butyl Rubber Surround

Robust Dog-Leg Mounting System

Spray-Paintable Frame and Grill

Textured Woofer for Reduced Resonance

Sold as a Pair

SPECIFICATIONS

Power Handling: 15 - 200 Watts

Impedance: 8 Ω

Frequency Response: 38Hz - 20kHz

Sensitivity 2.83V/1m: 90dB

Cut-Out Dimension: 8 3⁄4x 12 3⁄4˝(222 x 324mm)

Mounting Depth: 3 3⁄8˝(85mm)

IN-WALL 2-WAY ATI5

FEATURES

5.25˝Polypropylene Woofer

25mm Pivoting Parachute Silk Dome Tweeter

Butyl Rubber Surround

Robust Dog-Leg Mounting System

Spray-Paintable Frame and Grill

Textured Woofer for Reduced Resonance

Sold as a Pair

SPECIFICATIONS

Power Handling: 15 - 150 Watts

Impedance: 8 Ω

Frequency Response: 60Hz - 20kHz

Sensitivity 2.83V/1m: 90dB

Cut-Out Dimension: 6 1⁄8x 9 5⁄8˝ (155 x 243mm)

Mounting Depth: 2 3⁄4˝ (69mm)

IN-CEILING SpEAkErS

SPECIFICATIONS

Power Handling: 15 - 150 Watts

Impedance: 8 Ω

Frequency Response: 38Hz - 22kHz

Sensitivity 2.83V/1m: 90dB

Cut-Out Diameter: 9 5⁄16˝ (236mm)

Mounting Depth: 3 3⁄8˝ (85mm)

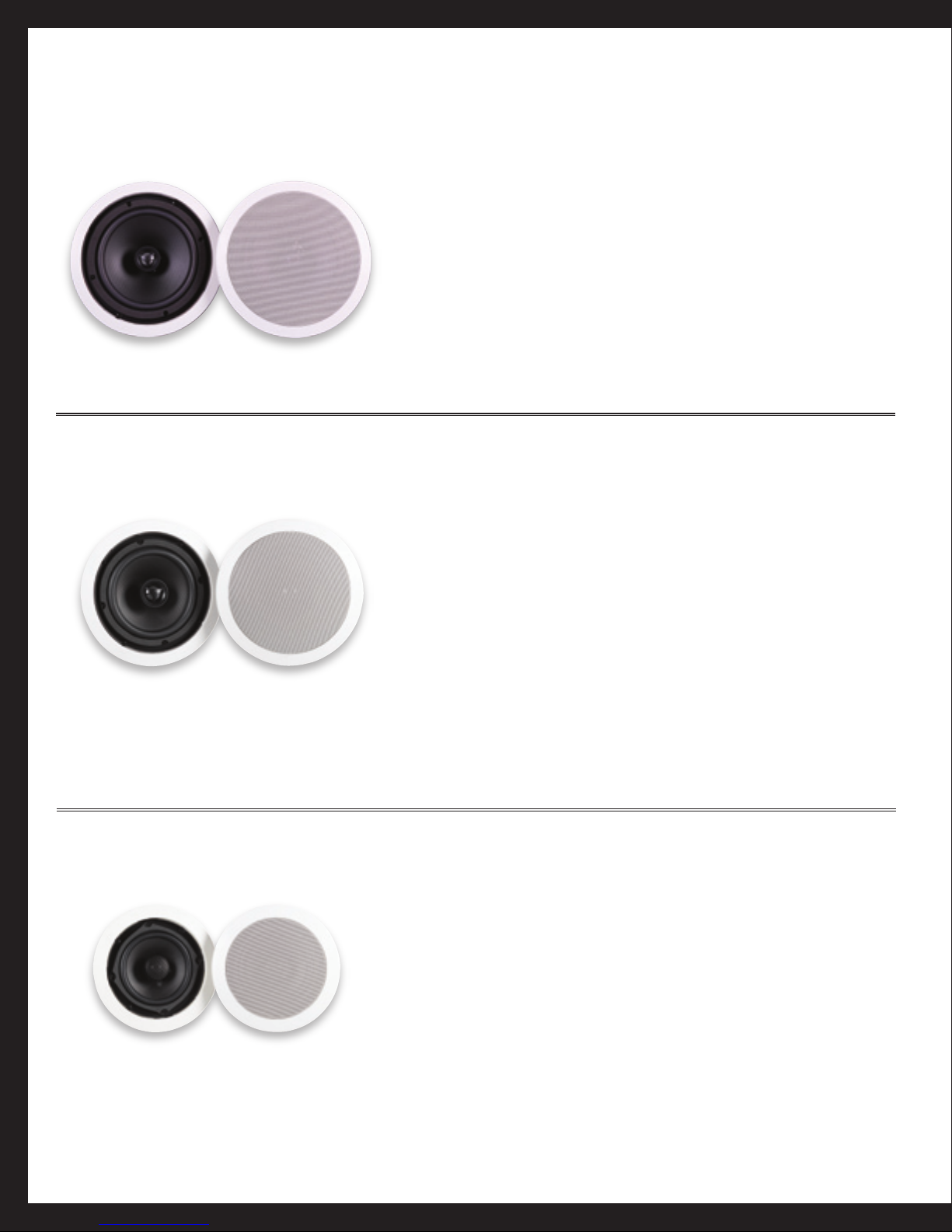

IN-CEILING 2-WAY ATC8

FEATURES

8” Polypropylene Woofer

25mm Pivoting Parachute Silk Dome Tweeter

Butyl Rubber Surround

Robust Dog-Leg Mounting System

Spray-Paintable Frame and Grill

Textured Woofer for Reduced Resonance

Sold as a Pair

SPECIFICATIONS

Power Handling: 15 - 150 Watts

Impedance: 8 Ω

Frequency Response: 40Hz - 20kHz

Sensitivity 2.83V/1m: 90dB

Cut-Out Diameter: 7 5⁄8˝ (193mm)

Mounting Depth: 3 3⁄8˝ (85mm)

IN-CEILING 2-WAY ATC6

FEATURES

6.5˝ Polypropylene Woofer

25mm Pivoting Parachute Silk Dome Tweeter

Butyl Rubber Surround

Robust Dog-Leg Mounting System

Spray-Paintable Frame and Grill

Textured Woofer for Reduced Resonance

Sold as a Pair

SPECIFICATIONS

Power Handling: 15 - 150 Watts

Impedance: 8 Ω

Frequency Response: 60Hz - 20kHz

Sensitivity 2.83V/1m: 90dB

Cut-Out Diameter: 6 9⁄16˝ (166mm)

Mounting Depth: 2 3⁄4˝ (69mm)

IN-CEILING 2-WAY ATC5

FEATURES

5.25˝ Polypropylene Woofer

19mm Pivoting Parachute Silk Dome Tweeter

Butyl Rubber Surround

Robust Dog-Leg Mounting System

Spray-Paintable Frame and Grill

Textured Woofer for Reduced Resonance

Sold as a Pair

SPECIFICATIONS

Power Handling: 15 - 150 Watts

Impedance: 8 Ω

Frequency Response: 50Hz - 20kHz

Sensitivity 2.83V/1m: 86/89dB

Cut-Out Diameter: 7 5⁄8˝ (193mm)

Mounting Depth: 3 3⁄8˝ (85mm)

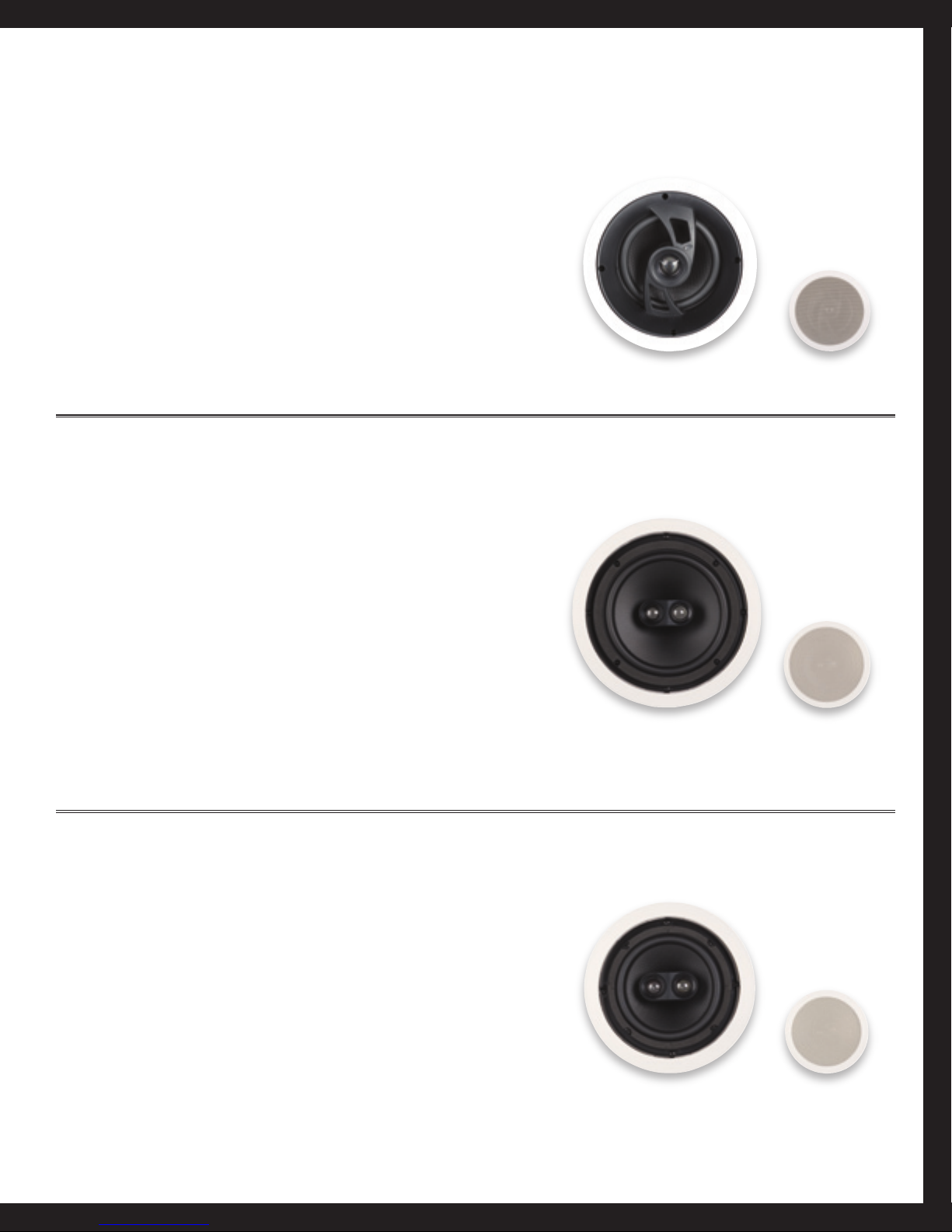

IN-CEILING SUMMED STEREO ATC6DM

FEATURES

6.5˝ Polypropylene Woofer

Dual 19mm Parachute Silk Dome Tweeters

Dual Voice Coils

Summed Stereo or Single Channel Operation

Butyl Rubber Surround

Robust Dog-Leg Mounting System

Spray-Paintable Frame and Grill

Textured Woofer for Reduced Resonance

Sold Individually

SPECIFICATIONS

Power Handling: 15 - 150 Watts

Impedance: 8 Ω

Frequency Response: 38Hz - 22kHz

Sensitivity 2.83V/1m: 86/89dB

Cut-Out Diameter: 9 5⁄16˝ (236mm)

Mounting Depth: 3 3⁄8˝ (85mm)

IN-CEILING SUMMED STEREO ATC8DM

FEATURES

8˝ Polypropylene Woofer

Dual 19mm Parachute Silk Dome Tweeters

Dual Voice Coils

Summed Stereo or Single Channel Operation

Butyl Rubber Surround

Robust Dog-Leg Mounting System

Spray-Paintable Frame and Grill

Textured Woofer for Reduced Resonance

Sold Individually

SPECIFICATIONS

Power Handling: 15 - 150 Watts

Impedance: 8 Ω

Frequency Response: 55Hz - 18kHz

Sensitivity 2.83V/1m: 92dB

Cut-Out Diameter: 8 1⁄8˝ (206mm)

Mounting Depth: 5˝ (127mm)

IN-CEILING 2-WAY LCR ATCLCR6

FEATURES

6.5˝ Polypropylene Woofer

25mm Pivoting Parachute Silk Dome Tweeter

15 Degree Speaker Inclination

Butyl Rubber Surround

Robust Dog-Leg Mounting System

Spray-Paintable Frame & Grill

Left, Center, Right Application

Textured Woofer for Reduced Resonance

Sold Individually

IN-CEILING SpEAkErS

SPECIFICATIONS

Power Handling: 15 - 150 Watts

Impedance: 8 Ω

Frequency Response: 60Hz - 20kHz

Sensitivity 2.83V/1m: 90dB

Cut-Out Diameter: 6 9⁄16˝ (166mm)

Mounting Depth: 2 3⁄4˝ (69mm)

IN-CEILING 2-WAY ATC5

FEATURES

5.25˝ Polypropylene Woofer

19mm Pivoting Parachute Silk Dome Tweeter

Butyl Rubber Surround

Robust Dog-Leg Mounting System

Spray-Paintable Frame and Grill

Textured Woofer for Reduced Resonance

Sold as a Pair

WITH GRILL

INDOOR/OUTDOOR

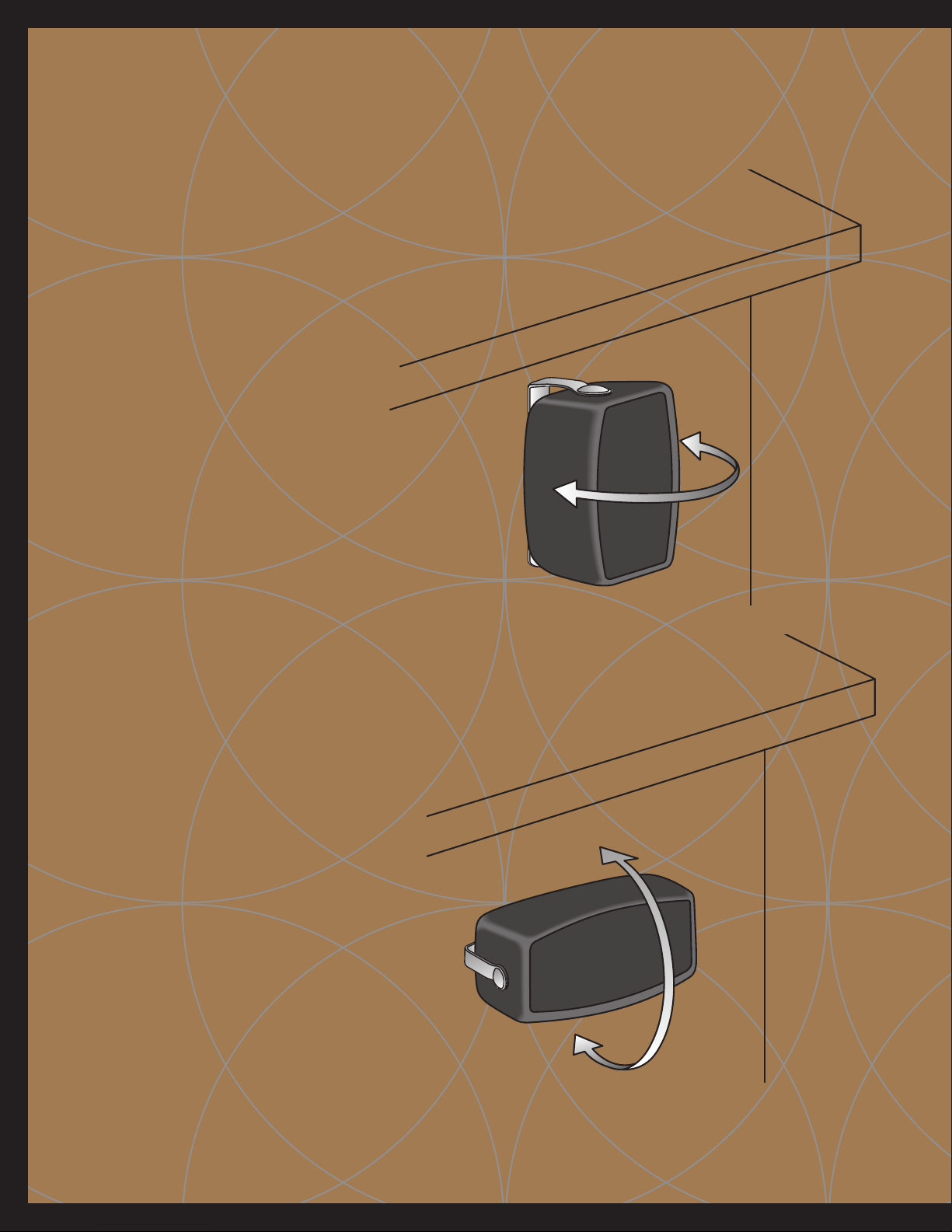

SPEAKER PLACEMENT

Like all speakers, Indoor/Outdoor

Speakers sound best when placed

in the line of sight of the listener,

with no obstructions. They can be

mounted vertically or horizontally

and will pivot 180 degrees.

Indoor/Outdoor Speakers are

manufactured to resist a variety

of weather conditions. However,

they are not waterproof, so if you

decide to place your speakers

outdoors, position them so they

are not directly exposed to the

elements. The undersides of

most eaves and overhangs

provide the best protection.

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8 Ω

Sensitivity 2.83V/1m: 89dB

Frequency Response: 85Hz - 20kHz

Dimensions: 7 1⁄2x 11 x 6 1⁄2˝

(190 x 280 x 166mm)

Weight: 5.75 lbs (2.6 kg)

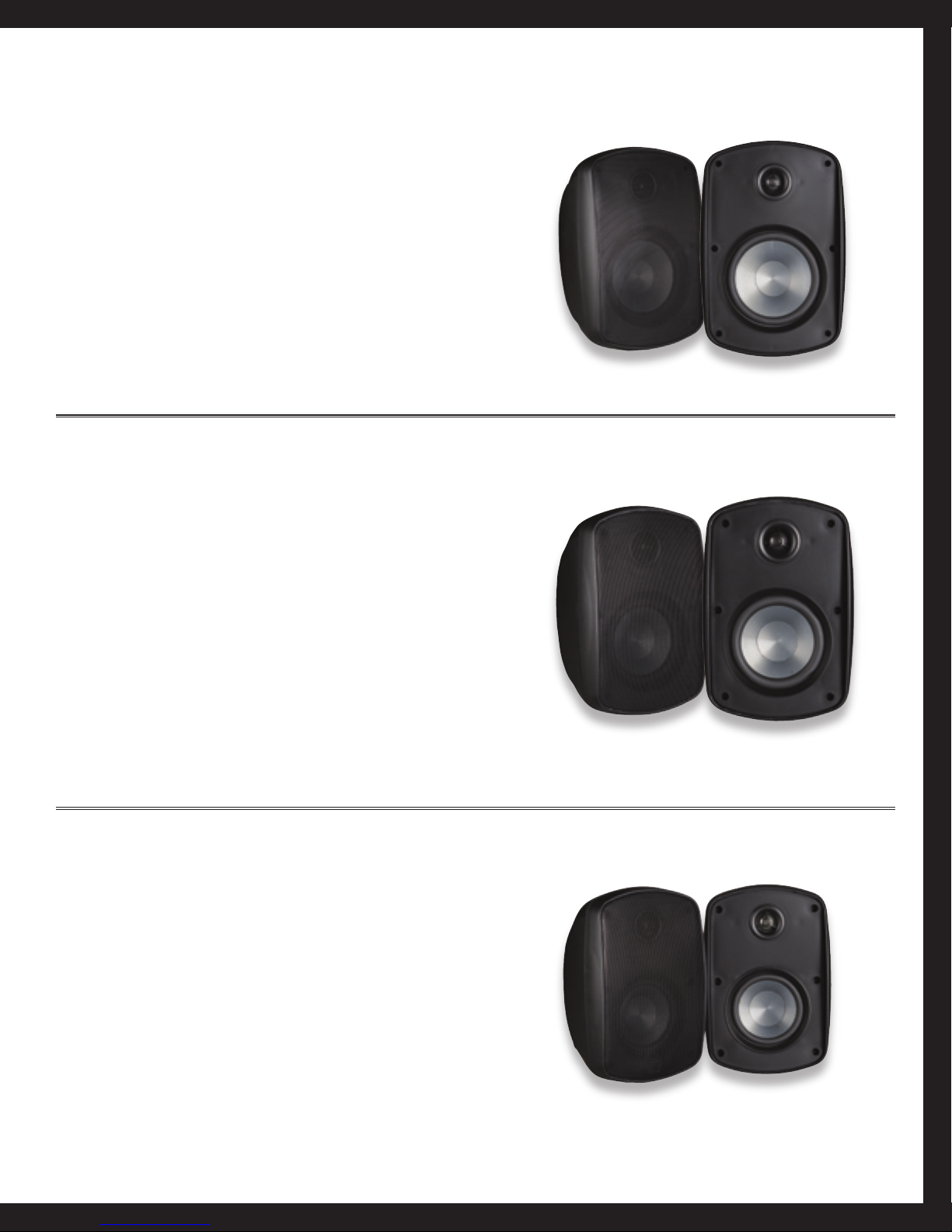

INDOOR/OUTDOOR 2-WAY IHS5B

FEATURES

5.25˝ Polypropylene Woofer

25mm Parachute Silk Dome Tweeter

Butyl Rubber Surround

CAD/CAE Designed, Audiophile Phase

Compensated Crossover

Magnetically Shielded

Weather and UV Resistant Design

Aluminum Grill and Mounting Brackets

Pivoting Bracket Design with 15 Degree

Marked Increments

Corner Mounting Holes in Brackets

Sold as a Pair

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8 Ω

Sensitivity 2.83V/1m: 90dB

Frequency Response: 65Hz - 20kHz

Dimensions: 8 3⁄4x 12 61⁄64 x 7 5⁄8˝

(223 x 328 x 195mm)

Weight: 7.5 lbs (3.4 kg)

INDOOR/OUTDOOR 2-WAY IHS6B

FEATURES

6.5˝ Polypropylene Woofer

25mm Parachute Silk Dome Tweeter

Butyl Rubber Surround

CAD/CAE Designed, Audiophile Phase

Compensated Crossover

Magnetically Shielded

Weather and UV Resistant Design

Aluminum Grill and Mounting Brackets

Pivoting Bracket Design with 15 Degree

Marked Increments

Corner Mounting Holes in Brackets

Sold as a Pair

INDoor/oUTDoor SpEAkErS

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8 Ω

Sensitivity 2.83V/1m: 88dB

Frequency Response: 100Hz - 20kHz

Dimensions: 6 7⁄16 x 9 1⁄2x 5 5⁄8˝

(163 x 241 x 143mm)

Weight: 4 lbs (1.8 kg)

INDOOR/OUTDOOR 2-WAY IHS4B

FEATURES

4˝ Polypropylene Woofer

19mm Parachute Silk Dome Tweeter

Butyl Rubber Surround

CAD/CAE Designed, Audiophile Phase

Compensated Crossover

Magnetically Shielded

Weather and UV Resistant Design

Aluminum Grill and Mounting Brackets

Pivoting Bracket Design with 15 Degree

Marked Increments

Corner Mounting Holes in Brackets

Sold as a Pair

Also available in white - IHS6W

Also available in white - IHS5W

Also available in white - IHS4W

INDoor/oUTDoor SpEAkErS

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8 Ω

Sensitivity 2.83V/1m: 87.5dB

Frequency Response: 65Hz - 20kHz

Dimensions: 8 x 11 x 7 1⁄4˝

(203 x 280 x 184mm)

Weight: 5.5 lbs (2.3 kg)

INDOOR/OUTDOOR 2-WAY ATO62W

FEATURES

6.5˝ Polypropylene Woofer

CAD/CAE Designed, Phase Compensated

Crossover

25mm Aluminum Dome Tweeter

Weather and UV Resistant Design

Mounting Brackets and Hardware Included

Spray-Paintable Grill and Housing

Butyl Rubber Surround

5-Way Color Coded Binding Posts

Sold as a Pair

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8 Ω

Sensitivity 2.83V/1m: 89dB

Frequency Response: 85Hz - 20kHz

Dimensions: 6 3⁄4x 9 1⁄2x 6 3⁄8˝

(170 x 240 x 160mm)

Weight: 4.2 lbs (1.9 kg)

INDOOR/OUTDOOR 2-WAY ATO52W

FEATURES

5.25˝ Polypropylene Woofer

CAD/CAE Designed, Phase Compensated

Crossover

25mm Aluminum Dome Tweeter

Weather and UV Resistant Design

Mounting Brackets and Hardware Included

Spray-Paintable Grill and Housing

Butyl Rubber Surround

5-Way Color Coded Binding Posts

Sold as a Pair

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8 Ω

Sensitivity 2.83V/1m: 85dB

Frequency Response: 100Hz - 20kHz

Dimensions: 5 11⁄16 x 8 x 5˝

(145 x 203 x 127mm)

Weight: 2.2 lbs (1 kg)

INDOOR/OUTDOOR 2-WAY ATO42W

FEATURES

4˝ Polypropylene Woofer

CAD/CAE Designed, Phase Compensated

Crossover

25mm Aluminum Dome Tweeter

Weather and UV Resistant Design

Mounting Brackets and Hardware Included

Spray-Paintable Grill and Housing

Butyl Rubber Surround

5-Way Color Coded Binding Posts

Sold as a Pair

Also available in black - ATO62B

Also available in black - ATO52B

Also available in black - ATO42B

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8 Ω

Sensitivity 2.83V/1m: 90dB

Frequency Response: 120Hz - 21kHz

Dimensions: 9 1⁄4x 10 3⁄8x 7 5⁄8˝

(235 x 264 x 194mm)

Weight: 6.9 lbs (3.1 kg)

OUTDOOR ROCK ATR5G (GRANITE)

FEATURES

5.25˝ Woofer

19mm Balanced Drive Tweeter

Rugged Fiberglass Enclosure

Sold as a Pair

INDoor/oUTDoor SpEAkErS

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8 Ω

Sensitivity 2.83V/1m: 89dB

Frequency Response: 60Hz - 20kHz

Dimensions: 9 1⁄2x 7 x 6 5⁄8˝

(241 x 178 x 169mm)

Weight: 4.6 lbs (2.1 kg)

INDOOR/OUTDOOR 2-WAY ATO5

FEATURES

5.25˝ Polypropylene Woofer

19mm Polycarbonate Tweeter

Weather Resistant Speaker System

White Housing with White Powder Coated

Microperf Grill

Mounting Brackets and Hardware Included

Spray-Paintable Grill and Housing

Butyl Rubber Surround

Sold as a Pair

SPECIFICATIONS

Power Handling: 25 - 100 Watts

Impedance: 8 Ω

Sensitivity 2.83V/1m: 90dB

Frequency Response: 120Hz - 21kHz

Dimensions: 9 1⁄4x 10 3⁄8x 7 5⁄8˝

(235 x 264 x 194mm)

Weight: 6.9 lbs (3.1 kg)

OUTDOOR ROCK ATR5S (SANDSTONE)

FEATURES

5.25˝ Woofer

19mm Balanced Drive Tweeter

Rugged Fiberglass Enclosure

Sold as a Pair

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Phoenix Gold Sprecher Handbücher

Phoenix Gold

Phoenix Gold MX Series Bedienungsanleitung

Phoenix Gold

Phoenix Gold Innovative Home DSSM8 Bedienungsanleitung

Phoenix Gold

Phoenix Gold SX6CS Bedienungsanleitung

Phoenix Gold

Phoenix Gold ZM Series Bedienungsanleitung

Phoenix Gold

Phoenix Gold RSd3 Bedienungsanleitung

Phoenix Gold

Phoenix Gold RX65CS Bedienungsanleitung

Phoenix Gold

Phoenix Gold ZPRO36BT Bedienungsanleitung

Phoenix Gold

Phoenix Gold ATc8DM Bedienungsanleitung

Phoenix Gold

Phoenix Gold ZX Series Bedienungsanleitung

Phoenix Gold

Phoenix Gold ATc8 Bedienungsanleitung

Phoenix Gold

Phoenix Gold ZPRO36 Bedienungsanleitung

Phoenix Gold

Phoenix Gold ATC8DM Bedienungsanleitung

Phoenix Gold

Phoenix Gold SnapSound SSC601 Bedienungsanleitung

Phoenix Gold

Phoenix Gold ATi6 Bedienungsanleitung

Phoenix Gold

Phoenix Gold ZR Series Bedienungsanleitung

Phoenix Gold

Phoenix Gold ATCLCR6 Bedienungsanleitung

Phoenix Gold

Phoenix Gold Z Series Bedienungsanleitung

Phoenix Gold

Phoenix Gold Ti69CX Bedienungsanleitung

Phoenix Gold

Phoenix Gold Z5CS Bedienungsanleitung

Phoenix Gold

Phoenix Gold R65CS Bedienungsanleitung

Phoenix Gold

Phoenix Gold ZM Series Bedienungsanleitung

Phoenix Gold

Phoenix Gold SX5CS Bedienungsanleitung

Phoenix Gold

Phoenix Gold Z-Series Bedienungsanleitung

Phoenix Gold

Phoenix Gold SAM100 Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
