Photon Systems Instruments SL 3500 Handbuch

Page | 2

Manual Version: 2021/12

www.psi.cz

This document and its parts can be copied or provided to a third party only with the express permission of PSI.

The contents of this manual have been verified to correspond to the specifications of the device. However, deviations cannot be ruled out.

Therefore, a complete correspondence between the manual and the real device cannot be guaranteed. The information in this manual

is regularly checked, and corrections may be made in subsequent versions.

The visualizations shown in this manual are only illustrative.

This manual is an integral part of the purchase and delivery of equipment and its accessories and both Parties must abide by it.



Page | 3


TABLE OF CONTENT
1Warnings and Safety Precautions............................................................................................................. 4
2General Description ................................................................................................................................. 5
2.1 Standard Versions............................................................................................................................................5
2.1.1 Version SL 3500-A............................................................................................................................................5
2.1.2 Version SL 3500-B ............................................................................................................................................5
2.1.3 Version SL 3500-C ............................................................................................................................................5
2.1.4 Version SL 3500-D............................................................................................................................................6
2.1.5 Version SL 3500-E ............................................................................................................................................6
2.2 List of Standard Components ..........................................................................................................................6
2.3 Optional Accessories........................................................................................................................................6
2.3.1 Light Studio 485 SW with Light Controller LC 500 ...........................................................................................6
2.3.2 Light Controller LC 100 ....................................................................................................................................7
2.3.3 User-Defined Custom Protocol........................................................................................................................7
2.3.4 Daylight Protocol .............................................................................................................................................7
2.3.5 Modular Stand .................................................................................................................................................8
2.3.6 Additional Protective Glasses ..........................................................................................................................8
3Technical Specification............................................................................................................................. 9
4Device Installation.................................................................................................................................... 9
5Device Operation ................................................................................................................................... 11
6Manual Control...................................................................................................................................... 12
7External Control ..................................................................................................................................... 12
8Warranty Conditions.............................................................................................................................. 13



Page | 4

1WARNINGS AND SAFETY PRECAUTIONS

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE TURNING THE LED LIGHT SOURCE SL 3500 ON!

GENERAL ELECTRICAL SAFETY GUIDELINES:

•Perform a routine check of the devices and their wiring.

•Replace worn or damaged cords immediately.

•Use appropriate electrical extension cords/power bars and do not overload them.

•Place the devices on a flat and firm surface. Keep them away from wet floors and counters.

•Avoid touching the device, socket outlet or switch if your hands are wet.

•The LED Light Source should by always used with the original power supply (control unit) supplied by the manufacturer.

•Do not perform any alterations to the electrical part of the devices or their components.

•Never cover the power supply (control unit) or the light panel! Low ventilation can cause an irreversible damage to the device.

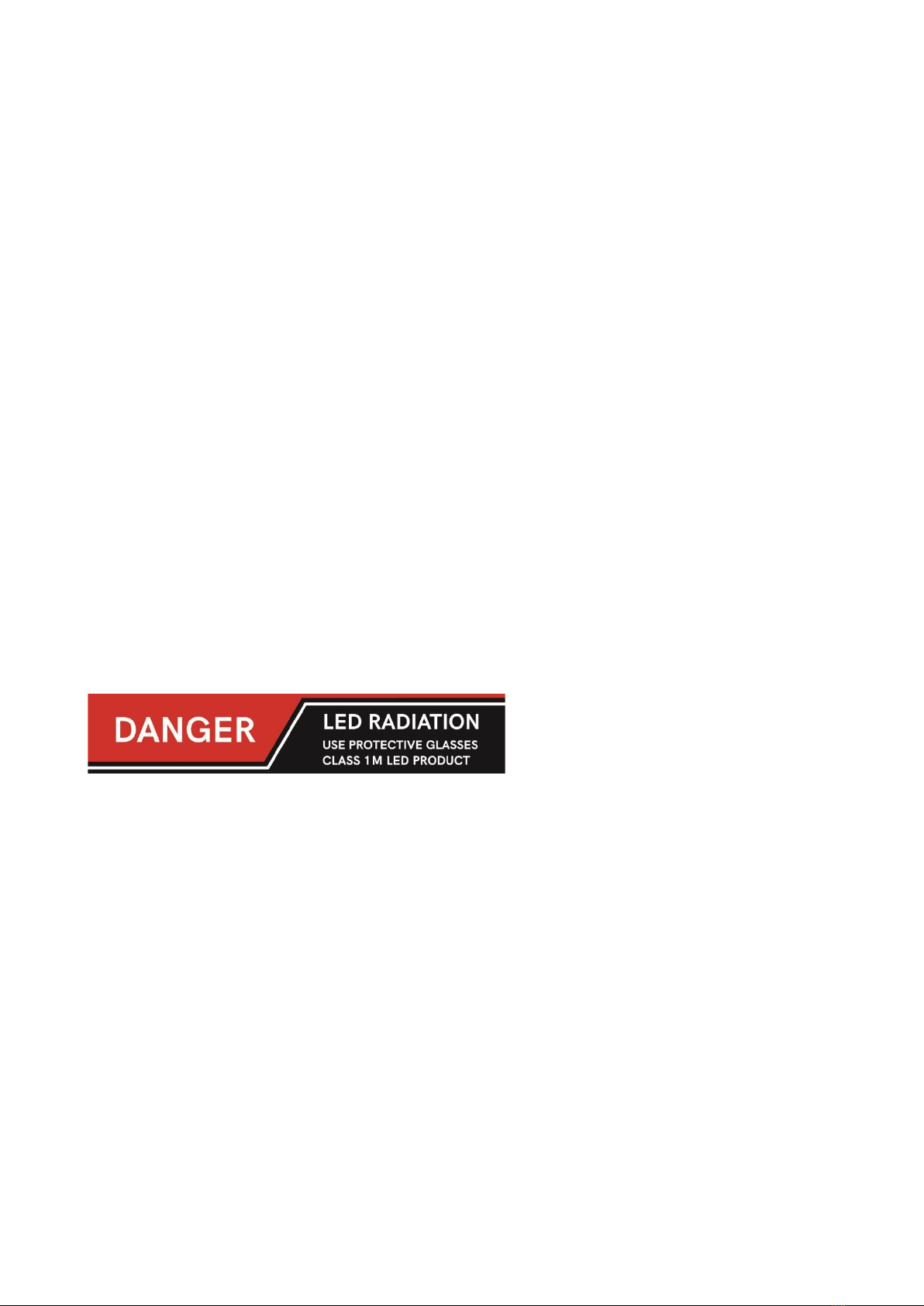

WARNING:

The LED Light Source SL 3500 is considered Class 1M* LED Product. LED radiation may be harmful to eye. Avoid direct and strongly

reflected exposure. It is recommended to use protective glasses.

*Class 1M: Laser and LED equipment that is safe under reasonable conditions of operation for use with the naked eye. Looking

directly into the source of radiation by employing optics within the beam such as magnifying glass, telescope or microscope can

be potentially hazardous.

Page | 5

2GENERAL DESCRIPTION

The SL 3500 range of LED lights from Photon Systems Instruments are arrays of high-performance light emitting diodes that can operate

under multiple regimes such as flash, continuous light and harmonically modulated light. They can also function work user-defined

protocols. Different versions of the device are available with LEDs spanning the spectrum from blue to far-red.

The SL 3500 panels can be used as stand-alone units, or they can be integrated into cultivation areas and to provide lighting for growth

rooms. The panels may also be integrated with other PSI instruments such as FluorCams, Photobioreactors or FytoScopes.

Basic control of the SL 3500 panels is by a supplied control unit. Enhanced output and modulation may be controlled by PSI’s Light

Controller LC 100, which provides precise regulation of light mode, intensity and timing. Optionally, PSI’s Light Studio Software, allows

computer control of the LED panels. User-defined protocols may be designed and implemented via both the Light Controller and the

Light Studio Software.

2.1 STANDARD VERSIONS

The panels are manufactured in number of versions differing in the panel size

and illuminated area and in light color of the panel.

2.1.1 VERSION SL 3500-A

•Panel size: 13 × 13 cm

•Number of high-power LEDs: 72

•Single color: warm white or cool white or royal blue (447 nm)

or red-orange (617 nm)

•Stand-alone operation: manual intensity control

•Supplied with a stand and holder

2.1.2 VERSION SL 3500-B

•Panel size: 20 × 20 cm

•Number of high-power LEDs: 180

•Single color: warm white or cool white or royal blue (447 nm)

or red-orange (617 nm)

•Stand-alone operation: manual intensity control

•Supplied with a stand and holder

2.1.3 VERSION SL 3500-C

•Panel size: 20 × 20 cm

•Number of high-power LEDs: 168 (3 × 56)

•Tri-color: red –green –blue (627 nm –530 nm –447 nm)

•Stand-alone operation: manual intensity control

•Supplied with a stand and holder

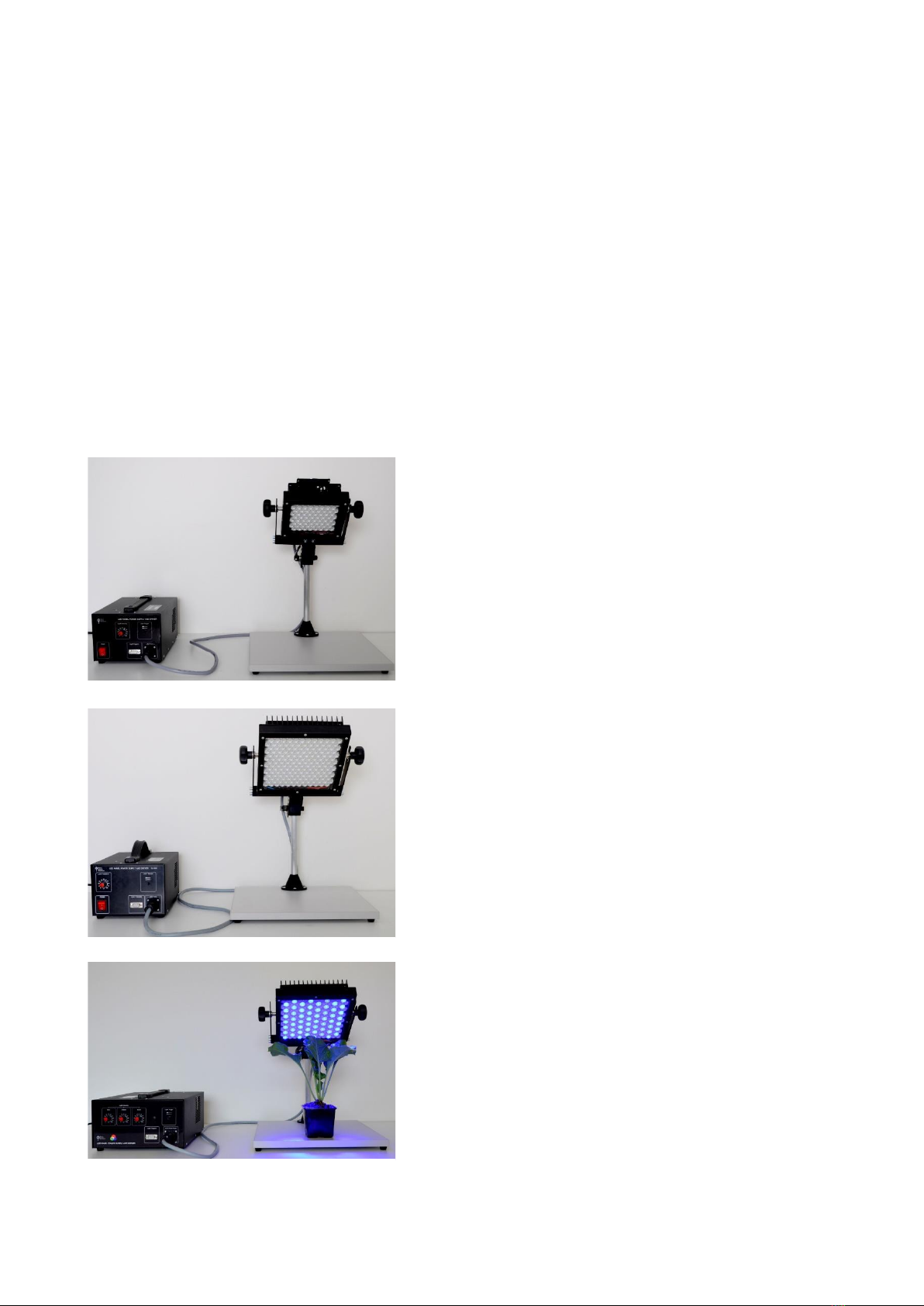

Fig. 1 Version SL 3500-A.

Fig. 2 Version SL 3500-B

Fig. 3 Version SL 3500-C

Page | 6

2.1.4 VERSION SL 3500-D

•Panel size: 30 × 20 cm

•Number of high-power LEDs: 104

•Single color: warm white or cool white or royal blue (447 nm)

or red-orange (617 nm)

•Stand-alone operation: manual intensity control

•Supplied with a stand and holder

2.1.5 VERSION SL 3500-E

•Panel size: 30 × 20 cm

•Number of high-power LEDs: 240 (3 × 80)

•4 added Far red LEDs

•Four-color: red –green –blue –far red

(627 nm –530 nm –447 nm –735 nm)

•Stand-alone operation: manual intensity control

•Supplied with a stand and holder

2.2 LIST OF STANDARD COMPONENTS

Carefully unpack the carton, which contains:

•LED Light Panel with attached power and communication cable(s)

•power supply (control unit)

•detachable mains cable

•adjustable stand and holder

•instruction manual

•optional accessories (according to your specific order)

2.3 OPTIONAL ACCESSORIES

2.3.1 LIGHT STUDIO 485 SW WITH LIGHT CONTROLLER LC 500

Light Studio Software is a PC solution for precise control over the light mode, intensity and timing - (microseconds to hours). It supports

light channel calibration and grouping. It can control unlimited number of logical light channels, formed from up to 254 physical light

devices. Each logical channel can be configured independently. Light modulation is fully programmable, built from user-defined segments

(continuous light and ramp). The software offers flexibility regarding the protocol composition and timing. There are just two predefined

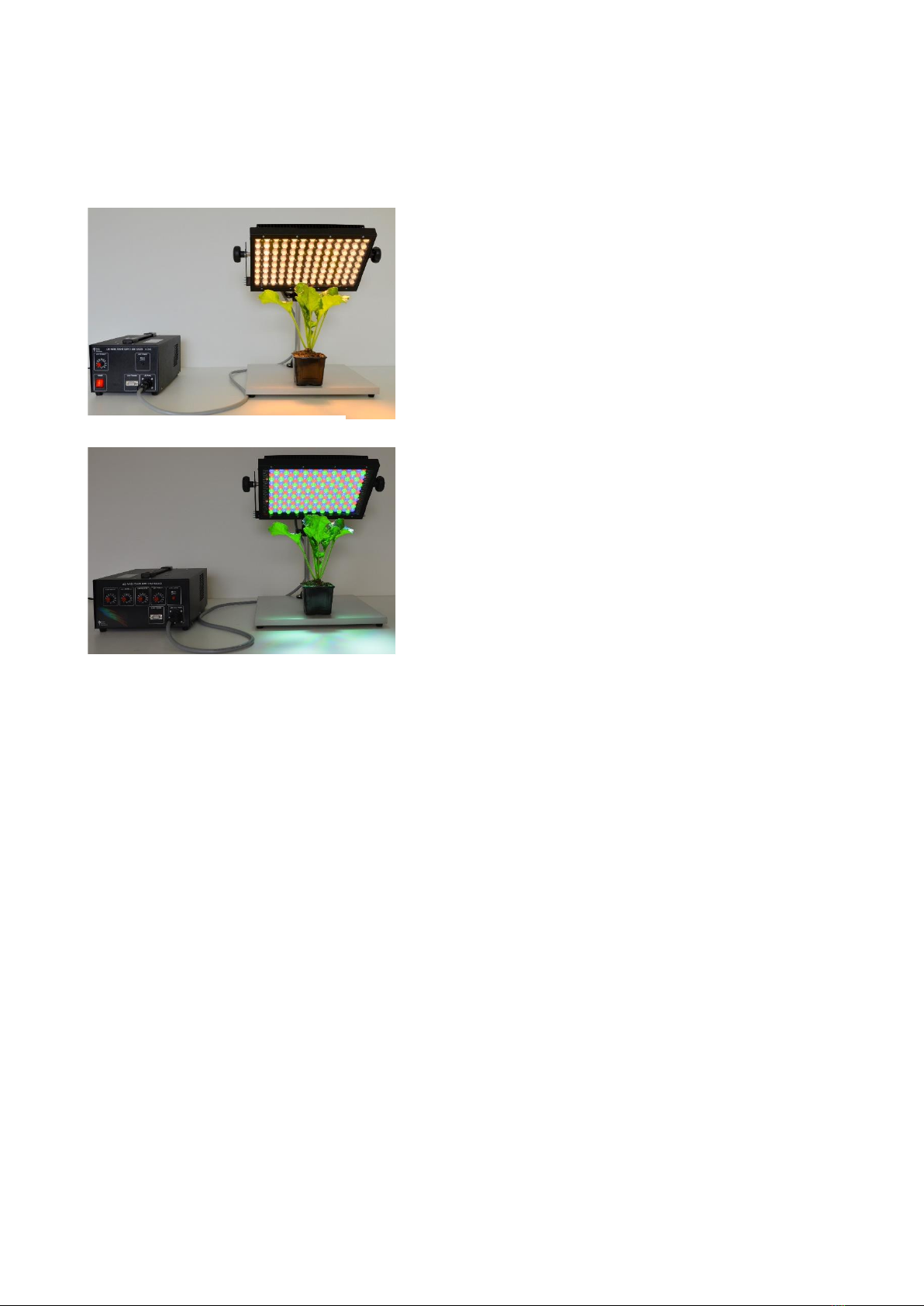

Fig. 4 Version SL 3500-D

Fig. 5 Version SL 3500-E

Page | 7

items –constant element and ramp element. The protocol is then built from these two. A user can also add light channels to various

groups and control them as one item/with one protocol.

2.3.2 LIGHT CONTROLLER LC 100

LC 100 is a hardware, stand-alone solution for precise control

of light characteristics and day/night simulation

in SL 3500 LED Light Sources. It provides precise control over

the light mode, intensity and timing (seconds to hours) and

maintains also generation of short pulses (micro-seconds).

It can control up to 4 lights/colors in SL 3500; each light /color

can be configured and controlled independently. Light

Controller LC 100 supports light modulation according to

a predefined function (continuous, pulse, sine, triangle),

user-programmed function (optional), or daylight simulation

(optional). No PC is needed for this device operation.

2.3.3 USER-DEFINED CUSTOM PROTOCOL

Optional feature to the Light Controller LC 100: when uploaded to Light Controller, this Protocol can support up to 224 light phase

intervals, each defined by light intensity and duration.

2.3.4 DAYLIGHT PROTOCOL

Optional feature to the Light Controller LC 100: when uploaded to Light Controller, the Daylight Protocol serves for cloudy skies

simulations - several adjustable parameters. Includes also additional program for "cloud visualization" on a PC.

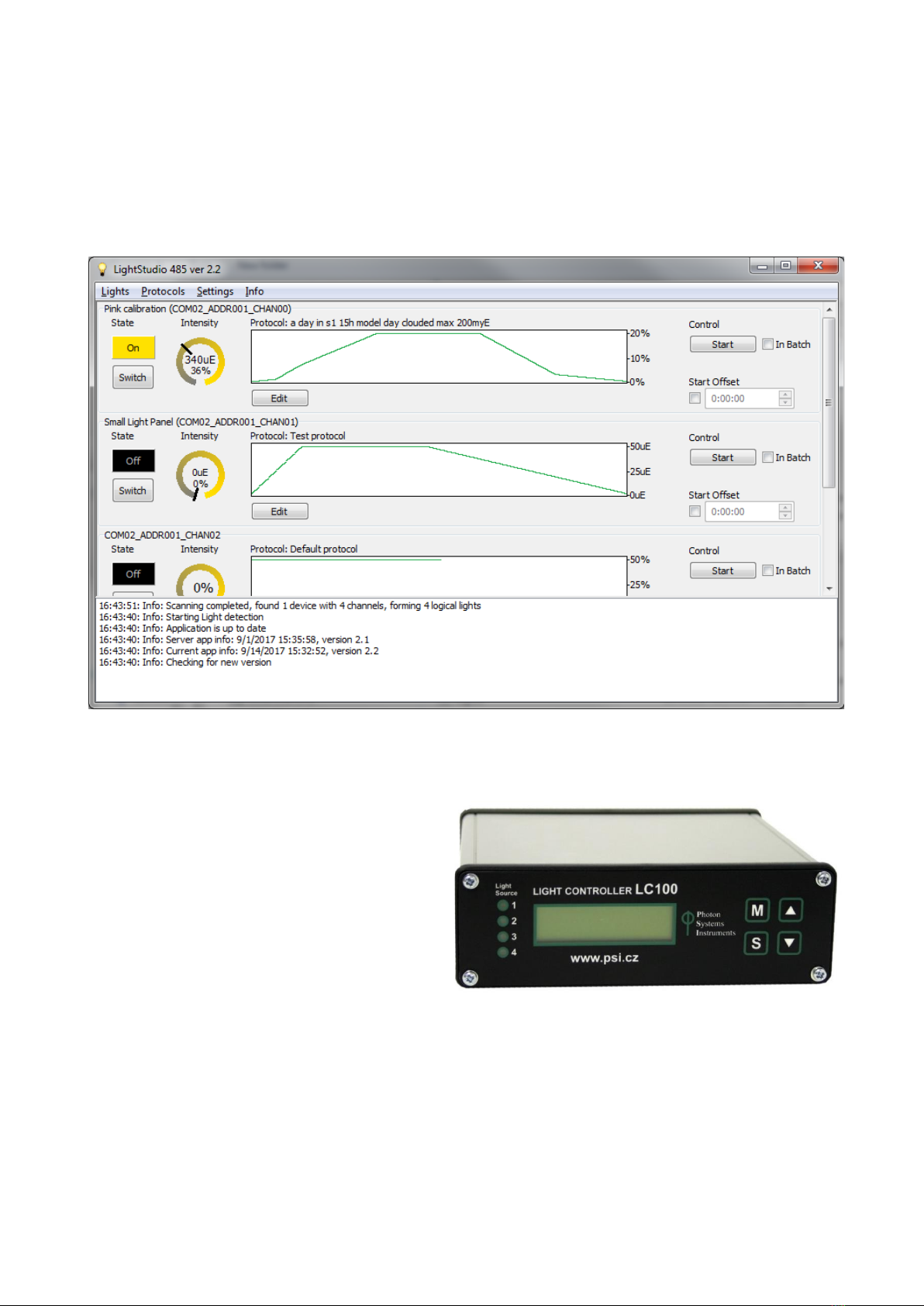

Fig. 6 Light Studio 485 SW.

Fig. 7 Light Controller LC 100.

Page | 8

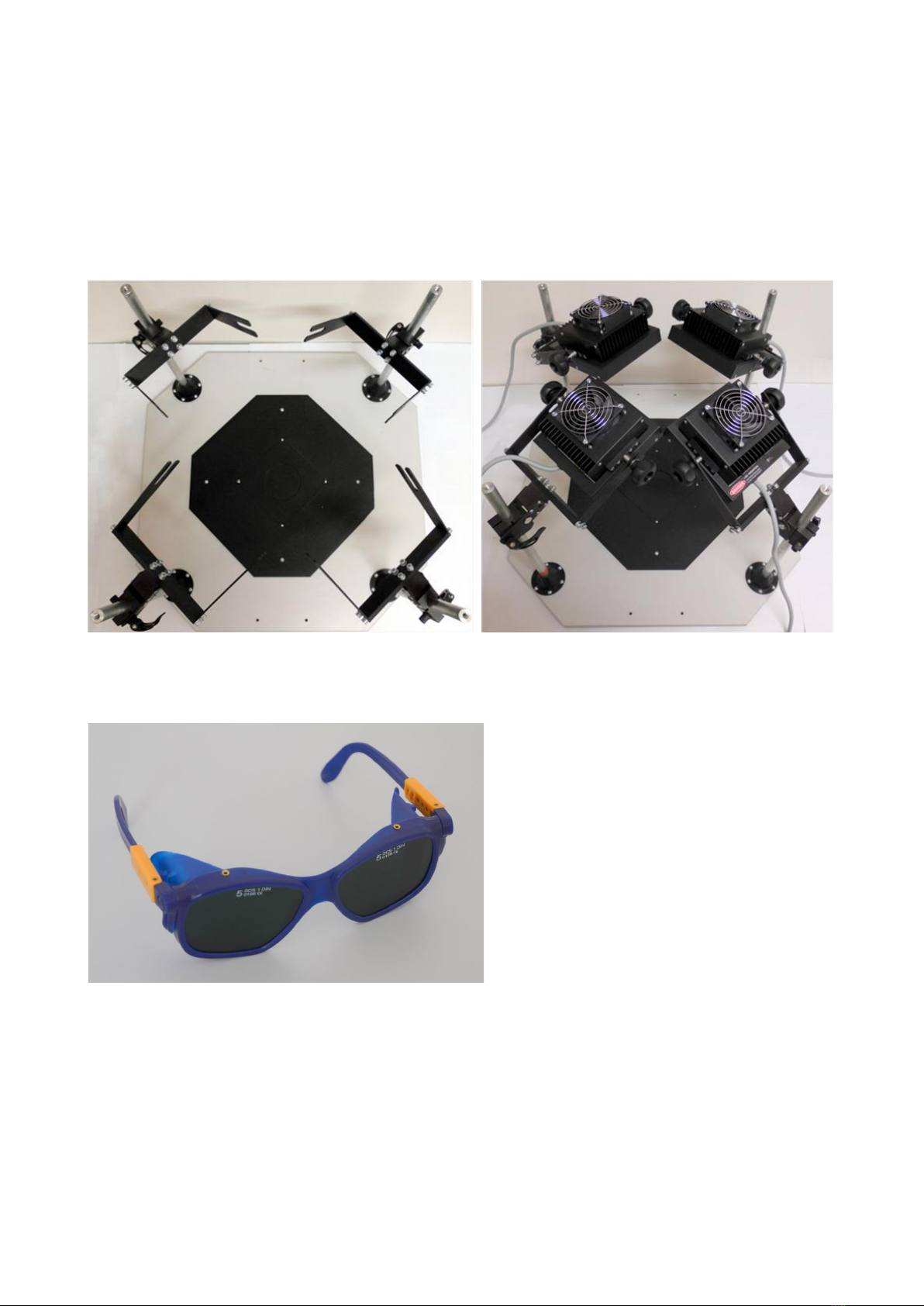

2.3.5 MODULAR STAND

Allows many spatial possibilities in arrangement and attachment of scientific instrumentation.

2.3.6 ADDITIONAL PROTECTIVE GLASSES

Radiation safety glasses protecting against excessive LED

radiation –equipped with side cover and protective filters. One

pair of glasses is provided with the device free of charge.

Fig. 8 Modular stand

Fig. 9 Protective Glasses

Page | 9

3TECHNICAL SPECIFICATION

PPFD

Up to 3,000 µmol.m-2.s-1 at the distance of 20 cm

Panel External Dimension

(W × D × H)

•Model A: 17.5 × 17.5 × 11 cm (with holder screws: 17.5 × 28 × 11 cm)

•Model B and C: 25 × 22.5 × 11 cm (with holder screws: 25 × 33 × 11 cm)

•Model D and E: 23.5 × 34.5 × 11 cm (with holder screws: 23.5 × 45 × 11 cm)

Light Source

Light emitting diodes (LEDs): 455 nm, 530 nm, 617 nm, cool white

(4,500 –10,000 K) and others

Custom-Designed

Protocols (optional)

Variable timing and scripts

Communication Port

I2C communication (used for Light Controller LC100 and Light Studio Controller)

Power Input

From 75 to 500 W (depends on the version and LED color)

Electrical

90 –240 V

4DEVICE INSTALLATION

IMPORTANT NOTE!

•First connect all device parts with cables.

•Then connect the device to an electrical power source

and switch it on.

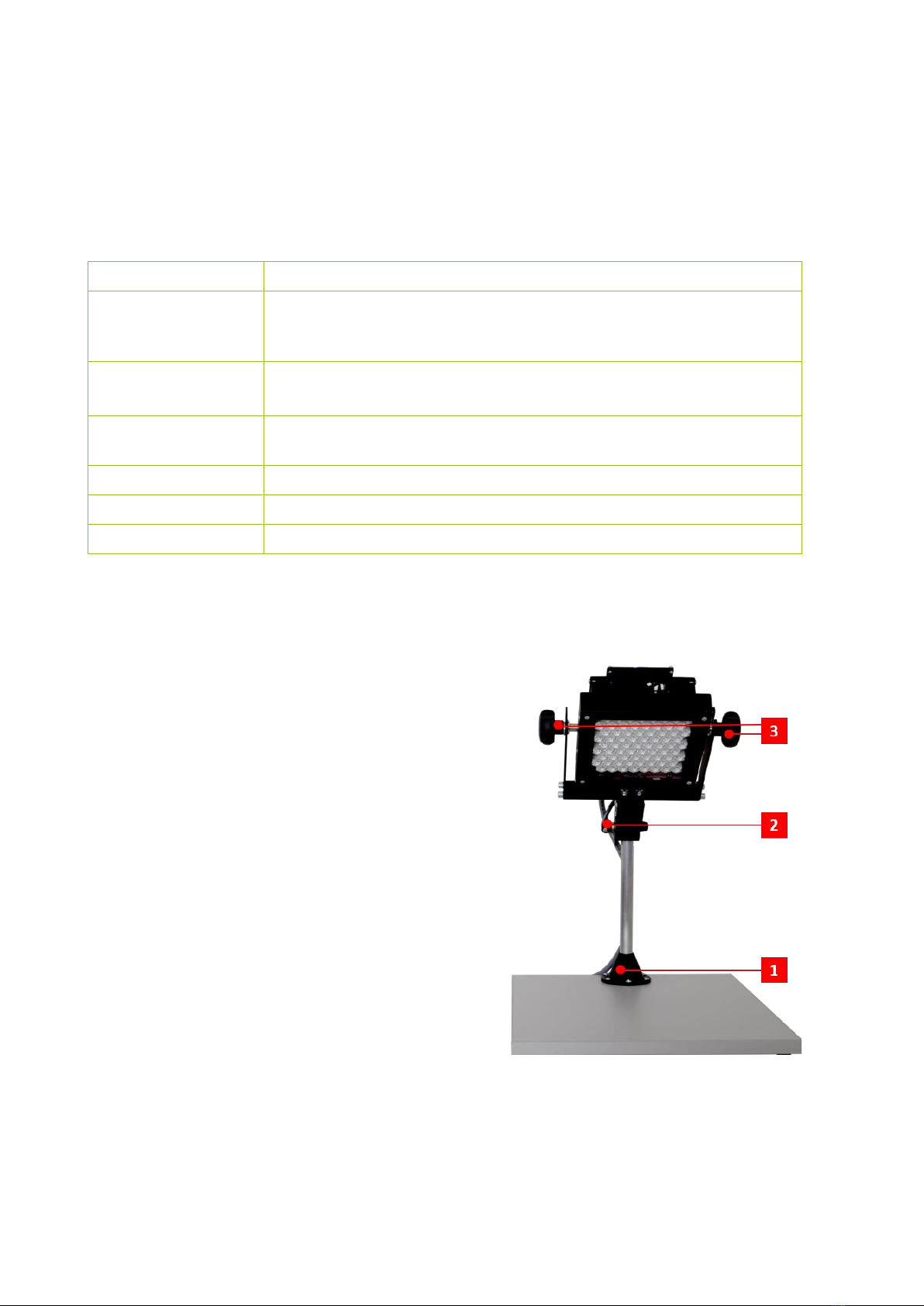

Step 1: Mount the Light Panel onto the adjustable stand. (Fig. 10).

[1] Insert the rod into the fitting of the stand base.

[2] Put a frame onto the rod and fix it using the clasp.

[3] Insert the Light Panel into the frame and fix it on both sides

using the knobs.

Fig. 10 Mount the Light Panel onto the adjustable stand

Page | 10

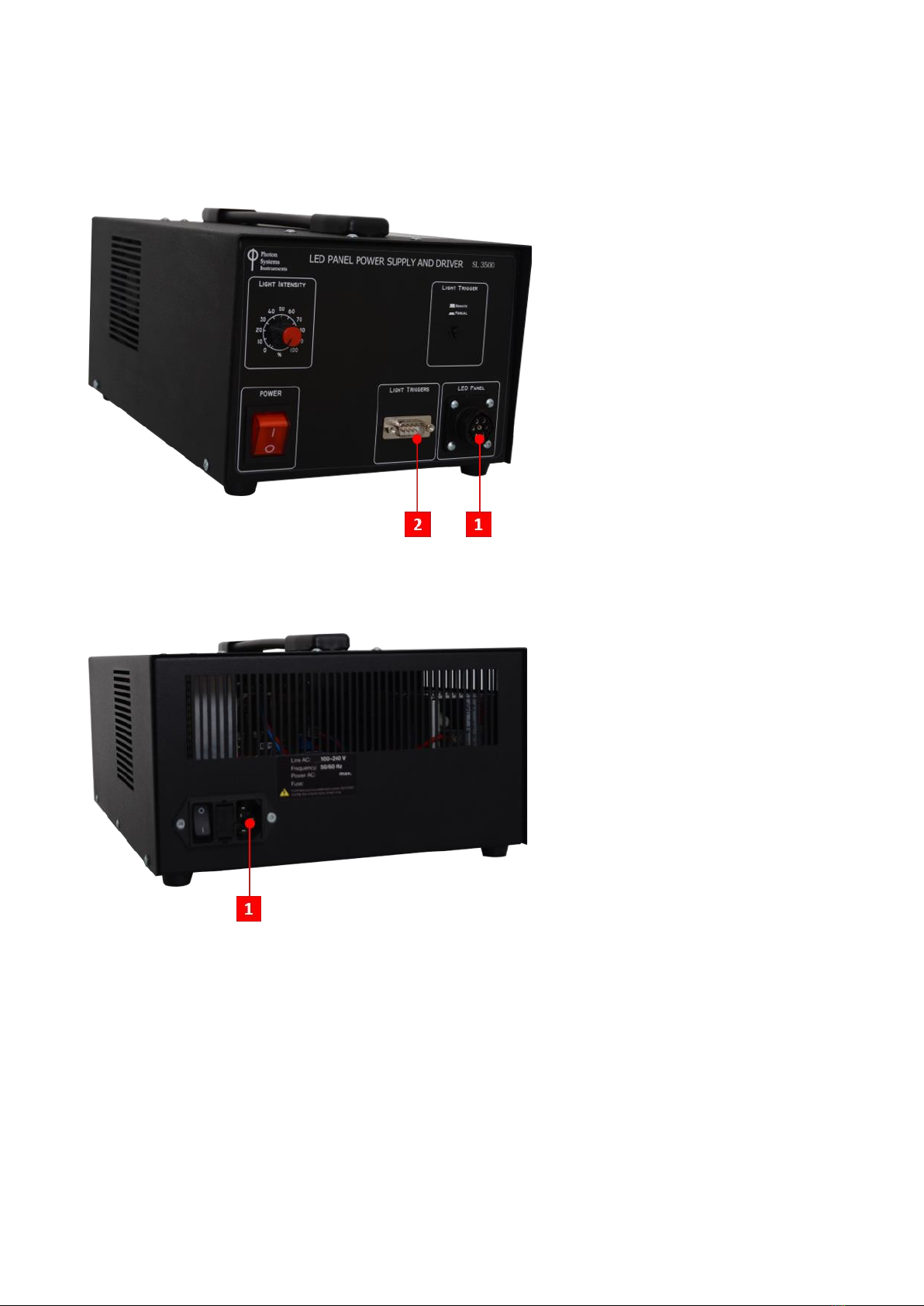

Step 2: Connect the Light Panel to the Power Supply

(control unit) (Fig. 11).

[1] Connect the Light Panel to the Power Supply

(control unit) using the LED PANEL connector.

[2] For the external control, connect the

communication cable of the Light Controller LC

100 or of a PC to the Power Supply –use the

LIGHT TRIGGER connector.

Step 3: Connect the mains cable to the Power Supply

(control unit) (Fig. 12).

[1] Connect the mains cable to the connector on rear

part of the Power Supply (control unit).

Step 4: Connect the device to an electrical power source (110/230V). Be sure that the device and all peripheral units are switched off!

Fig. 11 Connect the Light Panel to the Power Supply (control unit)

Fig. 12 Connect the mains cable to the Power Supply (control unit).
