Issue 5.2 January 2020

60-590 User Manual

LXI High Density EMR Matrix

Page (II) LXI HIGH DENSITY MATRIX 60-590

pickering

Page (II) REED RELAY MODULE 40-110/115/120/125

pickering

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by

any means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

ISO 9001

Reg No. FM38792

Page (III)

LXI HIGH DENSITY MATRIX 60-590

pickering

Page (III)

REED RELAY MODULE 40-110/115/120/125

pickering

TECHNICAL SUPPORT

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

WARRANTY

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of

three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be

defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

ENVIRONMENTAL POLICY

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and

safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can

be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Worldwide Technical Support and Product Information

pickeringtest.com

Germany

Tel: +49 89 125 953 160

E-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

E-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

E-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

E-mail: [email protected]

France

Tel +33 9 72 58 77 00

E-mail [email protected]

Pickering Interfaces Headquarters

Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

E-Mail: [email protected]

China

Tel: +86 4008 799 765

E-mail: [email protected]

Page (IV) LXI HIGH DENSITY MATRIX 60-590

pickering

Page (IV) REED RELAY MODULE 40-110/115/120/125

pickering

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

LXI HIGH DENSITY MATRIX 60-590

pickering

Technical Support and Warranty..................................................III

Product Safety .............................................................................. IV

Contents (this page)...................................................................... V

Warnings and Cautions .............................................................. VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Desctiption..................................................................2.1

Functional Description ....................................................2.1

Section 3

Installation....................................................................................3.1

Pre Operation Checks .....................................................3.1

Hardware Installation.......................................................3.1

Setting The IP Address....................................................3.2

Installing The Software....................................................3.3

Soft Front Panel Operation .............................................3.3

Section 4

Programming Guide....................................................................4.1

Programming Options for LXI Units...............................4.1

Programming the 60-590 .................................................4.2

Command Line Control ...................................................4.7

Using The Soft Front Panel...........................................4.14

Variable Labels.........................................................4.16

Section 5

Connections.................................................................................5.1

Pinouts - 40x20 Matrix (60-590-001) ...............................5.2

Pinouts - 40x40 Matrix (60-590-002) ...............................5.5

Section 6

Trouble Shooting .........................................................................6.1

LXI Status Indicators .......................................................6.1

LAN Reset.........................................................................6.2

Section 7

Maintenance Information............................................................7.1

Relay Look-Up Tables......................................................7.1

60-590 Parts List ............................................................7.11

General Maintenance.....................................................7.14

Diagnostics.....................................................................7.17

Appendix A

Fitting Rack Mounting Flanges .................................................A.1

CONTENTS

Page (VI) LXI HIGH DENSITY MATRIX 60-590

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

LXI HIGH DENSITY MATRIX 60-590

pickering

Page vii

LXI HIGH VOLTAGE 2-POLE MATRIX 60-310

pickering

WARNINGS & CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

This product is not specically designed for use in hazardous environments, for example in explosive

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in

anti-static bags.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This unit may contain hazardous voltages. Before removing the unit from the rack remove all supplies

and disconnect user I/O signals.

If the unit has removable modules, unused slots in the chassis must be populated with blanking

panels to prevent access to user I/O signals that may be present. Blanking panels are available to

order from Pickering. If the product is not used in this manner for example by using an extender card

then additional care must be taken to avoid contact with exposed signals.

Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.

This unit must not be used for the switching of Mains Circuits. For the switching of voltages up to the

unit’s full specication, Secondary Circuit power supplies and the Device Under Test must be fully

isolated from the Mains Circuit and the safety earth.

The chassis must be correctly installed and be connected to mains or factory safety ground,

please refer to the installation section of this manual.

Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT

For the purposes of this document, a Mains Circuit is an installation classied as Overvoltage

Category II up to 300V. Separation between the Secondary Circuit and Mains Circuit is achieved

by a transformer in which the primary windings are separated from the secondary windings by

reinforced insulation, double insulation, or a screen connected to the protective conductor terminal.

Switching

Function

Device

Under Test

Power

Supply

Power

Supply

LXI Unit’s Chassis

Secondary Circuit

Mains

Circuit

Mains

Circuit

Mains/Factory

Safety Ground

Page (VIII) LXI HIGH DENSITY MATRIX 60-590

pickering

Page viii

LXI HIGH VOLTAGE 2-POLE MATRIX 60-310

pickering

CAUTION - PRODUCT DOCUMENTATION SYMBOL

Suitably qualied & trained users should ensure that the accompanying documentation is fully read

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

WARNING - RACK MOUNTING

If it is required to t this unit into a 19 inch rack, its weight must be

supported by side brackets, runners or a suitable equipment shelf.

The xing holes in the front panel anges are designed only for

securing the device in the rack and must NOT be used to support

the weight of the whole device.

Please refer to Appendix A for the procedure for tting the

supplied anges to either side of the front panel.

HIGH VOLTAGE SAFETY WARNING

THIS UNIT IS CAPABLE OF SWITCHING VOLTAGES AND CURRENTS THAT CAN

CAUSE SERIOUS INJURIES. IN APPLICATIONS INVOLVING HIGH VOLTAGES IT

IS STRONGLY RECOMMENDED THAT UNUSED CONNECTORS ARE CAPPED

TO PREVENT ACCIDENTAL CONTACT WHILE IN USE. SYSTEM INTEGRATORS

AND USERS SHOULD CONNECT TO THE FRONT PANEL CONNECTORS WITH

CONNECTORS OR CABLE ASSEMBLIES THAT ENSURE OPERATORS WILL NOT

INADVERTENTLY COME IN CONTACT WITH HIGH VOLTAGES.

Page 1.1

LXI HIGH DENSITY MATRIX 60-590

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

LXI High Density Matrix 60-590

ISSUE 2.5 APR 2018

• Single Pole High Density Matrix

• 40x20 and 40x40 Versions

• Loop-Thru Connections For Easy Expansion

• Isolation Switching for Maximum Bandwidth &

Contact Life

• Uses High Quality Electro-Mechanical Relays

• Switch up to 180VDC/130VAC and up to

60W Max Power

Y20

X39

X37

X40

X38

X BUS LOOP-THRU

1-Pole

Crosspoint

Y19

1-Pole

Isolation

S BUSS BUS

Y BUS LOOP-THRU

1-Pole

Isolation

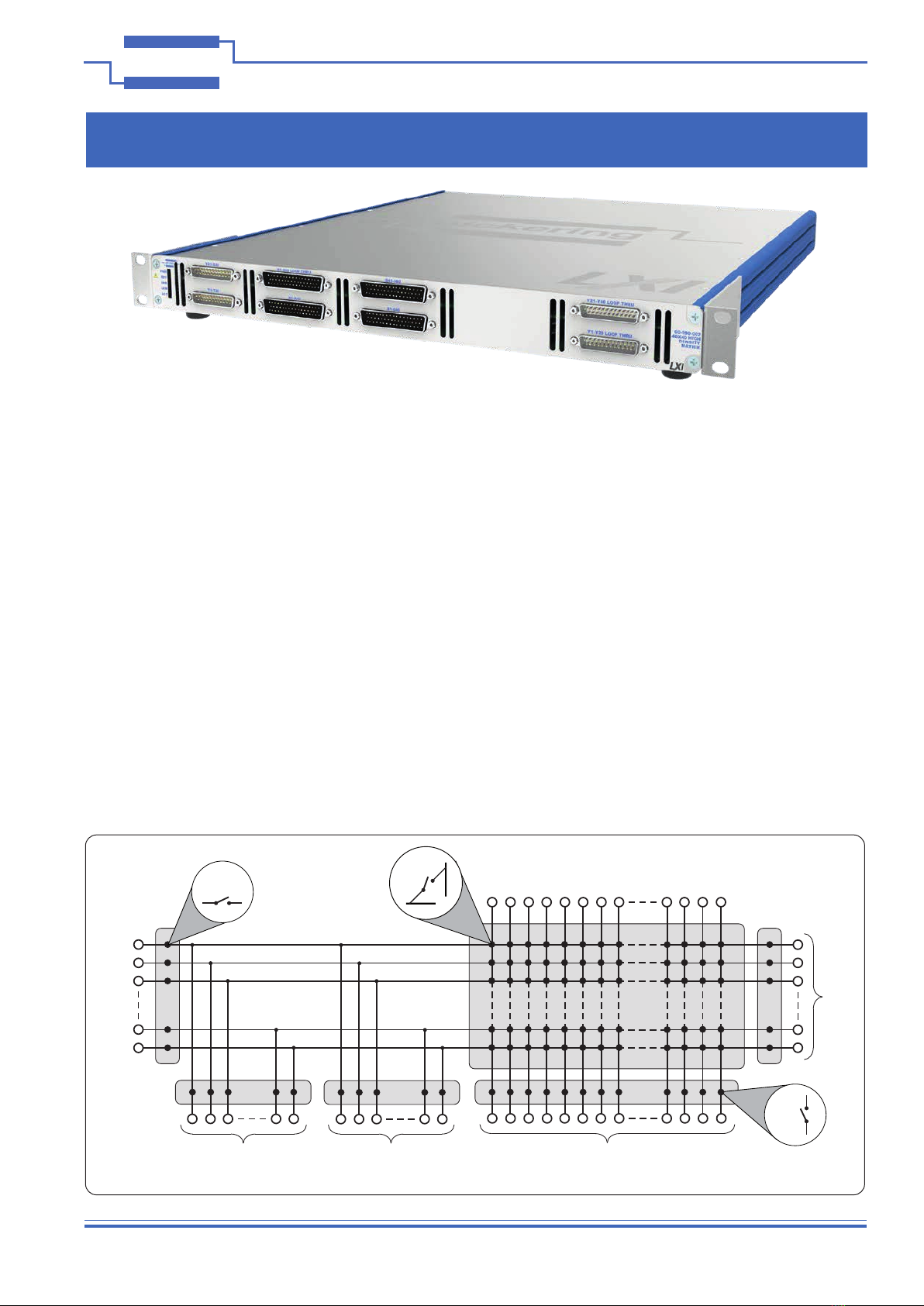

60-590-001 Single 40x20 Matrix Block Diagram

• Maximum Switch Current of 2A

• 1U Rack Mountable Enclosure

• Fully Compliant To 1.4 LXI Standard

• IVI & Direct I/O Drivers

• Built-In Diagnostics

• 3 Year Warranty

The 60-590 is a high density single pole matrix available in 40x20

or 40x40 congurations and is suitable for signal routing in large

ATE systems.

Both the X bus and Y bus include loop-thru connections allowing

easy expansion to produce larger matrix sizes.

In addition to the loop-thru connections, the Y bus includes two sets

of switched signal connections for the attachment of measurement

equipment (see switching diagram).

The 60-590 is designed in accordance with the LXI Standard 1.4

and is supplied in a 1U high, full rack width case with 500mm

depth. It is fully programmable via the LAN interface using

Pickering Interfaces’ generic switch driver. Industry standard (W3C)

web browsers can be used to access and change conguration

information and provide access to the soft front panels.

The 60-590 is ideal for applications where a simple start-up

process is required and for applications requiring control over large

distances.

Page 1.2 LXI HIGH DENSITY MATRIX 60-590

pickering

SECTION 1 - TECHNICAL SPECIFICATION

LXI High Density Matrix – 60-590

pickeringtest.com

Overview

60-590-002 Single 40x40 Matrix Switching Diagram

X1 to X40

S1 to S20 S21 to S40

X Bus Loop-Thru

S41 to S60 S61 to S80

Y1 to Y20 Loop-Thru

Internal

Connections

Y21 to Y40 Loop-Thru

Y1 to Y20

Y21 to Y40

Inhaltsverzeichnis

Andere Pickering Multiplexer Handbücher

Pickering

Pickering 20-610 Bedienungsanleitung

Pickering

Pickering LXI 65-231-9 Series Bedienungsanleitung

Pickering

Pickering 40-657A Bedienungsanleitung

Pickering

Pickering 40-657 Bedienungsanleitung

Pickering

Pickering 40-658A Bedienungsanleitung

Pickering

Pickering 40-616 Bedienungsanleitung

Pickering

Pickering PXi 40-660A Bedienungsanleitung

Pickering

Pickering 40-320A Bedienungsanleitung

Pickering

Pickering 40-658 Bedienungsanleitung

Pickering

Pickering 4 878 Series Bedienungsanleitung

Pickering

Pickering PXI 40-661 Bedienungsanleitung

Pickering

Pickering 40-681 Bedienungsanleitung

Pickering

Pickering 40-675 Bedienungsanleitung

Pickering

Pickering 40-619 Bedienungsanleitung

Pickering

Pickering PCI 50-670 Bedienungsanleitung

Pickering

Pickering 60-721A Bedienungsanleitung

Pickering

Pickering 40-662A Bedienungsanleitung

Pickering

Pickering 40-652A Bedienungsanleitung

Pickering

Pickering PXI 40-883A Bedienungsanleitung

Pickering

Pickering PXI 40-660 Bedienungsanleitung

Pickering

Pickering 40-659A Bedienungsanleitung

Pickering

Pickering PXI 40-617 Bedienungsanleitung

Pickering

Pickering 4 784B Series Bedienungsanleitung

Pickering

Pickering PXI Power MUX BRIC 40-571A Bedienungsanleitung

Beliebte Multiplexer Handbücher anderer Marken

Campbell

Campbell AM416 Bedienungsanleitung

Paradyne

Paradyne SIM2000 Bedienungsanleitung

Panasonic

Panasonic WJFS616 - SWITCHER Bedienungsanleitung

Lanex

Lanex TM-77 Bedienungsanleitung

Bosch

Bosch VSS8394/01T Bedienungsanleitung

Quark-Elec

Quark-Elec QK-A035 Bedienungsanleitung

ADTRAN

ADTRAN Frameport 768 Bedienungsanleitung

Elo TouchSystems

Elo TouchSystems E247 Bedienungsanleitung

Paradyne

Paradyne Hotwire 8786 Bedienungsanleitung

RFL Electronics

RFL Electronics 9508D UCC Bedienungsanleitung

Miranda

Miranda AMX-101i Bedienungsanleitung

ShipModul

ShipModul MiniPlex-AIX NMEA-0183 Bedienungsanleitung

GE StoreSafe SDVR-10 Bedienungsanleitung

American Fibertek

American Fibertek MTX-8410C Bedienungsanleitung

ADC

ADC HiGain ELU-319 5E Bedienungsanleitung

Paradyne

Paradyne Hotwire 8774 Bedienungsanleitung

American Fibertek

American Fibertek MTX-8810C-SL Bedienungsanleitung

Viessmann

Viessmann 5229 Bedienungsanleitung
