50-411 User Manual

PCI Relay Driver Card

Page (II) RELAY DRIVER CARD 50-411

pickering

Page (II) REED RELAY MODULE 40-110/115/120/125

pickering

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by

any means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

ISO 9001

Reg No. FM38792

Page (III)

RELAY DRIVER CARD 50-411

pickering

Page (III)

REED RELAY MODULE 40-110/115/120/125

pickering

TECHNICAL SUPPORT

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

WARRANTY

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of

three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be

defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

ENVIRONMENTAL POLICY

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and

safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can

be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Worldwide Technical Support and Product Information

pickeringtest.com

Germany

Tel: +49 89 125 953 160

E-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

E-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

E-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

E-mail: [email protected]

France

Tel +33 9 72 58 77 00

E-mail [email protected]

Pickering Interfaces Headquarters

Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

E-Mail: [email protected]

China

Tel: +86 4008 799 765

E-mail: [email protected]

Page (IV) RELAY DRIVER CARD 50-411

pickering

Page (IV) REED RELAY MODULE 40-110/115/120/125

pickering

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

RELAY DRIVER CARD 50-411

pickering

Technical Support and Warranty................................................III

Product Safety .............................................................................IV

Contents (this page)....................................................................V

Warnings and Cautions ..............................................................VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Description .................................................................2.1

Functional Description..........................................................2.1

Guidance on Using the Card ................................................2.2

Section 3

Installation....................................................................................3.1

Pre Operation Checks...........................................................3.1

Hardware Installation ............................................................3.2

Software Installation .............................................................3.2

Testing Operation ..................................................................3.3

Section 4

Programming Guide....................................................................4.1

Programming Options For Pickering PCI Cards ................4.1

Module Architecture..............................................................4.2

Programming The Card.........................................................4.3

Section 5

Connector Information................................................................5.1

Section 6

Trouble Shooting.........................................................................6.1

Section 7

Maintenance Information............................................................7.1

Relay Lookup Tables.............................................................7.1

Component Layout................................................................7.3

CONTENTS

Page (VI) RELAY DRIVER CARD 50-411

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

RELAY DRIVER CARD 50-411

pickering

Page (VII)

PCI REED RELAY CARD 50-110 / 115 / 120 / 125

pickering

WARNINGS AND CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

This product is not specically designed for use in hazardous environments, for example in explosive

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in

anti-static bags.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This card may contain hazardous voltages. Before removing the card from the chassis remove all

supplies and disconnect user I/O signals.

Unused slots in the PC chassis are populated with blanking plates to prevent access to user I/O

signals that may be present. . If the product is not used in this manner for example by using an

extender card then additional care must be taken to avoid contact with exposed signals.

Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.

This card must not be used for the switching of Mains Circuits. For the switching of voltages up to

the card’s full specication, Secondary Circuit power supplies and the Device Under Test must be

fully isolated from the Mains Circuit and the safety earth.

The host chassis must be correctly installed and be connected to mains or factory safety ground,

please refer to your chassis installation manual.

Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT

For the purposes of this document, a Mains Circuit is an installation classied as Overvoltage

Category II up to 300V. Separation between the Secondary Circuit and Mains Circuit is achieved

by a transformer in which the primary windings are separated from the secondary windings by

reinforced insulation, double insulation, or a screen connected to the protective conductor terminal.

PCI Switching

Card

Device

Under Test

Power

Supply

Power

Supply

Host Chassis

Secondary Circuit

Mains

Circuit

Mains

Circuit

Mains/Factory

Safety Ground

Page (VIII) RELAY DRIVER CARD 50-411

pickering

Page (VIII) PCI REED RELAY CARD 50-110 / 115 / 120 / 125

pickering

CAUTION - PRODUCT DOCUMENTATION SYMBOL

Suitably qualied & trained users should ensure that the accompanying documentation is fully read

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

Page 1.1

RELAY DRIVER CARD 50-411

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

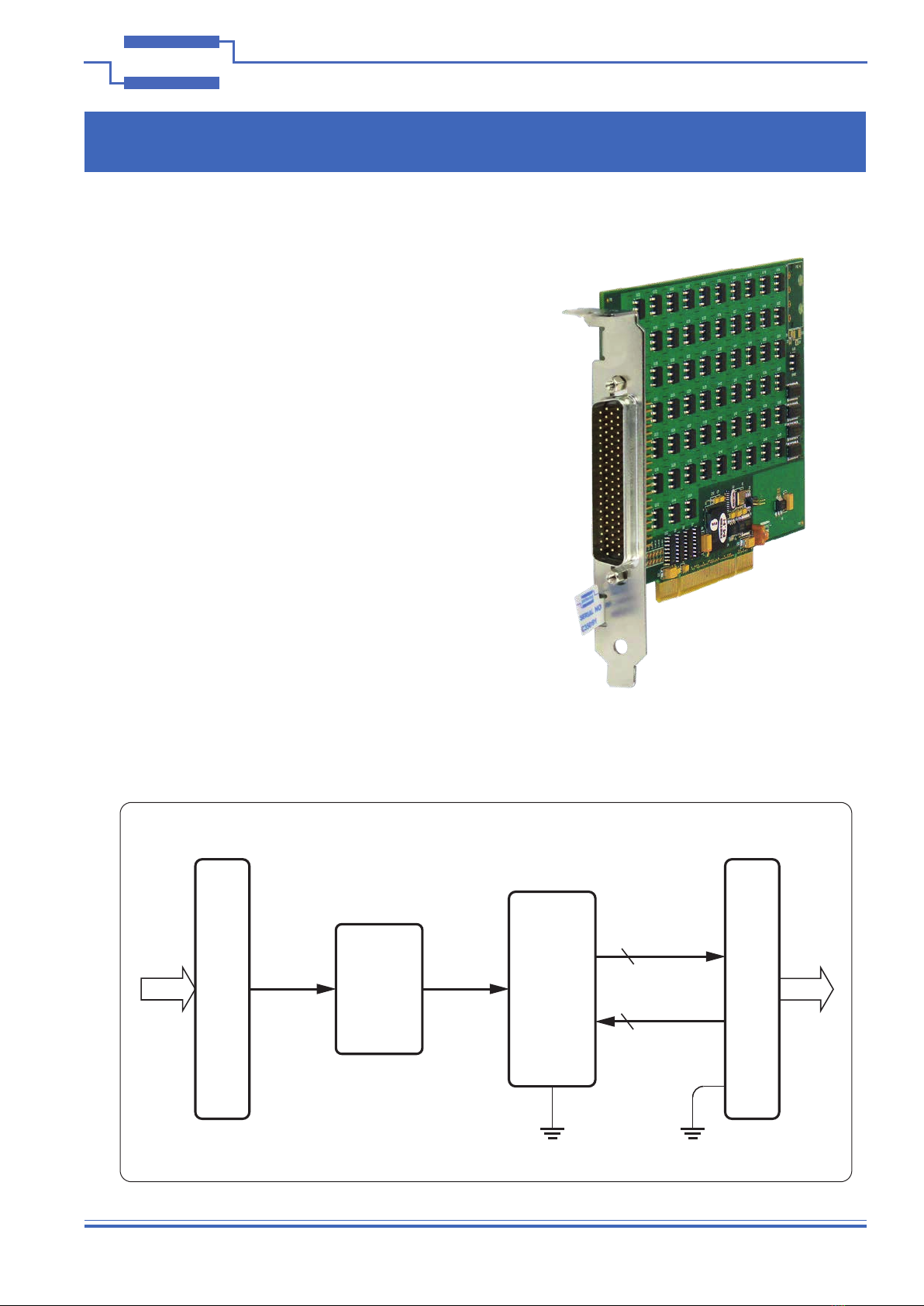

PCI Relay Driver Card 50-411

ISSUE 3.0 SEP 2018

y64-Channel Relay Driver

y60 V Drive Capability, Up to 1 A Per Channel

yShort Circuit and Thermal Protection

yOver Voltage Clamp

yHigh Current Capacity

ySwitch With External Relay Power

yVISA & Kernel Drivers Supplied for Windows

y3 Year Warranty

RELAY

DRIVE

PCI

INTERFACE

PCI

BUS

OUTPUT

CONTROL

CHANNEL

OUTPUTS

OUTPUT

CONNECTOR

64 Channels

11 GND Returns

50-411 Relay Driver Functional Diagram

The 50-411 is the perfect solution for driving external

relays from a PCI slot.

The card provides 64 channels of low side switching for

external relays. Users need to simply connect a positive

voltage source to one terminal of a relay coil and the other

terminal to an output of the 50-411. Each output is capable

of sinking up to 1 A of continuous current.

Outputs have current, thermal and overvoltage protection.

The thermal and current limit circuits protect the output

from failure even when directly connected to voltages up to

30 V. When switching relays, spikes from the inductive load

are clamped at 80 V and relay coil energy of up to

550 m Joule can be dumped without the use of additional

diode clamps.

Relay coil current is prevented from ﬂowing back into the

PCI slot by the use of an isolation barrier.

Page 1.2 RELAY DRIVER CARD 50-411

pickering

SECTION 1 - TECHNICAL SPECIFICATION

PCI Relay Driver Card, 50-411

pickeringtest.com

Speciﬁcations

Speciﬁcation

Number of Channels: 64 Outputs

Typical Output Resistance: 0.6 Ω (on state)

Off State Leakage Current: 3 µA maximum at 12 V (start

up condition is open circuit).

Maximum Output Current: 1 A on any channel, up to

12 channels (Please refer

to de-rating curve for lower

channel currents).

Note: for full load conditions,

adequate cooling is assumed.

Maximum Output Voltage: 60 V* (recommended max

continuous voltage).

Output Protection: Limits at 1.3 A nominal.

Thermal limit activates at

typically 1.5 W in o/p device.

Overvoltage clamp operates

at 80 V.

* For full voltage rating, signal sources must be fully

isolated from mains supply and safety earth.

Power Requirements

+3.3 V +5 V +12 V -12 V

0.1 A 0 0.1 A 0

Mechanical Characteristics

Single slot short PCI format. 3D models for all versions in a

variety of popular ﬁle formats are available on request.

Connectors

Signals via a 78-pin male D-type connector, for pin outs

please refer to the operating manual.

Operating/Storage Conditions

Operating Conditions

Operating Temperature:

Humidity:

Altitude:

0 °C to +55 °C

Up to 90 % non-condensing

5000 m

Storage and Transport Conditions

Storage Temperature:

Humidity:

Altitude:

-20 °C to +75 °C

Up to 90 % non-condensing

15000 m

PXI & CompactPCI Compliance

The 50-411 card complies with the PCI Speciﬁcation 2.0

(issued Feb 2004).

Signalling Environment: 33 MHz, 32-bit Universal

(+3.3 V & +5 V).

Safety & CE Compliance

All cards are fully CE compliant and meet applicable

EU directives: Low-voltage safety EN61010-1:2010,

EMC Immunity EN61326-1:2013,

Emissions EN55011:2009+A1:2010.

50-411 Derating Curve - Current per Channel

12 29

External

Relay

Power (+)

Local

Power

Supply

Decoupling

Signal

Connection

50-411

Local Coil

Suppression

Ground Return

Using the 50-411 to drive an external relay. Local power

supply decoupling for the relay and coil suppression

circuits are recommended for best EMC characteristics

with high current relays, but are not essential for safe

operation due to the built in protection system.

Inhaltsverzeichnis

Andere Pickering Relais Handbücher

Pickering

Pickering 45-157 Bedienungsanleitung

Pickering

Pickering 40-166 Bedienungsanleitung

Pickering

Pickering PXI 40-780A Bedienungsanleitung

Pickering

Pickering 40-121 Bedienungsanleitung

Pickering

Pickering 65-223 Bedienungsanleitung

Pickering

Pickering 200 Series Bedienungsanleitung

Pickering

Pickering SYSTEM 10 Bedienungsanleitung

Pickering

Pickering 40-153 Bedienungsanleitung

Pickering

Pickering 4-781A Series Bedienungsanleitung

Pickering

Pickering 40-136 Bedienungsanleitung

Pickering

Pickering 40-294 Bedienungsanleitung

Pickering

Pickering PXI 40-160 Series Bedienungsanleitung

Pickering

Pickering 42-323 Bedienungsanleitung

Pickering

Pickering 60-890-003 Bedienungsanleitung

Pickering

Pickering PXI 40-710 Bedienungsanleitung

Pickering

Pickering PXI 40-131 Bedienungsanleitung

Pickering

Pickering 40-411 Bedienungsanleitung

Pickering

Pickering SYSTEM 10 Bedienungsanleitung

Pickering

Pickering PXI 4 145A Series Bedienungsanleitung

Pickering

Pickering 40/42-139A Bedienungsanleitung

Pickering

Pickering 40-780B Bedienungsanleitung

Pickering

Pickering 50-131 Bedienungsanleitung

Pickering

Pickering 4x-780B Bedienungsanleitung

Pickering

Pickering 40-138 Bedienungsanleitung

Beliebte Relais Handbücher anderer Marken

Shelly

Shelly Pro Series Bedienungsanleitung

GE MVAX 11 Bedienungsanleitung

ABB

ABB RELION REF615R Bedienungsanleitung

Pilz

Pilz PNOZ X10 Betriebsanleitung

ABB

ABB SPAJ 142 C Stücklistenhandbuch

Kemo Electronic

Kemo Electronic B197 Bedienungsanleitung

Seg

Seg MRM3 Bedienungsanleitung

Basler

Basler BE1-700C Bedienungsanleitung

CD Automation

CD Automation REVEX 2PH 280A Bedienungsanleitung

Ruelco

Ruelco 1S04 Bedienungsanleitung

Basler

Basler V3E Z1P B2C1F Bedienungsanleitung

Doepke

Doepke Dupline DSM 2 Bedienungsanleitung

Siemens

Siemens SIRIUS 3RT1966-4D Bedienungsanleitung

GE DGP Bedienungsanleitung

Kyongbo Electronics

Kyongbo Electronics GDR-D01 Bedienungsanleitung

Siemens

Siemens SIPROTEC 4 Bedienungsanleitung

Siemens

Siemens BD2-AK03X/FS Series Bedienungsanleitung

Leuze

Leuze MSI-SR5B Bedienungsanleitung
