PICO GENIE M400 PRO Bedienungsanleitung

Pico Genie M400 Pro

User Manual

Please read this user manual carefully before using your unit

Contents

Features 3

Safety Instructions 4

Box Contents 5

Projector Exterior View 7

Remote Instructions 8

Projection istance and Size 9

Operation Instructions 9

Input Source Select 10

Connecting to evices 11-12

Supported File Types 13

Wireless connection options

LNA 14

Widi-Miracast Connection 15-17

OS Menu / Picture / Sound 18-19

PPT conversion 20

3 Function 21-22

Trouble Shooting 23

Technical Specification 24

Key Features

•

300 lumens of brightness, up to a 100” projected image

•

Multiple wireless options now in-built inc DLN , Widi and wireless apps

•

HD 1280×800 (720p) resolution with DLP (Supports 1080p playback)

•

Built-in rechargeable li-ion battery, project at full brightness on battery power

•

3D Projection straight from the box (DLP-LINK / 3D RE DY support)

•

HDMI / VG / V/ USB/ MicroSD inputs. HDMI port can power smart dongles

•

4GB MicroSD card, VG / V cable & HDMI cable included

•

Keystone Correction (+/-40 degrees)

•

20,000+ hour LED light-source, no bulb or filter to replace

•

Coaxial audio output for multi-channel surround sound

•

100％ offset image

•

Easy to set up and use - Instant ON/OFF with 16.7 million colour Display

Safety Instructions

•

Only use the power adaptor provided, others may damage the machine.

•

Do not disassemble, modify, throw or drop the projector otherwise it may cause damage

•

The projector can only be repaired by approved professionals

•

The battery is integrated, do not cover up, modify or remove it.

•

Do not allow objects into the projector vents, or to fall into the projector, otherwise it will result in

machine damage; if any foreign objects fall into it, please turn off the power quickly, contact the

retailer

or manufacturer

•

Do not place liquids near or on the projector. If liquid is spilled on the machine, i

mmediately turn off the

power

•

Ensure the projector is used in a well ventilated area and do not obstruct the vents as this may cause

a fire hazard.

•

cceptable environment conditions: Temperature 0-35℃. Humidity 0~85%. Elevation 0~2000M

•

Do not use the projector under hot / bright lights or highly magnetic areas

•

Do not use the projector in excessively dirty or dusty environments

•

Do not look at the lens while the projector is in operation

Box Contents

Projector Remote SD Card V Cable

Power Cable

VG / V Cable + HDMI Cable

dapter

Warning: Read before Use. Viewing 3 content

•

Watching for extended periods at a close distance may affect vision, cause eye fatigue or dizziness

•

Pregnant ladies, elderly people, patients with heart disease & those prone to vomiting should avoid

excessive viewing

•

Be aware of people and objects around you when watching 3D content

•

Children under 5 should not view 3D content from this projector, it may affect visual development

•

People with epilepsy, photosensitivity (light anaphylactic) or light allergy should consult a doctor before

viewing. If you experience negative symptoms whilst using the projector, immediately stop viewing.

•

It may take your eyes a moment to adapt to viewing 3D content.

•

Under fluorescent lights (50Hz~60Hz), 3-wavelength lights&

around windows the image may appear to

flicker when watching. We recommend blocking out as much light as possible for viewing.

•

ctive 3D glasses that support DLP-LINK must be used to view 3D content

Projector Exterior View

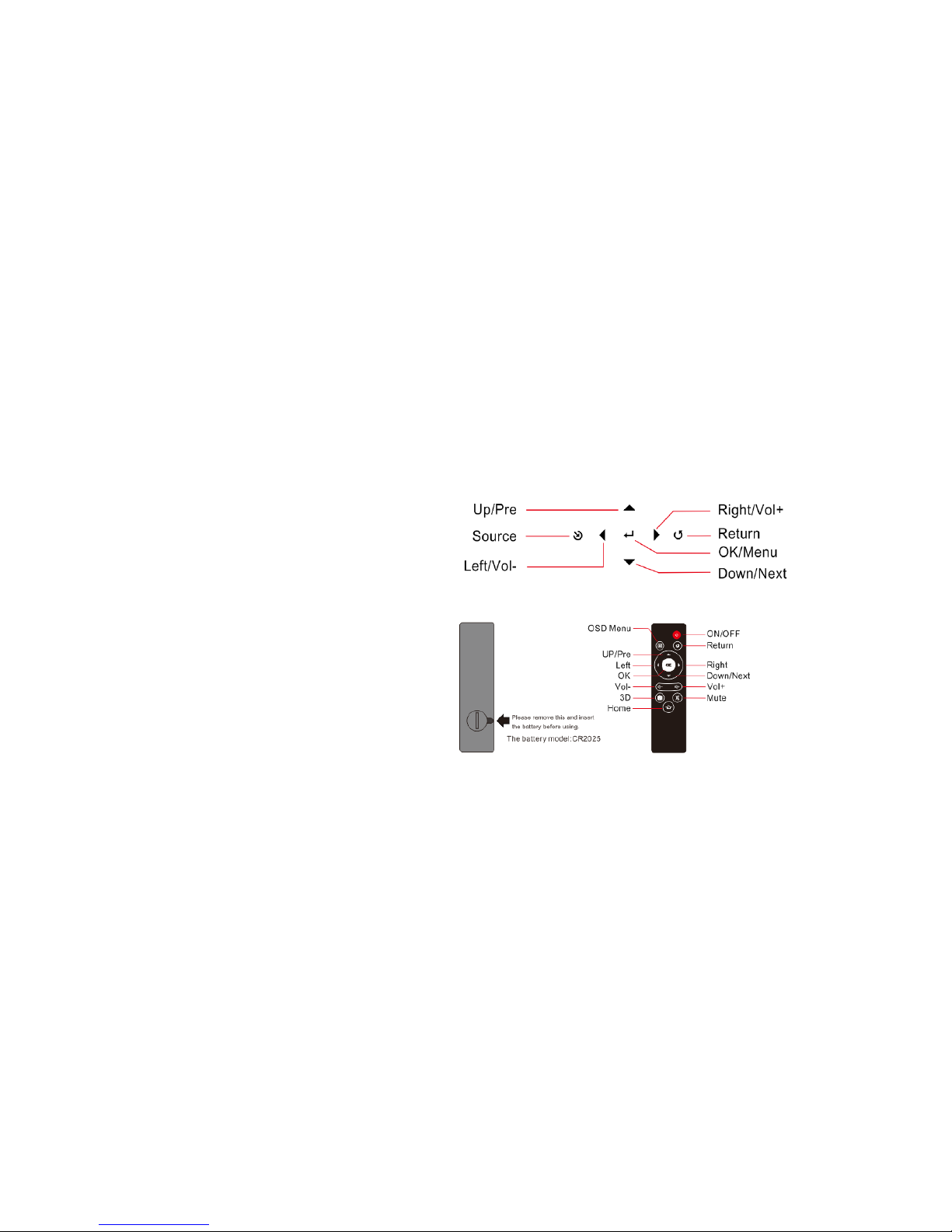

Touch Key Instructions

Remote Instructions

Projection size and distance table

(For reference only)

Turn the focus wheel to obtain a clearer picture.

Projector operation

Connect the power cable and adapter, hold the power

button for 3 seconds until the fan starts and select the required input

method. Note: When there is no signal for 15 minutes, it will shutdown

automatically. Charge the projector for 1-4 hours before use. n indicator light will show when charging.

Input Source Selecting

To change the input source,

select the “Source” button on the

projector itself (see image above)

OR press the home button on the

remote control, navigate to the

“Input Source” option and select

it, then select our required input

method.
