Wireless 2-Way

Outdoor Siren

Model: SRO743 / SRO786

Installation and Programming Instructions

2Wireless Siren - Installation and Programming Instructions

Introduction

PIMA's two-way Outdoor Siren is designed to extend the signaling capabilities of

PIMA's wireless systems. The wireless siren offers an easy and flexible solution for

quick installation. The siren is powered by its own batteries and communicates

wirelessly with the security panel.

Up to 3 wireless sirens can be assigned to a system.

Operational Functions

Alarm / Tamper Indication

Upon an alarm condition, the siren will be activated for a period defined by the

system (Siren Time parameter).

Low Battery Indication

Upon a low battery condition a trouble indication is sent to the panel.

There are 2 types of low battery indications:

Radio low battery

Speaker low battery

Supervision

Each siren can be defined to be supervised by the panel. The system generates a

local fault signal identifying the siren whose signal is not received during a

predefined time, followed by a report to the Alarm Receiving Center (if defined).

Cancel Siren Delay

When an entry time starts, the system transmits a pre-alarm signal to the siren.

If the system is disarmed before the entry delay time expires, a cancellation signal

is sent to the siren.

If the siren does not receive a cancellation signal within the entry delay time, the

siren will be activated.

Siren Self Testing

Once placing all batteries in the battery holders or pressing on the reset switch

located on the PCB (with the tamper switch open), the siren performs a functional

self-test indicated by a strobe flash and squawk sound.

LED display

The wireless siren has 2 LEDs located on the PCB. These LEDs are enabled

when the tamper is open and 10 minutes after the tamper is closed.

Red: Indicates transmission

Yellow: Indicates a low battery

Red and Yellow (3 seconds): Confirms successful enrollment

Wireless Siren - Installation and Programming Instructions 3

Mounting the Siren

To mount the siren follow this procedure:

1. Open the front cover by removing the case locking screw located at the bottom of the unit.

2. Hold the mounting pattern template (supplied) against the wall and mark the locations for

the mounting holes (4 mounting holes are available). Drill the desired mounting holes and

place the screw anchors.

3. Mount the back unit to the wall using the supplied screws, 3.9mm, 32mm length screws

(DIN 7981 3.9X32 ZP).

4. Insert a tamper screw into a tamper hole. See the figure below.

5. Access to the PCB is gained by releasing the inner cover retaining the clip and lifting the

cover upward (rotating it on its axis).

6. Insert the supplied batteries in the metal clips according to the polarity. The siren is ready

for communication set up with the system.

Tamper Screw

7. After the siren is programmed and enrolled, Close the inner cover, re-attach the front

cover and lock the Cover Screw Assembly.

4Wireless Siren - Installation and Programming Instructions

Outdoor Siren - PCB Diagram

Wireless Siren - Installation and Programming Instructions 5

Programming the siren

Programming the wireless siren consists of the following 3 steps:

1. Enrolling the siren in the alarm system

2. Setting siren parameters

3. Testing the siren

Step 1: Siren Enrollment

For complete description of the wireless configuration and device enrollments, refer

to Programming Guide for the FORCE and VISION Alarm Systems

Enrollment of the Siren in the system can be performed manually or automatically via

the keypad.

Auto Enrolling (using RF Communication):

1.Enter Installer menu, and select:

System Configuration > Peripherals > Wireless Peripherals > Enroll and delete >

Sirens >Enroll >Auto Enrollment

2.Unpack the supplied batteries.

3.Insert two speaker batteries and three Radio batteries into the batteries holders.

4.After a squawk is heard and the siren's strobe flashes you have 10 seconds to press

on the tamper switch for at least 3 seconds. The serial number should appear.

5.Select Enroll and press .

Manual Enrolling:

1. Enter Installer menu, and select:

System Configuration > Peripherals > Wireless Peripherals > Enroll and delete >

Sirens >Enroll > Manual Enrollment

2.Enter the serial number and press .

3. Select Enroll and press .

Enrolling through the Force Manager Software:

You can enroll the detector using Force Manager software; For information refer to the

Force Manager Manual.

Step 2: Setting the Siren Parameters

Each siren can be defined with different sets of parameters. The following paragraphs

describe the list of parameters of the siren.

NOTE:

For the specific programming location of each parameter refer to the system manuals.

Muting Tamper

This feature disables a tamper alarm from the siren, and it is recommended to be used

when replacing the siren's batteries.

6Wireless Siren - Installation and Programming Instructions

Cancel siren delay

This wireless siren incorporates a pre-alarm feature that enhances the security of the

system by producing a local alarm in case of sabotage.

If defined, the system sends a pre-alarm signal to the siren at the beginning of the entry

delay. If the siren does not receive a cancellation signal from the system at the end of

the entry time, the siren generate alarm.

(installer Menu < Peripherals > wireless > global settings)

Step 3: Testing the Siren

You can test the siren operation as follows:

Installer Menu > Test and Diagnostic > Outputs > Wireless > Sirens.

You can activate and e-activate the siren to check its operation.

The batteries status can be viewed in: Diagnostic > Wireless Peripherals > Sirens

Replacing Batteries

1. Before opening the siren it is advised to silence the tamper alarm using the

Tamper Mute option.

2. Remove the screw from the bottom of the siren cover and open both covers

upwards and away from the siren.

3. Remove the old batteries from the metal clips and replace them with the new

ones. Pay attention to the polarity.

4. Replace both of the covers on the siren and close the locking screw.

NOTES:

Dispose of old batteries according to your local regulations.

Risk of explosion if battery is replaced by an incorrect type.

Wireless Siren - Installation and Programming Instructions 7

Technical Information

Electrical

Power supply

5 x CR123, 3V Lithium batteries

3 batteries for the wireless system

2 batteries for signalling

Battery lifetime

3 years (typical)

Power output

10mW Max.

Siren volume

105 dB @ 1 meter (3.3")

Strobe lens

Polycarbonate

Flash frequency

60 times per minute (max.)

Dimensions (HxWxD)

273 x 230 x 64 mm (10.7 x 9.0 x 2.5 inch)

Weight (including batteries)

1 Kg (2.2lbs)

Wireless

Wireless technology

Bidirectional narrow band

Frequency

868 MHz, 433 MHz

Range

150m (492’) Line of sight

Monitoring

YES

Modulation Type

ASK

Environment

Temperature range

- 25°C to 70°C

IP class and IK Rating

IP 44, IK07

Standards

EN50131-4 Grade 2 Environmental Class IV

EN50131-6 Type C

Ordering Information

Model

Frequency

P/N

SRO743

433MHz

8841216

SRO786

868MHz

8841218

8Wireless Siren - Installation and Programming Instructions

UKCA and CE RED Compliance Statement

Hereby, PIMA declares that this equipment is in compliance with the essential

requirements of the UKCA Radio Equipment Regulations 2017 and CE Directive

2014/53/EU.

For the UKCA and CE Declaration of Conformity please refer to our website:

www.pima-alarms.com

Limited Warranty

PIMA Electronic Systems Ltd. does not represent that its product may not be compromised and/or

circumvented, or that the Product will prevent any death, personal and/or bodily injury and/or

damage to property resulting from burglary, robbery, fire or otherwise, or that the Product will in all

cases provide adequate warning or protection. The User understands that a properly installed and

maintained equipment may only reduce the risk of events such as burglary, robbery, and fire

without warning, but it is not insurance or a guarantee that such will not occur or that there will be

no death, personal damage and/or damage to property as a result.

Read this guide in its entirety before attempting to program or operate your system. Should you

misunderstand any part of this guide, please contact the supplier or installer of this system.

Contacting PIMA

PIMA Electronic Systems Ltd.

www.pima-alarms.com

5, Hatzoref Street, Holon 5885633, Israel

Tel: +972.3.6506414

Fax: +972.3.5500442

Email: [email protected]

No part of this document may be reproduced in any form without prior written

permission from the publisher.

For the CE Declaration of Conformity please refer to our website:

www.pima-alarms.com

PD 6662:2017

5IN2990-B

Scan for technical documentation

Dieses Handbuch passt für folgende Modelle

Andere Pima Sicherheitssystem Handbücher

Pima

Pima hunter-pro Bedienungsanleitung

Pima

Pima Hunter-Pro 32 Bedienungsanleitung

Pima

Pima AlarmView Bedienungsanleitung

Pima

Pima SRO143 Bedienungsanleitung

Pima

Pima HUNTER-PRO 32 RXN-9/416 Bedienungsanleitung

Pima

Pima hunter-pro Bedienungsanleitung

Pima

Pima HUNTER-PRO 896 Bedienungsanleitung

Pima

Pima Hunter-Pro 832 Bedienungsanleitung

Pima

Pima Hunter-Pro 32 Bedienungsanleitung

Pima

Pima Sentinel Bedienerhandbuch

Pima

Pima N-406 Bedienungsanleitung

Pima

Pima VISION Bedienungsanleitung

Pima

Pima Captain 8 Hunter-Pro 832 Bedienungsanleitung

Pima

Pima FORCE Betriebsanleitung

Pima

Pima VISION Bedienungsanleitung

Pima

Pima HUNTER-PRO RXN-9 Bedienungsanleitung

Pima

Pima HUNTER-PRO RSA Bedienungsanleitung

Pima

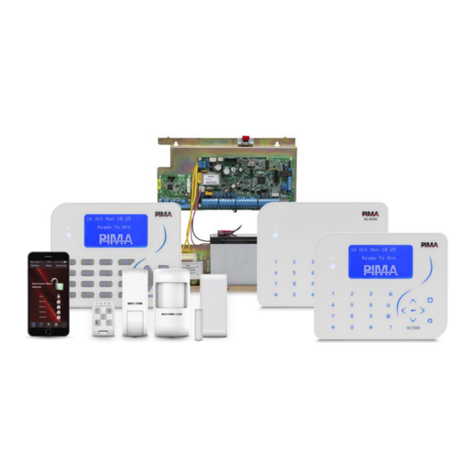

Pima FORCE Series Bedienungsanleitung
