Before You Begin

This quick reference provides instructions for installation of the Dome C2, C3, C3i, or C5i

display system. Note that the location of the DIP switch differs on the DX and DX2 display

controllers, but both boards have identical instructions for installation and are supported by

the same driver. Check that your system meets these requirements.

Operating System

Windows XP/2000

Warning

Avertissement

Avvertenza

Advertencia

Warnung

Wear an antistatic heel or wrist

strap when installing the controller

and display to avoid damage to

computer components.

Increasing the PCI Bus Performance

(PCICacheMode registry entry)

On systems with 64-bit PCI slots, use the display driver

to enable write-combining for the display controller.

Enabling this function can improve video performance

on the board by 100% or more.The results: faster

image loads, increased window and level speed, and

enhanced system performance.

For more information, visit www.planar.com.

System Requirements

•PCI slot per board

•50 MB hard disk space

•256 MB RAM

•CD-ROM drive

CX Display Display Controller

Dome C2 DX

Dome C3 DX

Dome C3i DX2

Dome C5i DX

cx-QSUG-6 7/13/04 10:31 AM Page 2

Check the contents of your Dome CX display package for all the items shown here.

Save the original packing materials for storage and shipping.

Guidelines

•Use both hands to lift

or adjust the display.

•Avoid touching the

display screen.

•Do not set up the display

in areas with sudden

temperature changes

and strong light sources.

•Do not block the vents on

the back of the display.

•Do not remove the back

cover or disassemble

the display.

Unpacking the Display

Dome CX digital flat panel Dome display controller

DVI-to-DVI video cable Dome display driver

and Dome CXtra CDs

CX power block Dome CX and Dome CXtra

quick references

Power cord

cx-QSUG-6 7/13/04 10:31 AM Page 3

DX DIP Switch S2 Enable VGA Disable VGA

1 ON OFF

For either the DX or DX2

display controller, slide switch 1

on DIP switch S2 into the ON

position to enable VGA mode.

Enable VGA on only one (1)

board when you install multiple

boards. Disable VGA on

all boards if you are using

a separate VGA card.

Setting DIP Switch S2

DX2 DIP Switch S2 Enable VGA Disable VGA

1 ON OFF

cx-QSUG-6 7/19/04 11:05 AM Page 4

Turn your computer off. Leave the power cord

plugged into the grounded outlet.

To install the controller

1Turn off all peripherals. Disconnect all cables from

the back of your computer.

2Remove the computer cover.

3Remove the blank bracket from the

available PCI slot.

4Insert the display controller into the PCI slot,

align the connector pins, and press the

board down until it is firmly seated.

5Secure the mounting bracket.

6Reattach the computer cover and the peripherals.

When installing multiple display controllers,

install all boards before you install the driver.

Display controller

installed

Installing the Display Controller

Remove blank

bracket

Open 64-bit

PCI slot

cx-QSUG-6 7/13/04 10:31 AM Page 5

Interpreting LED Status Lights

LED A indicates the digital-link status

between the display controller and

the interface.

LED B indicates the display-panel

status; it shows any faults currently

in the panel.

For more information, see the

Dome CX Display Reference Guide.

Connector plate

USB ports on desktop stand

Locate your specific CX display to the right

Identifying Controls and Connectors

cx-QSUG-6 7/13/04 10:31 AM Page 6

C3i/C5i

Reset LEDs PowerDVI ADVI B

USBUSB

Reset LEDs Power DVI

USBUSB

Reset LEDs PowerDVI

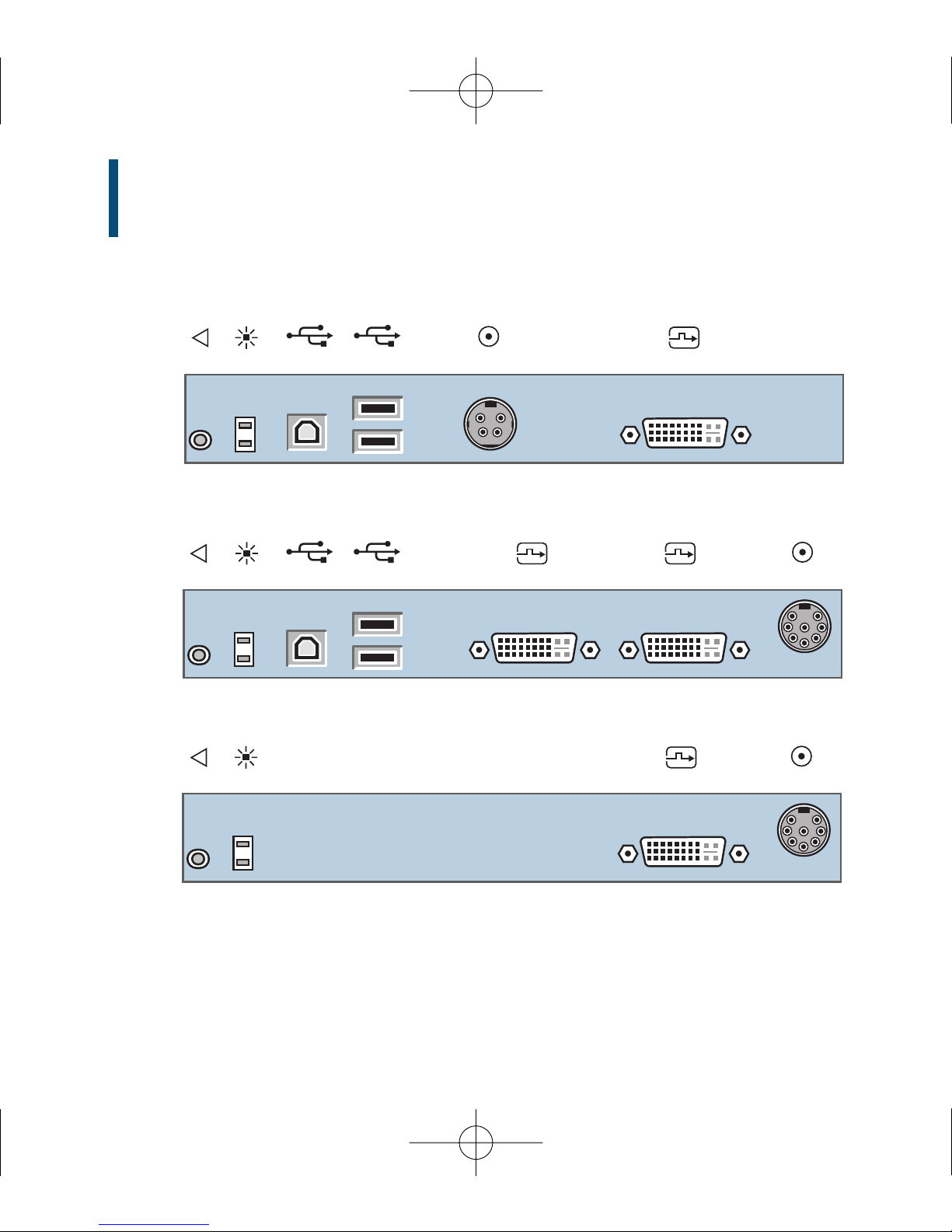

Specific Connector Plates

cx-QSUG-6 7/13/04 10:31 AM Page 7

Connection for

a single display

DVI cable

Display

controller

installed

Use only the cable and power cord

supplied with the Dome CX display.

1Press the PUSH button on the desk

stand cover and remove the stand

cover. See page 9 for how to

thread the cable and cord on

the desk stand.

2Plug one end of the DVI cable into

the DVI connector port. Tighten

the thumbscrews to secure the

connection.

3Plug the power cord into the

power input port.

4Plug the other end of the DVI

cable into the video port on

the installed display controller.

Use DVI port #1 if you are installing

only one display.

5Plug the other end of the power

cord into a grounded outlet.

6Reattach the stand cover.

7Power on your display first, then

the computer.

Power cord DVI cable

See your panel configuration on page 7.

Connecting the Board, Display, and Power Supply

cx-QSUG-6 7/13/04 10:31 AM Page 8

To remove the stand cover,

press the PUSH button on the

desk stand (just above the

USB hub) and pull the stand

cover down and out to

remove it.

Thread the DVI cable and the

power cord through the back

of the stand. Make sure the

cable and cord are seated in

the notches.

To reattach the stand cover,

align the hooks with the slots

on the stand. Press the cover

into place. A click sound

signals a secure connection.

Threading the DVI Cable and Power Cord

cx-QSUG-6 7/13/04 10:31 AM Page 9

If necessary, remove the previously installed 63-WINDX driver before you install the

63-W2KDXPCI driver.

To remove the 63-WINDX driver

1Log on with administrator privileges.

2Insert the WINDX CD. Open the CD folder.

3Browse to the Win2k directory.

4Double-click Setup.exe.

5Select Remove to uninstall the driver.

6Restart the computer.

To install driver

1Log on with administrator privileges.The InstallShield Wizard reports new hardware.

2Click Cancel.You must run Setup.exe to install

the driver.

3Insert the W2KDXPCI CD. Open the CD folder.

4Double-click Setup.exe.

Installing the Display Driver on Windows XP/2000

cx-QSUG-6 7/13/04 10:31 AM Page 10
