Planar Dome E Series Bedienungsanleitung

Dome EX Displays

QUICK REFERENCE

Windows XP

Windows 2000

EX-QSUG-1_grey 10/18/05 2:06 PM Page 1

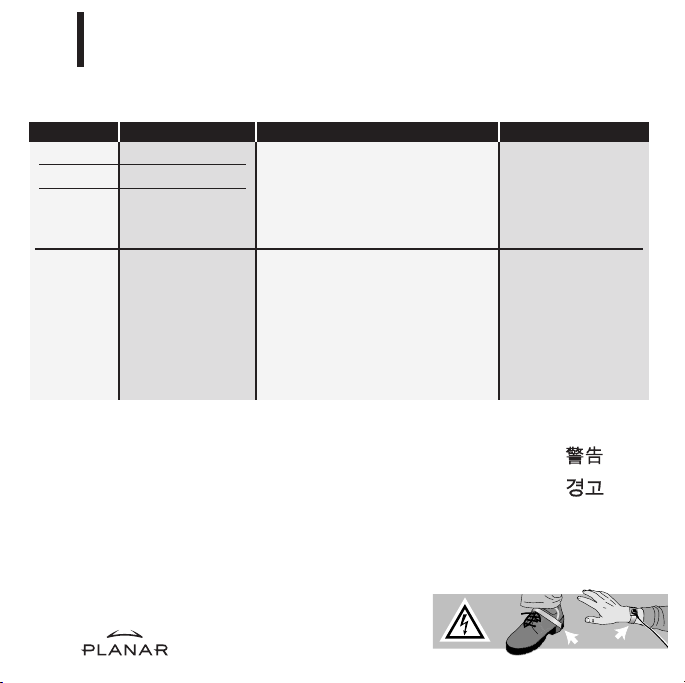

Before You Begin

Check that your system meets these requirements for installation of the Dome E2, E3, or E5

display system.The Dome E3 display is compatible with either the DX2 or the AX3 board.

Operating System

Windows XP or

Windows 2000

with Service Pack 4

or higher

Windows XP or

Windows 2000

with Service Pack 4

or higher

Warning

Avertissement

Avvertenza

Advertencia

Warnung

Wear an antistatic heel or wrist

strap when installing the controller

and display to avoid damage to

computer components.

Increasing the PCI Bus Performance

(PCICacheMode registry entry)

On systems with 64-bit PCI slots, use the display

driver to enable write-combining for the display

controller. Enabling this function can improve video

performance on the board by 100% or more.

The results: faster image loads, increased window

and level speed, and enhanced system performance.

For more information, visit www.planar.com.

System Requirements

•PCI slot per board

(64-bit recommended)

•50 MB hard disk space

•256 MB RAM

•CD-ROM drive

•Intel Pentium 4/Xeon; AMD

Athlon 64/K7/XP or compatible

•PCI Express x16 lane slot

•50 MB hard disk space

•256 MB RAM

•CD-ROM drive

•Power supply,

350 watts or greater

EX Display Display Controller

Dome E2 DX2

Dome E3 DX2

Dome E5 DX2

Dome E3 AX3

EX-QSUG-1_grey 10/18/05 2:06 PM Page 2

Check the contents of your Dome EX display package for all the items shown here.

Save the original packaging materials for storage and shipping.

Guidelines

• Use both hands to lift or

adjust the display.

• Avoid touching the

display screen.

• Do not set up the display

in areas with sudden

temperature changes

and strong light sources.

• Do not block the vents on

the back of the display.

• Do not remove the back

cover or disassemble

the display.

Unpacking the Display

Dome EX digital flat panel Display controller

DVI-to-DVI video cable Dome display driver

and Dome CXtra CDs

Power block Dome EX and Dome CXtra

quick references

Power cord

EX-QSUG-1_grey 10/18/05 2:06 PM Page 3

DX2

DIP Switch S2 Function Position

1VGAON

2 VESA ON

3 Single desktop ON

If you are installing the DX2

display controller, you will need

to set DIP switch S2 for your

system configuration.

Slide switch 1 into the ON

position to enable VGA mode.

Enable VGA on only one (1)

board when you install multiple

boards. Disable VGA on all

boards if you are using

a separate VGA card.

For some Dell systems, you

may need to enable VESA

modes in order to see output

on the screen. If so, slide

switch 2 into the ON position.

For single desktop mode, slide

switch 3 into the ON position.

Setting DIP Switch S2

EX-QSUG-1_grey 10/18/05 2:07 PM Page 4

Before you install the DX2 or AX3 display

controller, turn your computer off. Leave the

power cord plugged into the grounded outlet.

To install the controller

1 Turn off all peripherals. Disconnect all cables

from the back of your computer.

2 Remove the computer cover.

3 Remove the blank bracket from the

available PCI or PCI Express slot.

4 Insert the display controller into the slot,

align the connector pins, and press the

board down until it is firmly seated.

5 Secure the mounting bracket.

6 Reattach the computer cover and the peripherals.

When installing multiple display controllers,

install all boards before you install the driver.

Display controller

installed

Installing the Display Controller

Remove blank

bracket

EX-QSUG-1_grey 10/18/05 2:07 PM Page 5

Connection for

a single display

DVI cable

Display

controller

installed

Use only the cable and power cord

supplied with the Dome EX display.

1 Press the PUSH button on the desk

stand cover and remove the stand

cover.

2 Plug one end of the DVI cable into

the DVI connector port. Tighten

the thumbscrews to secure the

connection.

3 Plug the power cord into the

power input port.

4 Plug the other end of the DVI

cable into the video port on

the installed display controller.

Use DVI port #1 if you are installing

only one display.

5 Plug the other end of the power

cord into a grounded outlet.

6 Reattach the stand cover.

7 Power on your display first,

then the computer.

Connecting the Board, Display, and Power Supply

Power cable

EX-QSUG-1_grey 10/18/05 2:07 PM Page 6

Before you install the driver, remove any previously installed display driver for the display

controller from your system.

To install the driver

1 Log on with administrator privileges. The InstallShield Wizard reports new hardware.

2 Click Cancel.You must run Setup.exe to install the driver.

3 Insert the W2KDXPCI CD and open the CD folder.

4 Double-click Setup.exe.

5 Click Next to proceed and start copying files.

6 If the Digital Signature Not Found message appears, click Yes or Continue to complete

the driver installation.

7 Select Yes, I want to restart my computer now, and click Finish.

To enable the display

1 Log on with administrator priviledges.

2 Right-click the desktop. Select Properties > Settings.

3 Select the display icon.

4 Select Extend my Windows desktop onto this monitor. Click Apply.

5 Click OK.

To change the display properties

Use the Dome tab to change display properties after the Dome EX display is attached to

the Windows desktop. Otherwise, use Properties > Settings tab.

Installing the DX Display Driver

EX-QSUG-1_grey 10/18/05 2:07 PM Page 7

Auto-orientation

When powering on or resetting your computer, the orientation of your panel is detected

automatically, whether portrait or landscape. The default setting is ON. Use the Dome tab

to disable this funtion.

To set the resolution palette

Use the Resolution field on the Dome tab to manually set the resolution to portrait or

landscape.

1 Log on with administrator priviledges.

2 Right-click the desktop. Select Properties > Settings.

3 Select the Plug and Play Monitor on Dome DX2/PCI Properties from the Display list.

4 Select Extend my Windows desktop onto this monitor. Click Apply.

5 Select Advanced > Dome.

6 Choose a resolution and palette option. Click Apply.

5 Click OK until you return to the Desktop.

To set brightness

In the Brightness field of the Dome tab, slide the scroll box left or right, or use the left and

right arrows, to adjust each panel. (The default brightness is 100%.) Click OK. (Note: If the

Dome CXtra software is running, the brightness function on the tab is disabled.)

EX-QSUG-1_grey 10/18/05 2:07 PM Page 8

Before you install the driver, remove any previously installed display driver for the display

controller from your system.

To install the driver

1 Start the system. Click Cancel on the Found New Hardware Wizard. Click No when the

system prompts you to restart the computer.

2 Insert the driver installation CD and run SETUP.EXE.

3 Click Next.

4 Click Yes to the license agreement. The installation starts.

5 Follow the onscreen instructions to complete the installation. Planar recommends that

you select the Express installation option.

6 When the Setup complete message appears, select Yes, I want to restart my computer

now and click Finish.

7 If the Digital Signature Not Found message appears, click Yes or Continue to complete

the driver installation.

To set the display mode manually

1 Right-click the desktop and select Properties > Settings.

2 Select the monitor that you want to change.Then click Advanced.

3 Click the Monitor tab. Make sure that the check box for Hide modes that this monitor

cannot display is empty (unchecked).

4 Click the Adapter tab, then click the List All Modes button.

5 Choose the mode and click OK.Then click Apply or OK.

To set the brightness

You must have the Dome CXtra software installed to change the display brightness. Adjust

the value of the white level on the Backlight tab of the RightLight Panel Configuration.

Installing the AX3 Display Driver

EX-QSUG-1_grey 10/18/05 2:07 PM Page 9

Dome EX Display Resolutions and Palette Options

Display Resolution Palette Bits per pixel

Dome E2 1200 x 1600 Dynamic gray 8

1600 x 1200 Nonlinear gray

Static gray

1200 x 1600 True color 32

1600 x 1200

Dome E3 1536 x 2048 Dynamic gray 8

2048 x 1536 Nonlinear gray

3072 x 2048* Static gray

4096 x 1536†

1536 x 2048 True color 32

2048 x 1536

3072 x 2048*

4096 x 1536†

Dome E5 2048 x 2560 Dynamic gray 8

2560 x 2048 Nonlinear gray

4096 x 2560* Static gray

5120 x 2048†

* Single desktop in portrait mode on a dual-display system

† Single desktop in landscape mode on a dual-display system

EX-QSUG-1_grey 10/18/05 2:07 PM Page 10
