LA1710R and LA1710RTR Operations Manual www.planar.com

Table of Contents

Usage Notice

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Introduction

About the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Package Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Installation

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

User Controls

Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

How to Use the OSD Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

On-Screen Display Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Appendix

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Warning Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Compatibility Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Touch Screen Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user’s manual to maximize the life of your unit.

Do:

Turn off the product before cleaning.

Use only a dry soft cloth or clean room wiper when

cleaning the LCD panel surface.

Use only high quality and safety approved AC/DC power

adapter.

Disconnect the power plug from AC outlet if the product

is not used for a long period of time.

Don’t:

Do not touch the LCD panel surface with sharp or hard

objects.

Do not use abrasive cleaners, waxes or solvents for

cleaning.

Do not operate the product under the following condi-

tions:

- Extremely hot, cold or humid environment.

- Areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

Usage Notice

WARNING – To prevent the risk of fire or shock hazards, do not

expose this product to rain or moisture.

WARNING – Please do not open or disassemble the product as this

may cause electric shock.



Introduction

About Planar’s LA1710R / LA1710RTR

The LA17 is a 17” flat panel screen with an active matrix, thin-film tran-

sistor (TFT), liquid crystal display (LCD).

Features include:

Dual signal input: Analog VGA and Digital DVI-D

Active matrix TFT LCD technology

1280 x 1024 SXGA resolution

17” viewable display area

31.5 ~ 80 kHz horizontal scan

56 ~ 75 Hz refresh rate

0.264mm x 0.264mm pixel pitch

260 cd/m2(typ.) brightness

4 CCFT backlights lamps w/30,000 hrs life

450:1(typ.) contrast ratio

L/R=70º/70º,U/D=70º/70º viewing angle, CR=10

Tr+Tf: 16ms(typ.) response time

Auto-adjustment function

Multilingual OSD user controls

VESA DPMS power saving

Durable, 7-wire resistive touch screen( for LA1710RTR)

Touch Screen (for LA1710RTR)

Resistive for finger and pen interface

Surface: Anti-glare treatment

Interface: USB

Durability:

Note Life: 106words (min.)

Input Life: 107times (min.)

Hardness of surface = pencil hardness 2H (min.)

Operating force =0.05~0.49N (5~50gf)

Measured with R8 silicon rubber hardness 60º

Transparency: 78%

HAZE = 5% (typ.)

Insulation resistance= 10Mohm/DC25V (min.)

Driver: Windows®95/98/Me/NT/2000/XP,DOS,Win3.1, Win CEx86

Package Overview

LCD Display Power Adapter Power Cord

VGA Signal Cable Quick Start Guide Touch Screen Driver

Installation CD-ROM

(for LA1710RTR)

LCD Display

Installation

Product Overview

• Front View

• Rear View

LCD Display

Connector Ports “A” Connector Ports “B”

• Connector Ports “A”

• Connector Ports “B”

USB

(For LA1710RTR)

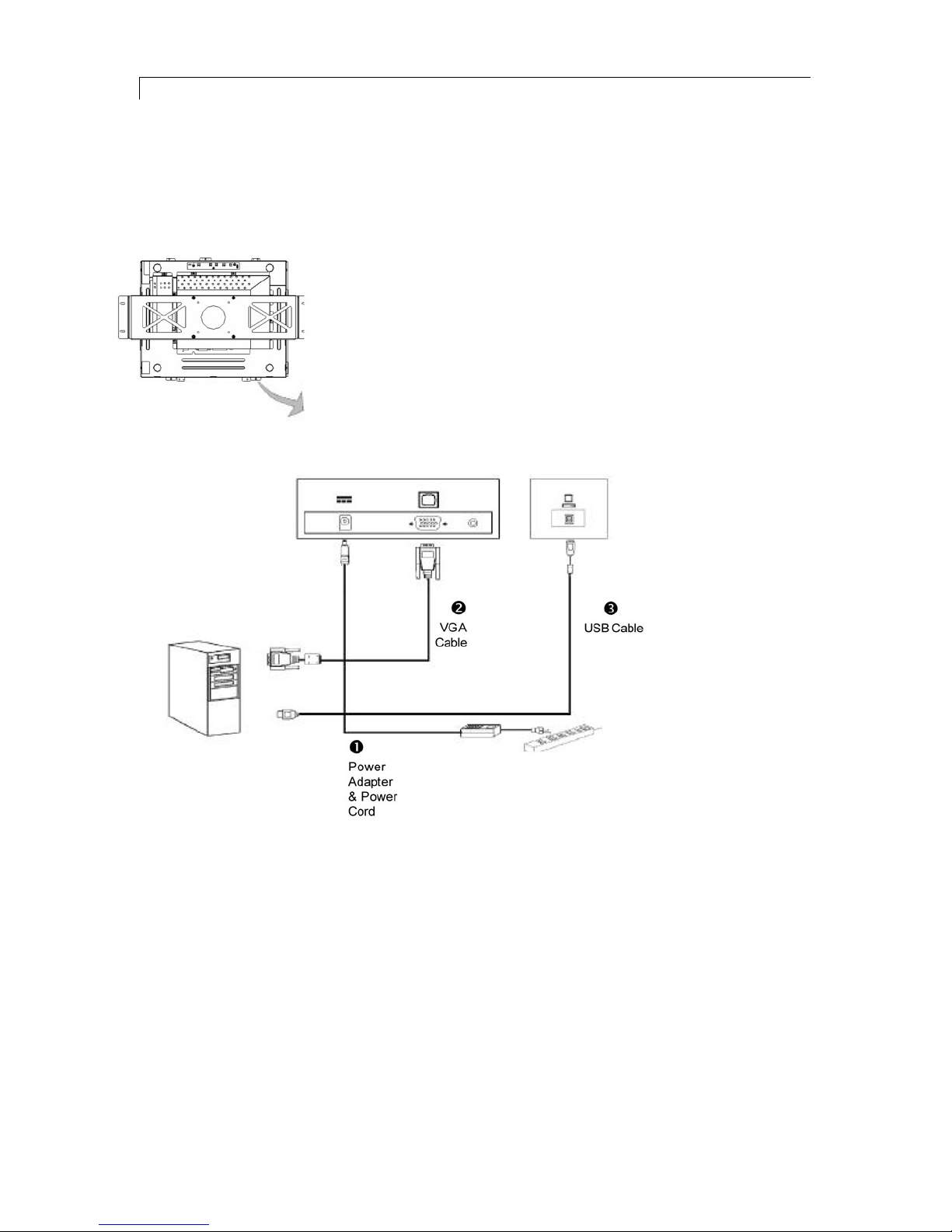

Connecting the display (Figure 1.1)

To configure this monitor, please refer to the following figure and

procedures.

1. Be sure all equipment is off.

2. Connect the DC power cord to the power connector. Plug one end

of the AC power cord into the power adapter, and the other end into

an electrical outlet(1).

3. For the PC with Analog output: connect the VGA signal cable from

display VGA input connector to the 15-pin connector of your host

computer and tighten the screws(2).

4. Connect the USB cable from USB port of your display to the USB

port of your computer(3).

5. Turn on your computer, display and video source.

Notice: To ensure the LCD display works well with your computer, configure

the display mode of your graphic card, less than or equal to 1280 x

1024 resolution and make sure the timing of the display mode is com-

patible with the LCD panel. “Compatibility Modes” of this LCD panel

are listed in the appendices for your reference.

Figure 1.1
