Planet Audio P300DVD Bedienungsanleitung

FEATURES

Compatible with PAL DVD (Video

CD) and NTSC DVD (Video CD)

This player can play discs recorded in

either PAL or NTSC format.

• A single LSI chip now integrates all

major DVD playback circuit functions

including MPEG2 decoder, video D/A

converter, and audio decoders.

• L/R stereo analog audio outputs for

connection to existing head unit aux

inputs. Video output is composite

video.

• Supplied remote handles

multi-function software (multi-language

audio-track/subtitle, multi-angle, multi-

story, etc.), plus all basic functions.

USE THIS PRODUCT SAFELY

When Driving

Keep the volume level low enough to be

aware of road and traffic conditions.

When Car Washing

Do not expose the product to water or

excessive moisture. This could cause

electrical shorts, fire or other damage.

When Parked

Parking in direct sunlight can produce

very high temperatures inside your

vehicle. Give the interior a chance to

cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with

a 12 volt DC, negative ground battery

system (the regular system in a North

American car).

Protect the Disc Mechanism

Avoid inserting any foreign objects into

the slot of this player.

Failure to observe this may cause

malfunction due to the precise

mechanism of this unit.

Use Authorized Service Centers

Do not attempt to disassemble or adjust

this precision product. Please refer to

the Service Center list included with this

product for service assistance.

For Installation

The unit should be installed in a

horizontal position with the front end up

at a convenient angle, but not more than

30˚.

CONTENTS

Safety Information ........................................................................................4

Disc Notes .....................................................................................................5

The Player......................................................................................................6

Installation .....................................................................................................7

Electric Connection ......................................................................................8

Remote Control...........................................................................................10

Location and Function of Keys................................................................10

Preparing the Remote Control.................................................................12

Loading/Ejecting a disc..............................................................................12

Loading a disc .........................................................................................12

Ejecting a disc .........................................................................................12

Operation .....................................................................................................13

Basic Play .............................................................................................................13

On-Screen Display Function.................................................................................14

Multi-audio Language Function............................................................................15

Menu Function .....................................................................................................15

Title Menu Function ..............................................................................................15

Multi-subtitle Language Function ........................................................................15

Multi-angle Function.............................................................................................15

MP3 Disc Play.......................................................................................................16

Setup ............................................................................................................17

Initial Setup ...........................................................................................................17

General Setup.......................................................................................................17

Speaker Setup ......................................................................................................19

Audio Setup ..........................................................................................................19

Preferences Setup ................................................................................................20

Defaults Table .......................................................................................................22

Trouble Shooting.........................................................................................23

Specifications..............................................................................................24

SAFETY INFORMATION

Region Management Information

Region Management Information:

This Mobile DVD Player is designed and

manufactured to respond to the Region

Management Information that is recorded

on a DVD disc. If the Region number

described on the DVD disc does not

correspond to the Region number of this

Mobile DVD Player, this Mobile DVD

Player cannot play this disc.

CAUTION:

MOBILE DVD PLAYER IS A CLASS I

LASER PRODUCT. HOWEVER THIS

MOBILE DVD PLAYER USES A

VISIBLE/INVISIBLE LASER BEAM

WHICH COULD CAUSE HAZARDOUS

RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE THE MOBILE

DVD PLAYER CORRECTLY AS

INSTRUCTED.

USE OF CONTROLS OR

ADJUSTMENTS OR PERFORMANCE

OF PROCEDURES OTHER THAN

THOSE SPECIFIED HERE MAY RESULT

IN HAZARDOUS RADIATION

EXPOSURE.

DO NOT OPEN COVERS AND - DO NOT

REPAIR YOURSELF. REFER SERVICING

TO QUALIFIED PERSONNEL.

WARNING:

•TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

•TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES.

•THIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

This product incorporates copyright

protection technology that is protected

by method claims of certain U.S. patents

and other intellectual property rights

owned by Macrovision Corporation and

other rights owners. Use of this

authorized by Macrovision Corporation,

and is intended for home and other

limited viewing uses only unless

otherwise authorized by Macrovision

Corporation. Reverse engineering or

disassembly is prohibited.

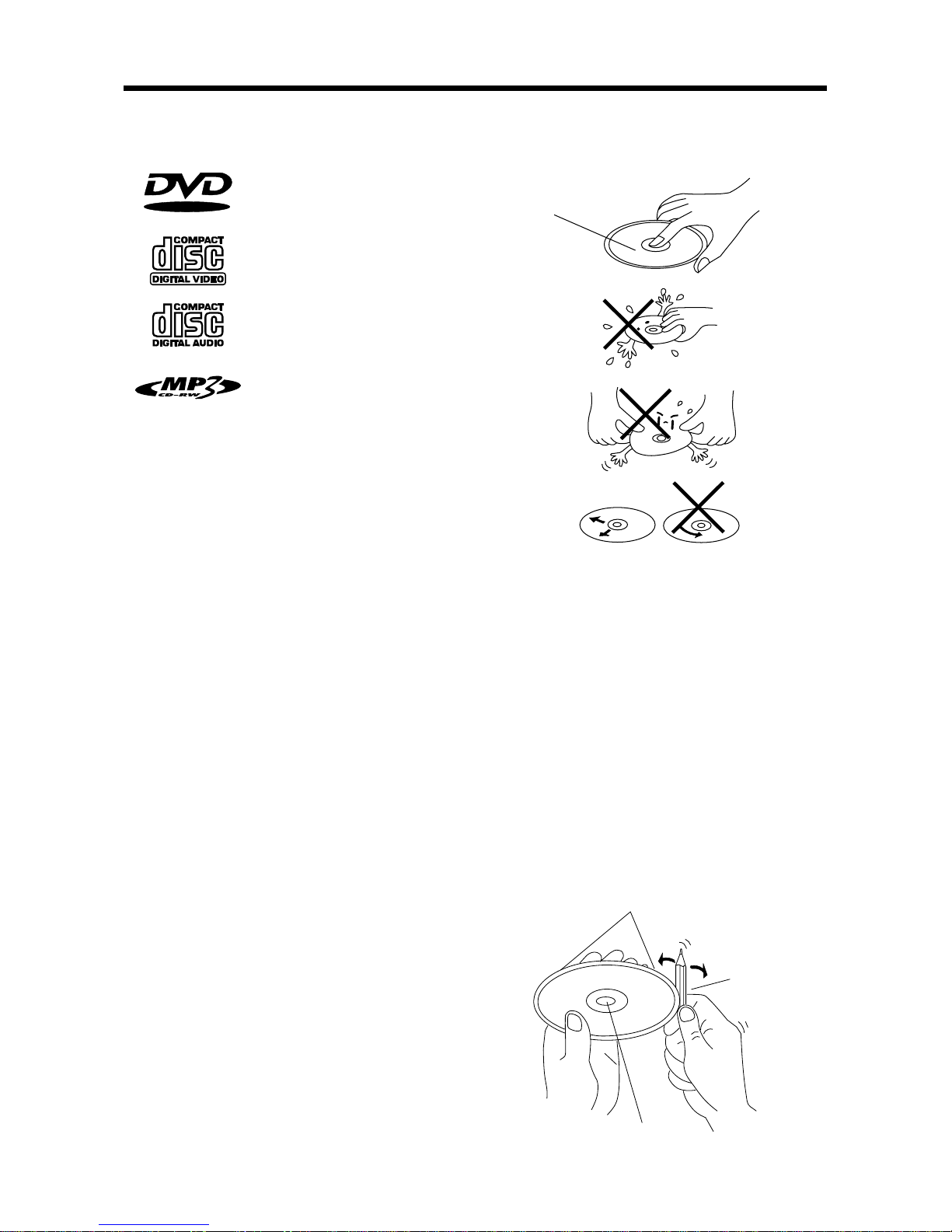

DISC NOTES

Note these scratches are not an

indication of any problem with the player.

Preparing New Discs with Rough

Spots

A new disc may have rough edges on its

inside and outside edges. If a disc with

rough edges is used, the proper setting

will not be performed and the player will

not play the disc. Therefore, remove the

rough edges in advance by using a ball

point pen or pencil as shown on the right.

To remove the rough edges, press the

side of the pen or pencil against the

inside and outside edges of the disc.

Rough spots

on inside edge

Ball point pen

or pencil

Rough spots on

outside edge

Label side up

Do not touch

the underside

of the disc

Do not bend

Wipe the disc from center

toward the outside edge

Disc formats supported by this player

DVD

12 cm disc

(Single-sided disc only)

Video CD

12 cm disc

MP3

12 cm disc

Discs which cannot be played with this

player

•DVD-ROM

•DVD-R/DVD-RAM

•CDV

•CD-G

Handling and Cleaning

•Dirt, dust, scratches and warping disc

will cause misoperation.

•Do not place stickers or make

scratches on discs.

•Do not warp discs.

•A disc should always be kept in its

case when not in use to prevent from

damaging.

•Do not place discs in the following

places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on your handling

and conditions in the usage environment.

THE PLAYER

FRONT VIEW

BACK VIEW

1. POWER ( )

2. EJECT ( )

3. DISC SLOT

4. PLAY/PAUSE ( )

5. (STOP)

6. ( NEXT )

7. ( PREVIOUS )

8. IR

9. DC 12V IN Socket

10. DC 12V OUT Socket

11. REMOTE Socket

12. DIGITAL AUDIO

13. AUDIO OUTPUT L/R

14. VIDEO OUTPUT

14131211109

2467581 3

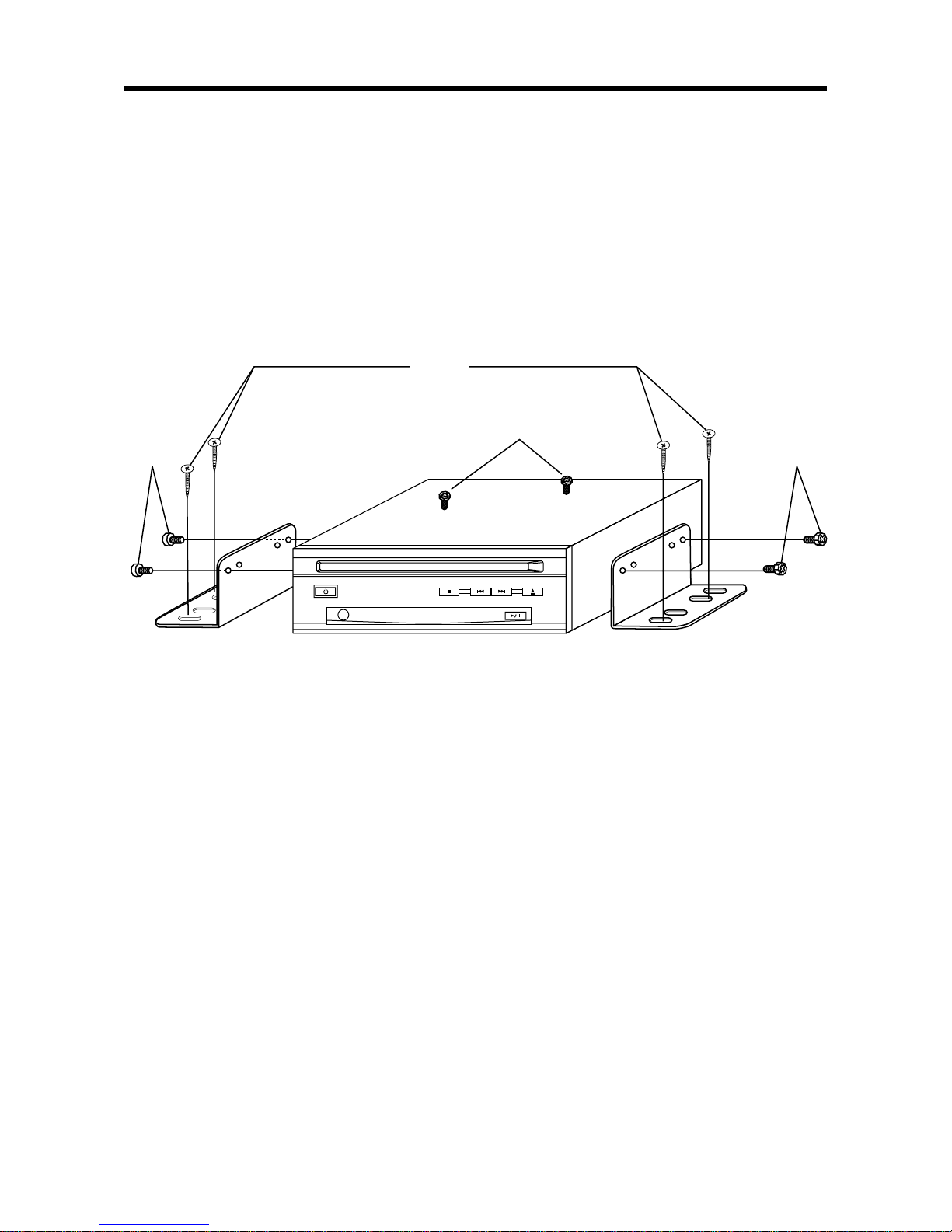

INSTALLATION

Note:

1. First remove the two screws that lock the DVD mechanism, then attach the brackets

on both sides of unit with screws (M4x5), last install the unit with screws (M5x25).

2. When installing the unit, you can slide the screw (M5x25) to left side or right side

to meet your needed position. In the figure above, select two screw holes among

the four screw holes that are marked 1, 2, 3 and 4 to secure the bracket.

SCREW

M4x5

SCREW

M5x25

SCREW

M4x5

SCREWS LOCKED THE DVD MECHANISM

AC/DC

ADAPTOR

(OPTIONAL)

CIGARETTE LIGHTER

DC 12V IN

DC 12V OUT

REMOTE DIGITAL

AUDIO

A/V OUT

L/R VIDEO

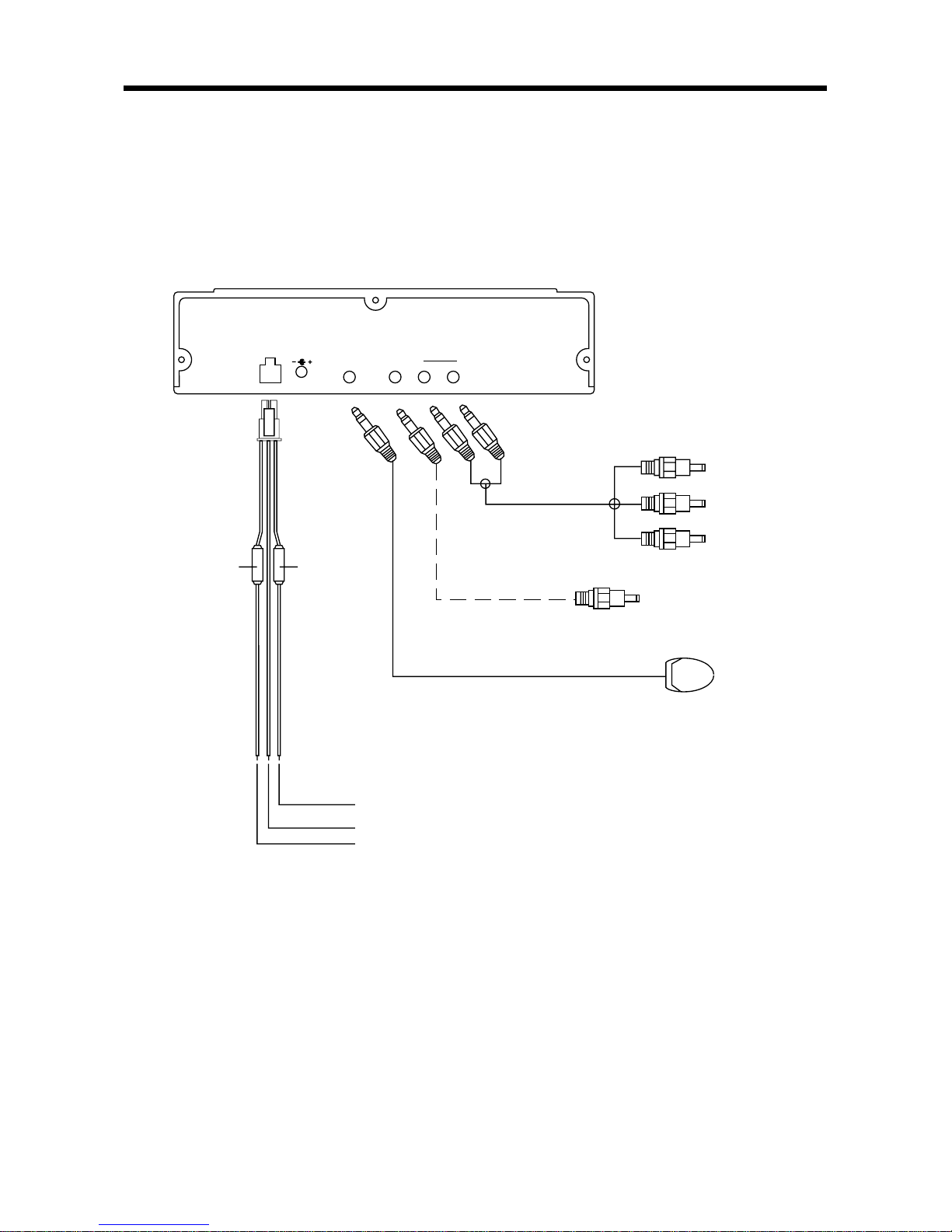

ELECTRIC CONNECTION

YELLOW

RED

WHITE

VIDEO OUT

AUDIO R OUT

AUDIO L OUT

DIGITAL AUDIO

(OPTIONAL)

REMOTE CONTROL RECEIVER

METHOD A

Use the conversion cable to obtain DC 12V power supply input through the AC/DC

ADAPTER or the cigarette lighter according to the figure below:

DVD PLAYER

DC 12V IN

DC 12V OUT

REMOTE DIGITAL

AUDIO

A/V OUT

L/R VIDEO

DVD PLAYER

ELECTRIC CONNECTION

YELLOW

RED

WHITE

VIDEO OUT

AUDIO R OUT

AUDIO L OUT

DIGITAL AUDIO

(OPTIONAL)

REMOTE CONTROL RECEIVER

FUSE (3A)FUSE (0.5A)

MEMORY/BATTERY (B+) (YELLOW)

GROUND (B-) (BLACK)

IGNITION SWITCH (ACC+) (RED)

METHOD B

According to the figure below, install the unit in the car and obtain DC 12V power

supply input.

REMOTE CONTROL

2421

2726

3130
