ENGLISH

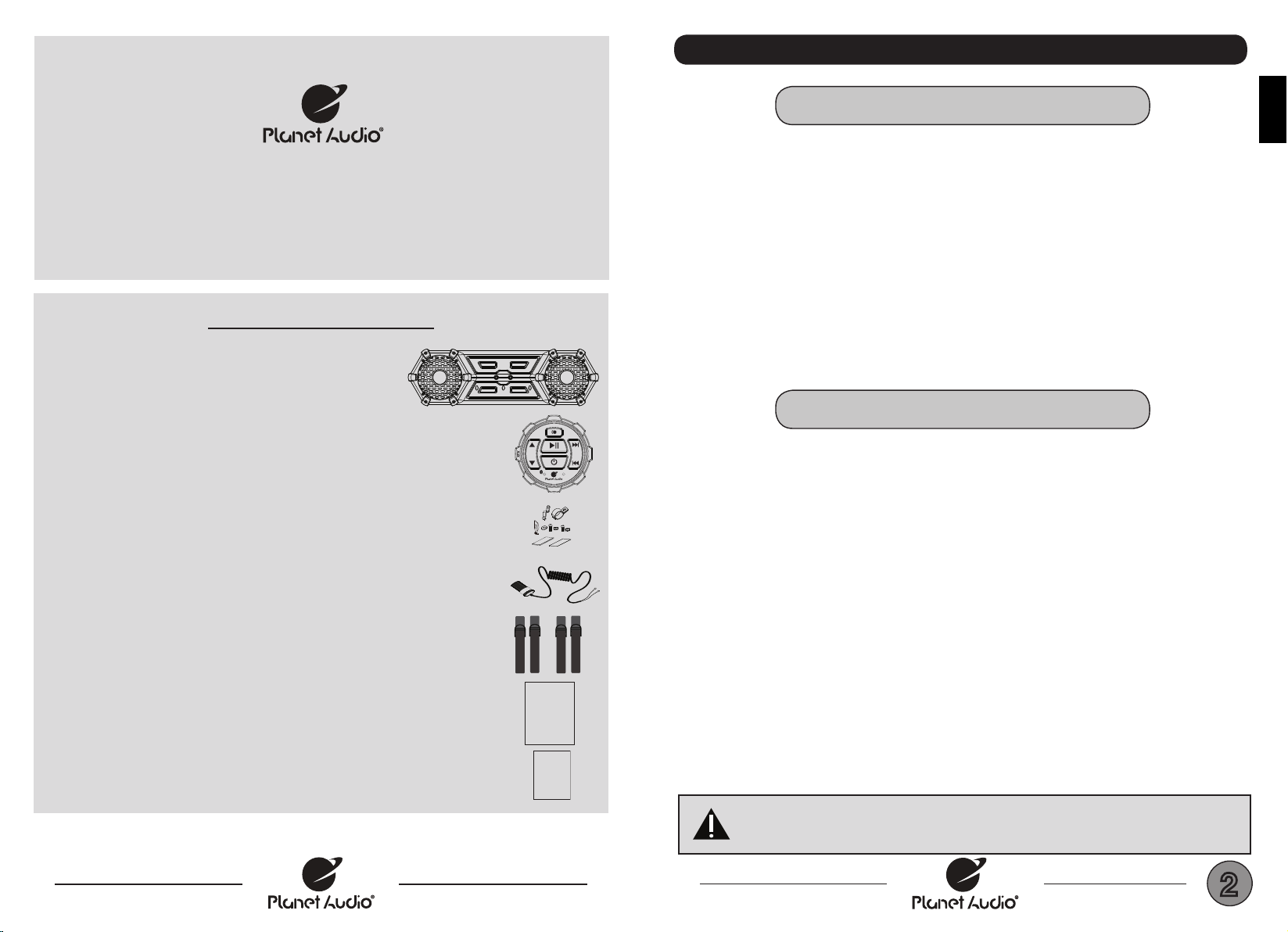

THIS PACKAGE CONTAINS

1 - PATV85 All-Terrain Speaker System

1 - Bluetooth Multi-Function Controller

1 - Handlebar Mounting Kit

1 - Quick Connect Power Extension Adaptor

4 - Hi-strength Nylon Mounting Straps

1 - User Manual

1 - Warranty Card

Thank you for purchasing this

PATV85 Bluetooth All-Terrain Sound System

Please read through these instructions carefully so you will know how to

operate your model properly.

After you have nished reading the instructions, keep this document in a

safe place for future reference.

All trademarks and trade names are those of their respective owners.

BEFORE YOU START

IMPORTANT SAFETY PRECAUTIONS

■ BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:

- Do not turn up the volume so high that you can’t hear what’s around you.

- Use caution or temporarily discontinue use in potentially hazardous situations.

■ Do not operate mobile video equipment while driving a motorized vehicle – safe

driving and safety consideration of others should always be your highest priority.

■ Set your volume control at a low setting, then slowly increase the sound until you

can hear it comfortably without distortion, or ear discomfort.

■ In the event you should notice smoke, strange noises or odor from this

product, or any other abnormal signs, immediately turn o󰀨 the power and consult

your dealer or the nearest authorized PLANET AUDIO Service Center. Using this

product in this condition may result in permanent damage to the system.

INSTALLATION PRECAUTIONS

WARNING - Always consult with a professional installer

■ Do not attempt to install or service this product by yourself. Installation or

servicing of this product by persons without professional training and experience in

electronic equipment and motorized vehicle accessories may be dangerous and

could expose you to the risk of electric shock, injury or other hazards

■ Refer any repairs to a qualied PLANET AUDIO Service Center

■ The PATV85 should be powered directly to a vehicles battery

■ When wiring directly to the vehicles battery, be sure to disconnect the batteries

negative terminal wire before starting any wiring procedures,if extending the main

power wire, it is suggested that an optional fuse and fuse holder (not included) with

minimum rating of 20 Amperes be in-line with the positive battery terminal

■ The ground cable length should not exceed 18-inches (See wiring diagram pg 3)

■ The PATV85 has a weather resistant design, it should not be submerged in or

under water under any circumstances

■ Use only the installation parts provided with the PATV85

CAUTION!! Using other mounting methods may void this warranty

USER MANUAL

QUICK START GUIDE

WARRANTY

CARD

PATV85-UM-FINALv1.0.indd 2-2 5/31/2016 6:06:09 PM

ENGLISH

WIRE DIAGRAM BEFORE INSTALLING THIS PRODUCT

When replacing the fuse, be sure to only use a fuse of the

rating specied on this product.

To avoid short-circuiting, cover any disconnected leads with insulating tape. It is

especially important to insulate any unused wires, which if left uncovered may

cause a short circuit. When connecting other devices to this product, refer to the

manual for the product to be connected. The black cable is ground, make sure to

connect the ground wire rst.

Ensure that the ground cable is properly connected to metal parts of the vehicles

body frame or direct to the battery if your vehicle does not have a grounded

chassis frame The ground cable of this units power amp and a second powered

system must be connected to the frame separately with di󰀨erent screws. If the

screw for the ground wire loosens or falls out, it could result in re or malfunction.

To avoid potential shorts in the

electrical system, be sure to disconnect

the (–) battery cable before installation.

Use this unit with a 12-volt battery and

negative grounding only. Failure to do so

may result in a re or malfunction.

TOOLS NEEDED:

- Wrench and/or Pliers

- #2 Phillips screwdriver

- Crimp tool

- Electrical tape

TECHNICAL SUPPORT

1.805.322.8794

www.planetaudiousa.com/technical-support

15A

Fuse and fuse holder

(not included)

Chassis

ground

point

BATTERY

Fuse is located inside the power adaptor

Turn counter clockwise to open

Replace with

10A AGC Fuse type only

Normally open switch

(not included)

INSERT

OPTIONAL DIRECT BATTERY WIRING CIRCUIT

RED

BLACK

Chassis

ground

point

QUICK RELEASE

POWER ADAPTOR

(INCLUDED)

POWER ADAPTOR

15A

Ground wire

Metal frame

Recommended 14 ~ 16ga Wire

(not included)

Mini-DIN

Connector

INSERT

MFC

Align arrows

INSERT

Your cable

3.5mm to 3.5mm

(not included)

SLIDE TO OPEN

SPEAKER MOUNTING SUGGESTIONS

Route strap

through the hole

and to vehicle

frame

Route straps

around the speaker body to vehicle frame

Route strap

through the hole

and to vehicle

frame

CAUTION!!

Mounting straps should be double checked to be sure they are

pulled tight and secure before each use of the vehicle.

Tips:

Nyne Cruiser

USB CHARGE

5V 1A

Tips:

Nyne Cruiser

USB CHARGE

5V 1A

USB CHARGING

INSIDE COMPARTMENT

ALWAYS

CLOSE AND

LOCK DOOR

BEFORE USE

PATV85-UM-FINALv1.0.indd 3-4 5/31/2016 6:06:10 PM

ENGLISH

To surface mount use double

sided tape or velcro.

(not included)

Use the provided handlebar

clamp kit, try the best method

for your application, securely

tighten all components.

SUGGESTED MOUNTING METHODS

LEFT CENTER RIGHT

FOR ILLUSTRATION PURPOSES

YOUR VEHICLE MAY VARY

MULTI-FUNCTION

CONTROLLER

UNIT

HANDLEBAR

CLAMP

SLOT

RUBBER

SHIM

WASHER

LOCK NUT

ALLEN HEAD

LOCK NUT

ALLEN HEAD

BOLT

SNAP

BRACKET

Z-BRACKET

HANDLEBAR

CLAMP

BOLT

SURFACE MOUNT

To release the PATV85 MFC controller from the mounting clamp,

insert a small jewellers screwdriver into the release tab.

Tips:

Nyne Cruiser

USB CHARGE

5V 1A

The MFC can be mounted in two di󰀨erent congurations: GETTING TO KNOW YOUR

PATV85 MULTIFUNCTION CONTROLLER (MFC)

GETTING STARTED

52 3

MFC - MULTIFUNCTION CONTROLLER

VOLUME DOWN

VOLUME UP

LED DRIVING LAMP - ON/OFF

PLAY/PAUSE

NEXT TRACK

PREVIOUS TRACK

SYSTEM POWER - ON/OFF

POWER / SOURCE - RED = AUX-IN MODE / BLUE = BT MODE

BLUETOOTH PAIRING INDICATOR - BLUE COLOR

3.5mm AUX INPUT

HANDLEBAR MOUNT

PATV85-UM-FINALv1.0.indd 5-6 5/31/2016 6:06:12 PM

ENGLISH

PAIRING & DISCOVERING A NEW BLUETOOTH CONNECTION

1) Power on the MFC by pressing and holding down the 7 Power button for 3

seconds, the 9BLUE and 8RED LEDs will start to alternately ash,

signalling that the MFC is now ready for Bluetooth pairing

NOTE: You have 2 minutes before you must restart this procedure over again

2) Now that the MFC is in pairing mode:

ANDROID users:

a. Go into the Settings Menu of your device

b. Enter the Bluetooth Menu and press SCAN

c. “Planet Audio” will now be display under AVAILABLE DEVICES

d. If prompted, enter passcode: “0000”

iOS users:

a. Go into the Settings Menu of your iOS device

b. Enter the Bluetooth Menu

c. “Planet Audio” will now be displayed

d. If prompted, enter passcode: “0000”

3) If Planet Audio is not seen, repeat the above steps to refresh the “Device List”

4) When the connection is successful the BLUE LED will be ON, you are now ready to

stream music from your devices favorite media player to the MFC

BLUETOOTH OPERATION

Tips:

Nyne Cruiser

USB CHARGE

5V 1A

Tips:

Nyne Cruiser

USB CHARGE

5V 1A

To avoid battery exhaustion be sure to run the vehicles engine

while using this product. Using this product without running the

engine can drain the battery

Tips:

Nyne Cruiser

USB CHARGE

5V 1A

BLUETOOTH OPERATION

RECONNECTION

1) Power on the MFC and your last paired device Bluetooth

2) The unit will now automatically reconnect, the BLUE LED will be ON

3) If your device was previously paired with the MFC, but it wasn’t the last paired device:

a. Ensure no other devices are currently paired

b. Enter the Bluetooth Menu on your device being paired

c. “Planet Audio” will display under AVAILABLE DEVICES

d. Choose “Planet Audio” to reconnect

4) If the device is out of range from the MFC, it will disconnect automatically:

a. Once device is back in range, it will automatically reconnect to the last device

b. The BLUE LED will be ON

Tips:

Nyne Cruiser

USB CHARGE

5V 1A

Tips:

Nyne Cruiser

USB CHARGE

5V 1A

89 7

PATV85-UM-FINALv1.0.indd 7-8 5/31/2016 6:06:13 PM

910

ENGLISH

MULTIFUNCTION CONTROLLER BLUETOOTH OPERATION

1) Press the 4 PLAY/PAUSE once to start playing music or press the PLAY button from

your device touch screen, press again to PAUSE

2) To skip songs or advance, press the NEXT TRACK 5

3) To select the previous song, press the PREVIOUS TRACK 6

VOLUME CONTROL

1) To raise the VOLUME press UP 2 button

2) To lower the VOLUME press DOWN 1 button

STREAMING MUSIC

Tips:

Nyne Cruiser

USB CHARGE

5V 1A

Tips:

Nyne Cruiser

USB CHARGE

5V 1A

YOUR DEVICE

Turn the BLUETOOTH volume level on your device to it’s 100% level

Tips:

Nyne Cruiser

USB CHARGE

5V 1A

AUX-IN OPERATION

PATV85 can play audio from any device that has a 3.5mm headphone audio jack.

1) Power on the PATV85 by pressing and holding down the MFC POWER 7button for

2 seconds

2) Connect the 3.5mm AUX-IN on the MFU to a 3.5mm adaptor 10

(3.5mm adaptor is not included)

3) The controller LED lighting will automatically change to RED, indicating the system is in

AUX-IN mode

4) Bluetooth devices will remain paired even in AUX-IN MODE

5) Route the audio wires back to a convenient stowage place, secure your device

VOLUME CONTROL

1) To raise the VOLUME press UP 2 button

2) To lower the VOLUME press DOWN 1 button

3) To MUTE / UN-MUTE the VOLUME press PLAY/PAUSE 4 button

AUX-INPUT

YOUR DEVICE

Turn the HEADPHONE volume level on your device to it’s 100% level

Tips:

Nyne Cruiser

USB CHARGE

5V 1A

YOUR CABLE

PATV85-UM-FINALv1.0.indd 9-10 5/31/2016 6:06:14 PM

11 12

ENGLISH

INFORMATION TO THE USER

FCC COMPLIANCE STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause

undesired operation of this device.

This transmitter must not be co-located or operated in conjunction with any other

antenna or transmitter. The Bluetooth antenna cannot be removed (or replaced) by

user. This equipment complies with FCC/ IC radiation exposure limits set forth for

an uncontrolled environment and meets the FCC radio frequency (RF) Exposure

Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This

equipment has very low levels of RF energy that it deemed to comply without

maximum permissive exposure evaluation (MPE). But it is desirable that it should

be installed and operated keeping the radiator at least 20 cm or more away from

person’s body (excluding extremities: hands, wrists, feet and ankles). Alteration

or modications carried out without appropriate authorization may invalidate the

user’s right to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o󰀨 and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

□ Relocate or reorient the receiving antenna.

□ Increase the separation between the equipment and receiver.

□ Connect the equipment into an outlet on a circuit di󰀨erent from that to which the

receiver is connected.

□ Consult the dealer or an experienced radio/TV technician for help.

CAUTION!!

ADJUSTMENT OR ALTERATIONS OF THIS DEVICE MAY RESULT

IN HAZARDOUS RADIATION EXPOSURE.

TROUBLE SHOOTING GUIDE

TROUBLE CAUSE SOLUTION

Unit will not turn on

The fuse is blown Check / replace the fuse

Bad accessory power

connection

Check accessory power port for

proper operational voltage

No sound is heard

Blown speaker Replace faulty speaker

Volume is low / muted Press the volume level up

Device is paused or muted

Check your devices playing /

volume status

Cannot pair Bluetooth

The Bluetooth function of your

device is not enabled

Refer to the user manual of the

your device for how to enable

the Bluetooth function

The MFC memory is full

Turn o󰀨 the last paired device

BLUETOOTH

The audio quality is poor

after connection with a

Bluetooth enabled device The Bluetooth reception is poor

Move the device closer to the

audio system or remove any

obstacle between the device

and the systems antenna

Unit has become

unresponsive Power glitch or interference

Disconnect power for

10 seconds to reset

SPECIFICATIONS

BLUETOOTH

• Version: 3.0 w/ EDR

• A2DP

• Range: 33ft (10m) Class 2

SPEAKERS

• Dimensions: 8”

• Impedance: 4Ω + 4Ω

• Cone Type: PP CARBON + RUBBER SURROUND

• Tweeter Size: 1” PEI SOFT DOME

AMPLIFIER

• Maximum Output Power: 700 Watts

• Input impedance: 10kΩ

• Frequency Response: 45Hz-25kHz

CHASSIS

• Weight: 20.5lbs / 9.31Kg

• Unit Dimensions cm HxDxW: 23.3 x 37.5 x 83.3

• Unit Dimensions Inches HxDxW: 9.17 x 14.78 x 32.79

• Controller Dimensions HxDxW:

1.00”x3.22”x3.22” / 25.2mm x 80.1mm x 80.1mm

• Controller cable length: 6ft / 2m

• MFC Quick Connect DIN Harness

GENERAL

• Operational Power: 14.4VDC (10.8V ~ 16V allowable)

• Grounding System: Negative type

• MAX Current Draw: 9.7A

• Replacement Fuse: 10A AGC TYPE

• USB MAX Current: 1A

• Color: Black

• Storage Temperature: 5oF to 113oF / -15oC to 45oC

• Operation Temperature: 14oF to 140oF / -10oC to 60oC

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

PATV85-UM-FINALv1.0.indd 11-12 5/31/2016 6:06:14 PM

Andere Handbücher für PATV85

Inhaltsverzeichnis

Andere Planet Audio Lautsprechersystem Handbücher

Planet Audio

Planet Audio PATV65RGB Bedienungsanleitung

Beliebte Lautsprechersystem Handbücher anderer Marken

JVC

JVC CA-MXK5R Bedienungsanleitung

LG NB4532B Bedienungsanleitung

JVC

JVC CA-FSH100 Bedienungsanleitung

5Core

5Core Pro Series Bedienungsanleitung

EAW

EAW MQV1394e Bedienungsanleitung

Lynx

Lynx GXR-LA10A Bedienungsanleitung

iLive

iLive ITB066B Bedienungsanleitung

RDX

RDX QuickStation 4 Bedienungsanleitung

Electro-Voice

Electro-Voice S-122 Bedienungsanleitung

Sven

Sven SPS-619 GOLD Bedienungsanleitung

Pioneer

Pioneer CS-7070 Bedienungsanleitung

EAW

EAW UB82e Bedienungsanleitung

Sondpex

Sondpex Active Speaker System and Digital Music... Bedienungsanleitung

JVC

JVC NX-PN7 Bedienungsanleitung

Marshall Amplification

Marshall Amplification AR-DM61-BT Bedienungsanleitung

Yamaha

Yamaha NX-A01 - Speaker Sys Bedienungsanleitung

SE Audiotechnik

SE Audiotechnik I-LINE Bedienungsanleitung

Gemini

Gemini WRX-843 Series Bedienungsanleitung
