Congratulations on your purchase of the Planet Audio Anarchy Subwoofer.

Planet Audio takes great pride in producing products that sound and look great and stand up

to the daily rigors applied by audio enthusiasts around the world.

AC15D 15” Subwoofer

Dual 4 Ω Voice Coils

2100 W Peak Power Handling

Customizable Trim Ring

Enclosure

The AC15D is designed to work in a sealed or ported enclosure. Since the

woofer has pole-vent, it needs a minimum clearance from the rear wall

of the enclosure of 0.75” (19 mm).

Below you will nd the dimensions to make the enclosure to suit the

subwoofer, it has been designed for maximum output while retaining

great sound quality.

The dimensions have already accounted for the volume displacement of

the subwoofer, and using 3/4” (19mm) MDF.

All dimensions are external.

Enclosure Dimensions

External Sealed Dimensions:

Height (H) : 16” (406mm)

Depth (D) : 16” (406 mm)

Width (W) : 18” (457 mm)

Cutout Diameter: 13-7/8” (352 mm)

External Ported Dimensions:

Height (H) : 16-1/2” (419 mm)

Depth (D) : 18” (457 mm)

Width (W) : 26” (660 mm)

Slot Port Height: 15” (381 mm)

Slot Port Length: 30” (762 mm)

Slot Width: 2” (51 mm)

Tuning Freq: 35 Hz

8 Ω2 Ω

Parallel Series

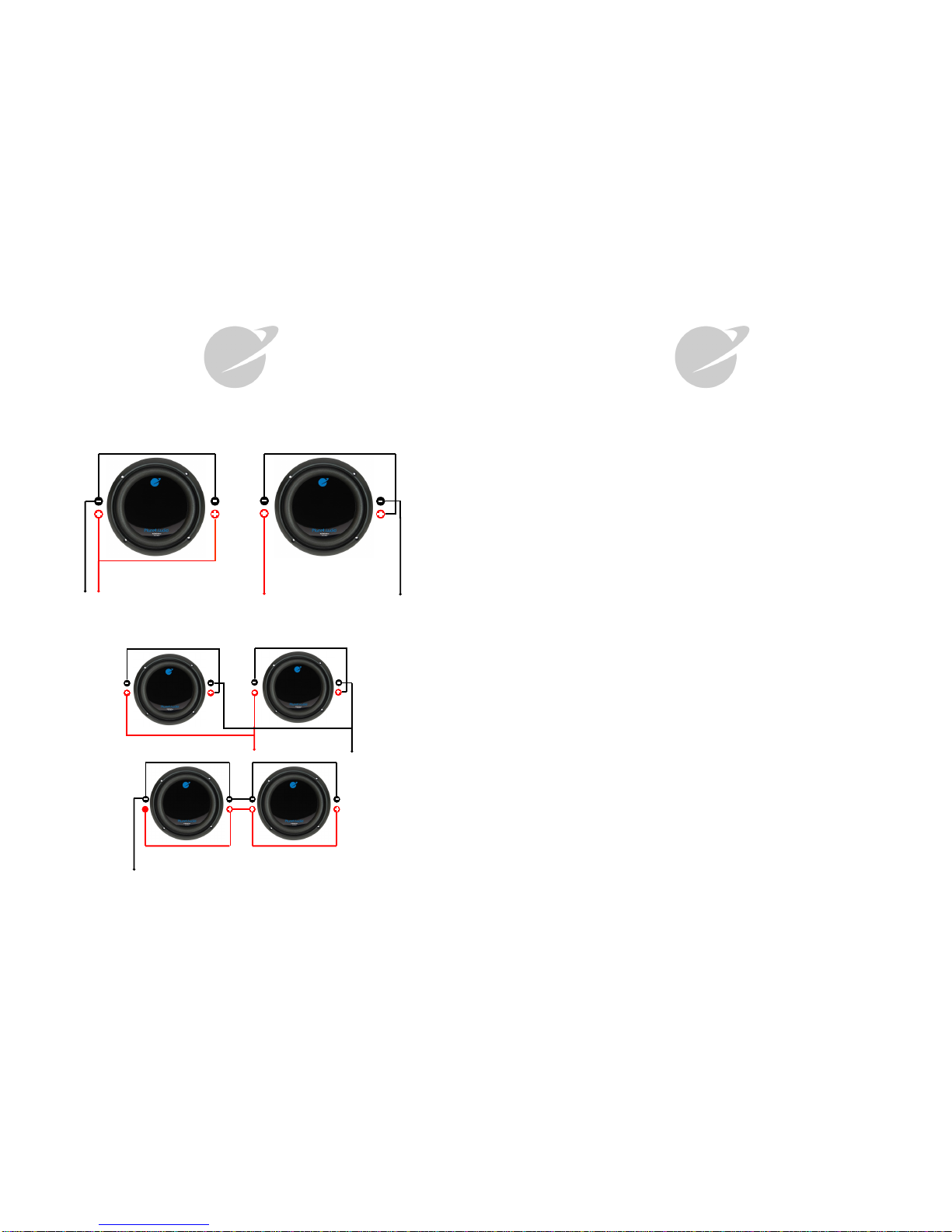

Wiring Opons

Series

4 Ω

Parallel

1 Ω

Mulple Subwoofers

Parameters

Impedance Dual 4 Ω

Resonant Frequency 25 Hz

Qts 0.675

Qms 6.147

Qes 0.759

Vas 8 ³ (227 liters)

Xmax 13 mm

Sensivity (1 W/ 1 m) 89 dB

Peak Power Handling 2100 W

Mounng Depth 7” (178 mm)

Cutout Diameter 13-7/8” (352 mm)
