Planet GS-6320 Series Bedienungsanleitung
L3 Multiple Gigabit + 2-/4-Port 10G SFP+
Managed Switch
GS-6320 LCD Switch Series
Quick Installation Guide
Table of Contents
1. Package Contents ....................................................................................... 3
2. Requirements ............................................................................................. 4
3. Terminal Setup ........................................................................................... 5
3.1 Logging on to Console ......................................................................... 6
3.2 ConguringIPAddress......................................................................... 6
4. Starting Web Management .......................................................................... 9
4.1 LoggingintotheManagedPoESwitch .................................................. 9
4.2 SavingCongurationviaWeb ..............................................................11
5. RecoveringBacktoDefaultConguration.....................................................13
6. LCD Touch Screen......................................................................................14
7. Customer Support .....................................................................................16
3
1. Package Contents
Thank you for purchasing PLANET L3 Multiple Gigabit + 2-/4-Port 10G SFP+
ManagedSwitchwithLCD.Thedescriptionofthismodelisshownbelow:
ModelName PoEPorts 10GSFP+ 10GRJ45 PoE
Budget
Power
Input
GS-6320-24UP2T2XV 24-Port802.3bt 2 2 600W AC/DC
“Managed PoE Switch” is used as an alternative name in this Quick Installation
Guide.
Open the box of the Managed PoE Switch and carefully unpack it. The box should
containthefollowingitems:
zTheManagedPoESwitch
zQuickInstallationGuide
zRJ45toRS232Cable
zRubberFeet
zTwoRack-mountingBracketswithAttachmentScrews
zPowerCord
zSFPDust-proofCapx2
If any of these pieces are missing or damaged, please contact your dealer
immediately; if possible, retain the carton including the original packing material,
andusethemagaintorepacktheproductincasethereisaneedtoreturnittous
for repair.
4
2. Requirements
zWorkstations running Windows 10/XP/2003/Vista/7/8/2008, MAC OS X or later,
Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.
zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard)
zSerialPortConnection(Terminal)
The above Workstations come with COM Port (DB9) or USB-to-RS232
converter.
The above Workstations have been installed with terminal emulator, such as
HyperTerminalincludedinWindowsXP/2003.
Serial cable -- one end is attached to the RS232 serial port, while the other
endtotheconsoleportoftheManagedPoESwitch.
zEthernetPortConnection
Networkcables--Usestandardnetwork(UTP)cableswithRJ45connectors.
The above PC is installed with Web browser and JAVA runtime environment
plug-in.
Note
It is recommended to use Internet Explorer 8.0 or above to access
the Managed PoE Switch. If the Web interface of the Managed PoE
Switch is not accessible, please turn off the anti-virus software or
firewallandthentryitagain.
5
3. Terminal Setup

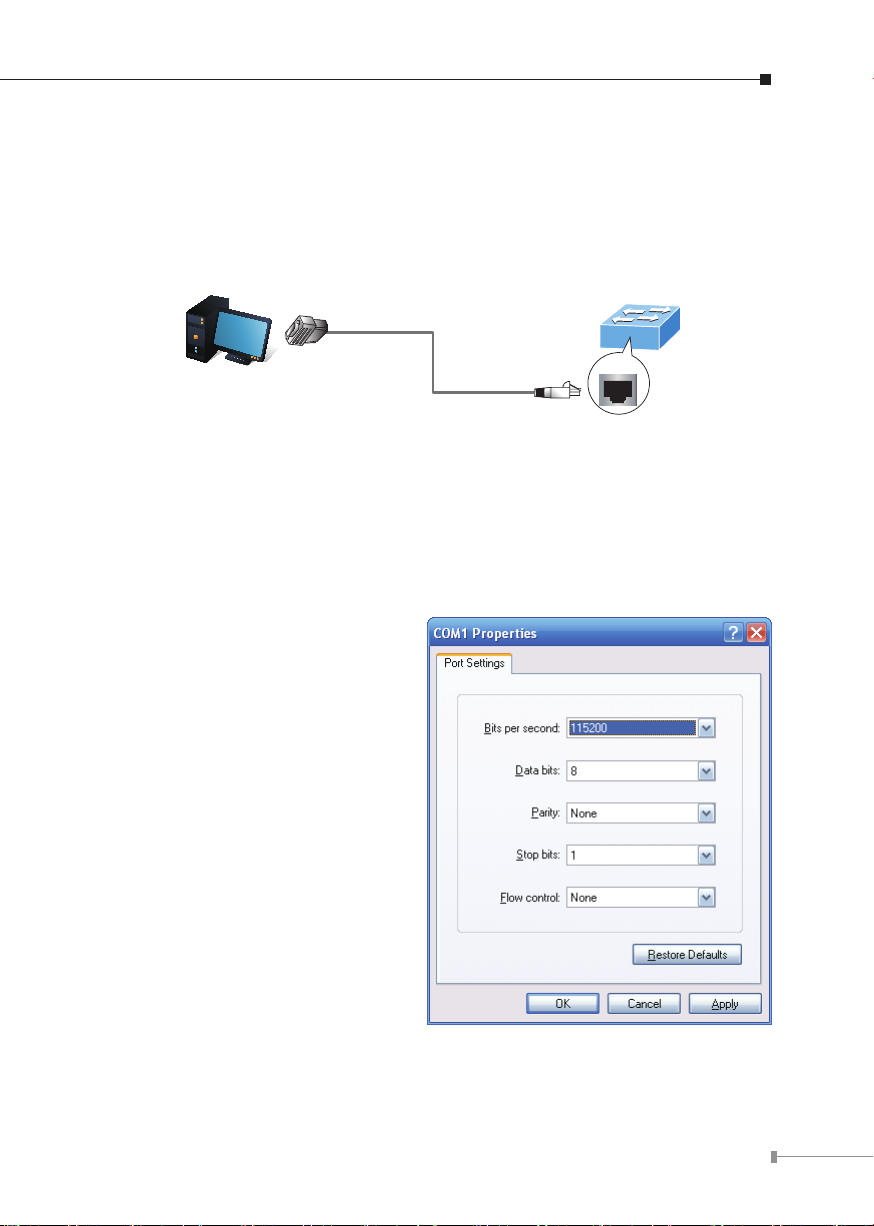

To congure the system, connect a serial cable to a COM port on a PC or
notebookcomputerandtoRJ45typeofserialportoftheManagedPoESwitch.
Managed Switch
PC / Workstation
with
Terminal Emulation Software
Serial Port
RS232 to RJ45 Cable
Console Port
RJ45
Figure 3-1: Managed PoE Switch Console Connectivity
A terminal program is required to make the software connection to the Managed
PoESwitch.
1. Run terminal program on the OS.
2.When the following screen appears, make sure that the COM port should be
conguredas:
Baud:115200
Databits:8
Parity:None
Stopbits:1
Flowcontrol:None
Figure 3-2: COM Port Conguration
6
3.1 Logging on to Console
Once the terminal is connected to the device, power on the Managed PoE Switch,
and the terminal will display “running testing procedures”. Then, the following
message asks to log in user name and password. The factory default user name
andpasswordareshownasfollowsandtheloginscreeninFigure3-3appears.
Username:admin
Password:admin
Figure 3-3: Managed PoE Switch Console Login Screen
The user can now enter commands to manage the Managed PoE Switch. For a
detaileddescriptionofthecommands,pleaserefertothefollowingchapters.
Note
1.For security reason, please change and memorize the new pass-
wordafterthisfirstsetup.
2.Only accept command in lowercase letter under console inter-
face.
3.2 ConguringIPAddress
TheManagedPoESwitchisshippedwithdefaultIPaddressshownbelow.
IPAddress:192.168.0.100
SubnetMask:255.255.255.0
7
To check the current IP address or modify a new IP address for the Switch, please
usetheproceduresasfollows:

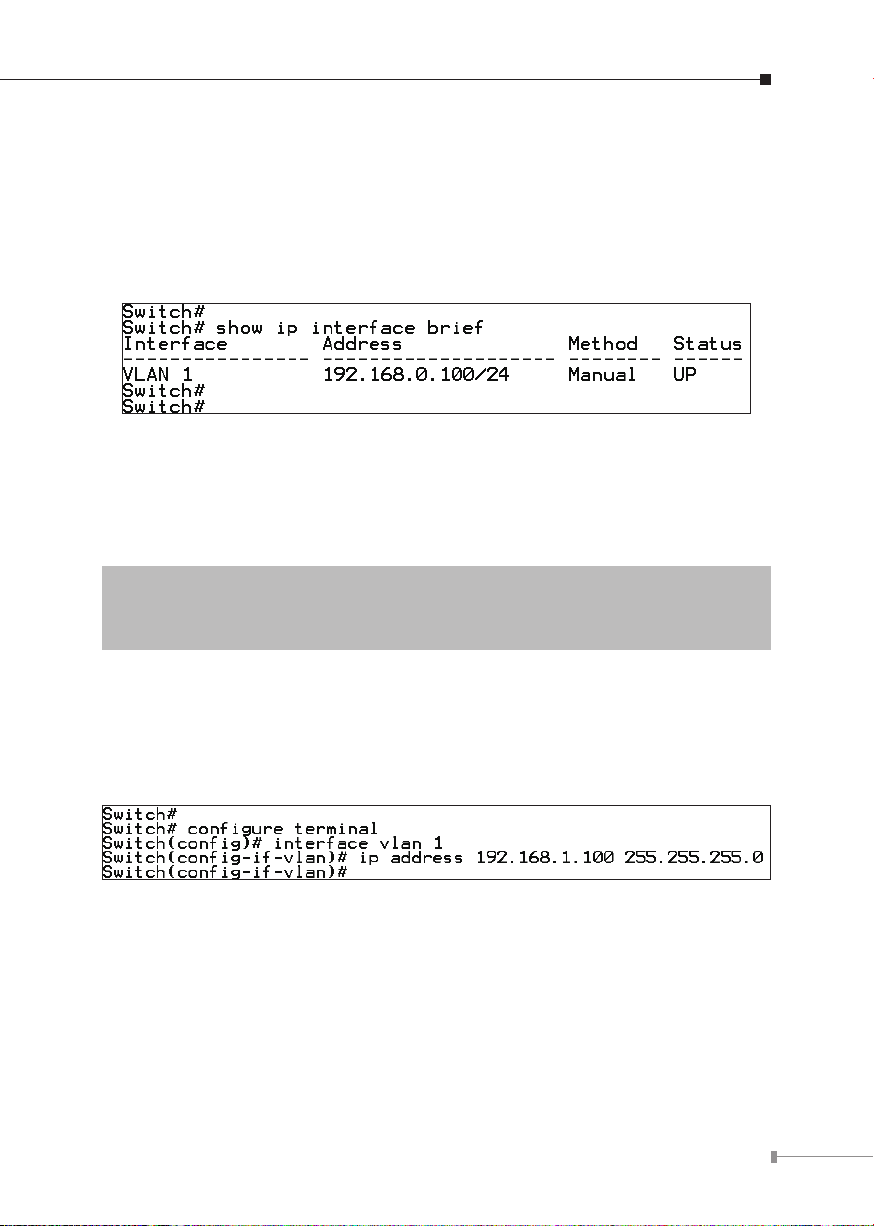

Show the current IP Address
1.Atthe“#”prompt,enter“show ip interface brief”.
2.ThescreendisplaysthecurrentIPaddressasshowninFigure3-4.
Figure 3-4: IP Information Screen
Conguring IP Address
3.At the “#” prompt, enter the following command and press <Enter> as shown
inFigure3-5.
Switch#congure terminal
Switch(cong)#interface vlan 1
Switch(cong-if-vlan)#ip address 192.168.1.100 255.255.255.0
The previous command would apply the following settings for the Managed PoE
Switch.
IPAddress:192.168.1.100
SubnetMask:255.255.255.0
Figure 3-5: Conguring IP Address Screen
4.Repeatstep1tocheckiftheIPaddresshaschanged.
8
Store current switch conguration
5.Atthe“#”prompt,enterthefollowingcommandandpress<Enter>.
# copy running-cong startup-cong
Figure 3-6: Saving Current Conguration Command Screen
If the IP is successfully congured, the Managed PoE Switch will apply the new IP
addresssetting immediately. You canaccess theWebinterface ofthe ManagedPoE
SwitchthroughthenewIPaddress.
Note
If you are not familiar with the console command or the related
parameter, enter “help” anytime in console to get the help
description.
9
4. Starting Web Management

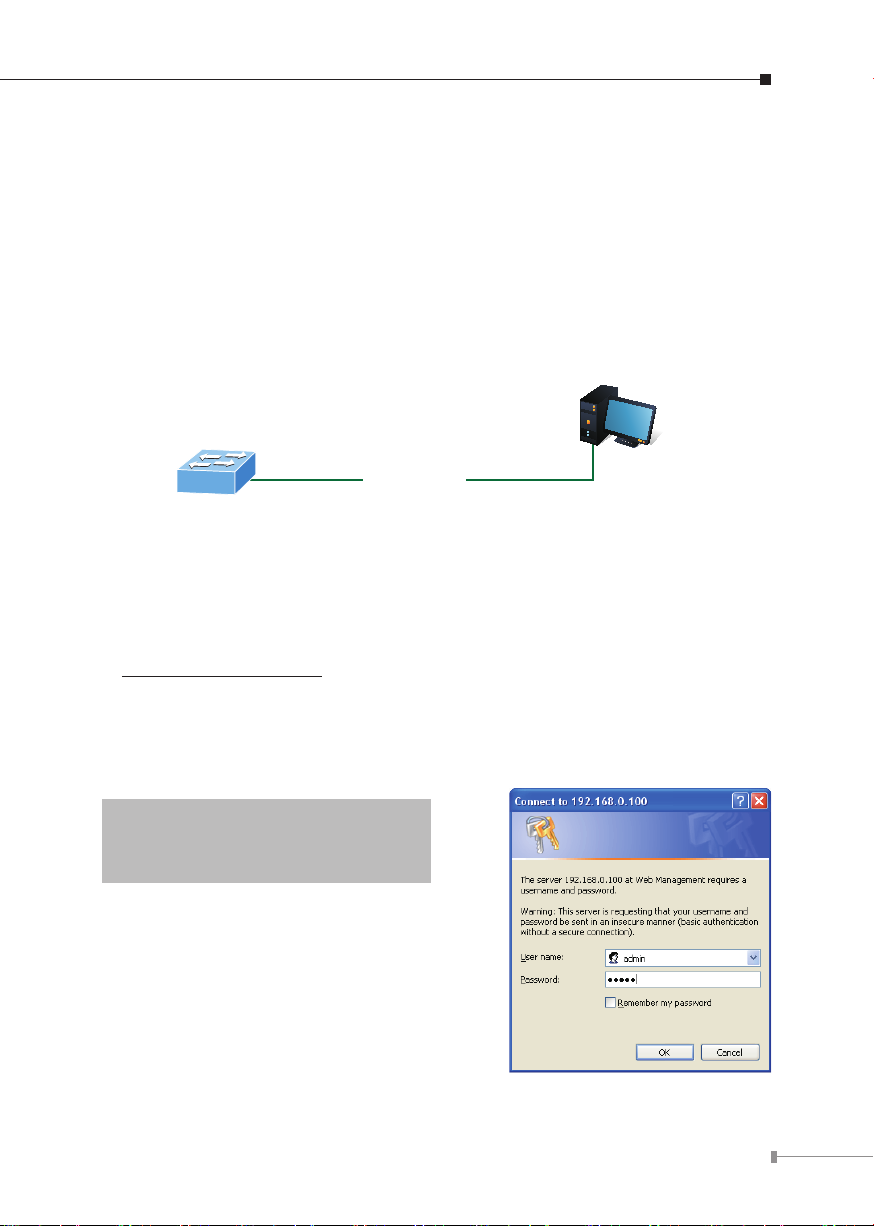

The following shows how to start up the Web Management of the Managed
PoE Switch. Note the Managed PoE Switch is congured through an Ethernet
connection. Please make sure the manager PC must be set to the same IP subnet
address.
Forexample,thedefaultIP address oftheManagedPoESwitchis192.168.0.100,
then the manager PC should be set to 192.168.0.x (where x is a number
between1and254,except100),andthedefaultsubnetmaskis255.255.255.0.
PC / Workstation with Web Browser
192.168.0.x
Managed Switch
RJ45/UTP Cable
IP Address: 192.168.0.100
Figure 4-1: IP Management Diagram
4.1 Logging in to the Managed PoE Switch
1.Use Internet Explorer 8.0 or above Web browser and enter IP address
https://192.168.0.100 (the factory default IP address or the one that you
havejustchangedinconsole)toaccesstheWebinterface.
2.When the following dialog box appears, please enter the default user name and
password “admin” (or the password you have changed via console). The login
screeninFigure4-2appears.
DefaultIPAddress:192.168.0.100
DefaultUsername:admin
DefaultPassword:admin
Figure 4-2: Login Screen
10

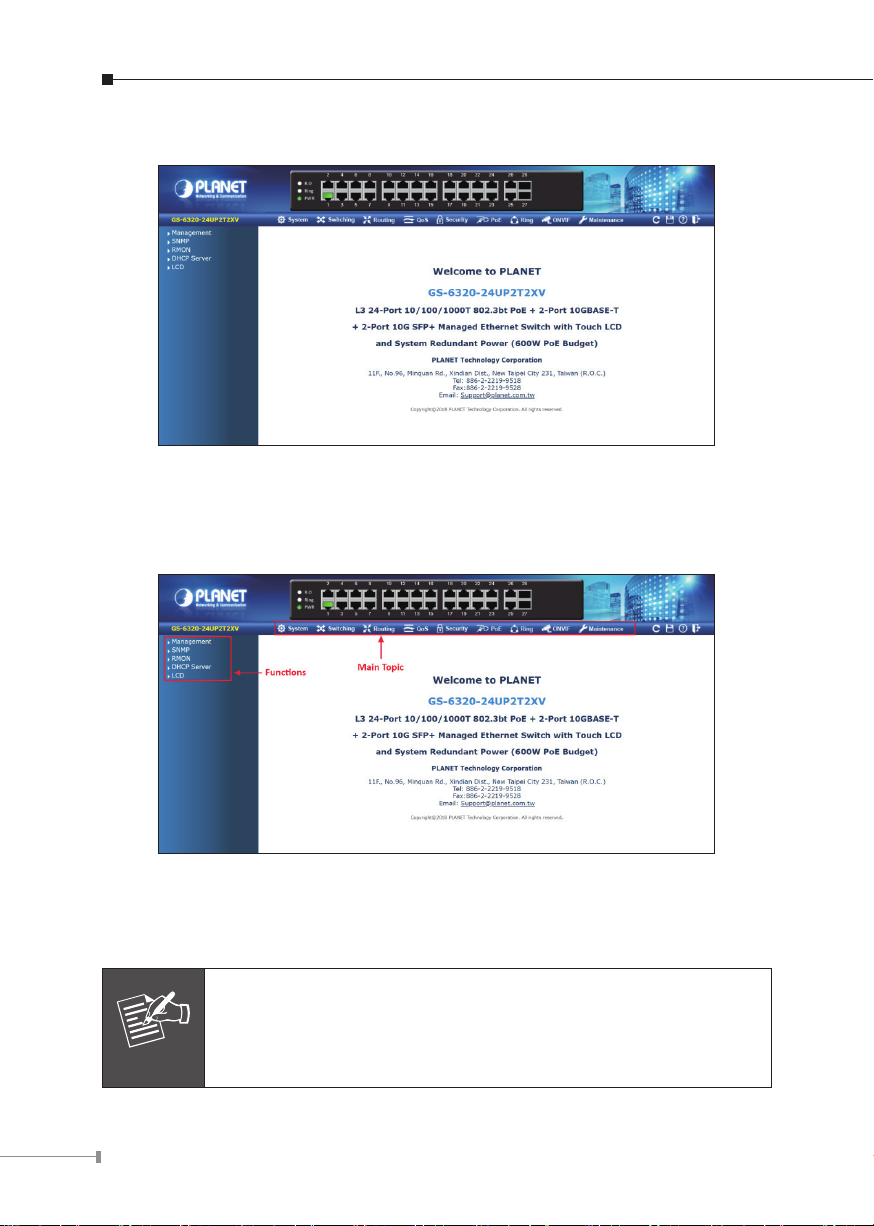

3.Afterenteringthepassword,themainscreenappearsasFigure4-3shows.
Figure 4-3: Web Main Screen of Managed PoE Switch
4.The Switch Menu on the left of the Web page lets you access all the commands
andstatisticstheManagedPoESwitchprovides.
Figure 4-4: Switch Menu
Now, you can use the Web management interface to continue the Switch
management. Please refer to the user manual for more.
Note
If you are not familiar with Switch functions or the related param-
eter, press “Help icon” anytime on the Web page to get the help
description.
