Planet IGS-4215-4P4T Bedienungsanleitung

Industrial L2/L4 Managed Gigabit Switch

with 4-/8-Port 802.3at PoE+

IGS-4215-4P4T/IGS-4215-4P4T2S/IGS-4215-8P2T2S

Industrial L2/L4 Managed Gigabit Switch

with 4-/8-Port 802.3Bt PoE++

IGS-4215-4UP4T2S/IGS-4215-8UP2T2S

Quick Installation Guide

Table of Contents

1. Package Contents................................................................................. 3

2. Requirements....................................................................................... 4

3. Wiring the Power Inputs ....................................................................... 5

3.1 Grounding the Device..................................................................... 7

4. Terminal Setup..................................................................................... 8

4.1 Logging on to the Console.............................................................. 9

 4.2 ConguringIPAddressviaConsole ............................................... 10

 4.3 StoringCurrentSwitchConguration ............................................. 11

5. Sarting Web Management ................................................................... 12

5.1 Logging in to the Industrial Managed PoE+ Switch ......................... 12

 5.2 SavingCongurationviaWeb ....................................................... 14

6. RecoveringBacktoDefaultConguration ............................................. 15

7. Customer Support .............................................................................. 16

1. Package Contents

Thank you for purchasing PLANET L2/L4 Managed Gigabit Switch. The

descriptions of these models are shown below:

IGS-4215-4P4T Industrial4-Port10/100/1000T802.3atPoE+4-Port

10/100/1000TManagedSwitch

IGS-4215-4P4T2S Industrial4-Port10/100/1000T802.3atPoE+4-Port

10/100/1000T+2-Port100/1000XSFPManagedSwitch

IGS-4215-8P2T2S Industrial8-Port10/100/1000T802.3atPoE+2-Port

10/100/1000T+2-Port100/1000XSFPManagedSwitch

IGS-4215-4UP4T2S Industrial4-Port10/100/1000T802.3btPoE+4-Port

10/100/1000T+2-Port100/1000XSFPManagedSwitch

IGS-4215-8UP2T2S Industrial8-Port10/100/1000T802.3btPoE+2-Port

10/100/1000T+2-Port100/1000XSFPManagedSwitch

“Industrial Managed PoE+ Switch” is used as an alternative name in this

Quick Installation Guide.

Open the box of the Industrial Managed PoE+ Switch and carefully unpack it.

The box should contain the following items:

zThe Industrial Managed PoE+ Switch x 1

zQuick Installation Guide Sheet x 1

zRS232 to RJ45 Console Cable x 1

zDust Caps

Model RJ45 Dust Caps SFPDustCaps

IGS-4215-4P4T 9 -

IGS-4215-4P4T2S 9 2

IGS-4215-8P2T2S 11 2

IGS-4215-4UP4T2S 9 2

IGS-4215-8UP2T2S 11 2

zDIN-railKitx1

zWallMountingKitx1

If any item is found missing or damaged, please contact your local reseller for

replacement.

2. Requirements

Workstations running Windows XP/2003/Vista/7/8/10/2008/10/11, MAC OS

Xorlater,Linux,UNIX,orotherplatformsarecompatiblewith TCP/IPproto-

cols.

WorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard)

Serial Port Connection(Terminal)

 The above Workstations come with COM Port (DB9) or USB-to-RS232

converter.

The above Workstations have been installed with terminal emulator,

such as Tera Term, PuTTY or Hyper Terminal included in Windows

XP/2003.

Serial cable -- one end is attached to the RS232 serial port, while the

other ends to the RJ45 console port of the Industrial Managed PoE+

Switch.

Ethernet Port Connection

 Network cables -- Use standard network (UTP) cables with RJ45 connec-

tors.

The above PC is installed with Web browser.

It is recommended to use Google Chrome or above to access

the Industrial Managed PoE+ Switch. If the Web interface of the

Industrial Managed PoE+ Switch is not accessible, please turn

off the anti-virus software or firewall and then try it again.

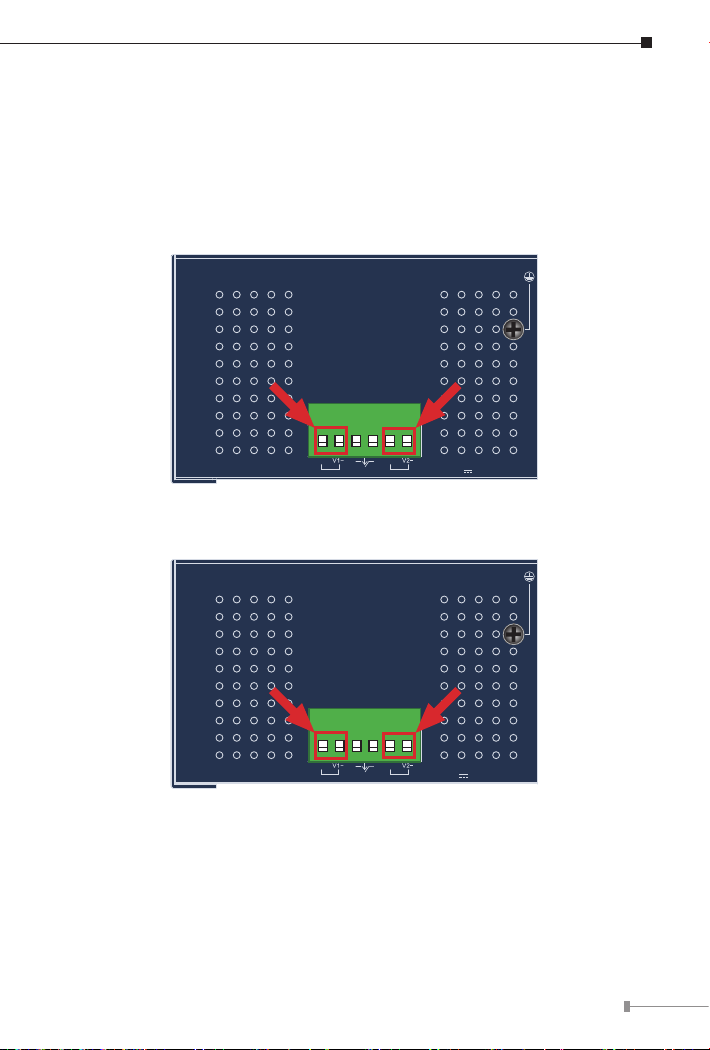

3. Wiring the Power Inputs

The Upper Panel of the Industrial Managed PoE+ Switch indicates a DC inlet

power socket and consists of one terminal block connector within 6 contacts.

Please follow the steps below to insert the power wire.

1.Insert positive/negative DC power wires into contacts 1 and 2 for Power 1

or 5 and 6 for Power 2.

V1+ V2+

PWR1 PWR2Alarm

DC Input:

48-54V

, 6A max.

Max. Fault Alarm Loading: 24V, 1A

1 2 3 4 5 6

Figure 3-1: IGS-4215-4P4T/IGS-4215-4P4T2S/IGS-4215-8P2T2S DC Inlet Power Socket

DC Input:

48-54V , 8.5A max.

Max. Fault Alarm Loading: 24V, 1A

Dual power input is required

for maximum PoE loading.

Refer to user’s manual for

more details.

V1+ V2+

PWR1 PWR2Alarm

1 2 3 4 5 6

Figure 3-2: IGS-4215-4UP4T2S/IGS-4215-8UP2T2S DC Inlet Power Socket

2. Tighten the wire-clamp screws for preventing the wires from loosening.

123456

V1+ V1- V2+ V2-

Power 1 Power 2

Item Positive(+)Pin Negative(-)Pin

IGS-4215 Series Pin1/5 Pin2/6

1. The wire gauge for the terminal block should be in the range

from 12 to 24 AWG.

2.Please check the wire AWG Ampere specification before

connectingPLANETIndustrialManagedPOE+Switch.

PWR1 and PWR2 must provide exactly the same DC voltage

for power load balance while operating with dual power input.

3.1 Grounding the Device

Users MUST complete grounding wired with the device; otherwise, a sudden

lightning could cause fatal damage to the device.

V1+ V2+

PWR1 PWR2Alarm

DC Input:

48-54V

, 6A max.

Max. Fault Alarm Loading: 24V, 1A

1 2 3 4 5 6

Earth Ground

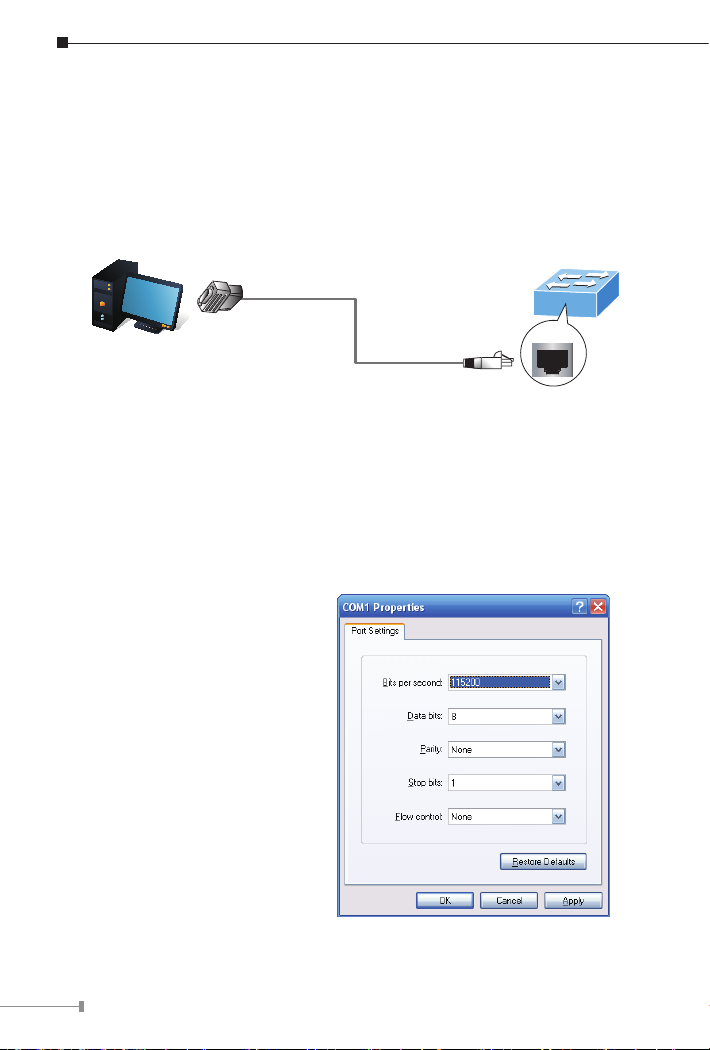

4. Terminal Setup

To congure the system, connect a serial cable to a COM port on a PC or

notebook computer and to the RJ45 type of the console port of the Industrial

Managed PoE+ Switch.

Managed Switch

PC / Workstation

with

Terminal Emulation Software

Serial Port

RS232 to RJ45 Cable

Console Port

RJ45

Figure 4-1: Industrial Managed PoE+ Switch Console Connectivity

A terminal program is required to make the software connection to the

Industrial Managed PoE+ Switch.

1. Run terminal program on the OS.

2. When the following screen appears, make sure that the COM port should be

conguredas:

Baud: 115200

Data bits: 8

Parity:None

Stop bits: 1

Flowcontrol:None

Figure 4-2: COM Port Conguration

4.1 Logging on to the Console

Once the terminal is connected to the device, power on the Industrial Managed

PoE+ Switch and the terminal will display “running testing procedures”. Then,

the following message asks to log in user name and password. The factory

default user name and password are shown as follows, and the login screen in

Figure4-3appears.

The following console screen is based on the IGS-4215-8P2T2S.

The display of the other IGS-4215 PoE Series is the same as

that of the IGS-4215-8P2T2S.

Username: admin

Password: admin

Figure 4-3: Industrial Managed PoE+ Switch Console Login Screen

The user can now enter commands to manage the Industrial Managed PoE+

Switch. For a detailed description of the commands, please refer to the

following chapters.

1.For security reason, please change and memorize the new

password after this first setup.

2. Only accept command in lowercase letter under console inter-

face.

4.2 ConguringIPAddressviaConsole

The Industrial Managed PoE+ Switch is shipped with default IP address as

follows:

IPAddress:192.168.0.100

Subnet Mask: 255.255.255.0

To check the current IP address or modify a new IP address for the Industrial

Managed PoE+ Switch, please use the procedures as follows:

Show the current IP address

1.Atthe“IGS-4215-8P2T2S#” prompt, enter “show ip”.

2. The screen displays the current IP address, subnet mask and gateway as

showninFigure4-4.

Figure 4-4: IP Information Screen

CongurationoftheIPAddress

3.Atthe“IGS-4215-8P2T2S #” prompt, enter “congure”.

4.At the “IGS-4215-8P2T2S (cong)#” prompt, enter the following

command and press <Enter>asshowninFigure4-5.

IGS-4215-8P2T2S(cong)#ip address 192.168.1.100 mask 255.255.255.0

IGS-4215-8P2T2S(cong)#ip default-gateway 192.168.1.254

The previous command would apply the following settings for the Industrial

Managed PoE+ Switch.
