Planet TSN-6325-8T4S4X Bedienungsanleitung
Industrial Layer 3
Managed TSN Switch
TSN-6325-8T4S4X
Quick Installation Guide
Table of Contents
1. Package Contents...................................................................... 3
2. Requirements............................................................................ 4
3. Wiring the Power Inputs ............................................................ 5
3.1 Grounding the Device.......................................................... 6
4. Terminal Setup.......................................................................... 7
4.1 Logging on to the Console................................................... 8
4.2 ConguringIPAddressviaConsole ...................................... 9
4.3 StoringCurrentSwitchConguration ...................................11
5. Starting Web Management ........................................................12
5.1 Logging in to the Industrial Managed Switch ........................13
5.2 SavingCongurationviaWeb .............................................15
6. RecoveringBacktoDefaultConguration ...................................17
7. Customer Support ....................................................................18
3
1. Package Contents
Thank you for purchasing PLANET L3 Industrial Managed TSN Switch,
TSN-6325-8T4S4X. “Industrial Managed Switch” mentioned in this
Quick Installation Guide refers to the above model.
Open the box of the Industrial Managed Switch and carefully
unpack it. The box should contain the following items:
TSN-6325-8T4S4X
The Industrial Managed Switch x 1
DB9 to RJ45 Interface RS232 Console Cable x 1
Quick Installation Guide sheet x 1
Wall Mounting Kit x 1
RJ45 Dust Cap x 9
SFP Dust Cap x 8
If any of these are missing or damaged, please contact your dealer
immediately.Ifpossible, retain the carton includingtheoriginalpacking
materials to enable you to repack the product in case there is a need
to return it to us for repair.
4
2. Requirements
The Industrial Managed Switch provides remote login interface for
management purposes. The following equipment is necessary for
further management:
• Workstations running Windows XP/2003/2008/Vista/7/8/10/11,
MAC OS X or later, Linux, UNIX, or other platforms are compatible
withTCP/IPProtocols.
• Workstations are installed with Ethernet NIC (Network Interface
Card).
• Serial Port Connection(Terminal)
The above Workstations come with COM Port (DB9) or USB-to-
RS232 converter.
The above Workstations have been installed with terminal
emulator, such as Hyper Terminal included in Windows XP/2003,
putty or tera term.
Serial cable -- one end is attached to the RS232 serial port,
while the other end to the console port of the Industrial
Managed Switch.
• Ethernet Port Connection
Network cables--Use standard network (UTP) cables with RJ45
connectors.
The above PC is installed with Web browser.
Note
It is recommended to use Chrome 98.0.xxx or above to
access the Industrial Managed Switch.
5
3. Wiring the Power Inputs
The Upper Panel of the Industrial Managed Switch indicates an inlet
power socket and consists of one green terminal block connector within
6 contacts. Please follow the steps below to insert the power wire.
1.Insert positive/negative DC power wires into Contacts 1 and 2 for
Power1,orContacts5and6forPower2.
DC9-48V,AC24V
Max. Fault Alar m Loadin g: 24V, 1A
DI1 DO0 DO1DI0 GNDGND
V1+ V2+
PWR1 PWR2Alarm
DC Input: 9-48V
, 5A max.
AC Input: 24V
, 2A max.
1 2 3 4 5 6
1 2 3 4 5 6
Figure 3-1: TSN-6325-8T4S4X Upper Panel
Tightenthewire-clampscrewsforpreventingthewiresfromloosening.
1 2 3 4 5 6
V+ V- V+ V-
Power 1 Power 2
Figure 3-2: Power 1 & 2 Pins of Terminal Block Connector
Note
1. The wire gauge for the terminal block should be in the
range from 12 to 24 AWG.
2. Please check the AWG Ampere specification before
connectingPLANETIndustrialManagedSwitch.
6
3.1 Grounding the Device
Users MUST complete grounding wired with the device; otherwise, a
sudden lightning could cause fatal damage to the device.
Max. Fault Alar m Loadin g: 24V, 1A
DI1 DO0 DO1DI0 GNDGND
V1+ V2+
PWR1 PWR2Alarm
DC Input: 9-48V
, 5A max.
AC Input: 24V
, 2A max.
1 2 3 4 5 6
1 2 3 4 5 6
Earth Ground
7
4. Terminal Setup
To congure the system, connect a serial cable to a COM port on a
PC or notebook computer and to RJ45 type serial (console) port of the
Industrial Managed Switch.
PC/Workstation with
Terminal Emulation Software
Serial Port
Console Port
115200,N,8,1
TSN Industrial
Managed Switch
RJ45 to DB9 RS232 Cable
Reset
Console
115200,N,8,1
Ring R.O. I/O
A terminal program is required to make the software connected to the
Industrial Managed Switch.
1. Run terminal program on the OS.
2.When the following screen appears, make sure that the COM port
shouldbeconguredas:
Baud:115200
Parity:None
Data bits: 8
Stop bits: 1
Flowcontrol:None
8
4.1 Logging on to the Console
Once the terminal has been connected to the device, power on the
Industrial Managed Switch and the terminal will display “running testing
procedures”.
Then, the following message asks to log in user name and password.
The factory default user name and password are shown as follows as
theloginscreeninFigure4-1appears.
Username:admin
Password: admin
Figure 4-1: Console Login Screen
The user can now enter commands to manage the Industrial Managed
Switch. For a detailed description of the commands, please refer to the
following chapters.
Note
1.For security reason, please change and memorize
the new password after this first setup.
2. Only accept command in lowercase letter under console
interface.
9
4.2 ConguringIPAddressviaConsole
The Industrial Managed Switch is shipped with default IP address
shown below:
IPAddress:192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or modify a new IP address for the
Switch,pleaseusetheprocedureasfollows:
Display of the Current IP Address
1.Atthe“#”prompt,enter“show ip interface brief”.
TSN-6325-8T4S4X # show ip interface brief
2.ThescreendisplaysthecurrentIPaddressshowninFigure4-2.
Figure 4-2: IP Information Screen
10
Conguration of the IP Address
3.Atthe “#” prompt, enter thefollowingcommandand press <Enter>
asshowninFigure4-3.
TSN-6325-8T4S4X#congure terminal
TSN-6325-8T4S4X(cong)#interface vlan 1
TSN-6325-8T4S4X(cong-if-vlan)#ip address 192.168.1.100
255.255.255.0
The previous command would apply the following settings for the
Industrial Managed Switch.
IPAddress:192.168.1.100
Subnet Mask: 255.255.255.0

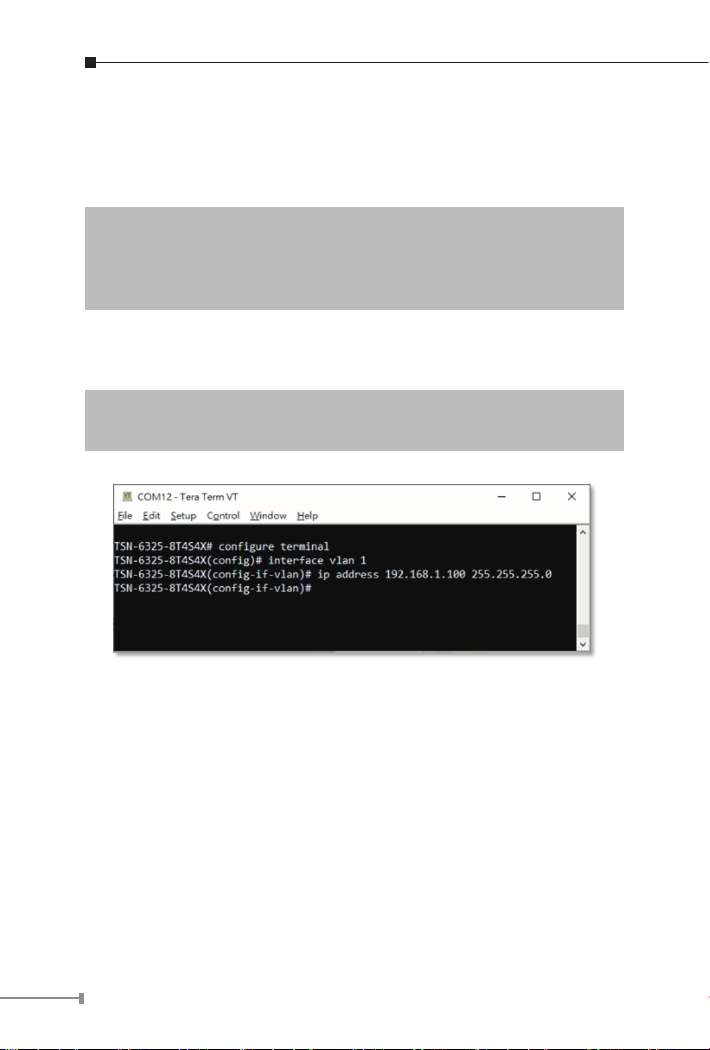

Figure 4-3: Conguring IP Address Screen
4. Repeat step 1 to check if the IP address has changed.
