Planet WGSW-52040 Bedienungsanleitung

L2+ 48-Port 10/100/1000BASE-T + 4-Port 1000X SFP

Managed Gigabit Switch

WGSW-52040

Quick Installation Guide

Table of Contents

1. Package Contents ....................................................................................... 3

2. Switch Management.................................................................................... 4

3. Requirements ............................................................................................. 5

4. Terminal Setup ........................................................................................... 6

5. Logon to the Console .................................................................................. 8

6. ConguringIPAddress................................................................................ 9

7. Starting Web Management .........................................................................11

8. SavingtheConguration ............................................................................13

9. LogintheManagedSwitch..........................................................................14

10. Customer Support.....................................................................................16

1. Package Contents

Thanks you for purchasing PLANET L2+ 48-Port 10/100/1000BASE-T + 4-Port

1000X SFP Managed Gigabit Switch, WGSW-52040. “Managed Switch” is also

usedtorefertotheWGSW-52040inthisquickinstallationguide.

Open the box of the Managed Switch and carefully unpack it. The box should

contain the following items:

 TheManagedSwitchx1

 QuickInstallationGuidex1

 RJ45-to-DB9ConsoleCablex1

 PowerCordx1

Rubber Feet x 4

 TwoRack-mountingBracketswithAttachmentScrewsx1

 SFPDustCapx4

If any item is found missing or damaged, please contact your local reseller for

replacement

2. Switch Management

To set up the Managed Switch, the user needs to congure the Managed Switch

fornetwork management.The ManagedSwitchprovides twomanagement options:

Out-of-BandManagementandIn-BandManagement.

Out-of-Band Management

Out-of-band management is the management through Console interface.

Generally, the user will use out-of-band management for the initial switch

conguration,orwhenin-bandmanagementisnotavailable.

IMPORTANT!

The Managed Switch is shipped without IP address assigned by

default. User must assign an IP address to the Managed Switch via

the Console interface to be able to remotely access the Managed

Switch through Telnet or HTTP.

In-Band Management

In-band management refers to the management by logging in to the Managed

Switchusing Telnetor HTTP,orusing SNMPmanagement softwaretocongure the

Managed Switch. In-band management enables the management of the Managed

SwitchtoattachsomedevicestotheSwitch.Thefollowingproceduresarerequired

toenableIn-bandmanagement:

1. Logon to console

2.Assign/CongureIPaddress

3. Create a remote login account

4.EnableHTTPorTelnetserverontheManagedSwitch

In case in-band management fails due to Managed Switch conguration changes,

out-of-band management can be used for conguring and managing the Managed

Switch.

3. Requirements

zWorkstations running Windows XP/2003/Vista/7/8/2008, MAC OS X or later,

Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.

zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard)

zSerial Port Connection(Terminal)

 The above Workstations come with COM Port (DB9) or USB-to-RS-232

converter.

 The above Workstations have been installed with terminal emulator, such as

HyperTerminalincludedinWindowsXP/2003.

 Serial cable -- one end is attached to the RS-232 serial port, while the other

endtotheconsoleportoftheManagedSwitch.

zEthernet Port Connection

Networkcables--Usestandardnetwork(UTP)cableswithRJ45connectors.

 The above PC is installed with Web browser and JAVA runtime environment

plug-in.

Note

It is recommended to use Internet Explore 8.0 or above to access

the Managed Switch. If the Web interface of the Managed Switch

is not accessible, please turn off the anti-virus software or firewall

andthentryitagain.

4. Terminal Setup

To congure the system, connect a serial cable to a COM port on a PC or

notebook computer and to serial (console) port of the Managed Switch. The

console port of the Managed Switch is DCE already, so that you can connect the

consoleportdirectlythroughPCwithouttheneedofNullModem.

Managed Switch

PC / Workstation

with

Terminal Emulation Software

Serial Port

RS-232 to RJ45 Cable

Console Port

RJ-45

Figure 4-1 Managed Switch Console Connectivity

A terminal program is required to make the software connection to the Managed

Switch. Windows' Hyper Terminal program may be a good choice. The Hyper

TerminalcanbeaccessedfromtheStartmenu.

1. Click STARTmenu,thenPrograms, AccessoriesandthenHyper Terminal.

2.TypeanameforopeningHyperTerminal,suchas“COM1_9600”.

3.When the following screen appears, make sure that the COM port should be

conguredas:

Baud :9600

Parity :None

Databits :8

Stop bits : 1

Flowcontrol :None

Figure 4-2 Hyper Terminal COM Port Conguration

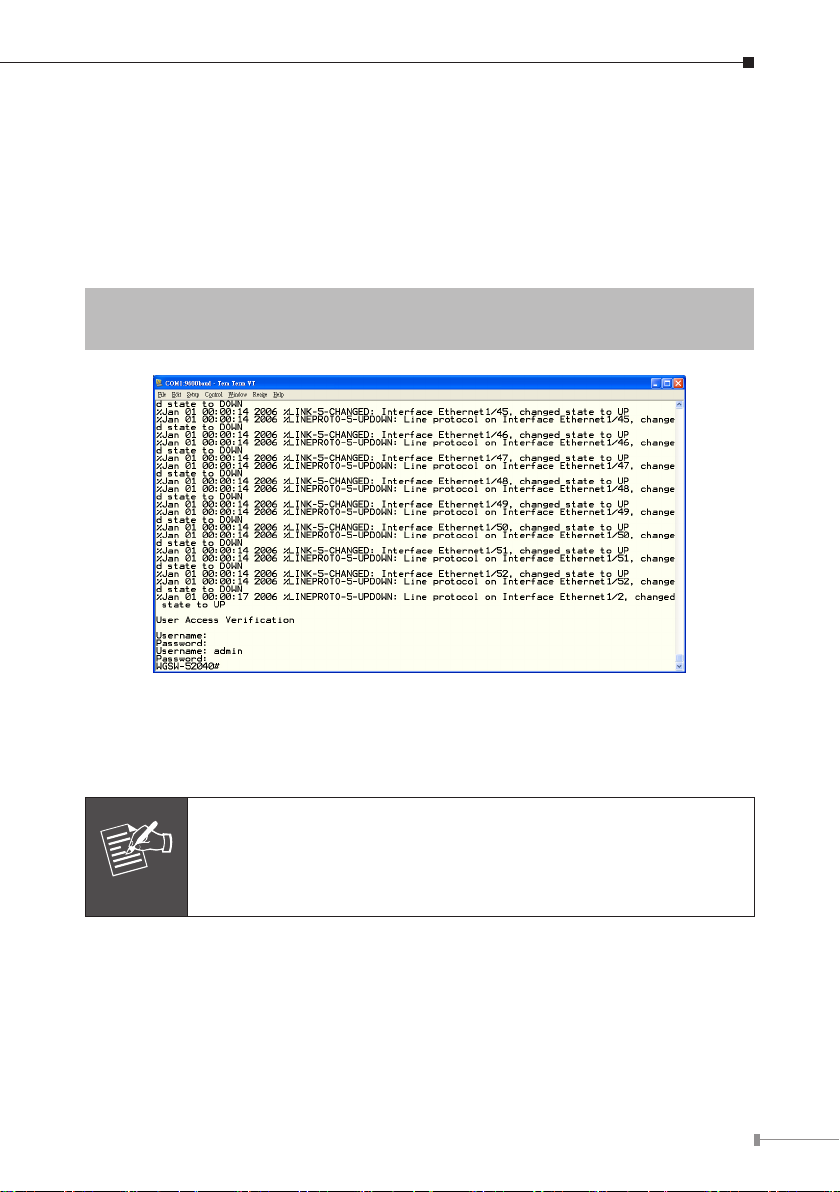

5. Logon to the Console

Once the terminal is connected to the device, power on the Managed Switch, and

theterminalwilldisplay“runningtestingprocedures”.

Then, the following message asks the login user name and password. The factory

default user name and password are as follows as the login screen in Figure 5-1

appears.

Username:admin

Password:admin

Figure 5-1 Managed Switch Console Login Screen

The user can now enter commands to manage the Switch. For a detailed

descriptionforthecommands,pleaserefertothefollowingchapters.

Note

1. For security reason, please change and memorize the new pass-

wordafterthisfirstsetup.

2.Only accept command in lowercase letter under console inter-

face.

6.ConguringIPAddress

The IP address conguration commands for VLAN1 interface are listed below.

Before using in-band management, the Managed Switch must be congured with

an IP address by out-of-band management (i.e. console mode). The conguration

commands are as follows (All switch conguration prompts are assumed to be

“WGSW-52040”hereafterifnototherwisespecied):

WGSW-52040>enable

WGSW-52040#cong

WGSW-52040(cong)#interface vlan 1

WGSW-52040(Cong-if-Vlan1)#ip address 192.168.1.254 255.255.255.0

ThepreviouscommandwouldapplythefollowsettingsfortheManagedSwitch.

IPv4Address:192.168.1.254

Subnet Mask: 255.255.255.0

Figure 6-1 Conguring IPv4 Address Screen

To check the current IP address or modify a new IP address for the Managed

Switch,pleaseusetheproceduresasfollows:

Show the current IP address

1. On “WGSW-52040#”prompt,enter“show ip interface brief”.

2.Thescreen displaysthecurrent IPaddress,Subnet Mask andGatewayasshown

inFigure6-2.

Figure 6-2 Showing IP information Screen

If the IP is successfully congured, the Managed Switch will apply the new IP

address setting immediately. You can access the Web interface of Managed Switch

throughthenewIPaddress.

Note

Ifyouarenotfamiliarwithconsolecommandortherelatedparam-

eter,enter“help”anytimeinconsoletogetthehelpdescription.

7. Starting Web Management

The Managed Switch provides a built-in browser interface. You can manage it

remotely by having a remote host with Web browser, such as Microsoft Internet

Explorer,MozillaFirefox,GoogleChromeorAppleSafari.

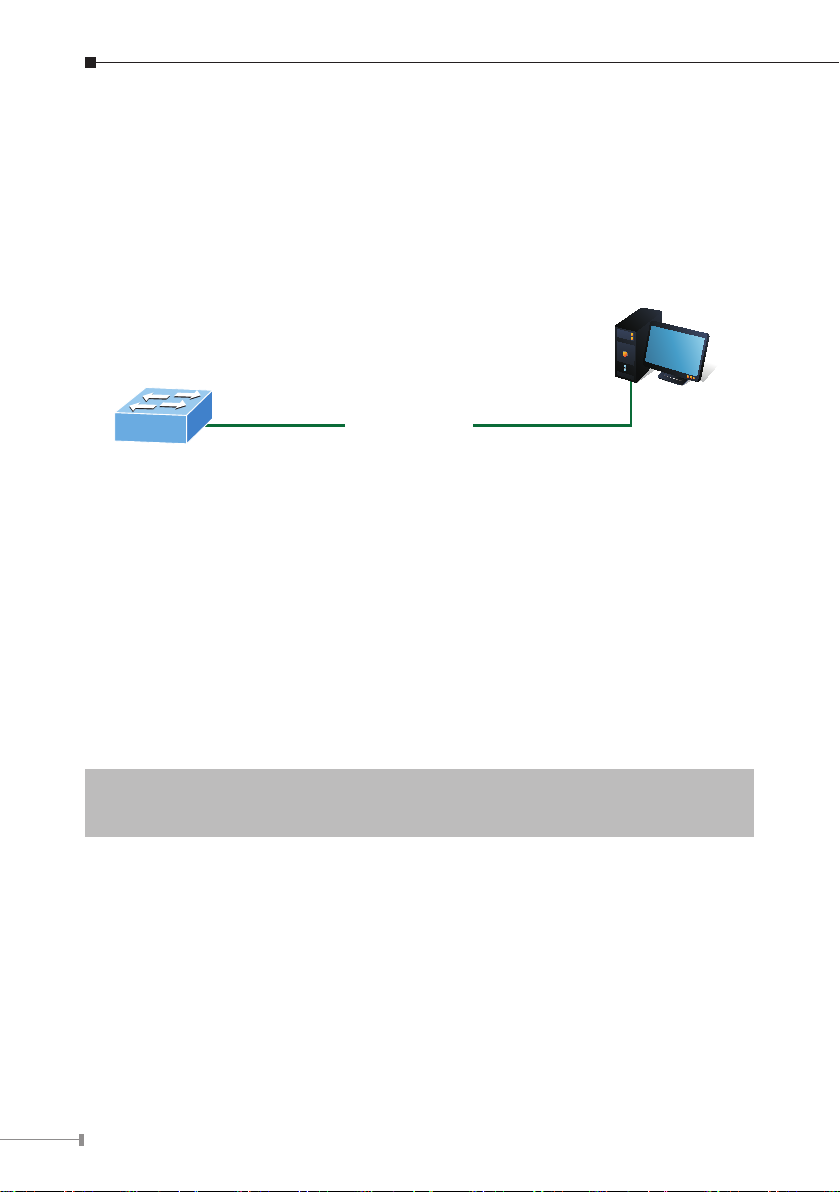

PC / Workstation

with Web Browser

192.168.0.x

Managed Switch

RJ45/UTP Cable

IP Address:

192.168.0.100

Figure 7-1 IP Management Diagram

The following shows how to start up the Web Management of the Managed

Switch. Please note the Managed Switch is congured through an Ethernet

connection. Please make sure the manager PC must be set on the same IP

subnet address.

For example, the IP address of the Managed Switch is congured with

192.168.1.254, then the manager PC should be set at 192.168.1.x (where x

is a number between 1 and 253, except 254), and the default subnet mask is

255.255.255.0.

Thefactorydefaultusernameandpasswordareasfollows:

Username:admin

Password:admin
