Planet WNRT-300G Bedienungsanleitung

3G / 802.11n Wireless Portable Router

WNRT-300G

Quick Installation Guide

Table of Contents

1. Package Contents ................................................. 3

2. Physical Introduction ............................................. 4

3. Hardware Installation ............................................ 5

4. Web UI Conguration .......................................... 10

5. Further Information ............................................ 12

1.Package Contents

Thank you for choosing PLANET WNRT-300G, the most

convenient 3G wireless portable router. Before installing

the router, please verify the contents inside the package

box.

Portable Router Quick Guide CD-ROM

Power Adapter USB Cable Ethernet Cable Li-ion Battery

Note

If there is any item missed or damaged,

please contact the seller immediately.

2.Physical Introduction

Top Panel Description

Power

Wireless Connection

WPS

Battery

3G Connection

WAN/LAN

Front Panel Description

The Switch of Router

AP, and Client Modes WPS Button

Power Switch

Rear Panel Description

Power Connector

5V DC Input Reset Button

10/100Mbps WAN/LAN Port

Side Panel Description

USB Port

for 3G Modem

3.Hardware Installation

Note

Before you start using the portable router,

please follow the procedures below to

install and charge the battery.

Step 1: Remove the battery cover, and insert the

attached battery into the slot. Then replace

the cover back.

Step 2: Charge the battery by the attached power

adapter and USB cable.

Step 3: The red LED will be lit up. When the

battery is fully charged, the LED will be off.

Note

If you will use the WNRT-300G powered by

AC power supply for a long time, please

remove the battery from the slot and keep

it of full power in a cool and dry place.

Please follow the instructions below to activate the

WNRT-300G

Step 1: Make sure the operation mode by hardware

switch is Router Mode (default setting).

RT/Client/AP ON/OFFWPS

Step 2: When the battery is put into the device, turn

on the WNRT-300G.

RT/Client/AP ON/OFFWPS

Step 3: Please follow the gure below to connect

the Cable/xDSL Modem to the RJ-45 port of

WNRT-300G or connect the 3G dongle to the

USB port of WNRT-300G.

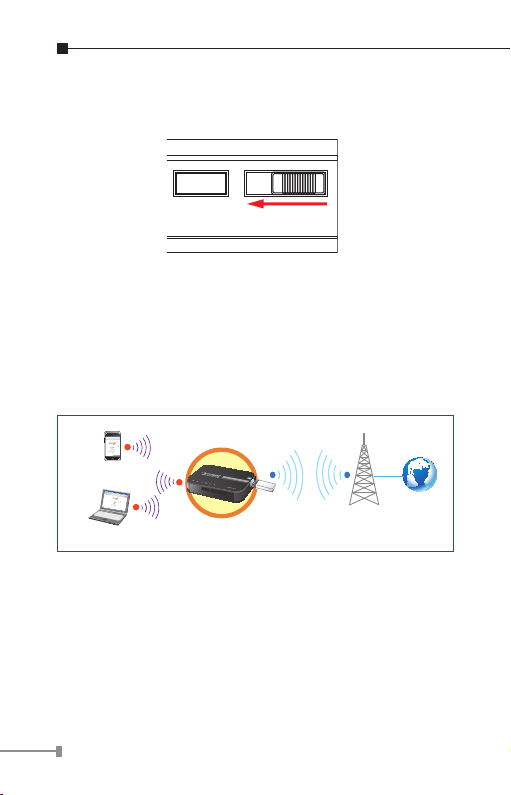

Router Mode

WNRT-300G

Laptop

Smart Phone

Base Station

Compatible

3G Dongle

Internet

Step 4: Please use your PC to site survey the wireless

signal of WNRT-300G, and connect your PC

with it wirelessly.

*Default SSID: default

*Default Wireless Security: No Security

Note

1. When the WNRT-300G is at Router

Mode, the only RJ-45 port will act as a

WAN port. Therefore, the client devices

can only connect with WNRT-300G

wirelessly. However, if you need to

connect the computer with the WNRT-

300G by UTP cable, please switch it to

AP Mode first. And the RJ-45 port will

act as a LAN port to be able to connect

with your computer.

Note

2. After clicking the Connect button,

If you cannot obtain an IP address

automatically from WNRT-300G in

Router Mode, please follow the

procedures below to congure the

network connection.

Step 1. Click “Start” button located at

lower-left corner of the screen.

Step 2. Click “Control Panel”.

Step 3. Click “Network and Sharing

Center”.

Step 4. Click “Change adapter

settings”.

Step 5. Right-click “Wireless Network

Connection” or “Local Area

Connection”, and choose

“Properties”.

Step 6. Select “Internet Protocol

Version 4 (TCP/IPv4)” and

click “Properties” button.

Step 7. Select “Obtain an IP

address automatically” and

“Obtain DNS server address

automatically”, then click “OK”.

4.WebUIConguration

Default IP Address: 192.168.1.1

Default Username: admin

Default Password: admin

Step 1: Open the Web browser and enter the default

IP address http://192.168.1.1

The default username and password are both

“admin”. Then click OK button to continue.
