802.11n Wireless Gigabit Broadband Router

WNRT-630

Quick Installation Guide

Table of Contents

Introduction ................................................................................. 3

Package Content............................................................................. 4

Hardware Installation ...................................................................... 5

Web Conguration .......................................................................... 7

Further Conguration .....................................................................11

3

Introduction

Thank you for purchasing PLANET 801.11n Wireless Gigabit Broadband

Router, WNRT-630. In this Quick Installation Guide, it illustrates the

hardware installation and the basic conguration.

4

Package Content

1 x WNRT-630

1 x Ethernet Cable

1 x Power Adapter

1 x CD ROM

1 x Quick Installation Guide

Note

If any of the above items are missing or damaged,

contact your local dealer for support.

l

l

l

l

l

5

Hardware Installation

1. Locate an optimum location for the WNRT-630. The best place

for your WNRT-630 is usually at the center of your wireless network,

with line of sight to all of your mobile stations.

2. Adjust the antennas of WNRT-630. Try to adjust them to a posi-

tion that can best cover your wireless network. The antenna’s posi-

tion will enhance the receiving sensitivity.

3. Connect RJ-45 cable to WNRT-630 LAN port. Connect one of the

LAN ports on WNRT-630 to your LAN switch/hub or a computer with

a RJ-45 cable.

4. Connect RJ-45 cable to WNRT-630 WAN port. Connect the

supplied Ethernet cable to xDSL/Cable Modem and the WAN port on

WNRT-630.

5. Plug in power adapter and connect to power source. After

power on, WNRT-630 will start to operate.

Note

ONLY use the 12V 1A power adapter supplied with the

WNRT-630. Otherwise, the product may be damaged.

If you want to reset WNRT-630 to default settings, press

and hold the RESET button over 20 seconds and release.

And then wait for WNRT-630 restart.

6

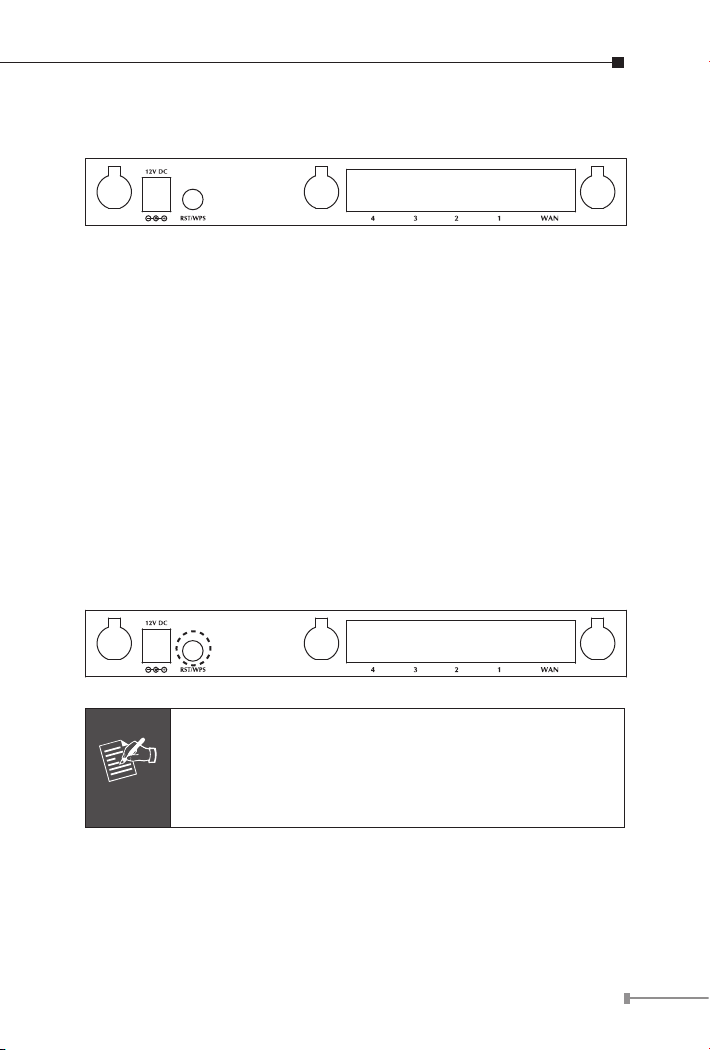

RST / WPS

Button

This button has two functions:

To Clear All Data and restore the factory default

values:

Press the RST (reset) button for longer than 20

seconds until the LED of power ash, and then the

router will reset itself to the factory default settings.

(Warning: your original congurations will be replaced

with the factory default settings)

To make Wi-Fi Protected Setup (WPS) simple and

easier:

Press the WPS button (for less than 3 seconds);

machine will start WPS function to build connection

between wireless network clients and this wireless

router.

7

Web Conguration

WNRT-630 provides a user friendly interface for users to congure it

via web browser. Please follow the steps below to congure WNRT-630

basic settings.

1. Open your web browser and type WNRT-630 default IP address

(192.168.1.1) into the “Address Field” of you web browser. Before

conguration, please make sure your PC’s IP address is under the

same IP range with WNRT-630.

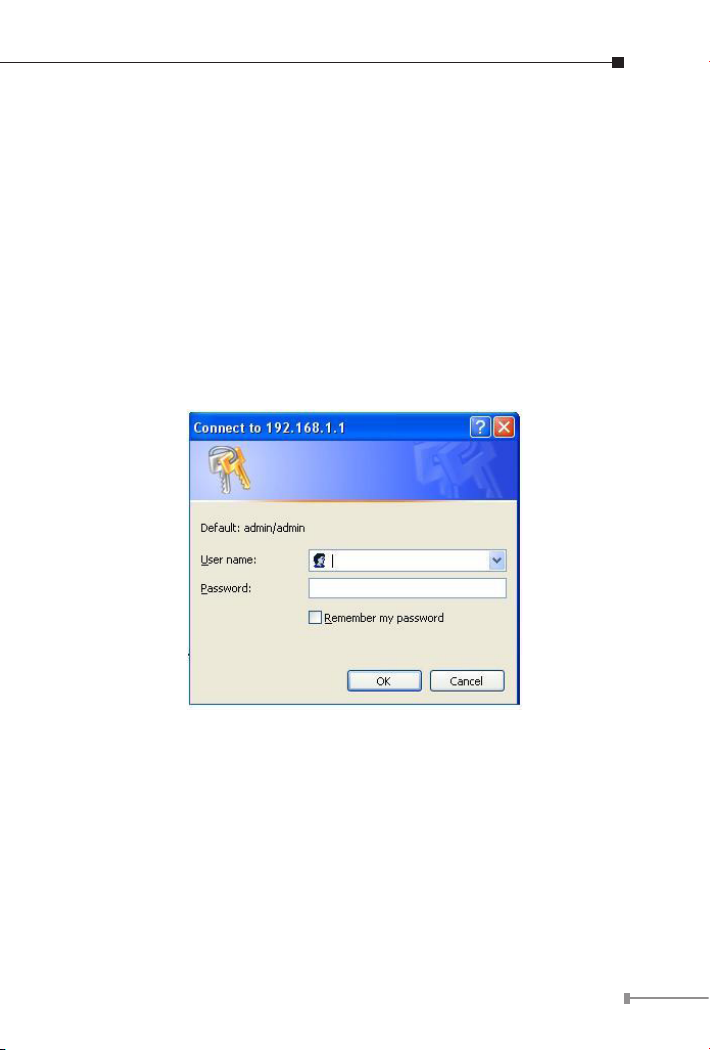

2. After enter the IP address and press Enter key, you can see the

dialog box appear as below, please enter the User name and Pass-

word with “admin”. Then press “OK”.

8

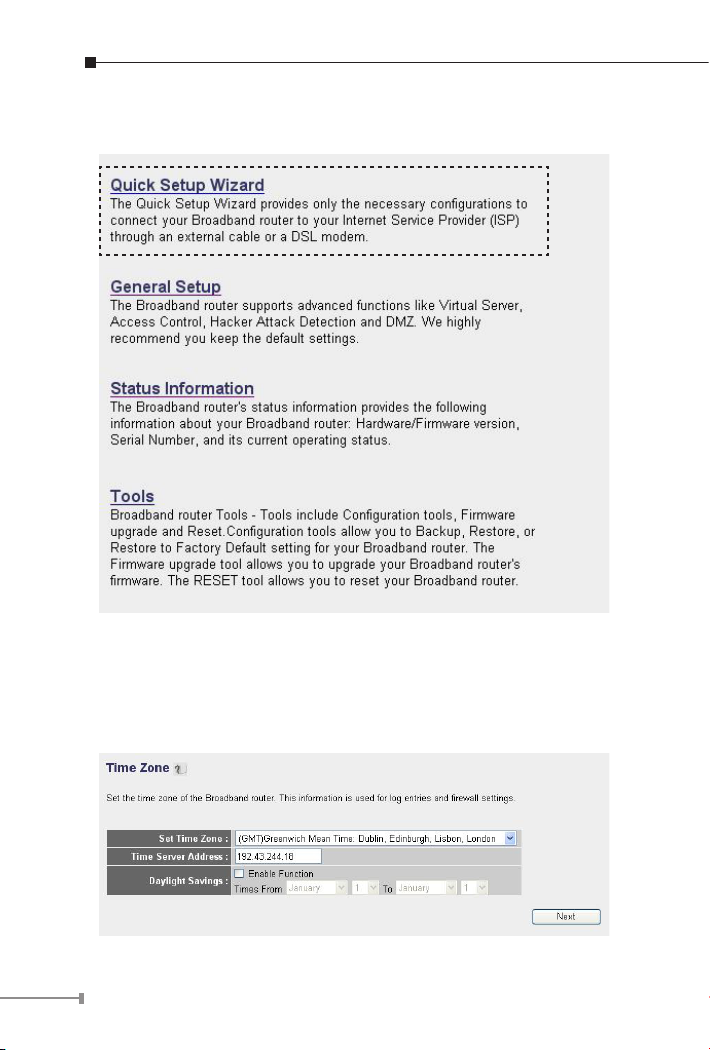

3. Please click “Quick Setup” on the left panel to setup your WNRT-630.

4. Select a Time Zone that corresponds to your country. Time Zone

setting will affect functions such as Log entries and Firewall. You may

keep the default Time Server address or set a new Time Server’s IP

address for WNRT-630 to adjust it’s time on the Internet. Please click

“Next” to continue.

9

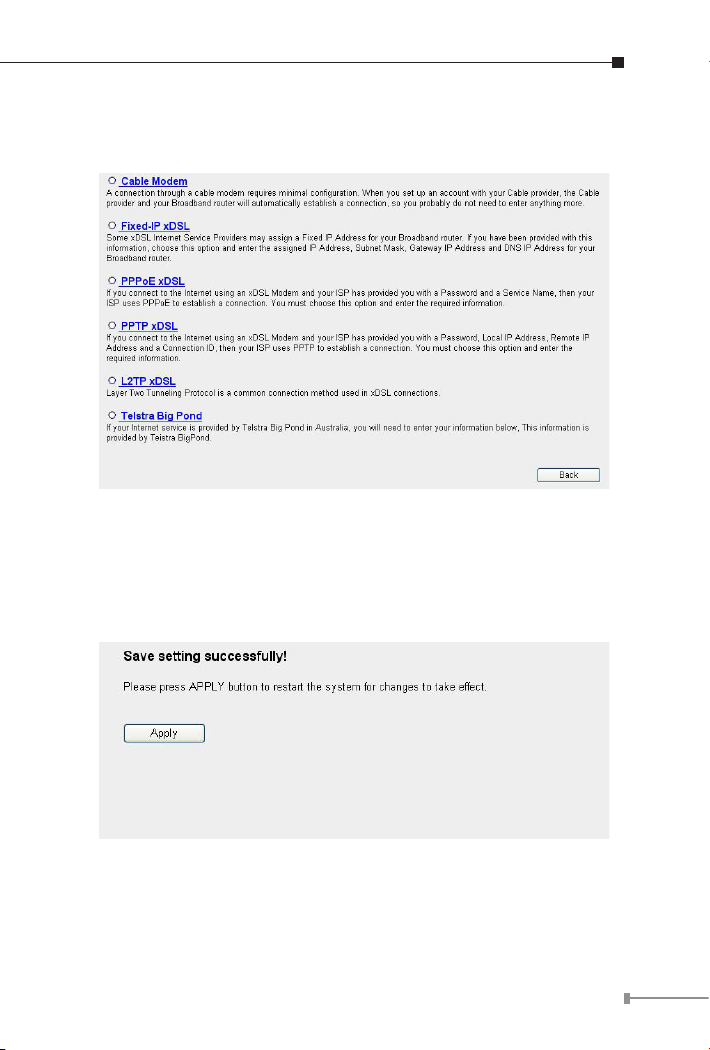

5. The WNRT-630 supports six Internet connection types. This informa-

tion must be provided by your local ISP.

6. The IP Address Info page appears after you choose suitable Broad-

band Type. Different Broadband Type will have different IP settings.

You must obtain all necessary information from your local ISP and

enter the correct parameters in this page.

7. Click “Apply” to save the settings.

10

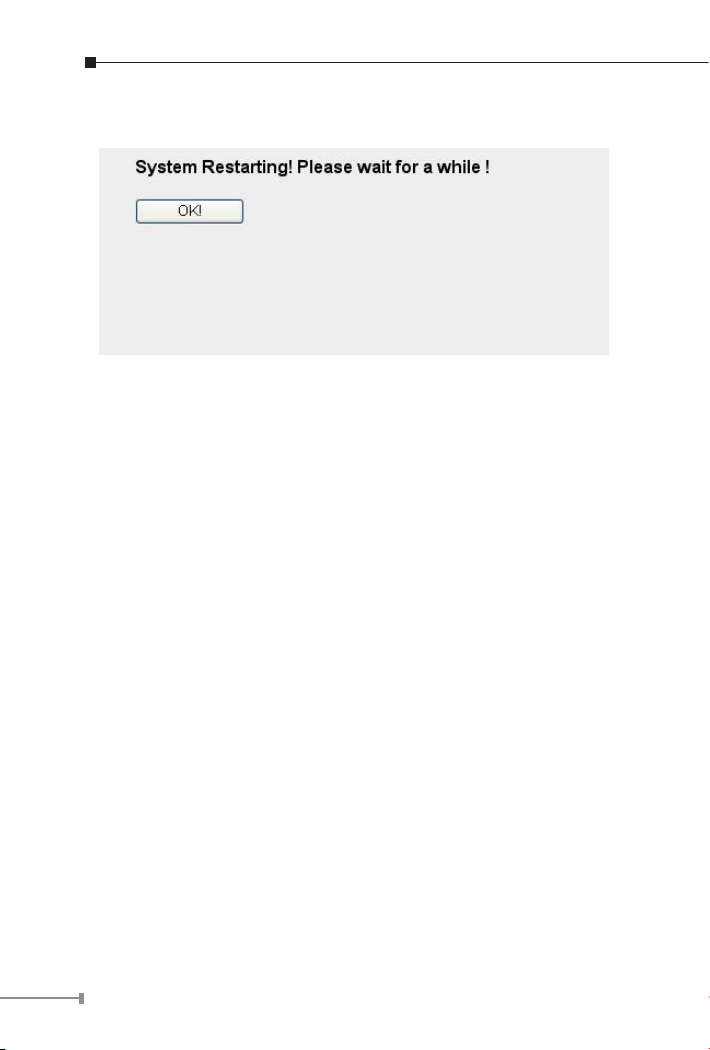

8. Please wait for 30 seconds for WNRT-630 restart. Then click “OK”.
