PlayAlive Spider Leitfaden
Installation and assembly instruction v4
Spider
®
Content
1
1. Content
2. Component overview
2.0 Content of transport case
2.1 - 2.8 Component overview
3. Site of spider construction
3.1 Maximum length of power cable
3.2 Measurements of impact area
3.3 Foundations
4. Mounting of steel construction

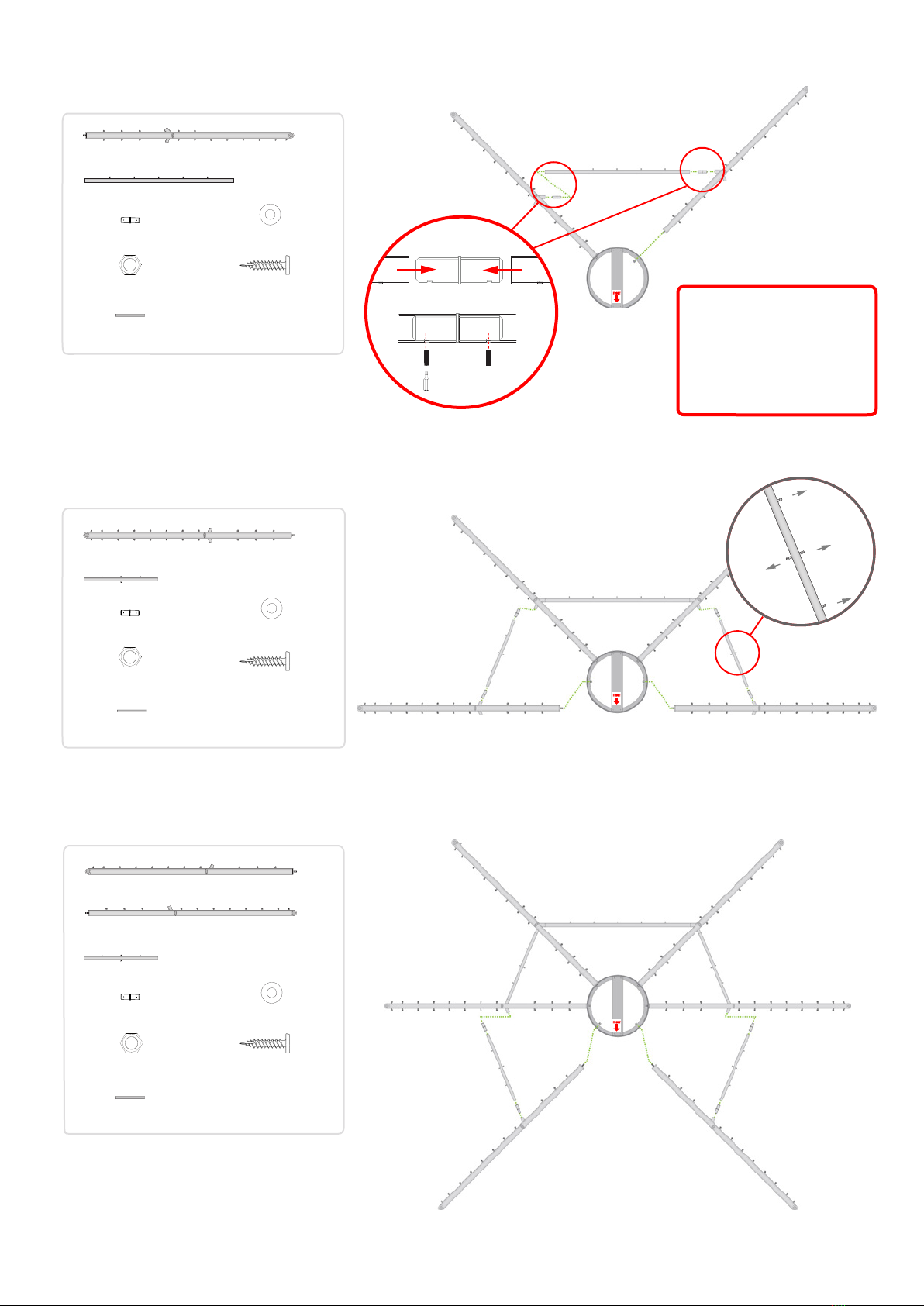

4.1 Support of the center ring
4.2 Mounting of rear left leg (Leg C)
4.3 Mounting of rear right leg (Leg D)
4.4 Mounting of two middle legs (Leg B + E)
4.5 Mounting of two front legs (Leg A + F)
5. Mounting of net
5.1 Mounting of side nets
5.2 Mounting of top net
5.3 Mounting of rear net
6. Electronics

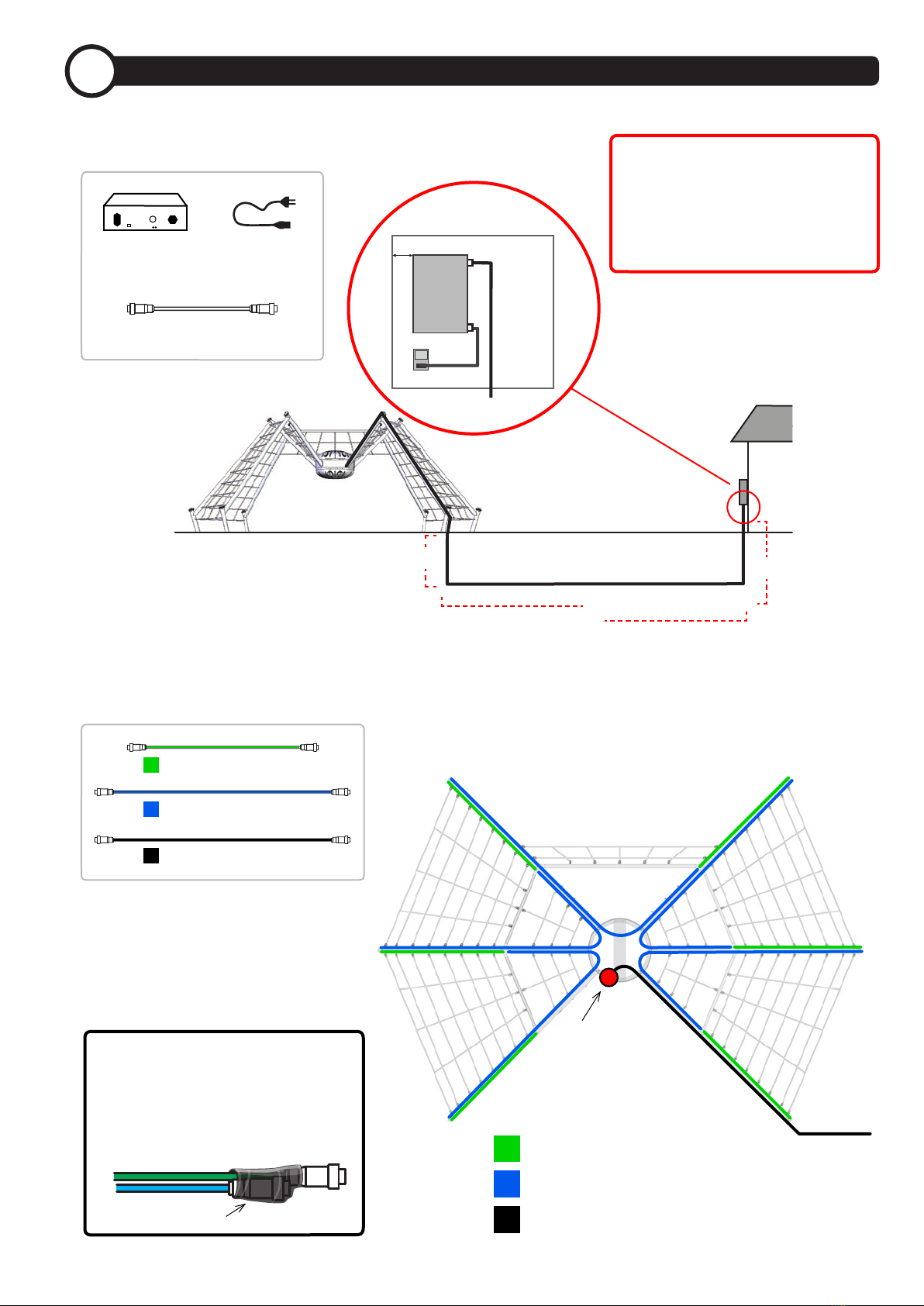

6.1 Pulling of devicenet cable
6.2 Pulling cables inside the legs
6.3 Mounting of satellites placed in the legs
6.4 Mounting of satellites on the body of the Spider
7. Plastic parts
7.1 Mounting of plastic shells
7.2 Mounting of plastic bracket
8. Verifying dimensions / casting foundations
8.1 Verifying dimensions
8.2 Casting the concrete
9. For the electrician
9.1 Installing cabinet with power outlet for PlayAlive power supply
9.2 Services, PC connection
9.3 Electrical specications
10. Start up
10.1 Start up the system
10.2 Select and start game
10.3 Reset the game
10.4 Idle mode
10.5 Adjust volume if needed
11. Appendix
11.1 General introduktion to PlayAlives Technology Platform
11.2 Conduit pipes and PlayAlive technology
11.3 Games
Component overview
2
1 x Center ring
P-MA002
2 x Midle leg
(leg B + E)
P-MA004
2 x Inner plugs B
(for conncetor tubes)
P-MM017
1 x Rear left leg
(leg C)
P-MA005
20 x Self tapping screw 4 x 20 mm
P00142
1 x Rear right leg
(leg D)
P-MA006
2.1 Steel structures (placed in transport case) (P00091)
2.2 Inner plugs for connector tubes (P00094)
2.3 Plastic brackets (P00083)

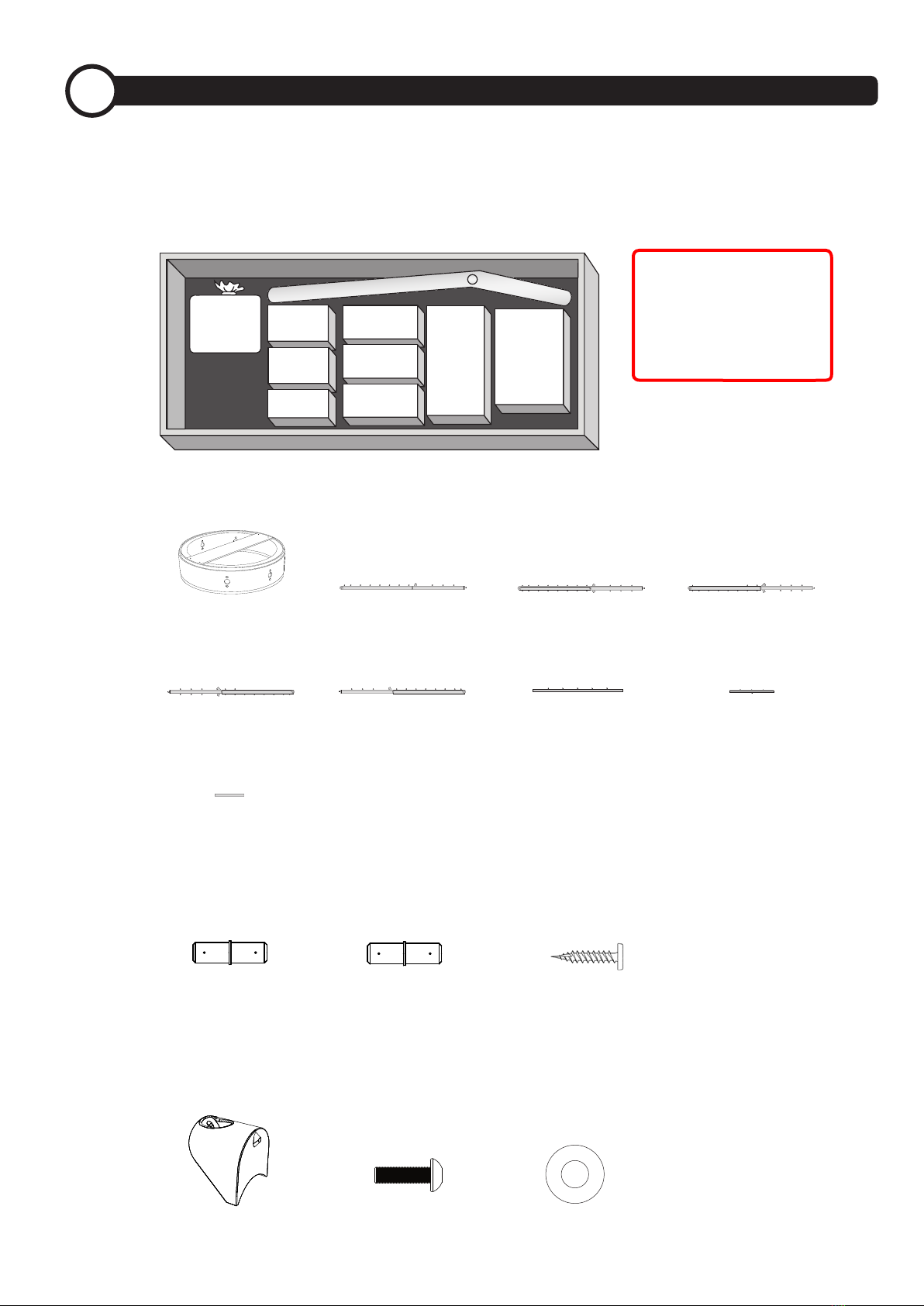

2.0 Content of transport case
The spider product arrives in a big wooden box / transport case. The box contains the steel
structures as well as eight smaller boxes. The contents are specied below.
1 x Front left leg
(leg A)
P-MA003
8 x Inner plugs A
(for conncetor tubes)
P-MM016
1 x Front right leg
(leg F)
P-MA007
4 x Connector tube
(for side mounting)
P-MA011
12 x Casting anchor
P00115
1 x Rear connector tube
P-MA010
6 x Button Head M6 x 16 mm
P00009
6 x Plastic bracket
P-MP015
6 x Washer M6
P00141
Important!
Check the packing list.
– Due to model varia-
tions, actual content
may differ from the
illustration

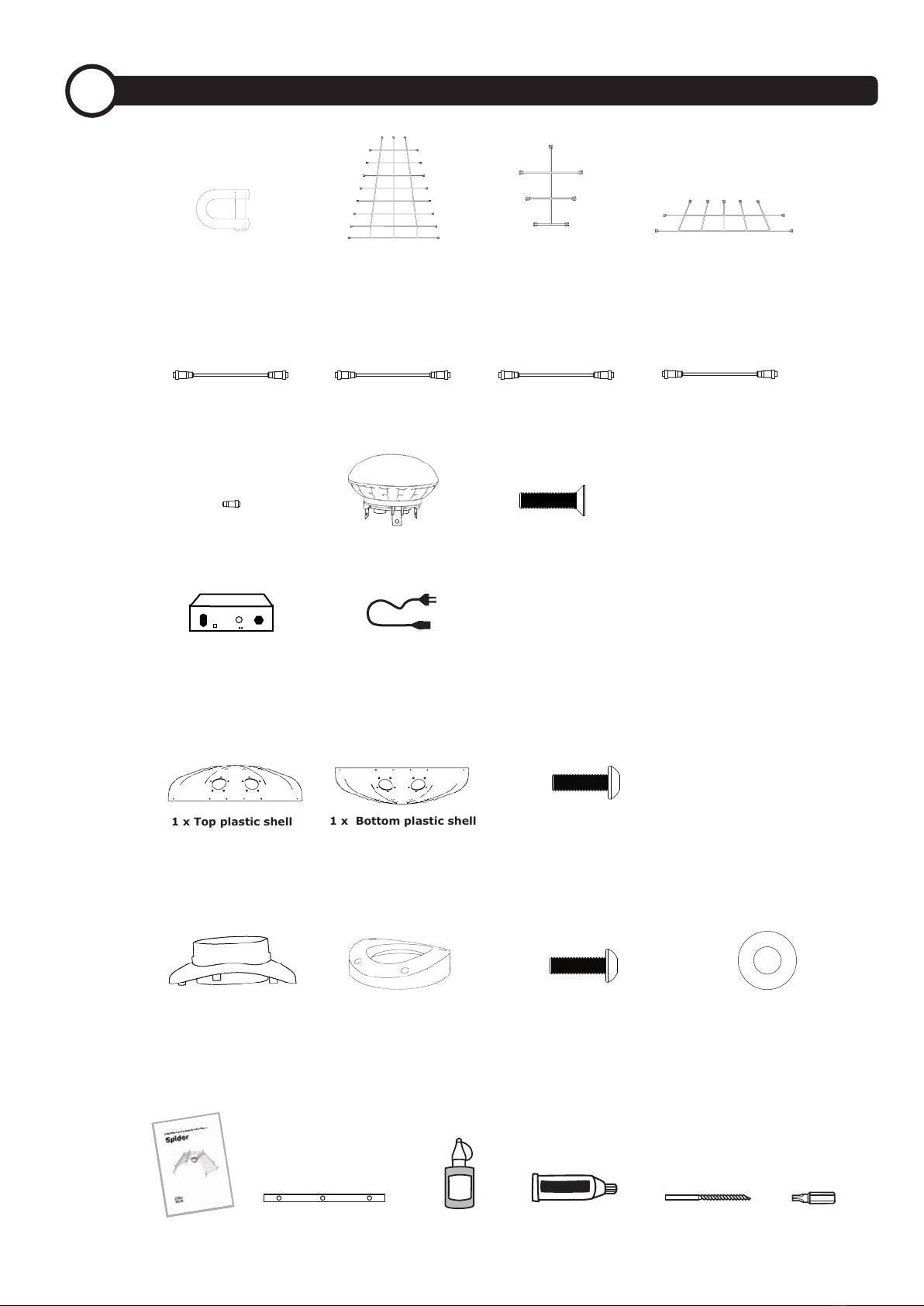

2.8
Accessory kit
2.2
Inner plugs
2.3
Plastic
Brackets
2.7
Adapter
2.5
Tecnology kit 1
2.5
Tecnology kit 2
2.5
Tecnology kit 3
2.4
Net
2.6
Plastic shells
2.1 Steel Structures
16 x Satellite
P00020
48 x Countersunk screw
M5 x 12 mm
P00077
1 x Bottom plastic shell
P-MP012
4 x Inner adapter
P-MM038
3 x 2 m Data cable
P00254
1 x Termination
P00252
1 x Top plastic shell
P-MP011
4 x External adapter
P-MM037
1 x Manual
P00144
40 x Rubber strips
P00117
1 x Glue
P00011
1 x Grease
P00010
1 x Drill 3.5mm
P00119
TX 25
P00005
Component overview
2
2.5 Tecnology kit 1-3 (P00124)
2.6 Plastic shells (body of Spider) (P00075)
2.7 Satellite adapters for body of Spider (P00079)
2.8 Accessory kit (P00095)
7 x 3,5 m Data cable
P00255
5 x 7 m Data cable
P00263
1 x Devicenet cable 33 m
power- and datacable
P00258
1 x 230 AC cable
(EU + UK)
22 x Buttonhead M5 x 12 mm
P00076
24 x Buttonhead M5 x 16 mm
P00007
24 x Washer M5
P00143
1 x Rear net
P-MZ002
117 x Shackles
P00122
2.4 Net (P00092)
4 x Top net
P-MZ003
4 x Side net
P-MZ001
1 x Power supply
(IPSU)
P00251

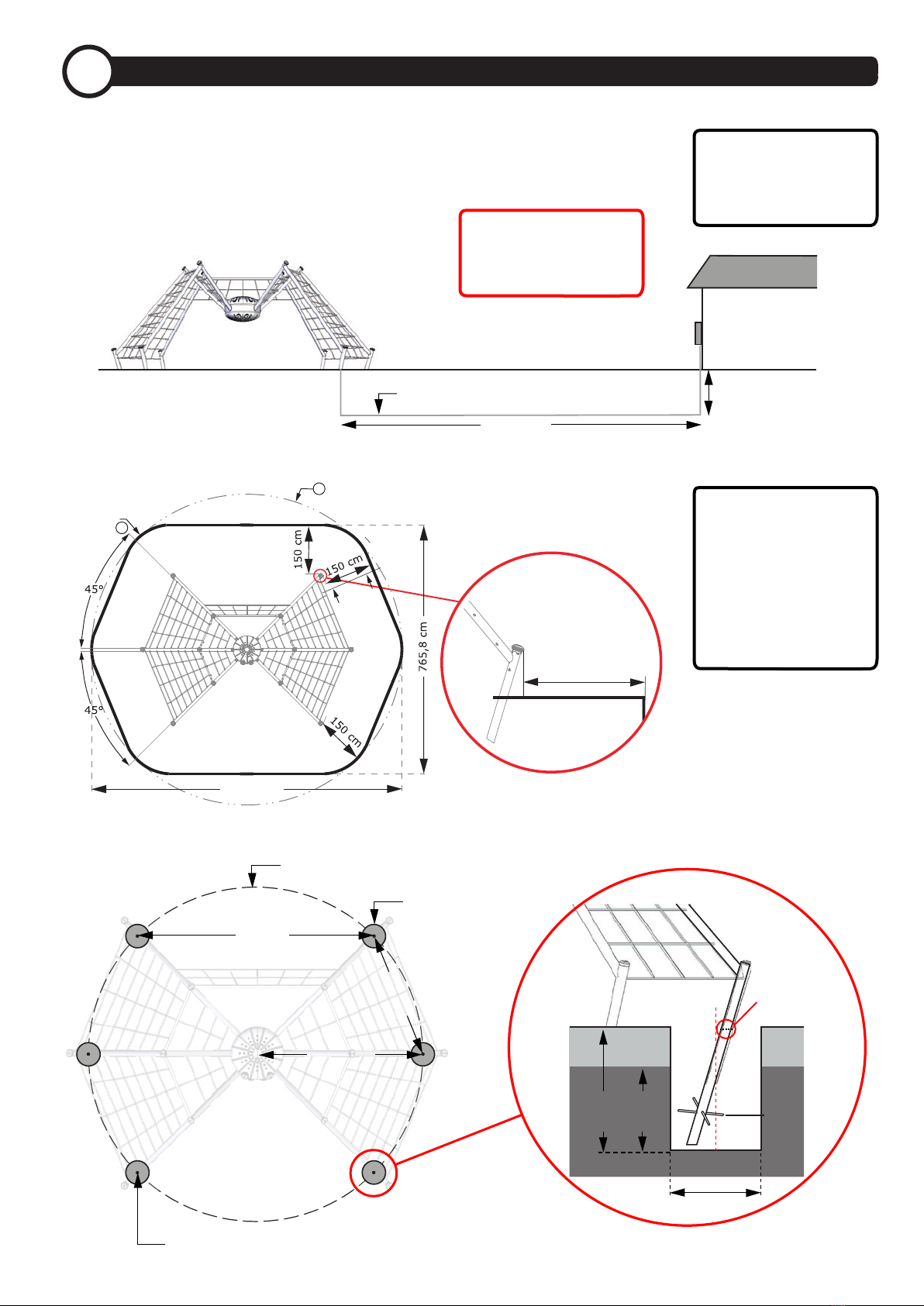

3.3 Foundation
Size of foundations
3.2 Measurement of impact area
3.1 Maximum length of power cable
Site of Spider construction
3
Tip:
Tip:
For details on cable pipes see the technicial
details in section 11.
max. 25 m
404 cm
R: 285 cm
Ø: 570 cm (Diameter)
Ø: 70 cm
95 cm
70 cm
65 cm
All legs are prepared
for cables to be pulled
inside the legs.
Verify dimensions:
Distance from the
center of the Spider
to the edge of the
impact area = min.
480 cm measured
parallel to any leg.
50 cm (recommended)
Power Supply Box
Distance between power supply and
the closest leg must not exceed 25 m
Soil or sand
Casting anchor
Impact area
Impact surface
marking
Center of hole
All measures are based on the center of the hole.
219 cm
Important!
Remember pull wire
in cable pipe.
ground
150 cm
954,7 cm
section B - B
B
B
L
L
Ø 9547
R 1500 typ. 6
Cable pipe diameter: Ø 28/34 mm
Center ring
Leg
Mounting of steel construction
4

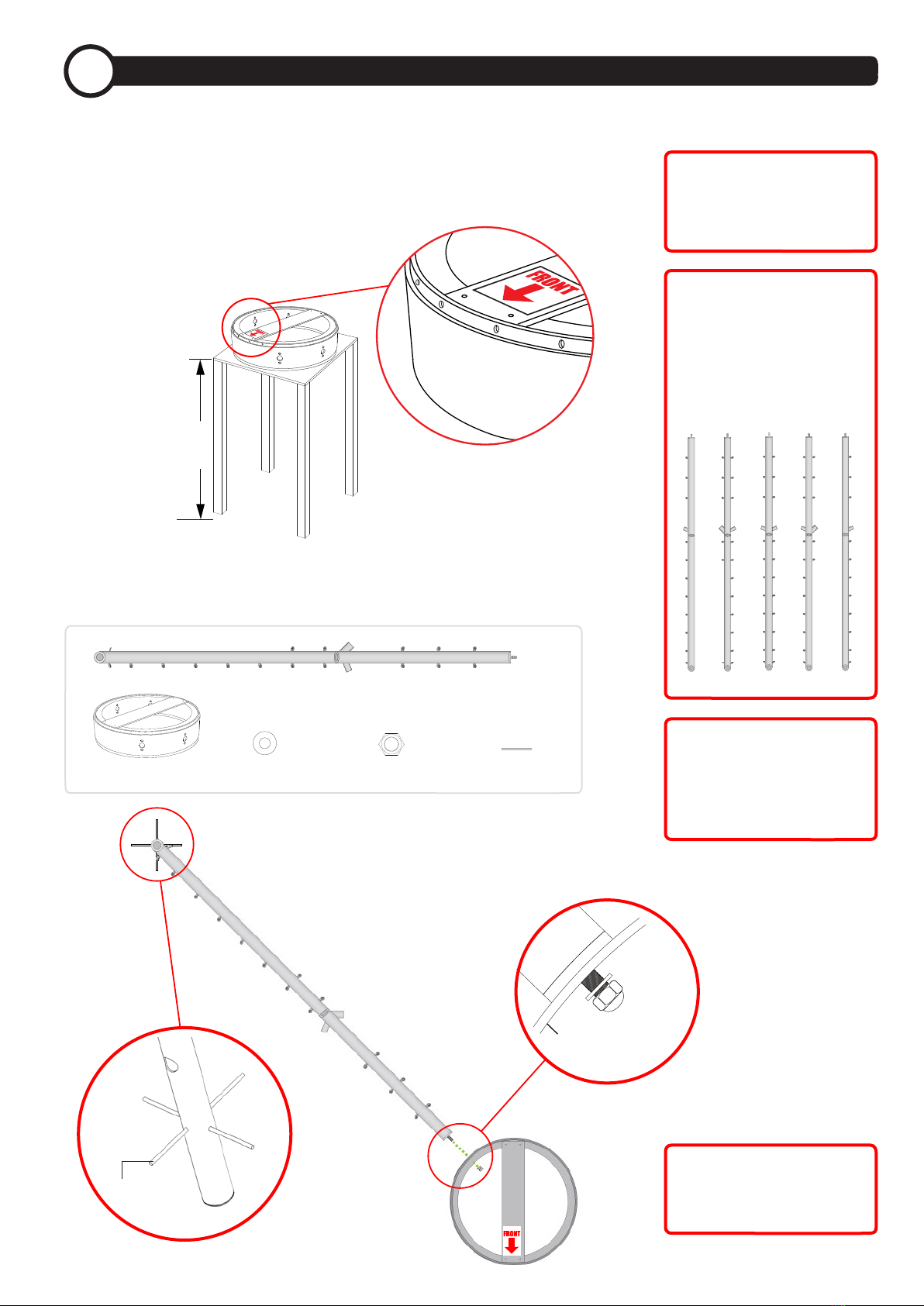

The installation will become easier by using
a support table for correct placing and leveling
of the center ring.
Important!
Important!
Important!
Important!
Note that there are 5 dif-
ferent legs. It is important
that they are assembled
correctly in order for nets
and connector tubes to
be mounted. Check label
on the legs.
All bolts, nuts and
threads must be lubri-
cated with the supplied
grease.
Remember to install the
casting anchors.
The 4 narrowly placed
holes on the center ring
should face forward.
1 x Center Ring
1 x Rear left leg (leg C)
Top of impact area
2 x Washer M16 2 x lock nut M16
143 cm
4.1 Support of the center ring
4.2 Mounting of rear left leg (Leg C)
A C B+E D F
2 x Casting anchor
Installed
casting anchors
4.3 Mounting of rear right leg (Leg D)
4.4 Mounting of two middle legs (Leg B + E)
4.5 Mounting of two front legs (Leg A + F)
1
2
2 x Middle leg (leg B + E)
2 x Connector tube
2 x Connector tube
1 x Rear right leg (Leg D)
Front left leg (leg A)
Front Right leg (leg F)
2 x Inner plug B
4 x Inner plug A
4 x Inner plug A
1 x Rear connector tube
2 x Washer M16
4 x Washer M16
4 x Washer M16
2 x Lock nut M16
4 x Locking nut M16
4 x Locking nut M16
4 x Self tapping screw
4 x 20 mm
8 x Self tapping screw
4 x 20 mm
8 x Self tapping screw
4 x 20 mm
Important!
The Inner plugs must
be predrilled with a
3.5 mm drill before
the self tapping screws
are installed.
2 x Casting anchor
4 x Casting anchor
4 x Casting anchor

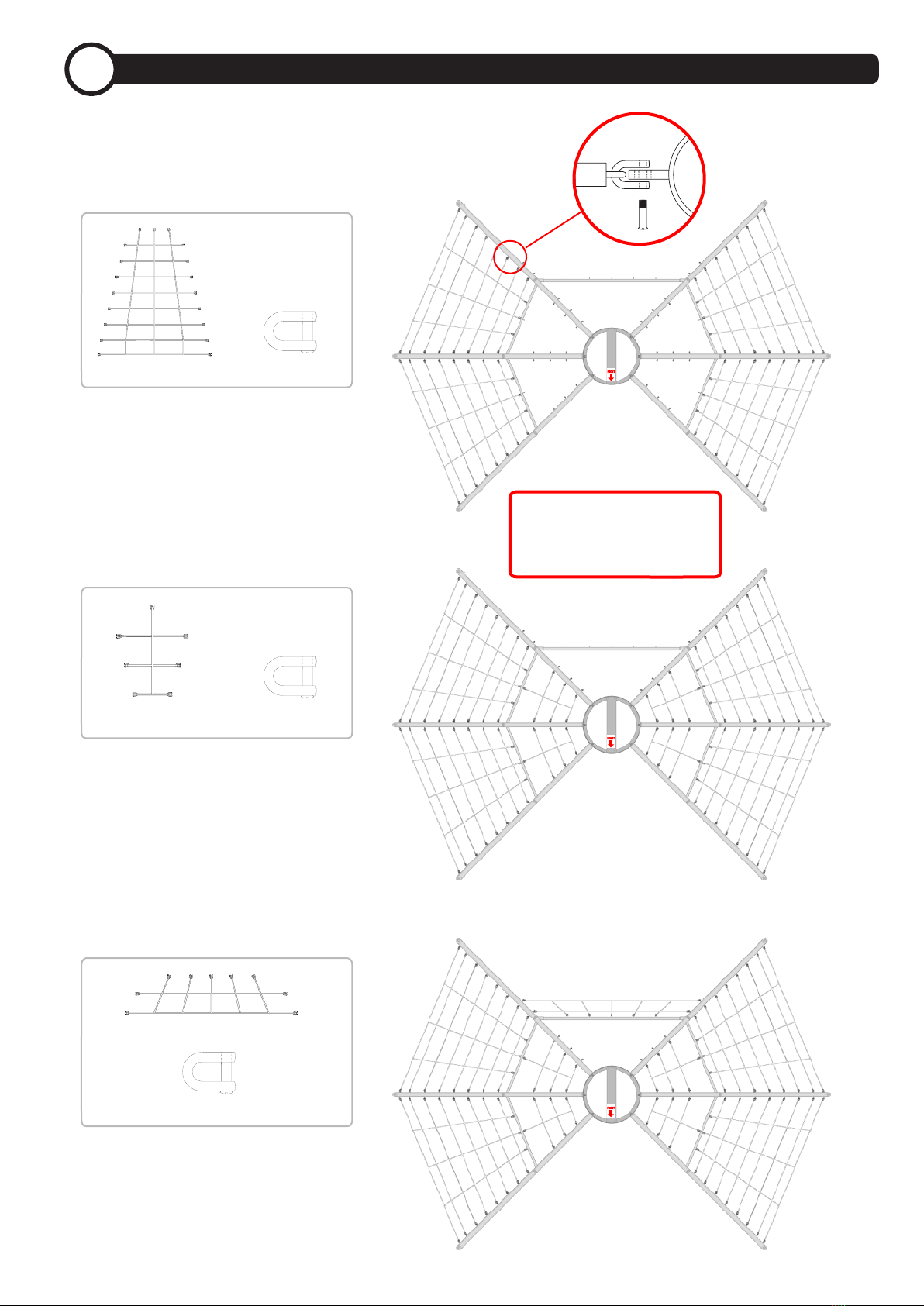

Mounting of nets
5
5.1 Mounting of side nets
5.2 Mounting of top net
5.3 Mounting of rear net
4 x Side net
4 x Top net
1 x Rear net
76 x Shackle
28 x Shackle
9 x Shackle
Important!
Shackles must be secured
with the supplied glue.

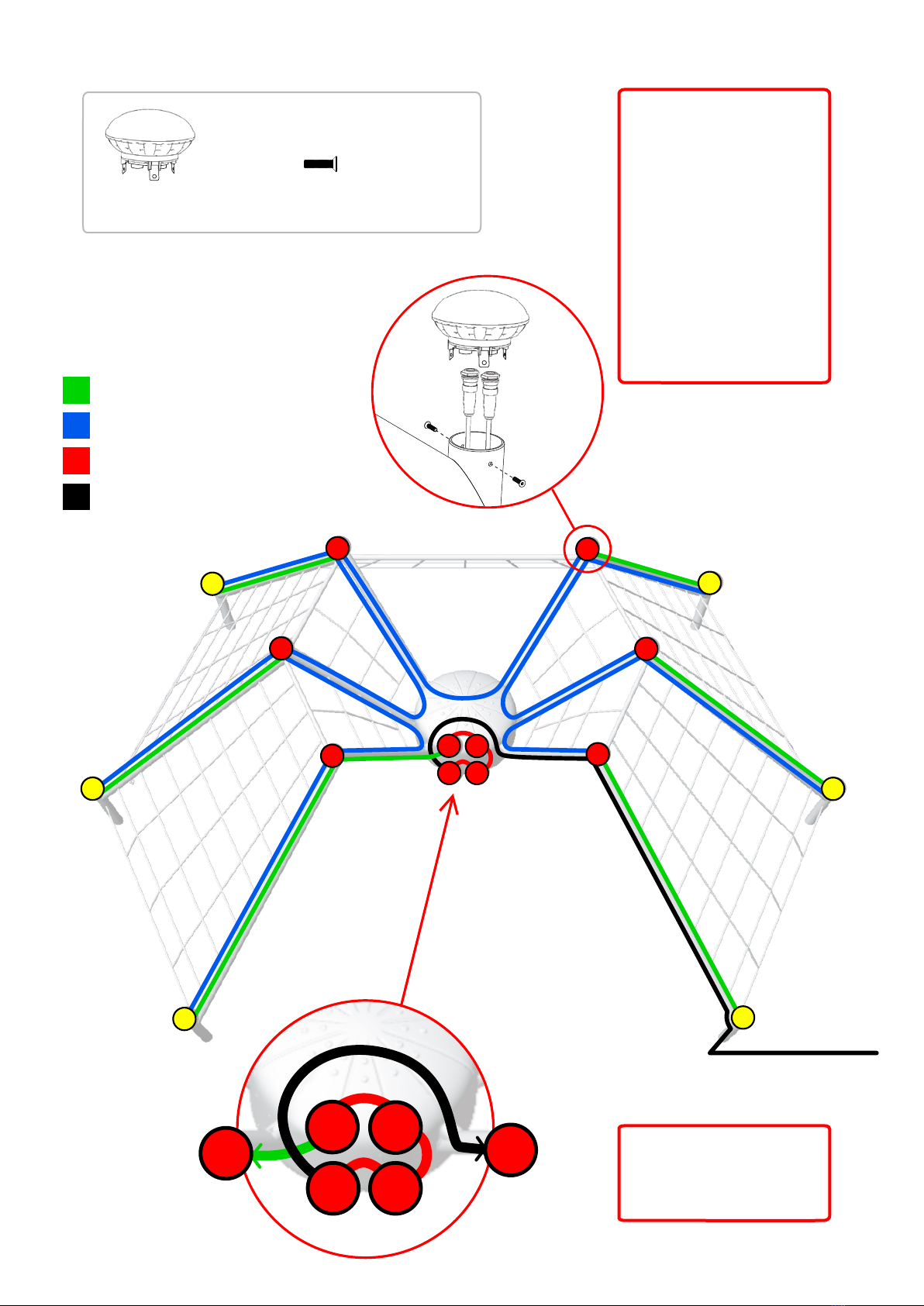

0
Satellite with ID 0
Electronics
6
6.1 Pulling of devicenet cable
6.2 Pulling cables inside the legs
Cable from knee to foot (3,5 m)
Cable from foot to neighbour
knee (7 m)
Devicenet cable from power supply
(IPSU) to satellite 0
1 x Devicenet cable cable 33 m
6 x 3,5 m Data cable
5 x 7 m Data cable
1 x 33 m Devicenet cable
Important!
The connectors must be kept dry
and free from dirt, sand and soil.
The cables must be handled with
care and must never be pulled in
the plugs.
1 x 230 AC cable
c
The cable must be pulled in the leg closest to
the power supply box
a
a + b + c must not exceed 28m
b
Power cabinet
min. 40 x 40 cm
1 x Power supply
(IPSU)
5 cm
230V
Power supply
(IPSU)
Tip:
When installing the cables inside
the tubes of the spider, it can be
of advantage to pull them two
at a time. This makes them less
exible and easier to pull.
Tape
6.3 Mounting of satellites placed in the legs
12 x Satellite
Important!
Important!
All satellites have an
ID number which can
be found on the bot-
tom of the satellite. The
ID-number determines
where the satellite must
be placed on the Spider.
(see the illustration)
Satellites must be
wired using serial
connection – Please,
carefully follow the
illustration below.
Use termination plug to
nish the ID 2 satellite.
30 x Countersunk screw M5 x 12 mm
5 4
11 10
12 9
13 8
6 3
7 2
0
14 15
1
7
6
54
3
2
13
12
11 10
9
8
1
15
0
14
5 4
11 10
12 9
13 8
6 3
7 2
0
14 15
1
1
15
14
0
8
13
Cable from knee to foot (3,5 m)
Cable from foot to neighbour
knee (7 m)
Devicenet cable for power supply
(IPSU)
Cable for connecting the eyes (2 m)
