PMV Mounts PMVMOUNTMTDX Bedienungsanleitung
Assemble Stand
1Bottom View Top View
A
B
C
D
E
F
G
A - Metal Pivot Bridge
B - Metal Pivot Bush
C - Metal Pivot Washer
D - Nylon Pivot Spacer
E - Nylon Pivot Pad
F - Metal Pivot Axel
G - M8 x 35mm Bolt
H - M8 x 20mm Bolt
H - M8 x Nut/Washer
TV Fixing Kit
Stand Assembly Kit
S - M6 x 20mm
L - M8 x 20mm
I - M6 x 30mm
J - M8 x 30mm
K - M8 x 50mm
Q - M8 x 6mm
R - M8 x 12.5mm
O - M8 x 6.5mm
P - M6 x 6.5mm
M - M6
N - M8
x1
x2
x2
x2
x1
x1
x2
x4
x4
x12
x4
x4
x4
x4
x2
pmvmounts.co.uk
ŸRead these instructions carefully before installing your equipment.
ŸInstall the stand in a suitable location and only on a horizontal flat surface.
ŸDo not attempt to alter or modify any part of the desk mount or its
attachments.
ŸDo not use if any parts are broken or appear to be damaged.
ŸTighten all bolts and fixings securely. Only use fixings provided with this
stand.
ŸDo not mount your TV close to sources or heat or moisture.
ŸAlways have a minimum of two persons to install the TV.
Mounting instructions for XL Universal TV desk/table top stand.
VESA 200/300/400/600 x 400 - Universal up to 880mm X 575mm
37" to 68" (94cm to 173cm) - Up to 75Kgs
Model No.
PMVMOUNTMTDX
Factory No.
ZMTD5
32
Sx2
Hx4 A-Rx4

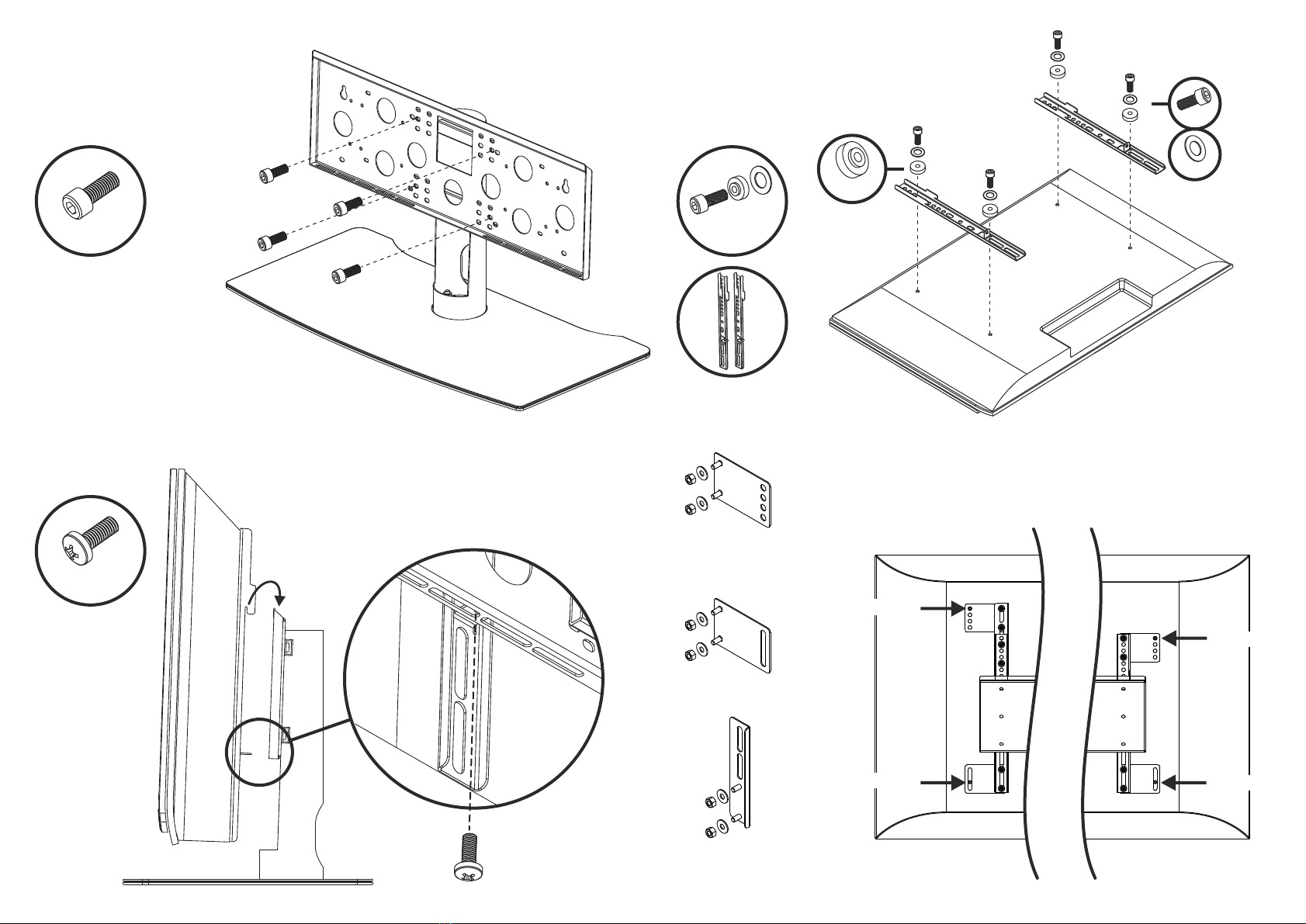

Hang Screen On
Using Extender Plates
TV Mounting Plate
45
Attach Screen Fixing
Uprights To Screen
Attach TV Mounting
Plate.
A-Dx4
G-Jx4
E-Fx4
Configuration with
Height and Width
Extenders
Configuration with
Width Extenders only
a
b
c
Top width extender x2
Bottom width extender x2
Height extender x2
a
a
b b
c
TV Fixing
TV Fixing
TV Fixing TV Fixing
