PNY Vibe 1GB Bedienungsanleitung

www.pny.com

PNY Technologies, Inc.

299 Webro Road.

Parsippany, NJ 07054-0218

Contents

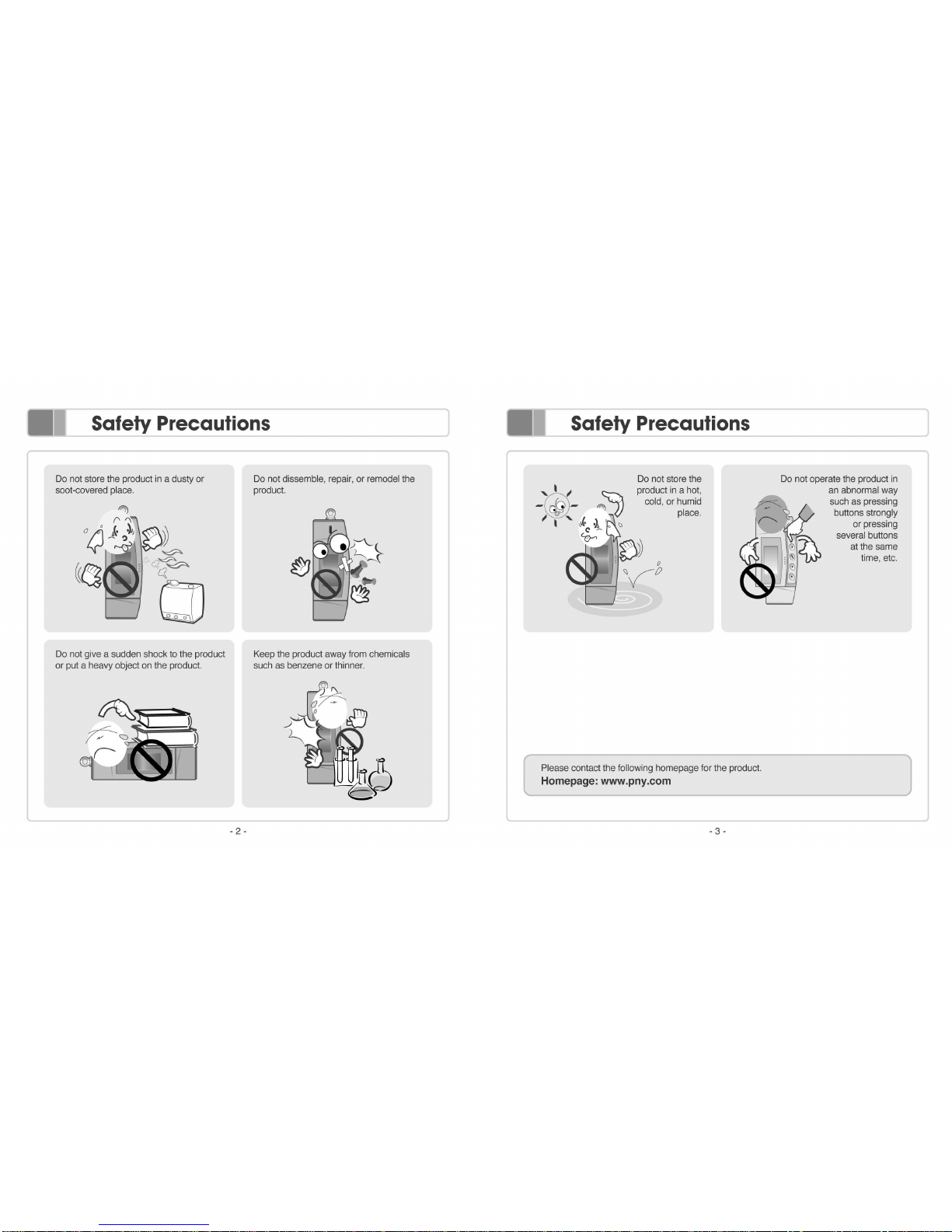

Safety Precautions ..................................................................................................................3

Components ..............................................................................................................................4

Components ........................................................................................................................4

Name of Each Part ..............................................................................................................5

Replacing the Battery .........................................................................................................7

Connecting to the PC ..............................................................................................................8

Installing the VIBE Software ..............................................................................................9

Using USB ...........................................................................................................................12

Removing VIBE Safely .......................................................................................................14

Formatting VIBE ..................................................................................................................15

Using VIBE ................................................................................................................................16

Before Using ........................................................................................................................16

LCD Screen by Each Mode ...............................................................................................17

Button Functions .................................................................................................................19

Basic Functions ...................................................................................................................22

Listening to Music ...............................................................................................................22

Voice Recording ..................................................................................................................23

Listening to Radio Channels ..............................................................................................23

Menu Setup .........................................................................................................................25

Firmware Upgrade ...................................................................................................................33

Specifications ...........................................................................................................................34

When VIBE does not work properly .....................................................................................35

Precautions ...............................................................................................................................36

FCC .............................................................................................................................................37

- 1 -

*mp3 2004.3.17 7:24 PM ˘`1

Components

- 5 -

Components

- 4 -

1VIBE Player 2Earphone/Necklace

3Installation CD 4One AAA Battery

5Manual 6USB Cable

Front

Name of Each Part

Components

- 7 -

Components

- 6 -

Side

Back

Open the battery cover by pressing it down on the latch.

Insert a new battery with the correct polarity as shown in the battery cavity.

Replacing the Battery

1 2

3 4

Connecting to the PC

- 9 -

1Insert the installation CD in the CD-ROM to display the automatic

execution as shown below.

Connecting to the PC

- 8 -

• Minimum PC Specification

• Pentium 133MHz or higher

• Windows 98/ME/2000/XP

• Hard Disk Memory more than 20MB

• CD-ROM Drive

• USB Port

Note Please make sure your computer systems has the latest version of your

operating system.

2Click “Setup.Program”to

install the installation

program.

3Click Next button to see the

privilege contract as shown

below.

Installing the VIBE Software

Connecting to the PC

- 11 -

Connecting to the PC

- 10 -

4If the user agrees to the privilege contract, click Yes button.

5Select the folder to install the program, and click Next button.

6Please wait while the

program is being installed.

7After installation is completed,

click Finish button.

Note After installation is completed in Windows 98/ME, the PC

must be rebooted so that the program can function properly.

Connecting to the PC

- 13 -

Connecting to the PC

- 12 -

1The VIBE software must be installed if you

are using Windows 98.

2Remove battery pack from

VIBE and connect VIBE to

PC. (Use a USB cable when

needed.)

3This is recognized as a “portable

disk” in My Computer, the use

can use it like a hard drive.

Note

The user can use the portable disk like a normal hard drive.

As shown above, folders can be created to store music thereby

maximizing the VIBE folder function. Data folders can also be created

to store various data other than music thereby improving the initial

booting speed. . FM folder and Voice folder are automatically created

in VIBE and FM and Voice recording files.

Using USB

Connecting to the PC

- 15 -

Note When formatting in Windows XP, if File System is FAT32

or NTFS , VIBE does not work.

1Choose Format in “Removable Disk” as

shown below.

Connecting to the PC

- 14 -

1For Windows ME/2000/XP

Close all windows relating to VIBE.

Click “Removing USB Drive”on the lower-left part. The message that

the product is completely removed is displayed. Then disconnect VIBE

from the PC.

2For Windows 98

Close all windows relating to VIBE.

When “USB Connected…” blinks on the LCD, data is being

transmitted to/from VIBE. When “USB Connected…” is not blinking,

VIBE can be disconnected from the PC.

2After setting File system to FAT, press

Start button to format.

Removing VIBE Safely Formatting VIBE

Using VIBE

- 17 -

LCD Screen by Each Mode

Using VIBE

- 16 -

Before Using

1For files except music files, make a “Data” folders and store non-music

files there.

2To listen to music in order, insert digits in front of music files.

(Insert “01. 02. 03.”in front of music files to store them in VIBE.).

3When formatting VIBE in Windows XP, it is necessary to change the

File System to FAT. VIBE will not function if formatted in FAT 32 or

NTFS file systems.

To use VIBE more efficiently, please keep the following in mind: MUSIC PLAY MODEMUSIC STOP MODE

VOICE PLAY MODEVOICE STOP MODE

FM PRESET MODEFM SEEK MODE

*mp3 2004.3.17 7:25 PM ˘`16
