Pocket Radar SD2000 Montageanleitung
Smart Display
USER MANUAL & GUIDE
www.PocketRadar.com
SD2000
For use with Pro Radar Module (model RM1500)
or with Smart Coach Radar (model SR1100)
Pocket Radar, Inc.
3535 Industrial Dr. Suite A4
Santa Rosa, CA 95403
Toll Free: 888-381-2672
Support: Info@PocketRadar.com
Website: www.PocketRadar.com
Revision 1.0
TABLE OF CONTENTS
Introduction...................................................................................1
What’s Included (Display).............................................................2
Product Tour.................................................................................3
Smart Display..........................................(3)
Accessories.............................................................................4 - 5
Included...................................................(4)
Not Included............................................(5)
Mounting Options..........................................................................6
Select Your Radar.........................................................................7
Pro Radar Module....................................(7)
Smart Coach Radar...................................(7)
Pro Radar Module.................................................(Pages 8 - 29)
Getting Started........................................................................8 - 9
Set Up Instructions...................................(8)
Set Up Illustrations...................................(9)
Aiming.................................................................................10 - 13
Must Aim Radar at Release Point.............(10)
Aiming Illustrations....................................(11)
Beam Size: Close Up................................(12)
Beam Size: Long Range...........................(13)
Separate Accessories.................................................................14
Mounting Options........................................................................15
Power Options............................................................................16
Power On - Self Test.................................(16)
Standard Batteries....................................(16)
USB Powered...........................................(16)
Standard Menu...................................................................17 - 19
Recall Memory..........................................(17)
TABLE OF CONTENTS
Clear Memory ..........................................(18)
USB / Battery Level..................................(19)
Advanced Menu..................................................................20 - 26
Measurement Units (vnt)..........................(21)
Sensitivity / Range (sen)...........................(22)
Auto-Off / Timer (tof)...............................(23)
Auto-On (aon)...........................................(24)
Brightness (br).........................................(25)
Display Version (Uer)...............................(26)
Sensitivity Settings......................................................................27
Factory Default Settings.............................................................28
Specications.............................................................................29
Smart Coach Radar.............................................(Pages 30 - 46)
Getting Started....................................................................30 - 31
Set Up Instructions...................................(30)
Set Up Illustrations...................................(31)
Aiming.................................................................................32 - 33
Must Aim Radar at Release Point.............(32)
Aiming Illustrations....................................(33)
Separate Accessories.................................................................34
Mounting Options........................................................................35
Power Options............................................................................36
Power On - Self Test.................................(36)
Standard Batteries....................................(36)
USB Powered...........................................(36)
Standard Menu...................................................................37 - 38
Recall Memory..........................................(37)
USB / Battery Level..................................(38)
TABLE OF CONTENTS
Advanced Menu..................................................................39 - 44
Measurement Units (vnt).........................(40)
Auto-Off / Timer (tof)...............................(41)
Auto-On (aon)...........................................(42)
Brightness (br).........................................(43)
Display Version (Uer)...............................(44)
Factory Default Settings.............................................................45
Specications.............................................................................46
Troubleshooting..................................................................47 - 50
Interference.............................................(47)
Ghost Readings......................................(48)
Tips to Eliminate Interference.................(48)
Angles.....................................................(49)
Cosine Error............................................(50)
Error Codes................................................................................51
FCC Class B Statement..............................................................52
Product Label..........................................(52)
User Manual............................................(52)
Warranty Information...........................................................53 - 54
Congratulations! You are now the owner of the most exible, pro
performance speed display on the market. Innovative technology places
the Pocket Radar’s Smart product line at the forefront of the sports and
analytics revolution by providing accurate and instant feedback.
The Smart Display is compatible with multiple Pocket Radar devices,
including the Smart Coach Radar and the Pro Radar Module. The
Smart Display is viewable to over 100 feet in bright sunlight, with a wide
viewing angle and full 3 digit display. Lightweight and ultra-portable for
indoor or on the eld use, its brightness levels adjust automatically with
lighting conditions. It can be powered using standard Alkaline C-size
batteries or externally using standard USB chargers or Power Packs.
The Pro Radar Module features proprietary ball-tracking technology to
provide the user with professional level accuracy of +/- 1 MPH. The
rugged, water-resistant casing is built from the same high-impact plastic
as football helmets. Flexible conguration features allow for customized
set-up options to best t your speed measurement needs.
The Smart Coach Radar is a one of a kind speed radar that can display
speeds stand-alone, connected to the Smart Display, or connected to
the Pocket Radar App. With professional level accuracy of +/- 1 MPH, it
features the same proprietary ball-tracking technology as the Pro Radar
Module, but in a pocket-sized form factor.
If you want to be a power user and try other features and settings,
reading through this manual will help you to take full advantage of the
other features and capabilities of Pocket Radar’s Smart product line.
Any questions: check the Pocket Radar™ website under frequently
asked questions (FAQ’s) or contact us at Info@PocketRadar.com.
INTRODUCTION
1
WHAT’S INCLUDED (DISPLAY)
2
2. One 2 amp AC power supply (USB charger)
1. Two 6 ft (2 meter) USB cables Type A to Micro B
3. Two carabiners
The parts included with your Smart Display package are listed below.
See page 7 for Radar selection.
If you are missing any components, please contact Pocket Radar, Inc.
at 1-888-381-2672 or email Info@PocketRadar.com
1 2 3
Smart Display
SD2000
PRODUCT TOUR
3
Smart Display
Front Back
Bottom
1. KPH units indicator or brightness sensor 10. Indicator light for USB power
2. MPH units indicator or brightness sensor 11. USB out to radar
3. 3 Digit 7 segment speed display 12. Adjustable handle
4. Battery door 13. Tripod mounting nut
5. Instruction label 14. Slots for tripod alignment pins
6. Cable slots for USB Power Packs
7. Power / Selection button (red)
8. Recall / Mode button (black)
9. USB power input
12
3
4
5
6
13
14
Side
7
8
11
10
9
12
ACCESSORIES
4
One 2 amp AC power supply (USB charger)
Two 6 ft (2 meter) USB cables Type A to Micro B
Two carabiners
Included
The cables are used to connect your radar device to the
Smart Display, as well as provide USB power.
The carabiners are used to
hang the Smart Display onto
a fence or camera tripod. See
Mounting Options on page 6.
The AC power supply is used
to provide power via USB.
5

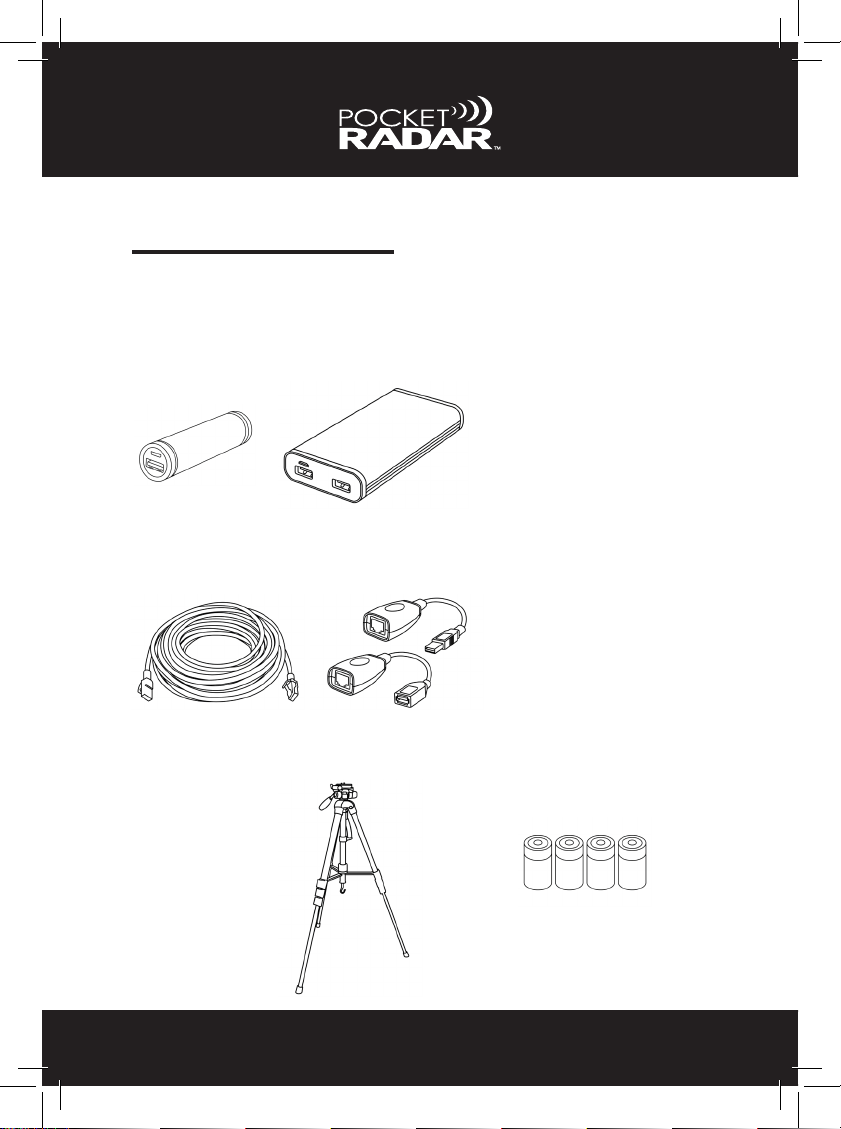

ACCESSORIES
Not Included
USB Power Packs USB Power Packs are
available in several sizes
and power ratings. Small
ones should provide over
5 hours of use from a fresh
charge.
Alkaline C-Size Batteries
Camera Tripod
A Deluxe Tripod
may be purchased
through the Pocket
Radar online store.
4 Alkaline C-size batteries
provide up to 14 hours of
use with the Smart Display.
USB cables are only useful
up to 6 feet (2 meters) in
length. If you plan to set
up the Smart Display more
than 6 feet apart from your
radar, this Extender Kit
is available through the
Pocket Radar online store.
50 foot USB Extender Cable Kit
