Polaroid ADS-2000 Bedienungsanleitung

Docking Station

ADS-2000

User’s Manual

20060623

- -

Table of Contents

Important Safety Instruction--------------------------------------------

Accessories-----------------------------------------------------------------

Features ----------------------------------------------------------------------

Front View -------------------------------------------------------------------

Display Panel-----------------------------------------------------------------

Rear Panel & Side Panel----------------------------------------------------

Remote Control -----------------------------------------------------------

Attaching & Detaching Portable DVD player----------------------

System Connections-----------------------------------------------------------

TV Setup --------------------------------------------------------------------------

AV Setup --------------------------------------------------------------------------

Troubleshooting -------------------------------------------------------------

Specifications ----------------------------------------------------------------

- -

Important Safety Instruction

CAUTION

1. The product contains a low-power laser device. In order to ensure the safety of the laser

device, do not remove any cover and attempt to repair the unit. If any service is needed,

please contact the distributor or its authorized service center.

2. To reduce the risk of electric shock, do not remove the cover (or back). No user-serviceable

parts inside. Refer servicing to qualified service personnel. Unplug the product from the wall

outlet before servicing or when it is unused for a long period of time.

3. The manufacturer should not hold responsibility for the damage caused by any substitutions

and modifications of the product without authorization from the manufacturer or authorized unit.

WARNING

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,

such as vases, shall be placed on the apparatus.

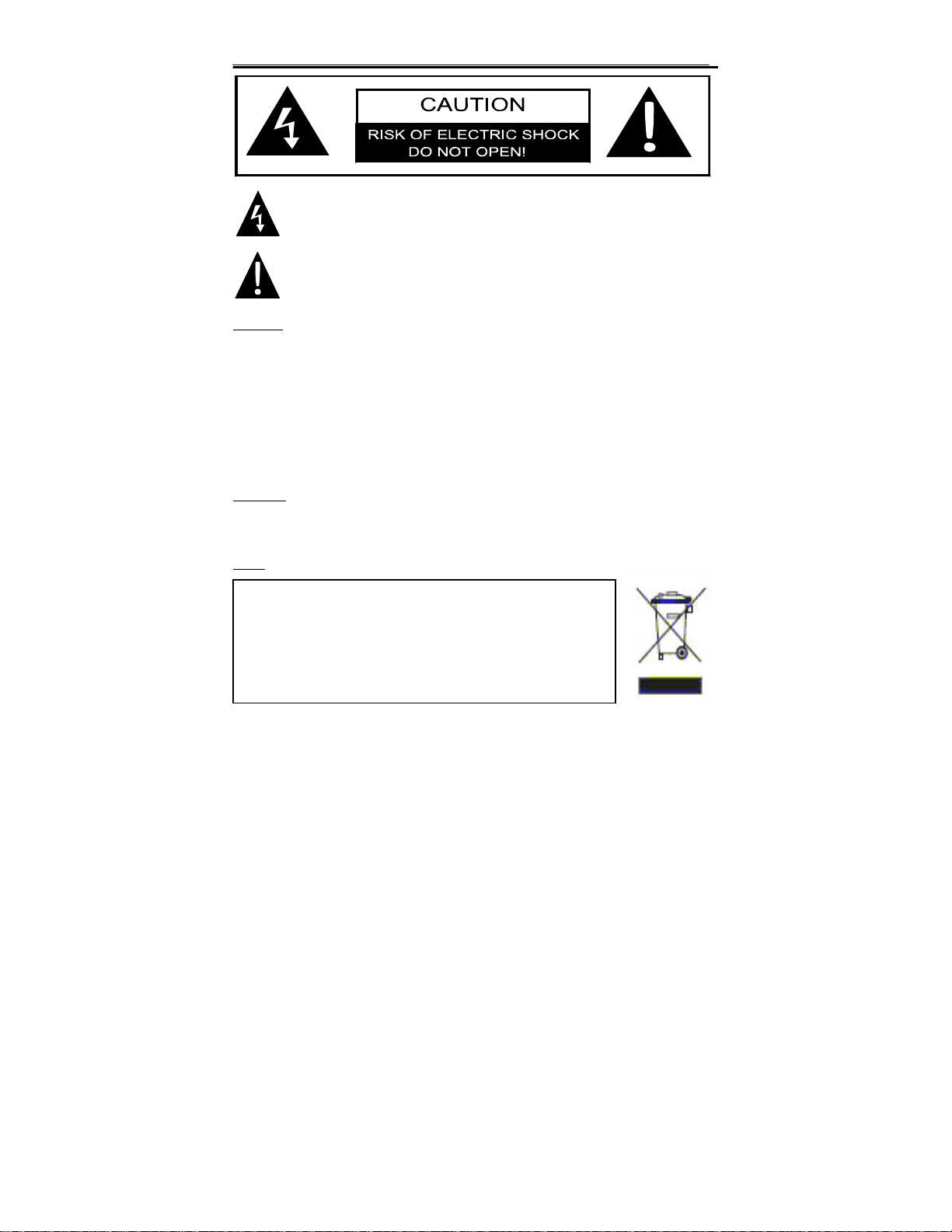

WEEE

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended

to alert the user to the presence of un-insulated “dangerous voltage” within the

product’s enclosure that may be of sufficient magnitude to constitute a risk of

electric to persons.

The exclamation point within an equilateral triangle is intended to alert the user to

the presence of important operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

This product contains electrical or electronic materials. The presence of

these materials may, if not disposed of properly, have potential adverse

effects on the environment and human health. Presence of this label on

the product means it should not be disposed of as unsorted waste and

must be collected separately. As a consumer, you are responsible for

ensuring that this product is disposed of properly. To find out how to

properly dispose of this product, please go to www.polaroid.com and

click on “Company“ or call the customer service number for your country

listed in the instruction manual.

- -

Important Safety Instruction

NOTES

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Maintain well ventilated conditions around

the product. Do not put product on bed, sofa or anything that blocks ventilation.

Install according to the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves or

other apparatus (including amplifiers) that produce heat.

9. Read, heed and follow all instructions to ensure correct and safe installation and

interconnection of the apparatus;

10. The apparatus shall not be exposed to dripping or splashing and that no objects

filled with liquids, such as vases, shall be placed on the apparatus;

11. The mains socket-outlet shall be installed near the apparatus and the mains plug

shall remain readily operable;

12. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

13. Only use attachments/accessories specified by the manufacturer.

14. Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution when

moving the cart/apparatus combination to avoid injury from tip-over.

15. Unplug the apparatus during lightning storms or when unused for long periods of

time.

16. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

- -

Accessories

Accessories list

ITEM NAME QTY

Owner’s Manual 1

Power-supply Cord with AC adapter 1

Audio/Video Cable 1

Remote Control 1

Note: accessories and their parts numbers are subject to change without prior

notice.

- -

Features

The Docking Station is designed for connecting to a compatible portable DVD player. It

features an electrical connection interface that enables the portable DVD to effectively

serve as a desktop DVD. It is integrated with connectors for peripheral devices to

eliminate complicated connections and save valuable space around the unit. With the

Docking Station, you can enjoy the expansion possibilities of desktop DVD with the

portability of a portable DVD.

Multiple Mode

zDVD

zTV

zExternal Audio & Video mode

AV Input & AV Output

A/V input and output extend the connections for a portable DVD player.

Switching Power Adapter

Automatically adapts to the voltage required.

TV Functions

zClear TV signal reception.

zSearch for TV channels automatically.

zAutomatically memorize the channels.

Clock Function

Displays the time even if in stand-by mode or if there is no DVD player attached. Timer

will turn the docking station and attached DVD player on and off at desired times.

Designed with alarm function.

- 7 -

FrontView

Front Panel Drawing

1. Power Indicator: in standby mode, it is red; when in operation, it turns green.

2. Remote Sensor: Receives remote control signal for operation.

3. Display panel: Displays the time and status.

4. SOURCE button: Press to shift among DVD, TV, AV1 and AV2 mode.

5. Menu: Press to adjust the Picture standard, including Brightness, Contrast, Color,

Language, or Reset all items.

6. ▲CH+/▼CH- button: Press to select items in the setup menu. Press to select

channels in TV mode. Press to adjust the value when setting the time on the

display panel.

7. ◄VOL - /►VOL+ buttons: Press to select items in the setup menu. Press to

adjust the value in the picture setup menu. Press the ►VOL+ button to enter the

selection. Press the ◄VOL- button to exit the selection.

8. MUTE button: Press to mute off the speakers output.

9. 16:9/4:3 button: Press to change the screen aspect ratio between 16:9 and 4:3.

10. POWER button: Press to enter or exit the STANDBY mode.

11. Spring Tab: Used to spring the portable DVD player up when it is removed. (See

page12)

12. Fixing hooks: Fix the portable DVD player on the Docking Station. (See page12)

13. Docking jack: For connection with a portable DVD player.

- 8 -

DisplayPanel

Display Panel Drawing

1. DVD status indicator

2. AV status indicator

3. TV status indicator

4. Alarm indicator

5. Hour or character indicators

6. Minute or character indicators

7. PM time indicator

8. AM time indicator

- 9 -

RearPanel&SidePanel

Rear Panel Drawing

1. ANT INPUT jack

Connects to external antenna to receive the TV program in TV mode

2. L/R AUDIO OUT jack

Output the audio signal to external equipment, such as amplifiers, etc.

3. VIDEO OUT jack

Output the video signal to external equipment such as monitors, etc.

4. L/R AUDIO IN jack

Connects to external audio signal source

5. VIDEO input jack

Connects to external video signal source

6. DC 12V input jack

Connects to the AC adapter

7. Main Power Switch

Side Panel Drawing

1. Speakers: output high quality

stereo sound.

2. Release buttons: Slide these

buttons to release the portable

DVD player from the Docking

Station. (See page 12)

- 10 -

RemoteControl

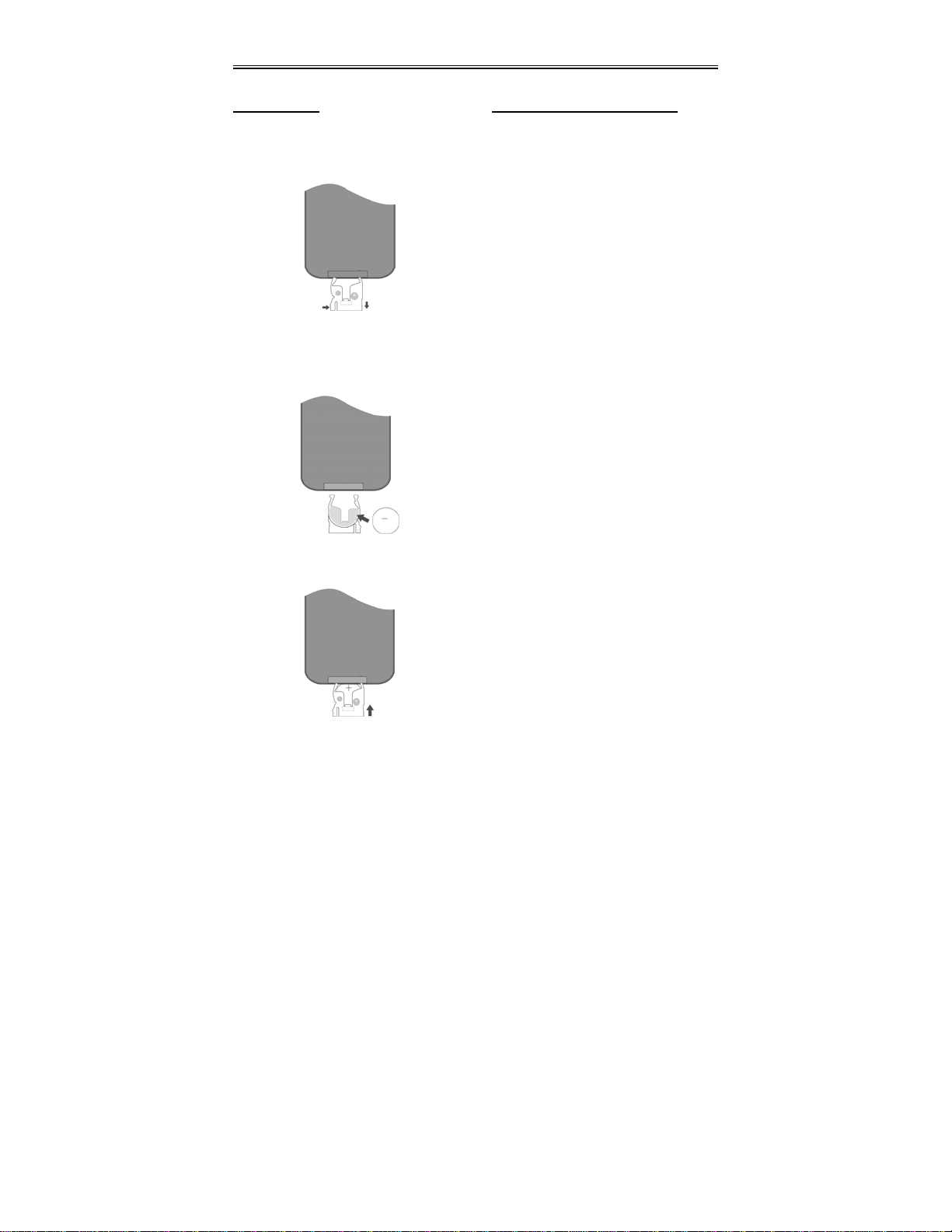

Preparation

Refer to the drawing and take out the

empty battery receptacle.

Insert the battery into the receptacle.

Make sure the polarity matches the

marks inside the component.

Insert the receptacle into the remote

control.

Using Of Remote Control

Point the remote control towards the

main unit when operating. The remote

control works best at a distance less

than 7m and at an angle of up to 60°to

the front of the unit. No obstacles may

stand in the way between remote control

and infrared sensor.

The batteries normally last for about six

months. This depends on how often and

for what operations the remote control is

used.

If the remote control unit fails to work

even when it is operated near the player,

replace the battery.

If the remote control is not used for a

long period of time, remove the battery

from the compartment, to prevent

damage by leakage.
